Model Whirlpool FGP215VW2 GAS RANGE – Common Parts & Diagrams

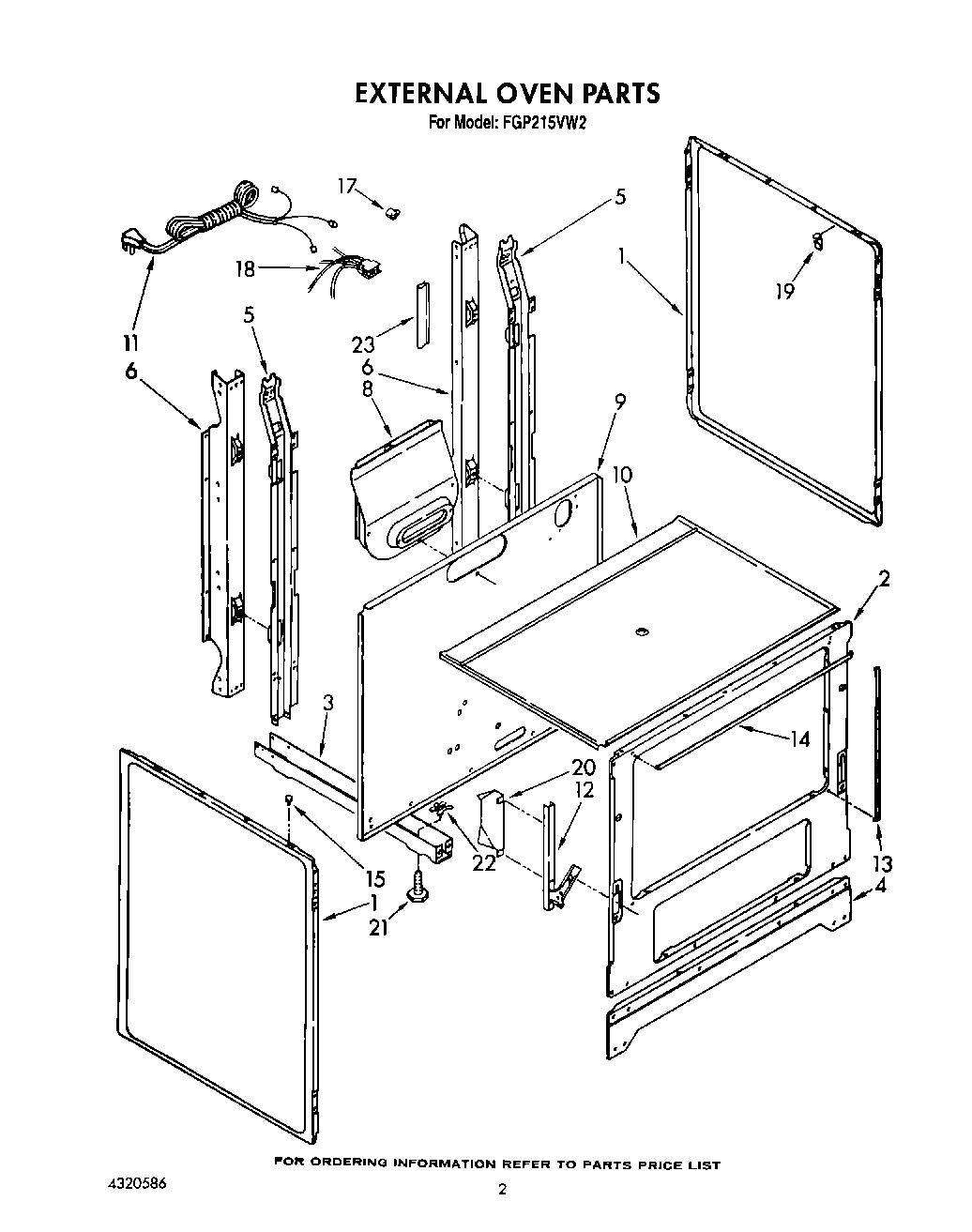

02 - EXTERNAL

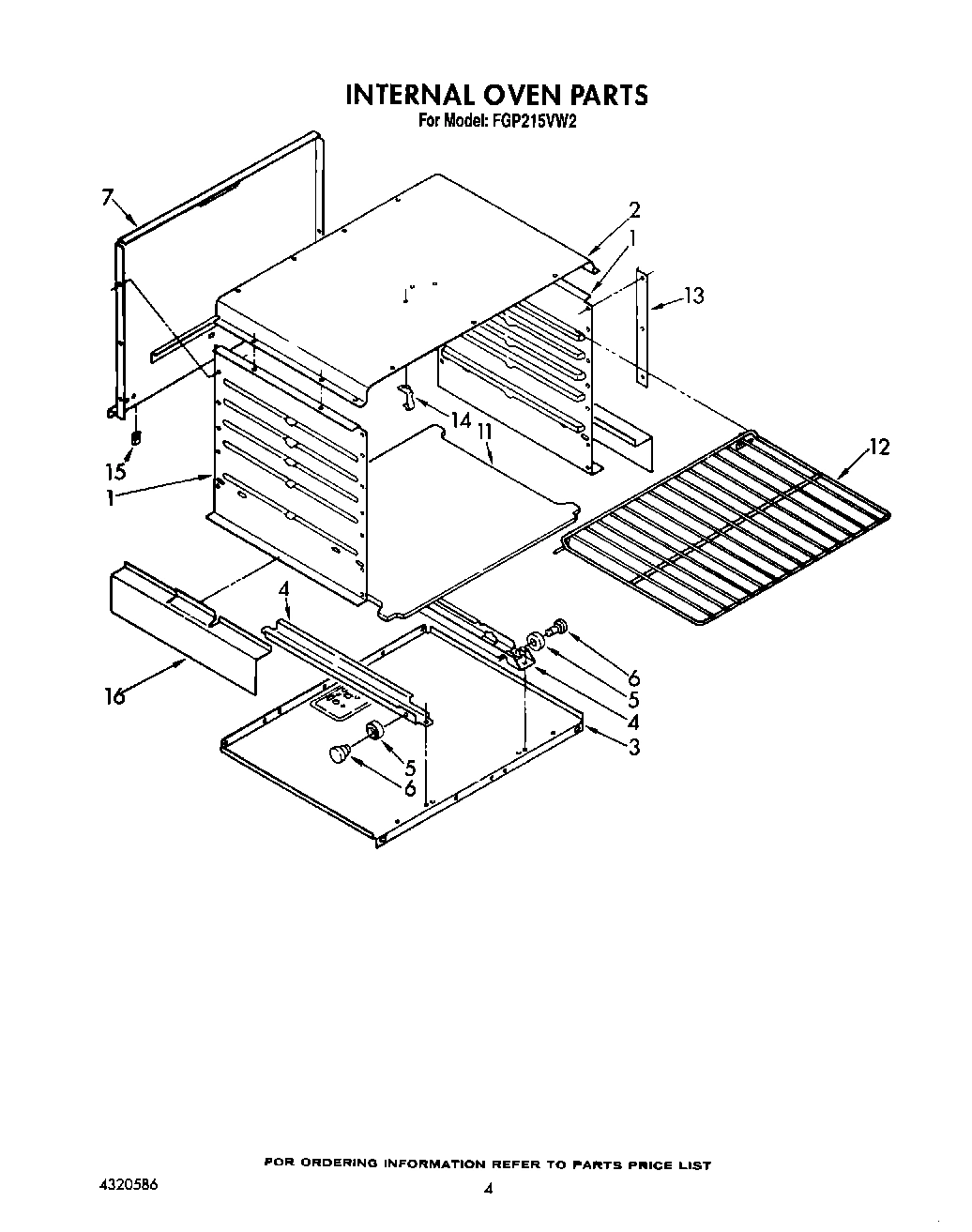

03 - INTERNAL OVEN
05 - OVEN DOOR AND BROILER
04 - BACKGUARD
06 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
Common parts from model Whirlpool FGP215VW2 GAS RANGE
WPL LIT4315518 WPL LIT4315518 Contact Us For Availability
WPL LIT4315527 WPL LIT4315527 Contact Us For Availability
WPL LIT4320586 WPL LIT4320586 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Liner, Door WPL 4315068 Contact Us For Availability
1
Frame WPL 4315545 Contact Us For Availability
1
Cooktop (White) WPL 4320357 Contact Us For Availability
1
Cooktop (Almond) WPL 4320358 Contact Us For Availability
2
Liner, Oven Top WPL 4315048 Contact Us For Availability
2
Grate (4) WPL 4157056 Contact Us For Availability
3
Baffle, Bottom WPL 4315415 Contact Us For Availability
3
Panel, Backguard (White) WPL 4315546 Contact Us For Availability
3
Panel, Backguard (Almond) WPL 4315547 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4157945 Contact Us For Availability
4
Support, Backguard (Screw, 10-32 X 1/2 (1)) WPL 4157123 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Panel, Door (White) WPL 4179271 Contact Us For Availability
4
Panel, Door (Almond) WPL 4179272 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Baffle, Door WPL 4157931 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Clamp, Cable WPL 4157221 Contact Us For Availability
7
Liner, Oven Back WPL 4315060 Contact Us For Availability
7
Insulation WPL 4179320 Contact Us For Availability
7
Support, Burner WPL 4157946 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Insulation (2) WPL 4179321 Contact Us For Availability
8
Burner, Rear (2) (Incl. No. 3) WPL 4179101 Contact Us For Availability
9
Panel, Rear WPL 4315414 Contact Us For Availability
9
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
9
Burner, Front (2) (Incl. No. 3) WPL 4179100 Contact Us For Availability
10
Burner Box WPL 4157925 Contact Us For Availability
11
Knob, Burner (4) WPL 4315516 Contact Us For Availability
11
Bottom, Oven WPL 4315074 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4179315 Contact Us For Availability
12
Rack, Oven (1) WPL 4320535 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315264 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315265 Contact Us For Availability
12
Hinge, Cooktop (2) WPL 4157083 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157794 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
14
Seal, Door (Top) WPL 4315331 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4315543 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315087 Contact Us For Availability
15
Panel, Manifold WPL 4315544 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Valve, 90~ (Includes Ill No. 40) WPL 4314821 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157944 Contact Us For Availability
18
Block, Disconnect WPL 4157220 Contact Us For Availability
18
Carriage, Broiler WPL 4315520 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4315517 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 39) WPL 4314890 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
24
Pin, Roller (2) WPL 4315381 Contact Us For Availability
24
Burner, Oven (Incl. No. 25) WPL 4179289 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157758 Contact Us For Availability
27
Backer, Carriage WPL 4315521 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Screws (3) WPL 4315522 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
34
Module, Spark WPL 4315322 Contact Us For Availability
35
Ignitor (R.H.) WPL 4179200 Contact Us For Availability
35
Ignitor (L.H.) WPL 4179201 Contact Us For Availability
35
Ignitor (Screw, 8 X 1/2 (4)) WPL 4315330 Contact Us For Availability
36
Ignitor, Oven WPL 4315316 Contact Us For Availability
37
Strain Relief WPL 4157185 Contact Us For Availability
39
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
40
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
41
FOIL, ALUMINU WPL 241430 Contact Us For Availability
41
WPL 4315207 WPL 4315207 Contact Us For Availability
× ![]()
