Model Whirlpool FGP215VL5 GAS RANGE – Common Parts & Diagrams

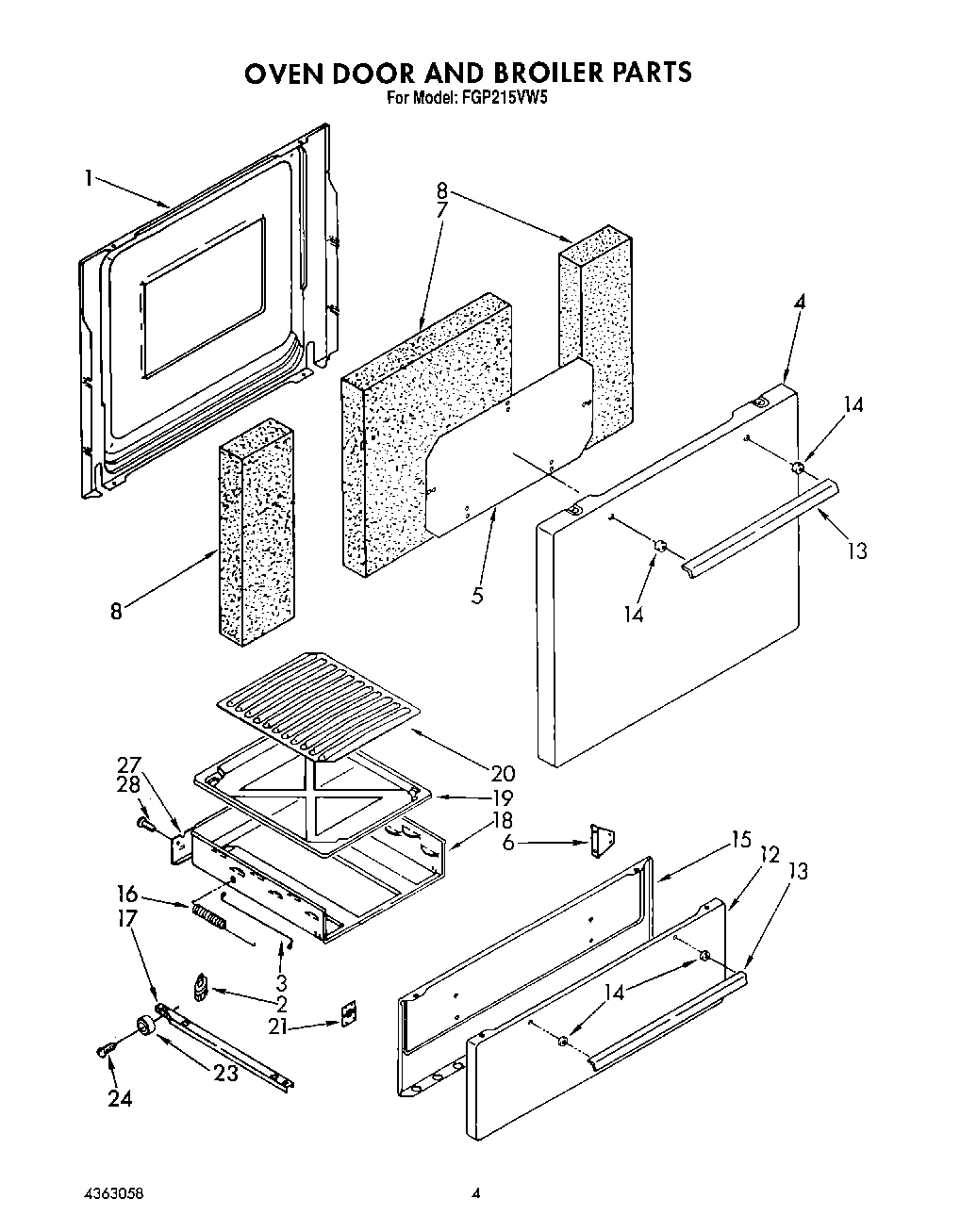

03 - OVEN DOOR AND BROILER

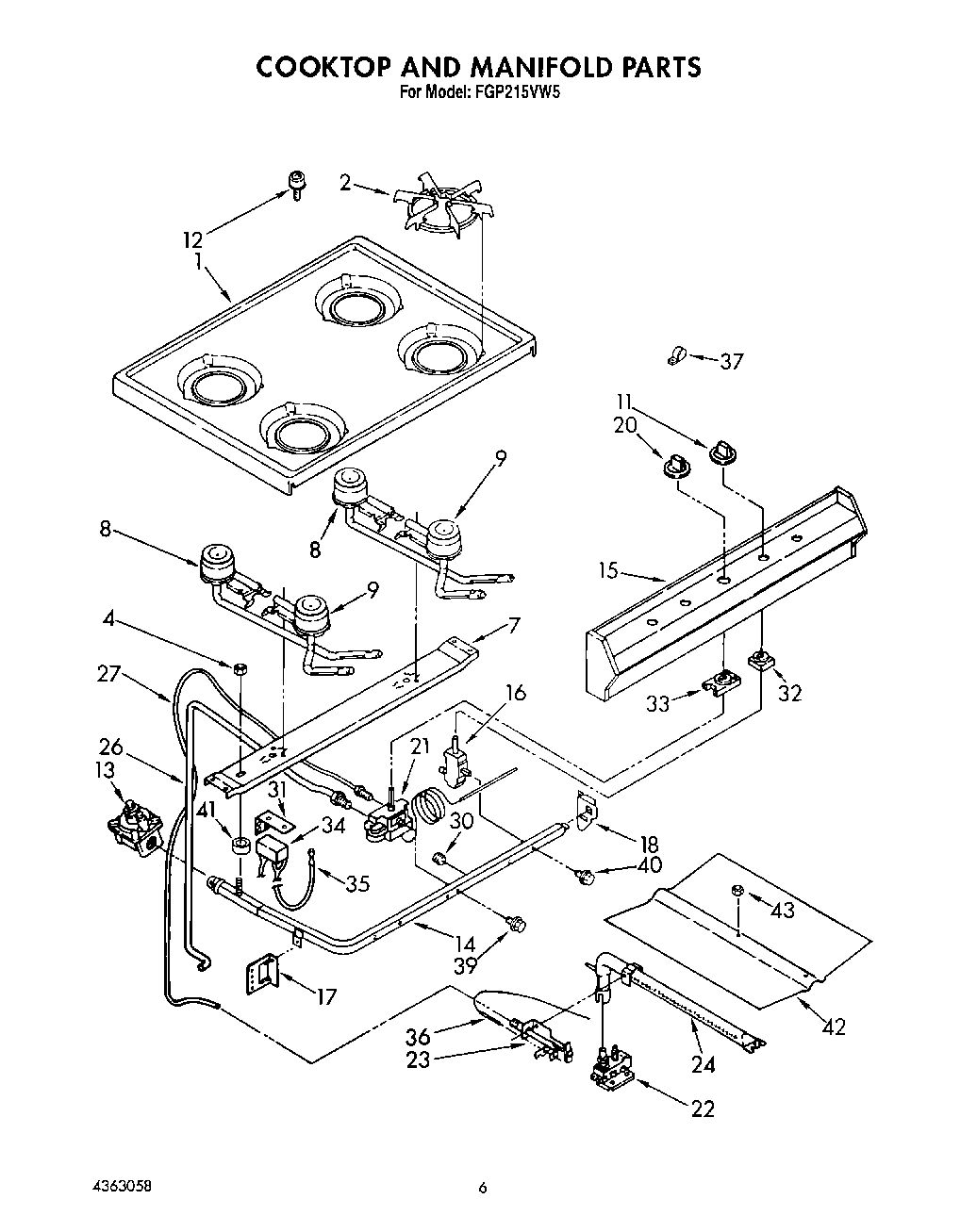

05 - COOKTOP AND MANIFOLD, LIT/OPTIONAL
04 - BACKGUARD
06 - INTERNAL OVEN
02 - EXTERNAL OVEN
Common parts from model Whirlpool FGP215VL5 GAS RANGE
WPL LIT4362938 WPL LIT4362938 Contact Us For Availability
WPL LIT4362950 WPL LIT4362950 Contact Us For Availability
WPL LIT4363058 WPL LIT4363058 Contact Us For Availability
1
Cooktop (White) WPL 4320357 Contact Us For Availability
1
Cooktop (Almond) WPL 4320358 Contact Us For Availability
1
Screw, 10-12 X 3/8 (6) WPL 4157121 Contact Us For Availability
1
Frame WPL 4315545 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315783 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
2
Grate (4) WPL 4157056 Contact Us For Availability
2
Liner, Oven Top WPL 4315048 Contact Us For Availability
2
Frame, Front WPL 4363015 Contact Us For Availability
3
Panel, Backguard (White) WPL 4315546 Contact Us For Availability
3
Panel, Backguard (Almond) WPL 4315547 Contact Us For Availability
3
Baffle, Bottom WPL 4315415 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
4
Panel, Door (White) WPL 4363043 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Base, Front WPL 4363014 Contact Us For Availability
5
Baffle, Door WPL 4363018 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Panel, Lower WPL 4363055 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Bracket (2) WPL 4363048 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Insulation WPL 4179320 Contact Us For Availability
7
Support, Burner WPL 4363017 Contact Us For Availability
7
Liner, Oven Back WPL 4315060 Contact Us For Availability
8
Insulation (2) WPL 4179321 Contact Us For Availability
8
Burner, Rear (2) WPL 4179101 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Burner, Front (2) WPL 4179100 Contact Us For Availability
9
Insulation, Back WPL 4363054 Contact Us For Availability
9
Panel, Rear WPL 4315414 Contact Us For Availability
10
Burner Box WPL 4363050 Contact Us For Availability
11
Knob, Burner (4) WPL 4315516 Contact Us For Availability
11
Bottom, Oven WPL 4363016 Contact Us For Availability
12
Panel, Broiler (White) WPL 4363019 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4363020 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Rack, Oven (1) WPL 4157927 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4315464 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Handle, Door (2) WPL 4157794 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4320575 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4315543 Contact Us For Availability
14
Seal, Door (Top) WPL 4315471 Contact Us For Availability
15
Liner, Broiler Door WPL 4315090 Contact Us For Availability
15
Panel, Manifold WPL 4315544 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Spring (2) WPL 4363045 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 40) WPL 4314821 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
17
Track (2) (L.H. Assembly) WPL 4364032 Contact Us For Availability
17
Track (2) (R.H. Assembly) WPL 4364033 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157944 Contact Us For Availability
17
Strain Relief WPL 4157221 Contact Us For Availability
18
Carriage Broiler WPL 4362896 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4314820 Contact Us For Availability
18
Block, Disconnect WPL 4157220 Contact Us For Availability
19
Clip, Wire (2) WPL 4157127 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4315517 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
21
Hinge, Door (2) WPL 4363046 Contact Us For Availability
21
Thermostat (Includes Ill. No. 39) WPL 4314890 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
24
Burner, Oven (Incl. No. 25) WPL 4320371 Contact Us For Availability
24
Anti-Tip Kit WPL 4363057 Contact Us For Availability
25
Anchor (2) WPL 4321081 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157758 Contact Us For Availability
26
Bracket WPL 4320650 Contact Us For Availability
27
Backer, Carriage WPL 4320540 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
27
Screw (2) WPL 4321082 Contact Us For Availability
28
Screws (3) WPL 4315522 Contact Us For Availability
28
Locator stud (2) WPL 4315408 Contact Us For Availability
28
Stud Screw (2) WPL 4315409 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
34
Module, Spark WPL 4315322 Contact Us For Availability
35
Ignitor (R.H.) WPL 4179200 Contact Us For Availability
35
Ignitor (L.H.) WPL 4179201 Contact Us For Availability
35
Ignitor (Screw, 8 X 1/2 (4)) WPL 4315330 Contact Us For Availability
36
Ignitor, Oven WPL 4315316 Contact Us For Availability
37
Strain Relief WPL 4157185 Contact Us For Availability
39
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
40
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
41
Spacer, Manifold WPL 4315207 Contact Us For Availability
42
Flame Spreader WPL 4320440 Contact Us For Availability
43
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
× ![]()
