Model Electrolux FGIH3047VFE RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH – Common Parts & Diagrams

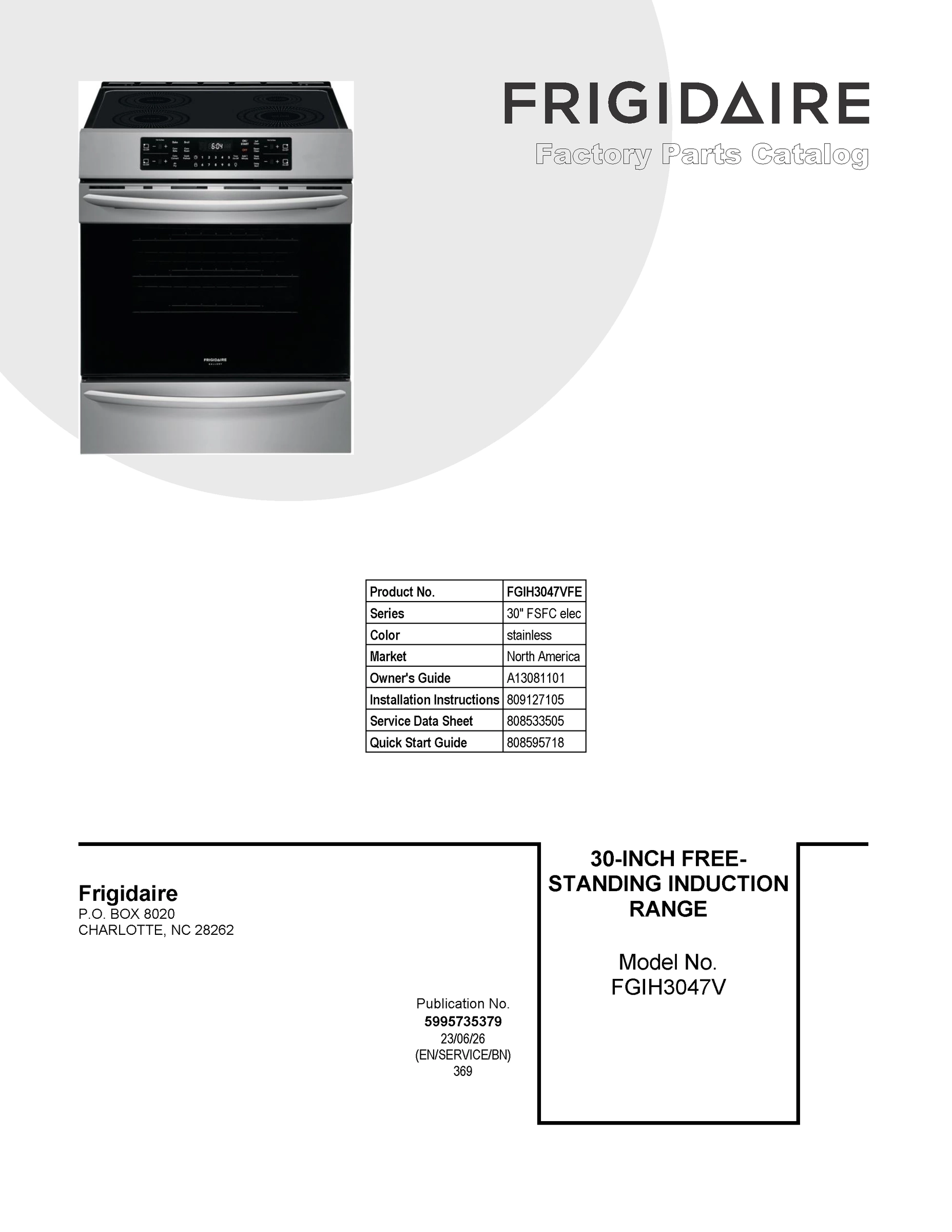

01 - COVER SHEET
02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux FGIH3047VFE RANGE/OVEN, INDUCTION, FREESTANDING, 30 INCH
1
DRAWER, WARMER WCI 807108405 Contact Us For Availability
2
GENERATOR BOARD, POWER, INDUCTION WCI 5304521812 Contact Us For Availability
3
PANEL, BODYSIDE, BLACK, RH WCI 316400144 Contact Us For Availability
3
TRIM KIT-DOOR, 3 SIDED, BLACK, W/TAPE WCI 5303935378 Contact Us For Availability
3
SHIELD, REAR WALL, UPPER WCI 5304514133 Contact Us For Availability
3A
PANEL, BODYSIDE, BLACK, LH WCI 316400145 Contact Us For Availability
4
PANEL, DRAWER, STAINLESS WCI 5304517477 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316402316 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
7A
INSULATION, DOOR LINER, TOP WCI 5304518033 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316505601 Contact Us For Availability
8A
BASE, BAKE ELEMENT WCI 316505701 Contact Us For Availability
9
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTI WCI 5304494997 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423814 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445501 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 5304498835 Contact Us For Availability
13
GLIDE, WARMER, INNER RH WCI 316415000 Contact Us For Availability
13A
GLIDE, WARMER, INNER LH WCI 316415001 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT, 24 # WCI 316116400 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
16
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK WCI 5304519397 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
20
CONTROL, BLACK, ES502I WCI 5304522786 Contact Us For Availability
21
SEAL, CONTROL PANEL WCI 5304521020 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
23
HINGE, DOOR, ORANGE, DUAL SPRING WCI 5304521043 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, STAINLESS WCI 316554010 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
55
DUCT, INLET AIR, FRONT WCI 5304514171 Contact Us For Availability
56
DUCT, INLET AIR, REAR WCI 5304514172 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
62
TERMINAL BLOCK KIT WCI 5303935271 Contact Us For Availability
63
PLATE, GROUNDING STRAP WCI 316278800 Contact Us For Availability
67
WCI 316505500 WCI 316505500 Contact Us For Availability
68
WCI 316429100 WCI 316429100 Contact Us For Availability
71
WCI 5304514174 WCI 5304514174 Contact Us For Availability
72
WCI 5304514177 WCI 5304514177 Contact Us For Availability
77
WCI 316456700 WCI 316456700 Contact Us For Availability
87
WCI 316081200 WCI 316081200 Contact Us For Availability
90
TRIM, VENT, BLACK, REAR WCI 5304514157 Contact Us For Availability
92
REAR FILLER KIT, FCFS RANGE, BLACK WCI 5304520261 Contact Us For Availability
97
BOARD, PC, OVEN RELAY WCI 5304516862 Contact Us For Availability
106
WCI 316404100 WCI 316404100 Contact Us For Availability
107
WCI 316026701 WCI 316026701 Contact Us For Availability
108
WCI 5304514166 WCI 5304514166 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
125
WCI 316256100 WCI 316256100 Contact Us For Availability
130
SEAL, MAINTOP, SILICONE, REAR WCI 808931802 Contact Us For Availability
161
WCI 5304521820 WCI 5304521820 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
HARNESS, WIRING, COMMUNICATION, UI TO GENERAT WCI 5304521814 Contact Us For Availability
NI
WCI 5303271648 WCI 5303271648 Contact Us For Availability
NI
WCI 5303288566 WCI 5303288566 Contact Us For Availability
NI
HARNESS, GENERATOR, LOW VOLTAGE WCI 5304514353 Contact Us For Availability
NI
HARNESS, WIRING, INDUCTION, W/FERRITE CORE WCI 5304519440 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
INSULATOR, CONTROLLER, W/ADHESV TAPE WCI 5304521041 Contact Us For Availability
NIA
SCREW, TRUSS SQDR, 8A X 1", 62* WCI 5303289910 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
