Model Electrolux FGHD2368TF0 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts & Diagrams

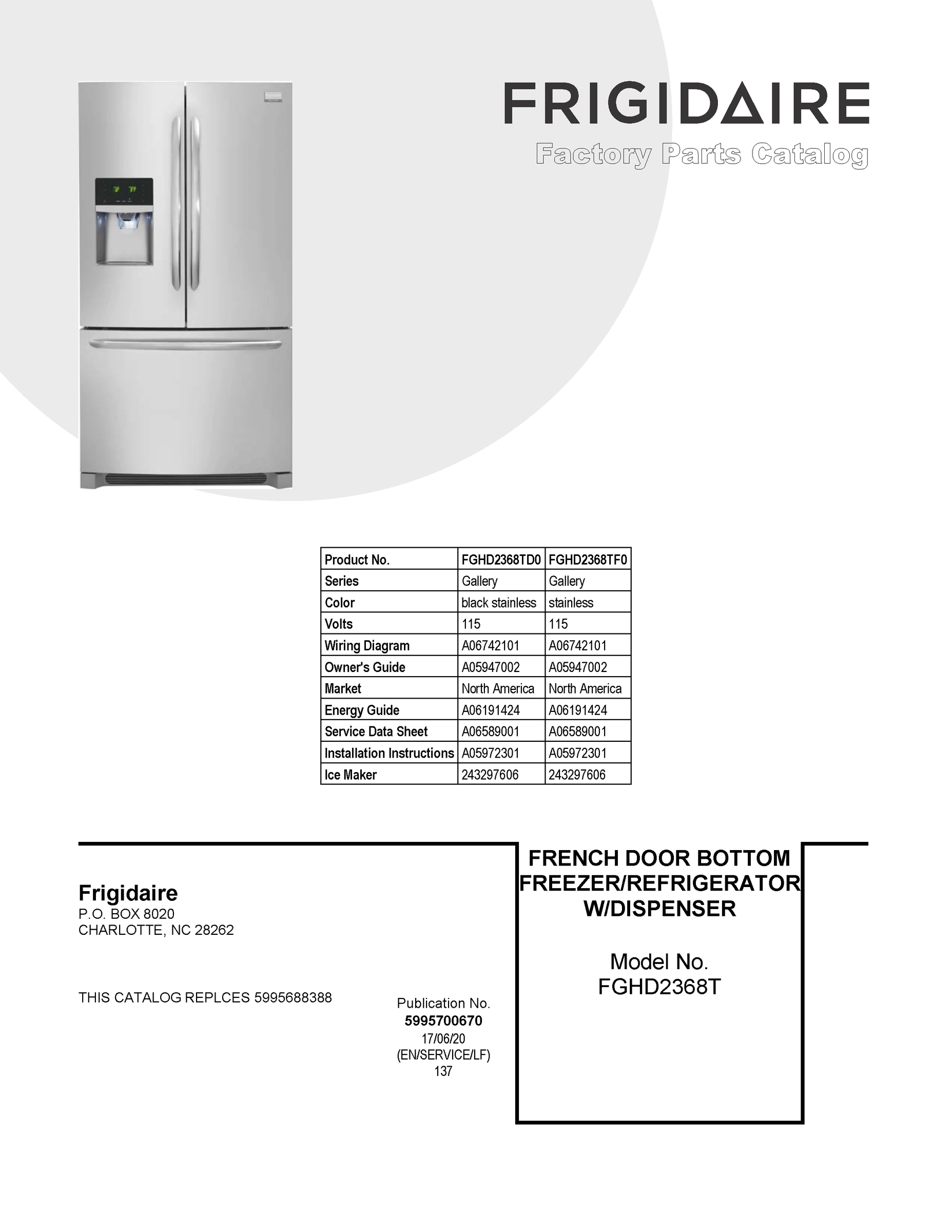

01 - COVER SHEET

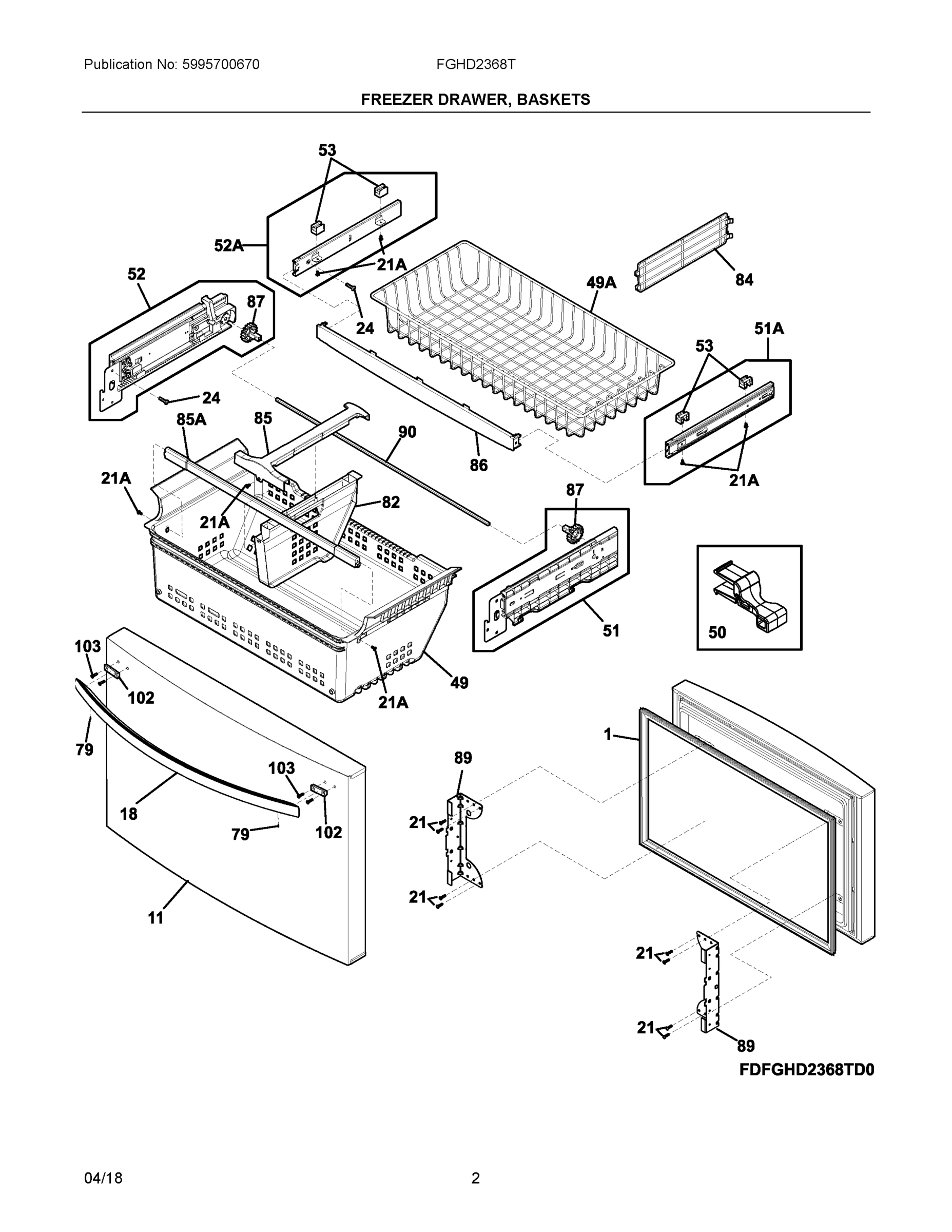

02 - FREEZER DRAWER, BASKETS
03 - FRESH FOOD DOOR
04 - CABINET
05 - SHELVES
06 - COOLING SYSTEM
07 - CONTROLS & ICE DISPENSER
08 - ICE CONTAINER
09 - ICE MAKER
10 - WIRING DIAGRAM
11 - WIRING DIAGRAM
Common parts from model Electrolux FGHD2368TF0 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE
1
TUBE-WATER, 1/4-36", LIGHT GREEN, VALVE TO, B WCI 241964707 Contact Us For Availability
1
ICE CONTAINER ASSY, W/MOVING PARTS WCI 242100106 Contact Us For Availability
1
TUBE-WATER, 5/16-67", NATURAL, DISPENSER TO, WCI 241965906 Contact Us For Availability
1
TUBE-WATER, 97.5", NATURAL, FILTER BASE TO, S WCI 242220119 Contact Us For Availability
1
CONDENSER WCI 241862903 Contact Us For Availability
1
COVER, EVAPORATOR FAN WCI 5304503130 Contact Us For Availability
3
GASKET-EVAP, BOTTOM WCI 241860111 Contact Us For Availability
4A
TRIM, FACADE, STAINLESS WCI 242194301 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
8
MODULE, DISPENSER, CLEAR, W/PADDLE WCI 242270106 Contact Us For Availability
9
BUSHING, MOTOR MOUNTING WCI 5304508006 Contact Us For Availability
10
BAR-DRIVE WCI 241829001 Contact Us For Availability
10
AIR TOWER, ASSEMBLY, W/DAMPER WCI 5304510255 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241860402 Contact Us For Availability
11
DOOR-REFR, STAINLESS, LH WCI 242185671 Contact Us For Availability
11
DRAWER, STAINLESS, FREEZER WCI 241987944 Contact Us For Availability
12
NAMEPLATE, CHROME WCI 5304512150 Contact Us For Availability
13
DOOR STOP, ASSEMBLY, RH, W/BUSHING WCI 5304508039 Contact Us For Availability
13A
DOOR STOP, ASSEMBLY, LH, W/BUSHING WCI 5304508038 Contact Us For Availability
14
DEFROST HEATER KIT, 28' WCI 5303918410 Contact Us For Availability
14
SWITCH-LIGHT/LAMP, FRZR DOOR WCI 242060202 Contact Us For Availability
15
EVAPORATOR KIT, C/D FDBM WCI 5303918569 Contact Us For Availability
15
DOOR-REFR, STAINLESS, RH WCI 242185670 Contact Us For Availability
15A
LENS, 3 LED CLUSTER WCI 242202701 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
GASKET, AIR DUCT, BOTTOM WCI 5304508008 Contact Us For Availability
17
TROUGH-DRAIN WCI 241791201 Contact Us For Availability
18
MOTOR-AUGER WCI 241816602 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS WCI 241930101 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS WCI 242029401 Contact Us For Availability
18
GASKET, CLOSED CELL WCI 241860101 Contact Us For Availability
20
THERMISTOR, FREEZER DEFROST, NTC, W/CONNECTOR WCI 5303918776 Contact Us For Availability
20
HOUSING, AIR HANDLER WCI 5304508036 Contact Us For Availability
21
SCREW, QUADREX, #10-16 HILO WCI 241690602 Contact Us For Availability
21
SCREW, 10-32 X 1/2 WCI 241732101 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760401 Contact Us For Availability
23
SUMP, DISPENSER, GREY WCI 242176503 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
23
EVAPORATOR, ASSEMBLY, ICE MAKER WCI 242094701 Contact Us For Availability
24
SCREW, TRUSS HD QUAD, #10-16 X .750, ZINC WCI 240383412 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24
SHELF ASSEMBLY, 1/2 WIDTH, RAIL/TRIM, GLASS WCI 5304512639 Contact Us For Availability
24B
COVER, CRISPER, W/GLASS WCI 5304508761 Contact Us For Availability
25
SCREW, TRUSS HD QUAD, #10-16 X .500, WHITE WCI 240383407 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
25
CONNECTOR, HARNESS, EVAP COVER WCI 5304508037 Contact Us For Availability
26
PAN-CRISPER, ASSEMBLY, W/ROLLER WCI 5304512617 Contact Us For Availability
27
RETAINER, TALL BOTTLE WCI 241752703 Contact Us For Availability
30
INVERTOR WCI 241577505 Contact Us For Availability
30
COVER, ICMKR & BUCKET WCI 242142204 Contact Us For Availability
30
BRACKET-ANTI TIP WCI 241778702 Contact Us For Availability
31
TUBE-WATER, ICE MOLD FILL, BLACK, EXTENSION WCI 241844403 Contact Us For Availability
35
HINGE ASSEMBLY, LOWER, RH, W/ADJ SCREW WCI 5304508044 Contact Us For Availability
35A
HINGE ASSEMBLY, LOWER, LH, W/ADJ SCREW WCI 5304508045 Contact Us For Availability
37
TRIM-CABINET CORNER, GRAY, (2) WCI 242161206 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
38C
CONTROL ASSEMBLY, USER INTERFACE, W/HOUSING WCI 5304512624 Contact Us For Availability
40B
COVER-UPPER HINGE, GREY, CENTER WCI 241862405 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
RAIL, CRISPER COVER, LH SIDE WCI 5304508043 Contact Us For Availability
42A
RAIL, CRISPER COVER, RH SIDE WCI 5304508042 Contact Us For Availability
43
SCREW WCI 241641502 Contact Us For Availability
48
BIN-DOOR, LOWER WCI 5304512643 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 242122101 Contact Us For Availability
49
CHANNEL-SHELF MTG, SIDE, LH WCI 5304508035 Contact Us For Availability
49A
BASKET-FRZR, UPPER WCI 241780826 Contact Us For Availability
49A
CHANNEL-SHELF MTG, CENTER, ICEMAKER SHELF WCI 242122001 Contact Us For Availability
49B
BIN-DOOR, DISPENSER WCI 242011701 Contact Us For Availability
49B
CHANNEL-SHELF MTG, SIDE, RH WCI 242122301 Contact Us For Availability
50
BOARD ASSEMBLY, MAIN POWER, W/HOUSING WCI 5304508861 Contact Us For Availability
50
CLIP, FREEZER BASKET WCI 5304501271 Contact Us For Availability
50
SEAL, DOUGHNUT WCI 241512813 Contact Us For Availability
51
SLIDE ASSEMBLY, BASKET LOWER, RH, W/PINION WCI 5304507977 Contact Us For Availability
51
PIN-ANTI TWIST BKT GEN II IM WCI 242095501 Contact Us For Availability
51
SLIDE-DELI WCI 242120001 Contact Us For Availability
51A
SLIDE ASSEMBLY, FREEZER BASKET, UPPER RH WCI 5304508094 Contact Us For Availability
52
SLIDE ASSEMBLY, BASKET LOWER, LH, W/PINION WCI 5304507976 Contact Us For Availability
52
INSULATION, I/M FILL TUBE WCI 5304508046 Contact Us For Availability
52A
SLIDE ASSEMBLY, FREEZER BASKET, UPPER LH WCI 5304508095 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
55
VALVE-WATER, QUAD SOLENOID WCI 242253002 Contact Us For Availability
58
SCREW WCI 241853202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
62
PAN-DELI WCI 242096815 Contact Us For Availability
63
SCREW, LEV WCI 216396900 Contact Us For Availability
65
COVER, WIRING WCI 808462601 Contact Us For Availability
68
COVER, -FRONT, BUCKET TRIM WCI 242095002 Contact Us For Availability
72
WCI 242054804 WCI 242054804 Contact Us For Availability
81
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
82
HINGE-MULLION, UPPER/LOWER, FLIPPER WCI 241779401 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
DIVIDER, LOWER BASKET WCI 5304507996 Contact Us For Availability
83
MAGNET, DOOR WCI 241812202 Contact Us For Availability
84
TUBE-DRAIN WCI 241830904 Contact Us For Availability
84
GUIDE-MULLION, MAGNET COVER, FLIPPER WCI 808274201 Contact Us For Availability
84
DIVIDER, BASKET, UPPER WCI 241780907 Contact Us For Availability
84A
COVER-MULLION, MAGNET COVER WCI 242190501 Contact Us For Availability
85
FLIPPER MULLION ASSEMBLY, GREY, W/HEATER WCI 242036303 Contact Us For Availability
85A
SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242139301 Contact Us For Availability
86
HINGE-MULLION, CENTER, FLIPPER WCI 241779802 Contact Us For Availability
86
TRIM, DRAWER, STABILIZER WCI 5304507340 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability
87
PINION WCI 5304507999 Contact Us For Availability
89
BRACKET, FREEZER DRAWER, (2) WCI 5304509676 Contact Us For Availability
89
TUBE-PROCESS WCI 215346900 Contact Us For Availability
91
WCI 5304508041 WCI 5304508041 Contact Us For Availability
93
WCI 241835505 WCI 241835505 Contact Us For Availability
94
WCI 5303918775 WCI 5303918775 Contact Us For Availability
96
WCI 241860601 WCI 241860601 Contact Us For Availability
100
WCI 242157601 WCI 242157601 Contact Us For Availability
101
WCI 242157801 WCI 242157801 Contact Us For Availability
102
BLOCK-HANDLE MTG WCI 5304504279 Contact Us For Availability
102
WCI 242157501 WCI 242157501 Contact Us For Availability
103
SCREW, #10 AB FLAT HD WCI 242077302 Contact Us For Availability
108
WCI 5304512640 WCI 5304512640 Contact Us For Availability
123
WCI 5304508007 WCI 5304508007 Contact Us For Availability
125
WCI 242071201 WCI 242071201 Contact Us For Availability
145A
SUPPORT, DELI COVER, LH WCI 5304508028 Contact Us For Availability
148
GASKET WCI 242095415 Contact Us For Availability
150
GASKET WCI 242095423 Contact Us For Availability
210
HOUSING, WATER FILTER, W/PLUG & PAD WCI 5303918723 Contact Us For Availability
211
PLUG, FILTER HOUSING WCI 807932201 Contact Us For Availability
211
BUMPER, DOOR, BOTTOM WCI 5304508077 Contact Us For Availability
212
ROLLER, CRISPER PAN WCI 5304508016 Contact Us For Availability
213
ROLLER ASSY, DELI PAN WCI 242010901 Contact Us For Availability
NI
KIT, DISPENSER HEATER, AC WCI 5303918596 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
SCREW, SER HEX WASH HD, 1/4-20 X 5/8, (4) WCI 242146401 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918445 Contact Us For Availability
NI
CLIP-GRILLE WCI 218515401 Contact Us For Availability
NI
WCI 218362501 WCI 218362501 Contact Us For Availability
NI
HARNESS-DISPENSER, GROUNDING WCI 241510904 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NI
SPACER, HEAT EXCHANGER WCI 241947701 Contact Us For Availability
NIA
SCREW, TYPE AB, #10-16 X .5 WCI 241695904 Contact Us For Availability
NIA
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
NIA
TUBE-WATER, 5/16-37", YELLOW, VALVE TO, BACK WCI 218976435 Contact Us For Availability
NIA
BUMPER, FLIPPER MULLION WCI 242068601 Contact Us For Availability
NIA
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
NIA
WCI 241842301 WCI 241842301 Contact Us For Availability
NIA
SCREW, 8-18 X 1/2 WCI 242015001 Contact Us For Availability
NIA
WCI 242036801 WCI 242036801 Contact Us For Availability
NIA
PIN-LOCK WCI 242011101 Contact Us For Availability
NIAA
SCREW, BASKET SLIDES WCI 242039701 Contact Us For Availability
NIAA
WCI 241860104 WCI 241860104 Contact Us For Availability
NIAB
WCI 241860105 WCI 241860105 Contact Us For Availability
NIB
CONNECTOR-WATER, STRAIGHT, 5/16 TO 1/4 WCI 241503901 Contact Us For Availability
NIB
INSULATION, I/CONTAINER FRT WCI 242096001 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
NIC
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
× ![]()
