Model Electrolux FGHC2331PF8 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

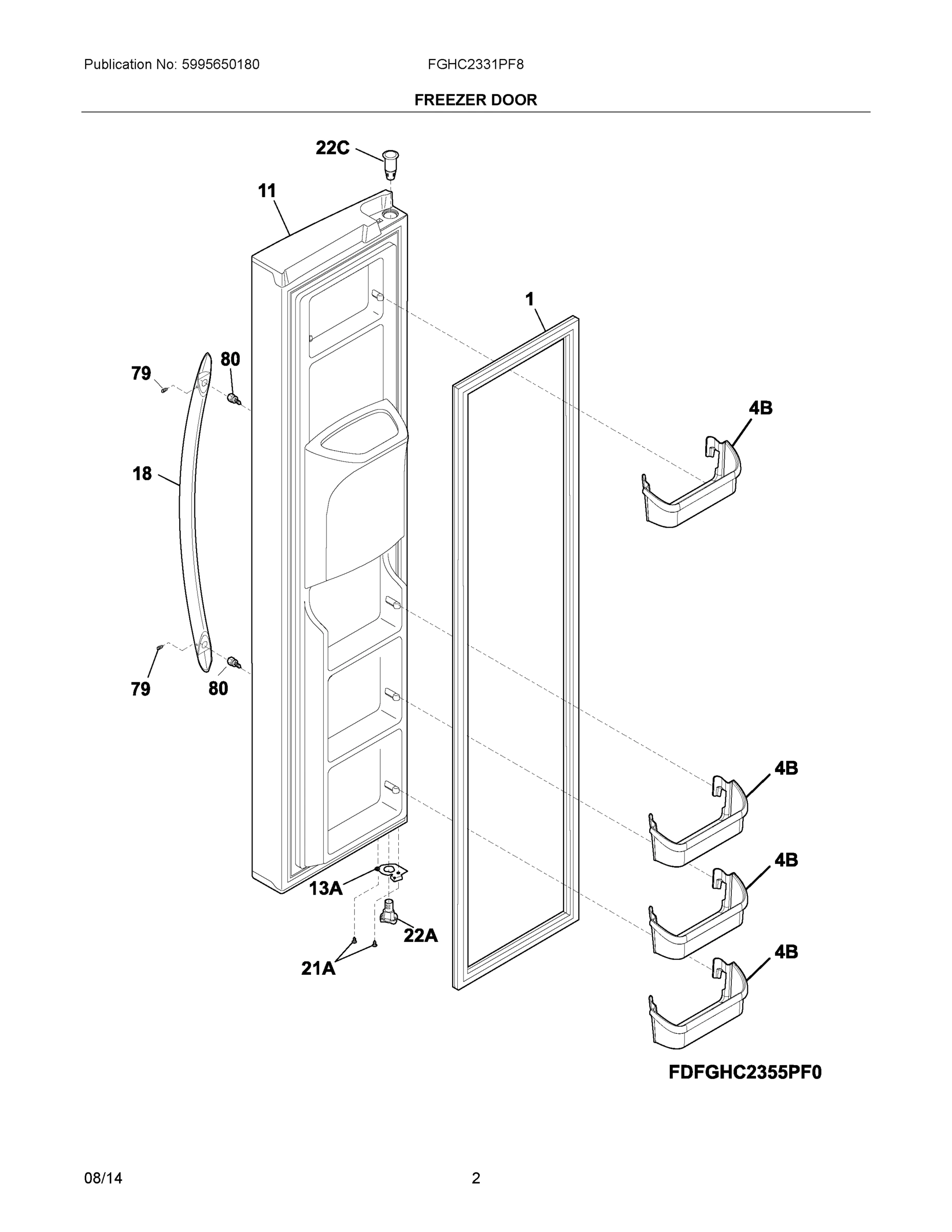

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE & WATER DISPENSER
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING SCHEMATIC
12 - WIRING DIAGRAM
Common parts from model Electrolux FGHC2331PF8 REFRIGERATOR
1
WCI 218976438 WCI 218976438 Contact Us For Availability
1
WCI 242106605 WCI 242106605 Contact Us For Availability
2
GASKET-REFR DOOR, GRAY, MAGNETIC WCI 241510205 Contact Us For Availability
2
WCI 241684701 WCI 241684701 Contact Us For Availability
3
WCI 241685201 WCI 241685201 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM, (2) WCI 218679614 Contact Us For Availability
4
CONTAINER-ICE, BUCKET ONLY WCI 241515202 Contact Us For Availability
4A
TRIM, FACADE, GREY WCI 242176404 Contact Us For Availability
4B
WCI 241511601 WCI 241511601 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
5
WCI 241516102 WCI 241516102 Contact Us For Availability
6
WCI 241515901 WCI 241515901 Contact Us For Availability
7
WCI 241515302 WCI 241515302 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING, MOTOR MOUNTING WCI 241518301 Contact Us For Availability
10
WCI 241726501 WCI 241726501 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241719711 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 241993832 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11A
SHELF-FREEZER, FLIP-UP WCI 241657605 Contact Us For Availability
11B
SHELF-FREEZER, FIXED WIRE WCI 241657506 Contact Us For Availability
12
WCI 242015201 WCI 242015201 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 241990201 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 241990202 Contact Us For Availability
14
WCI 242044113 WCI 242044113 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
15
WCI 5303918284 WCI 5303918284 Contact Us For Availability
15
DOOR-REFR, STAINLESS, COMPLETE WCI 242178111 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
SOCKET-LIGHT, FRZ LIGHT WCI 241622802 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS WCI 241930101 Contact Us For Availability
20
WCI 241675502 WCI 241675502 Contact Us For Availability
21
THERMOSTAT-DEFROST, KIT WCI 5303918214 Contact Us For Availability
21D
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
22
WCI 241917801 WCI 241917801 Contact Us For Availability
22
BEARING-HINGE, GRAY WCI 241990301 Contact Us For Availability
22A
BEARING-HINGE(FRZ), CLOSER WCI 241990302 Contact Us For Availability
22B
BEARING, HINGE, TOP WCI 241760404 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760402 Contact Us For Availability
23
WCI 242176503 WCI 242176503 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
23
WCI 241684001 WCI 241684001 Contact Us For Availability
23
WCI 241845401 WCI 241845401 Contact Us For Availability
24A
SHELF-"SPILL-SAFE", FIXED WCI 240355278 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 240599301 Contact Us For Availability
25
SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 240350903 Contact Us For Availability
25B
FRAME-DELI COVER, UPPER WCI 240599803 Contact Us For Availability
26
PAN-CRISPER, UPPER WCI 240351061 Contact Us For Availability
26
SCREW, CR PAN HD, 10-16 X 0.500 WCI 215503203 Contact Us For Availability
27
PAN-CRISPER, LOWER WCI 240351240 Contact Us For Availability
28
WCI 240362201 WCI 240362201 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN, RH, AND SCR WCI 241918001 Contact Us For Availability
30
WCI 241577501 WCI 241577501 Contact Us For Availability
30A
BRACKET-LOWER HINGE, W/HINGE PIN, LH, AND SCR WCI 241918004 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
37
WCI 242161206 WCI 242161206 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
39A
TRIM-SHELF, 11.60", FRONT WCI 240430709 Contact Us For Availability
40
COVER-UPPER HINGE, GRAY, RH WCI 241946709 Contact Us For Availability
40A
COVER-UPPER HINGE, GRAY, LH WCI 241946710 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
WCI 241637601 WCI 241637601 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
WCI 218515403 WCI 218515403 Contact Us For Availability
43
WCI 241720601 WCI 241720601 Contact Us For Availability
43
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
45
SOLENOID ASSY, 115V WCI 241675704 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
45A
WCI 241675902 WCI 241675902 Contact Us For Availability
45B
WCI 241676001 WCI 241676001 Contact Us For Availability
45C
WCI 241676101 WCI 241676101 Contact Us For Availability
46
WCI 241684402 WCI 241684402 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350649 Contact Us For Availability
47
WCI 241731801 WCI 241731801 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 241513001 Contact Us For Availability
47A
INSERT-PAN COVER, GLASS WCI 240350603 Contact Us For Availability
47B
INSERT-PAN COVER, GLASS WCI 240443391 Contact Us For Availability
48
WCI 241684602 WCI 241684602 Contact Us For Availability
49
WCI 241676501 WCI 241676501 Contact Us For Availability
49
WCI 241515001 WCI 241515001 Contact Us For Availability
49B
BASKET-SLIDING, UPPER, FULL WCI 241514901 Contact Us For Availability
50
WCI 241675601 WCI 241675601 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796406 Contact Us For Availability
51
WCI 241676301 WCI 241676301 Contact Us For Availability
51
HANGER-BASKET, RH WCI 241514501 Contact Us For Availability
52
WCI 241684901 WCI 241684901 Contact Us For Availability
52
HANGER-BASKET, LH WCI 241514601 Contact Us For Availability
53
PIN-SPIRAL, FIXED BLADES WCI 241690402 Contact Us For Availability
54
WCI 241685001 WCI 241685001 Contact Us For Availability
54
WCI 241532401 WCI 241532401 Contact Us For Availability
55
WCI 241690306 WCI 241690306 Contact Us For Availability
56
WCI 241690201 WCI 241690201 Contact Us For Availability
58
SCREW, 10-32 X 3/8 WCI 241548003 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
60
WCI 242014301 WCI 242014301 Contact Us For Availability
66
WCI 241861301 WCI 241861301 Contact Us For Availability
66A
SLIDE-DAMPER, MEAT PAN WCI 241861201 Contact Us For Availability
70
COMPARTMENT-DAIRY, REMOVABLE WCI 241515801 Contact Us For Availability
70
WCI 241504601 WCI 241504601 Contact Us For Availability
72
WCI 241969405 WCI 241969405 Contact Us For Availability
74
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
93
SWITCH-LIGHT, GREY, (2) WCI 241911705 Contact Us For Availability
100
WCI 241993101 WCI 241993101 Contact Us For Availability
100
WCI 240326304 WCI 240326304 Contact Us For Availability
101
SCREW, #8 - 18 X .380, 3 WCI 241953902 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101A
SCREW, HEX SEMS HEAD, 8-18AB X 1-3/4 WCI 241637202 Contact Us For Availability
107
SHIELD-LIGHT, UPPER WCI 241753601 Contact Us For Availability
108A
HOUSING-LIGHT, UPPER, FRESH FOOD WCI 241753701 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 241853801 Contact Us For Availability
120
WCI 241691701 WCI 241691701 Contact Us For Availability
121
RAIL-ICE CREAM SHELF, LH WCI 241504701 Contact Us For Availability
122
RAIL-ICE CREAM SHELF, RH WCI 241504702 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
208
SLEEVE, AIR FILTER, FRONT WCI 241754301 Contact Us For Availability
210
WCI 241983813 WCI 241983813 Contact Us For Availability
NI
ICE CONTAINER ASSY, W/MOVING PARTS WCI 241914703 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918327 Contact Us For Availability
NI
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NI
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NI
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
NI
CLIP-SLIDE, CRISPER WCI 241595202 Contact Us For Availability
NI
DEFLECTOR-AIR, ICE MAKER WCI 241583301 Contact Us For Availability
NI
HARNESS, WIRING, DOOR WCI 242288101 Contact Us For Availability
NI
SCOOP, WCI 242125401 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
WCI 241993001 WCI 241993001 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
SCREW, HANGER/RLR MTG, 8-10 X 7/16 WCI 215005101 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WCI 241550701 WCI 241550701 Contact Us For Availability
NIA
WCI 241519902 WCI 241519902 Contact Us For Availability
NIA
HARNESS-WIRING, ICMKR/CONTAINER WCI 241522901 Contact Us For Availability
NIA
WCI 240346703 WCI 240346703 Contact Us For Availability
NIA
WCI 241781601 WCI 241781601 Contact Us For Availability
NIA
TUBE-WATER INLET, VALVE TO DOOR WCI 218976421 Contact Us For Availability
NIA
CLIP, SENSOR WCI 241519401 Contact Us For Availability
NIA
WCI 241891901 WCI 241891901 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIA
WCI 241987601 WCI 241987601 Contact Us For Availability
NIB
TUBE-WATER INLET, 5/16 - 97.50", BROWN/TAN WCI 218976429 Contact Us For Availability
NIB
HARNESS-WIRING, MACHINE COMPT WCI 242141302 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
WCI 240363602 WCI 240363602 Contact Us For Availability
NIC
WCI 242125501 WCI 242125501 Contact Us For Availability
× ![]()
