Model Electrolux FGGF3035RFD RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

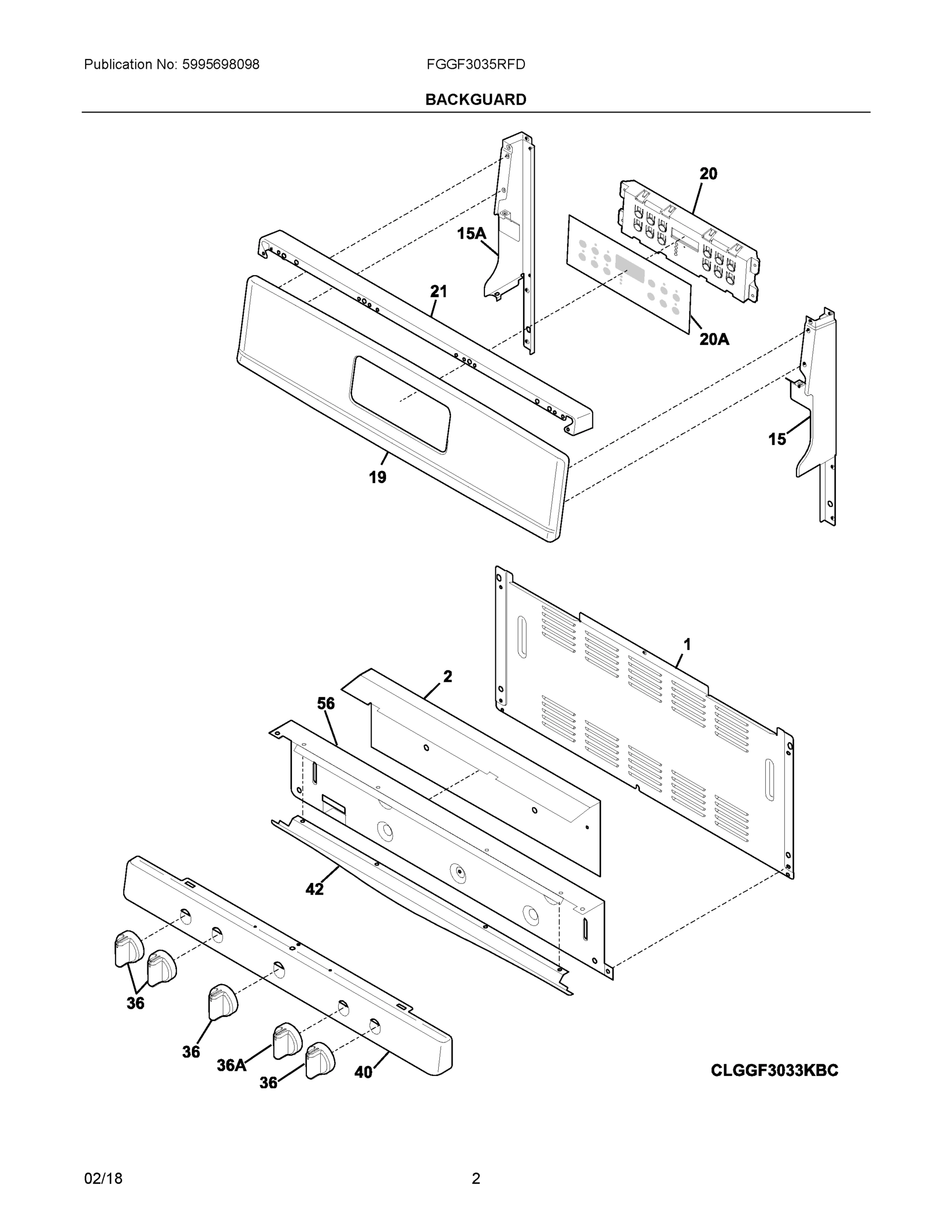

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux FGGF3035RFD RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
MANIFOLD, PIPE WCI 5304513540 Contact Us For Availability
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
2
VALVE, TOP BURNER, WHITE STEM, 1500BTU WCI 5304506550 Contact Us For Availability
2A
VALVE, TOP BURNER, BLACK STEM, 500BTU WCI 5304506547 Contact Us For Availability
2B
VALVE, TOP BURNER, BLUE STEM, 1125BTU WCI 5304506549 Contact Us For Availability
2C
VALVE, TOP BURNER, GREEN STEM, 850BTU WCI 5304506548 Contact Us For Availability
3
HARNESS, IGNITION, W/SWITCHES WCI 5304506557 Contact Us For Availability
4
PANEL, DRWAER FRONT, STAINLESS WCI 5304494412 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452722 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
SPARK MODULE WCI 808608804 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
8
GLIDE, DRAWER, FRONT WCI 5304490938 Contact Us For Availability
9
LINER-OVEN DOOR WCI 316423807 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
BURNER, SEALED, 18.2K WCI 316438400 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT FRON WCI 316536622 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536616 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 5304498835 Contact Us For Availability
13
TUBE-MANIFOLD SUPPLY WCI 316489101 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
NAMEPLATE WCI 316572700 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
16
MAIN TOP, BLACK WCI 316610014 Contact Us For Availability
16
TUBE, VALVE-REGULATOR, 3/8 WCI 5304507348 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
19
IGNITOR, BROILER WCI 5304506545 Contact Us For Availability
19
PANEL, BACKGUARD, BR ALUM WCI 316572406 Contact Us For Availability
20
CLOCK, ES330ISB, BLACK WCI 5304509231 Contact Us For Availability
20
GRATE, BURNER, BLACK, SIDE, (2) WCI 807327101 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284102 Contact Us For Availability
20A
GRATE, BURNER, BLACK, CENTER WCI 807412601 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
21
CAP, BACKGUARD, BLACK, TOP WCI 316546605 Contact Us For Availability
22
TUBE, VALVE-MIXER, 3/8 WCI 5304507768 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR WCI 316575906 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
BAFFLE, BROILER WCI 5304497666 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
29
GLIDE, DRAWER, FRONT WCI 807047102 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316402500 Contact Us For Availability
36
KNOB WCI 5304502763 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
40
PANEL-MANIFOLD, STAINLESS WCI 316606118 Contact Us For Availability
44
ORIFICE, BURNER, 17K WCI 316527509 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44B
ORIFICE, BURNER, 14K WCI 316527511 Contact Us For Availability
44C
ORIFICE, BURNER, WCI 316527500 Contact Us For Availability
47
WCI GRLP4 WCI GRLP4 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408301 Contact Us For Availability
56
SHIELD, BACKGUARD, INNER WCI 316230708 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
106
BRACKET, MOTOR MTG. WCI 316404100 Contact Us For Availability
107
COVER, FAN WCI 316026701 Contact Us For Availability
108
MOTOR-FAN WCI 316256900 Contact Us For Availability
109
FAN BLADE WCI 318398302 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
WCI 5304494425 WCI 5304494425 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
WCI 316418900 WCI 316418900 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
NIA
WCI 316021104 WCI 316021104 Contact Us For Availability
× ![]()
