Model Electrolux FGGF3032MBE GAS RANGE – Common Parts & Diagrams

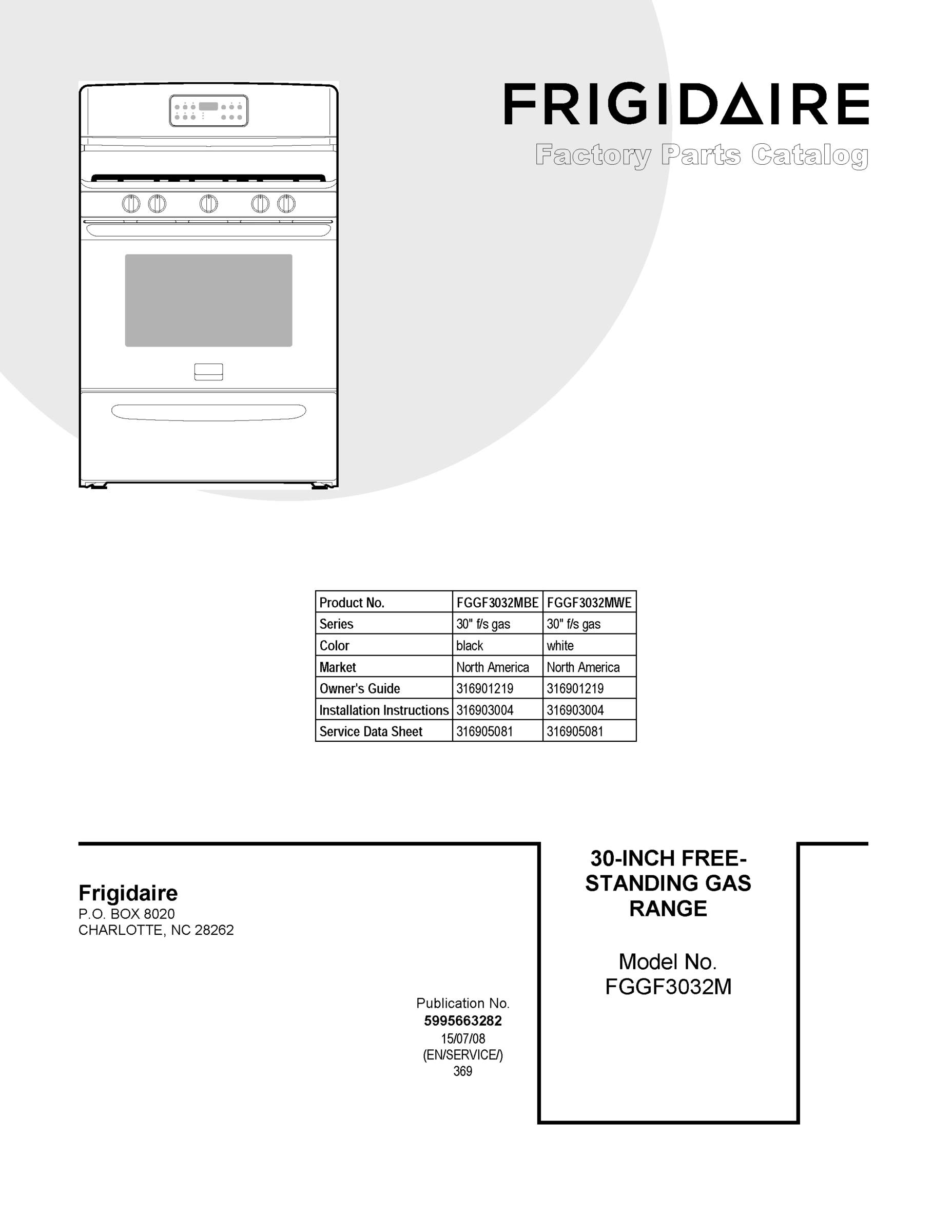

01 - COVER SHEET

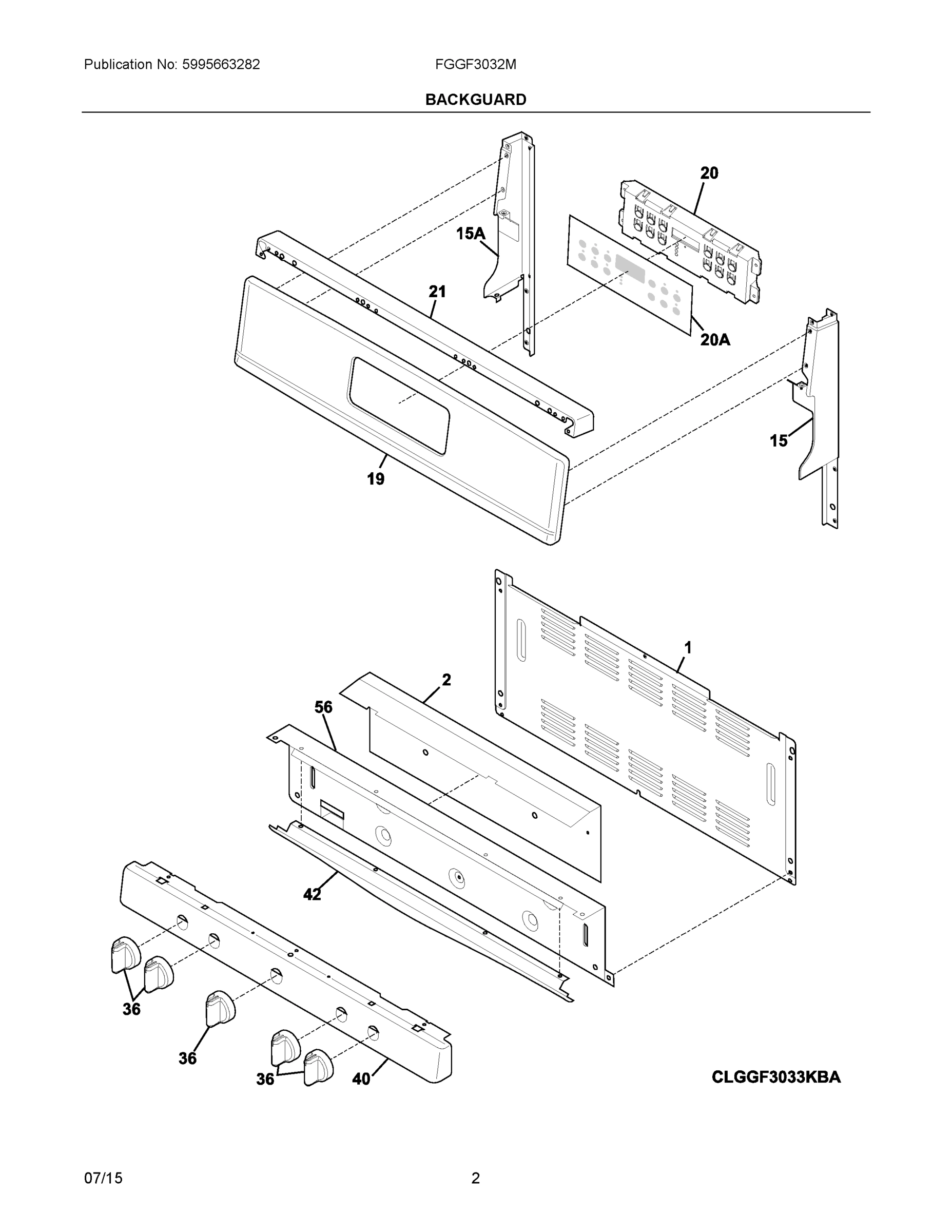

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux FGGF3032MBE GAS RANGE
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
2
VALVE, BURNER, 16/17/18K WCI 316560900 Contact Us For Availability
2A
VALVE, 5K TOP BURNER, W/MTG SCREW WCI 5303935308 Contact Us For Availability
2B
VALVE, TOP BURNER, BLUE STEM WCI 5303935306 Contact Us For Availability
2C
VALVE, 9.5K BURNER, W/MTG SCREW WCI 5303935305 Contact Us For Availability
3
WCI 316580615 WCI 316580615 Contact Us For Availability
3
WCI 5303935378 WCI 5303935378 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, OUTER WCI 316558903 Contact Us For Availability
4
PANEL, DRAWER, BLACK, FRONT WCI 316403402 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
6B
RACK, OVEN WCI 316496205 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
9
WCI 316423807 WCI 316423807 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
10
BURNER, SEALED, 17K WCI 316438400 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT FRON WCI 316536622 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536616 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
13
WCI 316489101 WCI 316489101 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
WCI 316091711 WCI 316091711 Contact Us For Availability
14
WCI 316572700 WCI 316572700 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
15A
CAP, BACKGUARD, BLACK, LH END WCI 316546703 Contact Us For Availability
16
MAINTOP PANEL, BLACK WCI 316469661 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
19
PANEL, BACKGUARD, BLACK WCI 316572405 Contact Us For Availability
20
CONTROLLER, ELECTRONIC, ES330I WCI 316557259 Contact Us For Availability
20
GRATE, BLACK, (2) WCI 316499502 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES33I0SB WCI 316419361 Contact Us For Availability
20A
GRATE, CENTER, BLACK WCI 316551802 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575902 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
WCI 5304497666 WCI 5304497666 Contact Us For Availability
26
IGNITOR, BAKE BURNER WCI 316489403 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316402500 Contact Us For Availability
36
KNOB, TOP VALVE, BLACK, (4) WCI 316564511 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
HANDLE, DOOR, BLACK WCI 316544500 Contact Us For Availability
44
ORIFICE, BURNER, 17K WCI 316527509 Contact Us For Availability
44
SPACER, OVEN DOOR WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
52
CAP, DOOR TRIM, BLACK WCI 316575501 Contact Us For Availability
53A
RECEPTACLE, PROBE WCI 316536900 Contact Us For Availability
53B
NUT, MOUNTING WCI 316247700 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
106
BRACKET, MOTOR MTG. WCI 316404100 Contact Us For Availability
107
COVER, FAN WCI 316026701 Contact Us For Availability
108
WCI 316256900 WCI 316256900 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
NI
WCI 316021109 WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0. WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
WCI 316089500 WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
WCI 316418900 WCI 316418900 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
NIA
WCI 316021104 WCI 316021104 Contact Us For Availability
× ![]()
