Model Electrolux FGGF3030PWD RANGE/OVEN, GAS, FREESTANDING – Common Parts & Diagrams

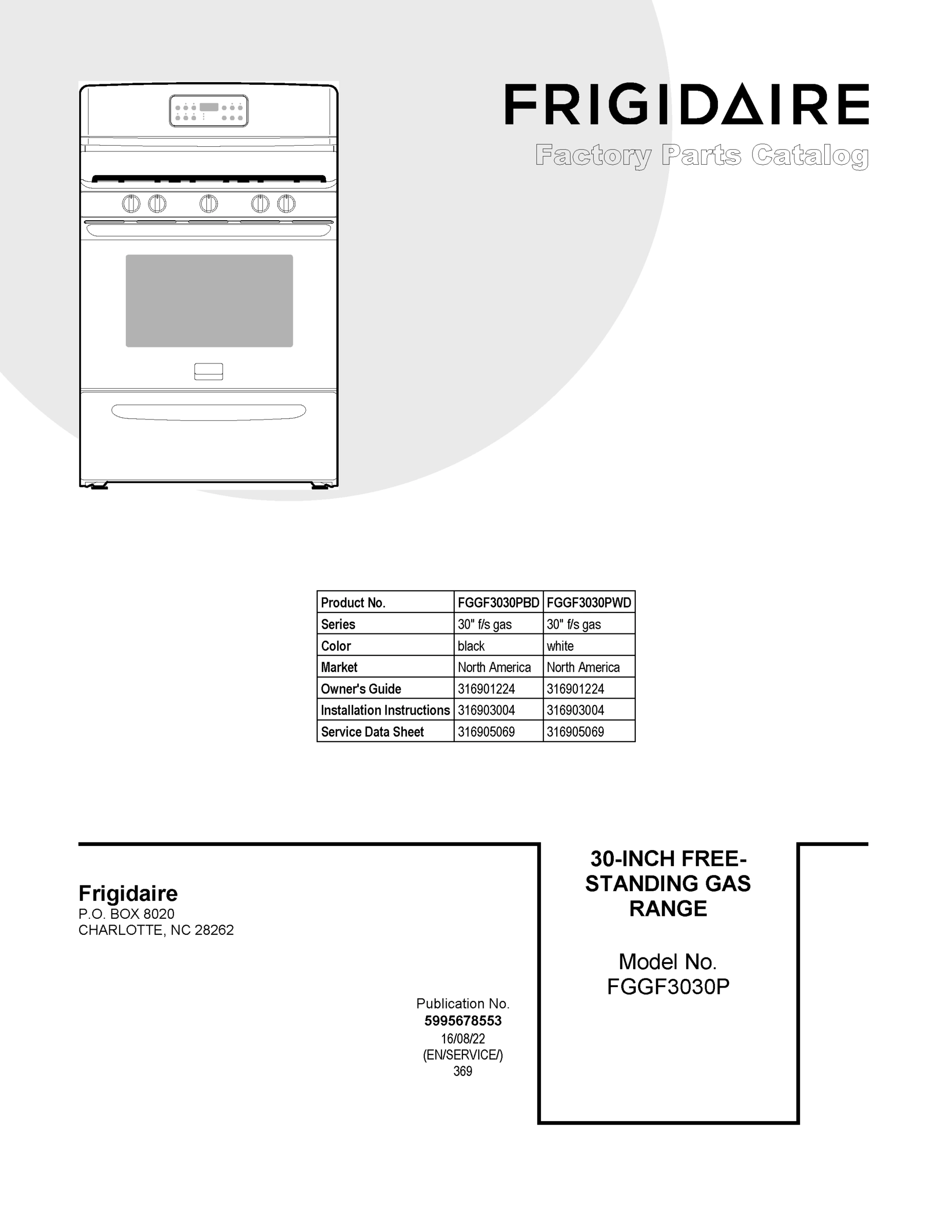

01 - COVER SHEET

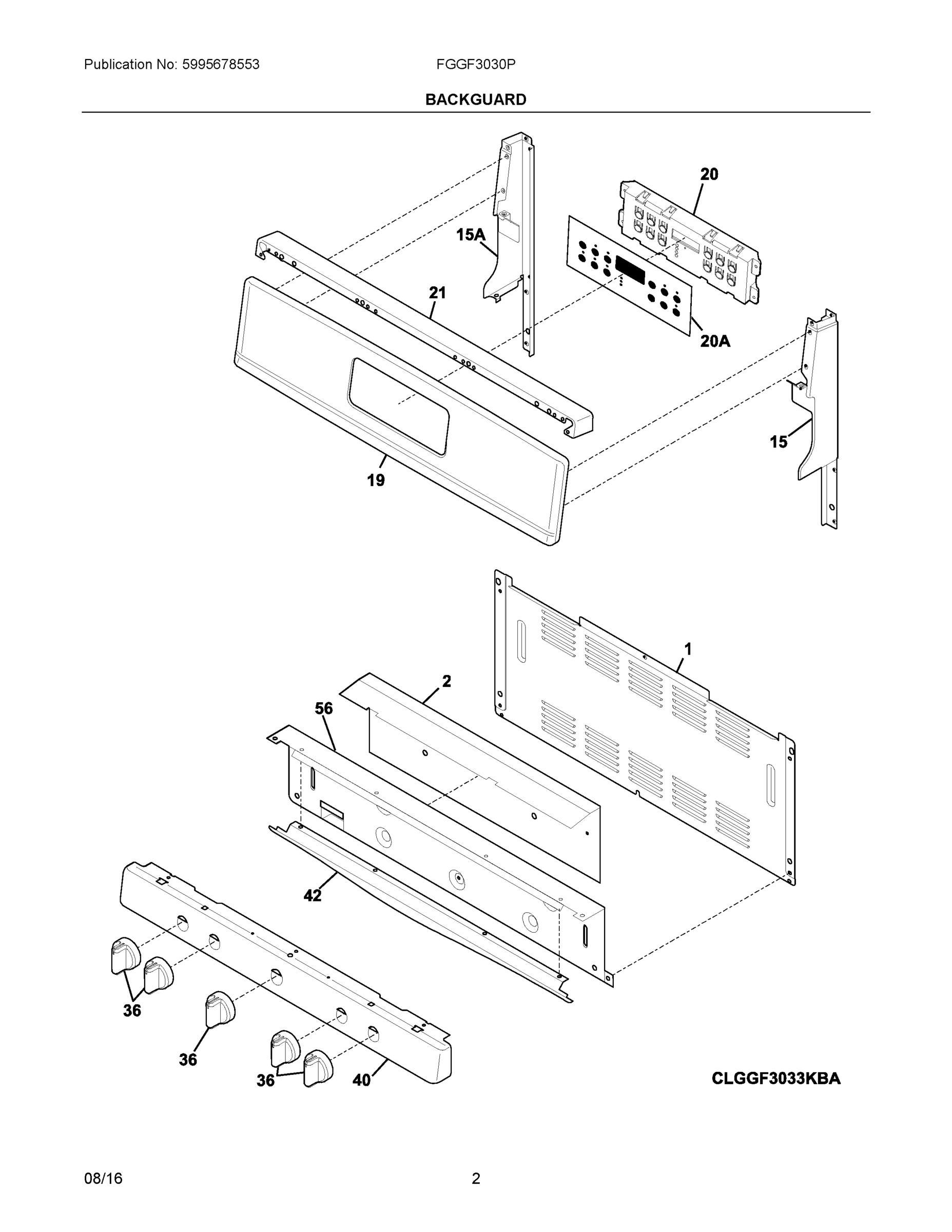

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux FGGF3030PWD RANGE/OVEN, GAS, FREESTANDING
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
2
WCI 5304506550 WCI 5304506550 Contact Us For Availability
2A
WCI 5304506547 WCI 5304506547 Contact Us For Availability
2B
WCI 5304506549 WCI 5304506549 Contact Us For Availability
2C
WCI 5304506548 WCI 5304506548 Contact Us For Availability
4
PANEL, DRAWER, WHITE, FRONT WCI 316403401 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
WCI 808608804 WCI 808608804 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
9
WCI 316423807 WCI 316423807 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
10
BURNER, SEALED, 18.2K WCI 316438400 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 12K WCI 316438000 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT FRON WCI 316536621 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536612 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
13
WCI 316489101 WCI 316489101 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
WCI 316572700 WCI 316572700 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
16
MAINTOP PANEL, WHITE WCI 316469606 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
WCI 5304504811 WCI 5304504811 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
19
IGNITOR, BAKE BURNER WCI 316489403 Contact Us For Availability
19
PANEL, BACKGUARD, WHITE WCI 316572403 Contact Us For Availability
20
GRATE, BLACK, (2) WCI 316499502 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE, ES330 WCI 316419338 Contact Us For Availability
20A
GRATE, CENTER, BLACK WCI 316551802 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575902 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
WCI 5304497666 WCI 5304497666 Contact Us For Availability
26
WCI 5304506545 WCI 5304506545 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316405900 Contact Us For Availability
36
KNOB, TOP VALVE, WHITE, (4) WCI 316545007 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
HANDLE, DOOR, WHITE WCI 316544501 Contact Us For Availability
40
WCI 316290440 WCI 316290440 Contact Us For Availability
44
ORIFICE, TOP BURNER, 16K WCI 316527508 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44B
ORIFICE, BURNER, 12K WCI 316527502 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
52
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
NI
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NIA
COVER, BROIL IGNITOR WCI 316401500 Contact Us For Availability
NIA
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULATOR WCI 316021104 Contact Us For Availability
× ![]()
