Model Frigidaire FGFB33WHSB RANGE – Common Parts & Diagrams

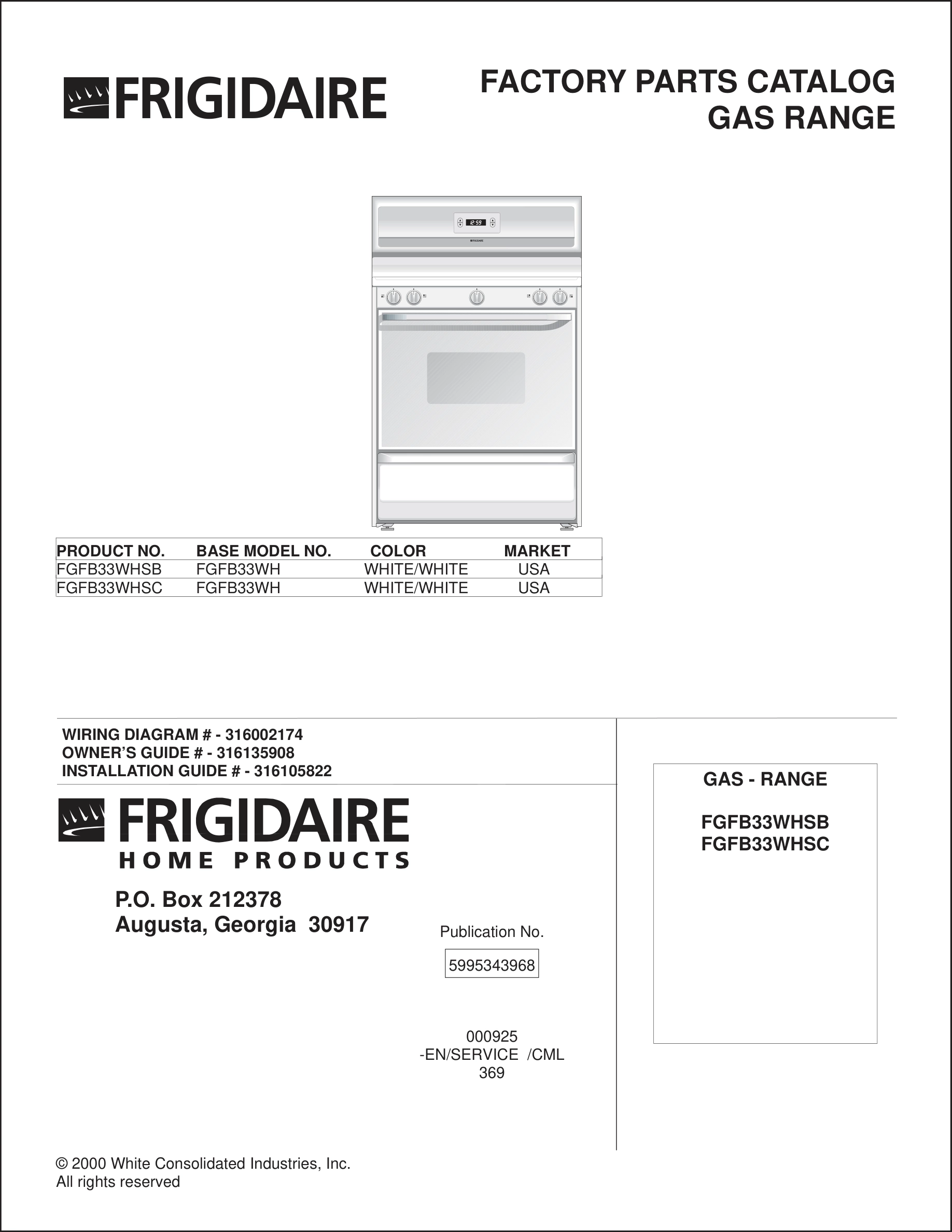

01 - COVER

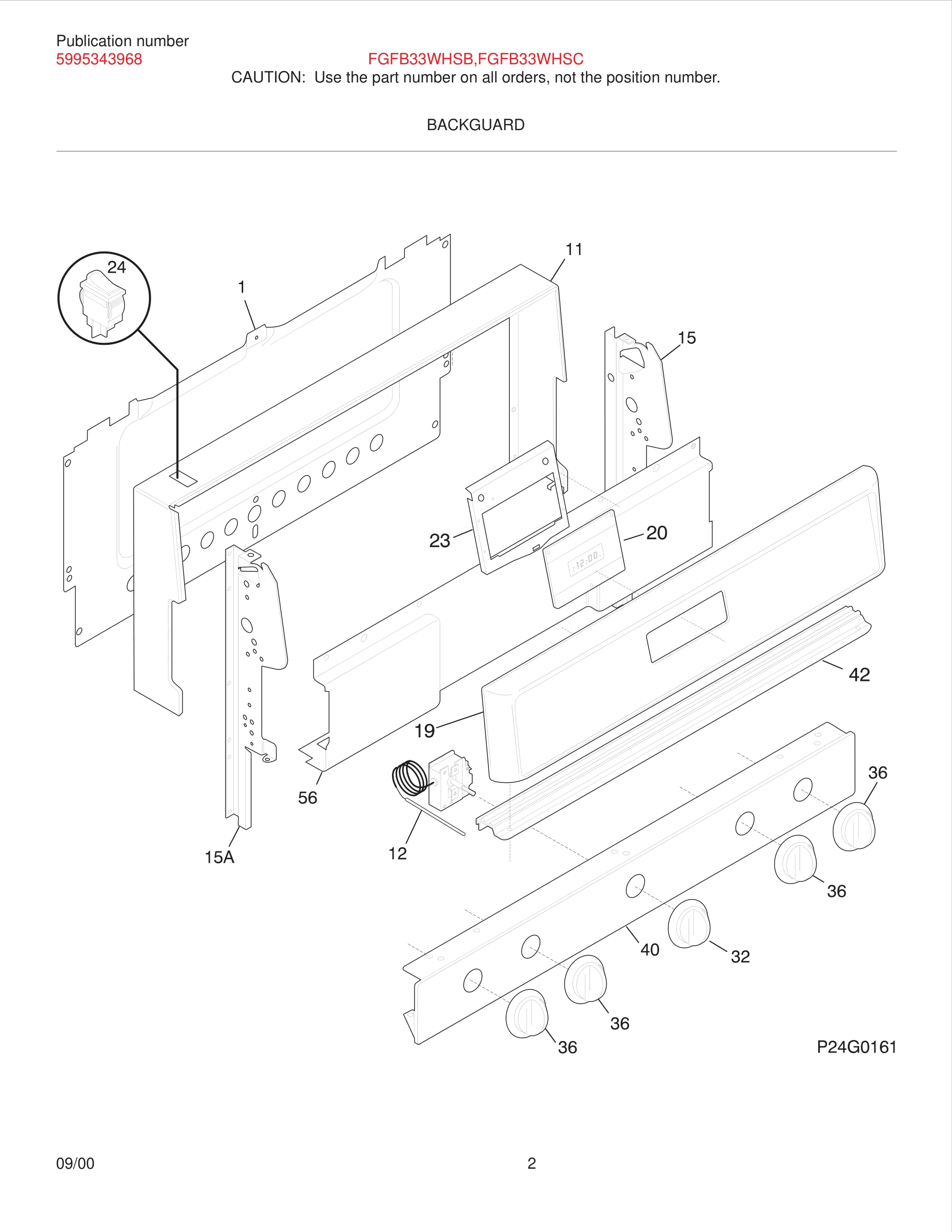

03 - BACKGUARD

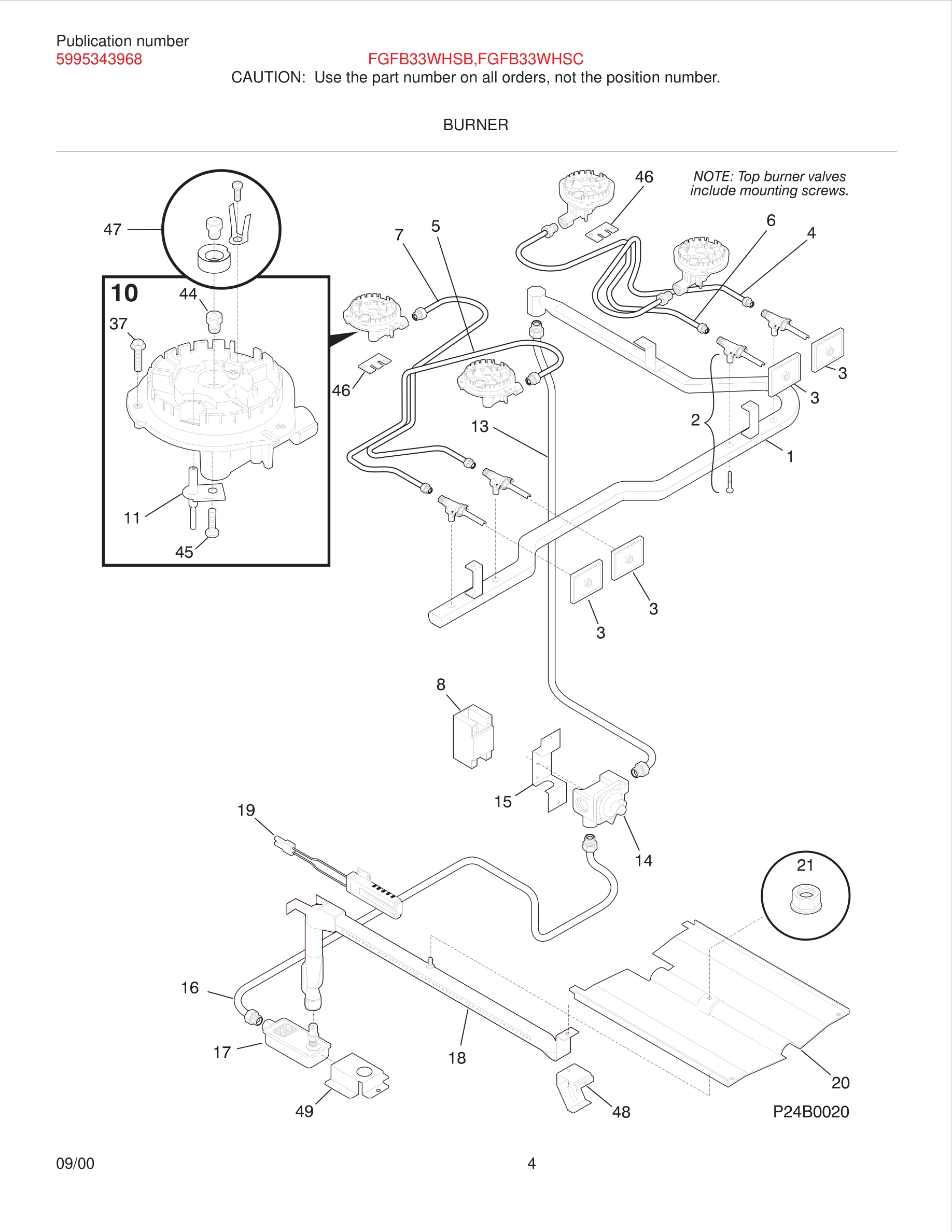

05 - BURNER

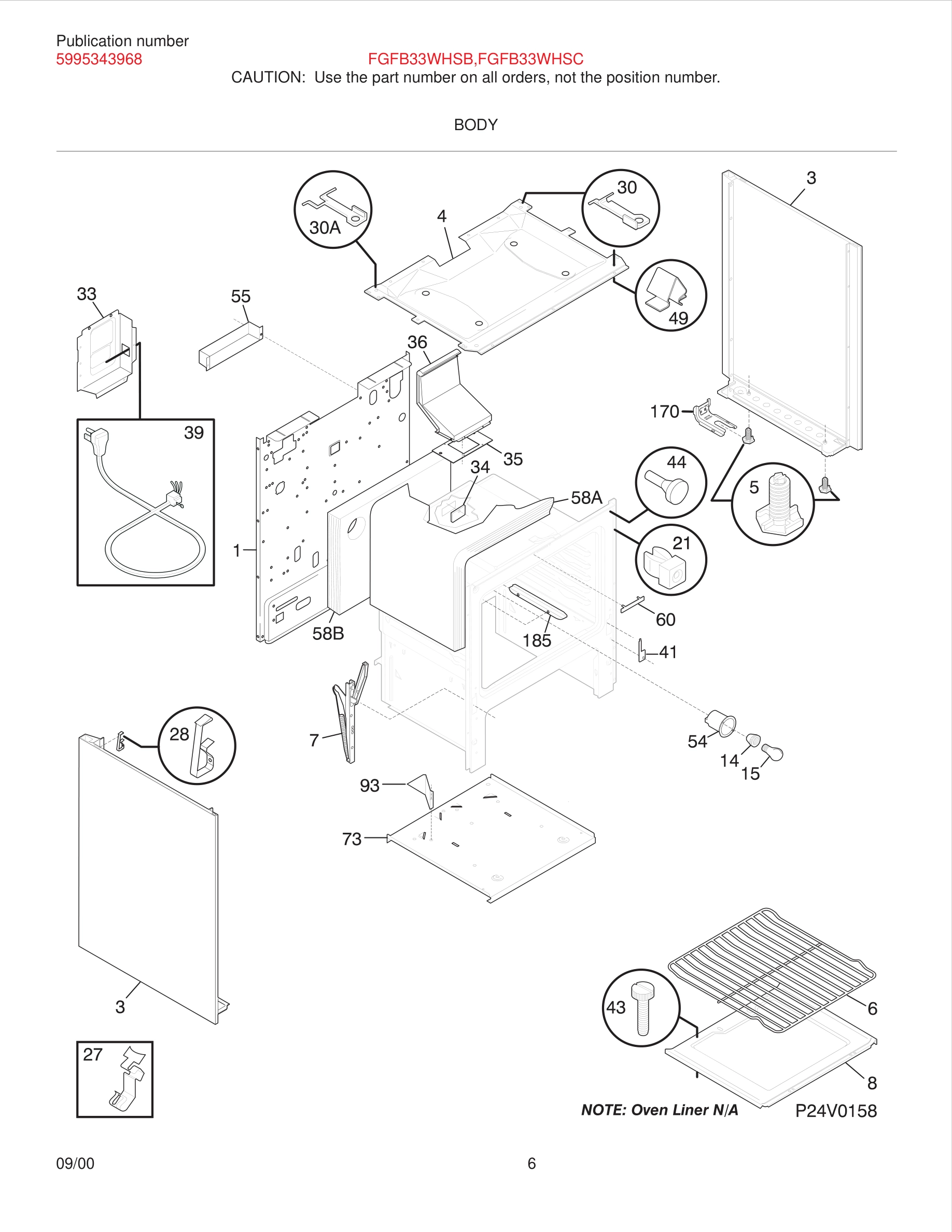

07 - BODY

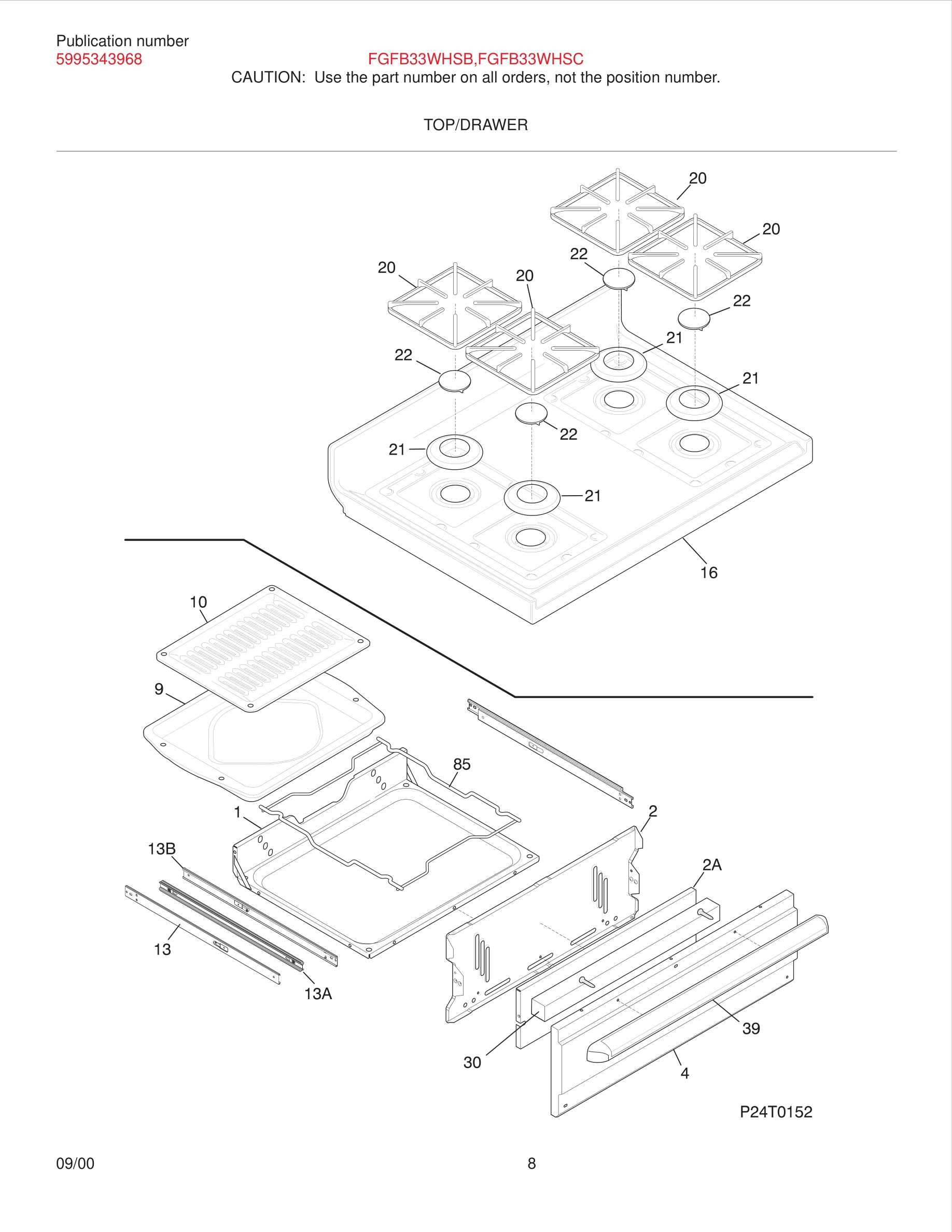

09 - TOP/DRAWER

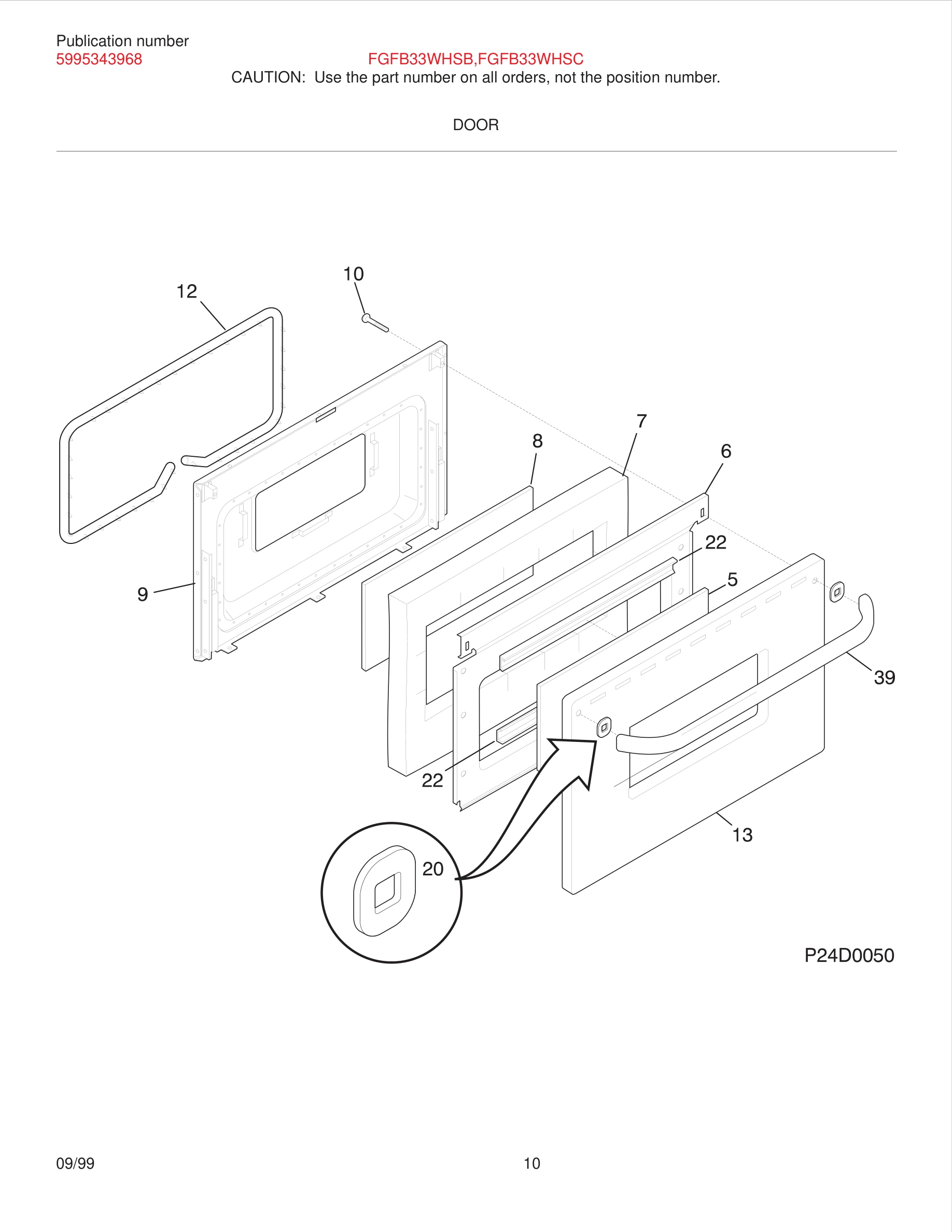

11 - DOOR

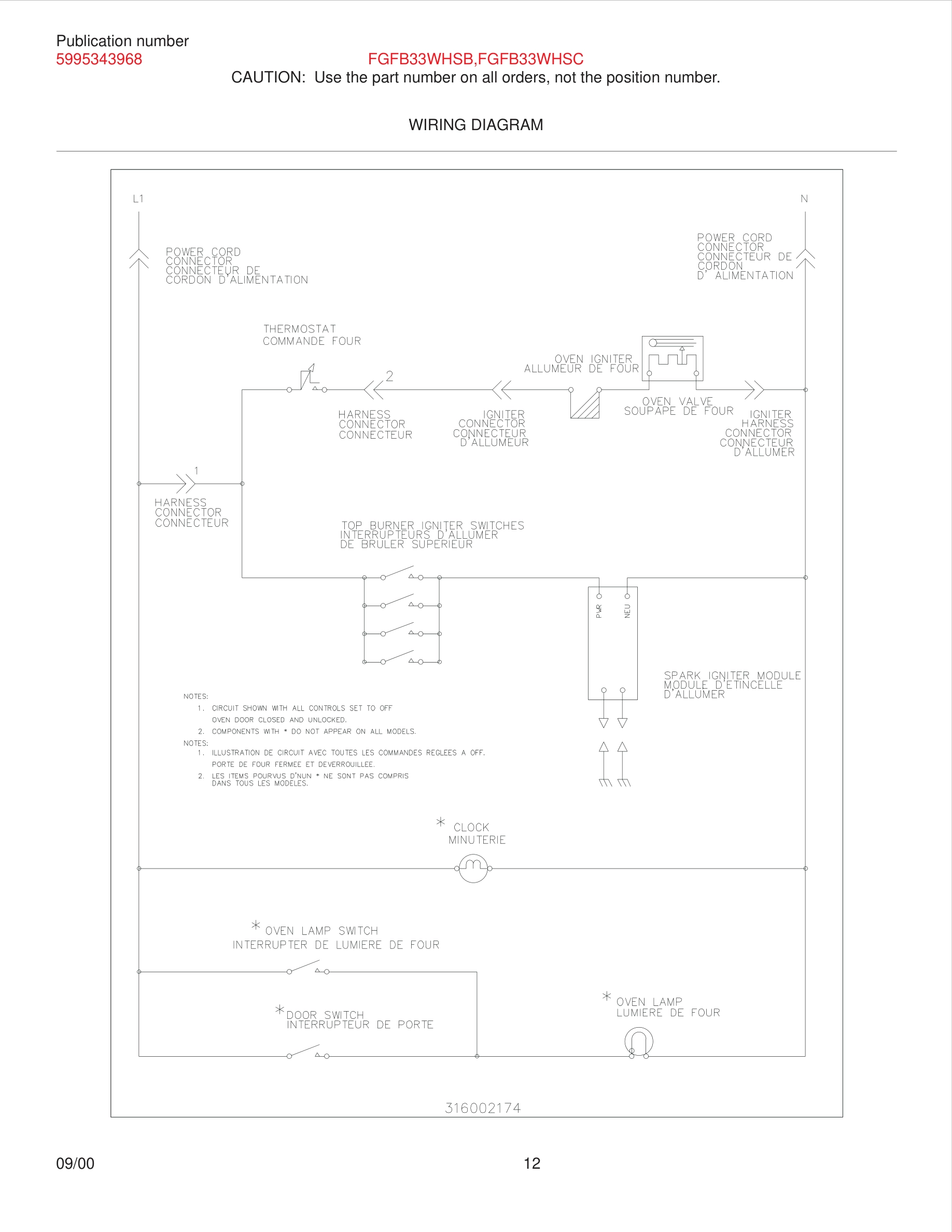

12 - WIRING DIAGRAM
Common parts from model Frigidaire FGFB33WHSB RANGE
*
Screw,hex head cup pt ,8-18 x 0.375 ,black,ba WCI 316021105 Contact Us For Availability
*
Screw-oven door,wafer head ,8-32T x 1/2 WCI 5303285179 Contact Us For Availability
*
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
*
Screw,wafer hd sq dr ,8-18AB x 1/2 ,burner bo WCI 5303271648 Contact Us For Availability
*
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
*
Washer-hinge,black WCI 3131737 Contact Us For Availability
1
Carriage, broiler WCI 316110201 Contact Us For Availability
3#
Harness-ignitor assy WCI 316001827 Contact Us For Availability
4#
Tube-burner,red ,RF WCI 316059612 Contact Us For Availability
5
Screw-leveling,plastic ,with stop WCI 316129200 Contact Us For Availability
5
Glass-oven door, white , outer WCI 316050300 Contact Us For Availability
5#
Tube-burner,green ,LF WCI 316059613 Contact Us For Availability
6
Rack-oven WCI 316067902 Contact Us For Availability
6
Shield-wool WCI 316088403 Contact Us For Availability
6#
Tube-burner,nat. ,RR WCI 316059614 Contact Us For Availability
7
Insulation,oven door WCI 316076401 Contact Us For Availability
7#
Tube-burner,black ,LR WCI 316059615 Contact Us For Availability
8
Glass-oven door,inner WCI 316088600 Contact Us For Availability
9
Pan-broiler WCI 316081900 Contact Us For Availability
9
Liner-oven door WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer head ,10-24T x 2 WCI 5303280308 Contact Us For Availability
10*
Washer,3/4 OD x 1/4 ID ,steel WCI 316008401 Contact Us For Availability
11
Ignitor-top burner,(4) ,w/mtg bracket WCI 316011200 Contact Us For Availability
12
Seal-oven door,non self-clean WCI 5303202011 Contact Us For Availability
13
Panel-oven door,white WCI 3017081 Contact Us For Availability
13#
Tube,aluminum ,rgltr to manf ,with fittings WCI 316065005 Contact Us For Availability
14
Socket-light/lamp,oven WCI 316116400 Contact Us For Availability
14*
Screw-regulator/brkt, hex , 8-18 x 3/8 ,nick, WCI 316021104 Contact Us For Availability
15
Bracket-regulator WCI 316091600 Contact Us For Availability
16#
Tube-valve to rgltr,3/8 WCI 316065006 Contact Us For Availability
17#
Valve-safety WCI 3203459 Contact Us For Availability
18#
Burner-oven WCI 316114300 Contact Us For Availability
20
Spacer-handle,white ,(2) WCI 316133601 Contact Us For Availability
21
Nut, hex head sems WCI 5303013272 Contact Us For Availability
21
Spacer-bodyside, (8) WCI 3014099 Contact Us For Availability
22
Retainer-glass,(2) WCI 5303272476 Contact Us For Availability
22#
Cap-burner,gloss gray ,(4) WCI 316010905 Contact Us For Availability
27
Clip-thermo bulb WCI 5303284616 Contact Us For Availability
34
Cover Plate WCI 3018607 Contact Us For Availability
36
Knob-top valve,white WCI 316109513 Contact Us For Availability
37
Screw-burner mtg WCI 316069301 Contact Us For Availability
41
Cover-hinge cutout WCI 3131570 Contact Us For Availability
44
Orifice-top burner,small WCI 5303210090 Contact Us For Availability
44
Bumper-door WCI 3131903 Contact Us For Availability
47#
LP Conversion Kit WCI 5303286386 Contact Us For Availability
58A
Insulation,oven wrapper WCI 3017142 Contact Us For Availability
73
Base-low broil WCI 316109902 Contact Us For Availability
85
Rack-Low Broil WCI 316115600 Contact Us For Availability
130B
Glide-low broil,outer WCI 316111501 Contact Us For Availability
170*
Template, Anti-tip bracket WCI 316112500 Contact Us For Availability
× ![]()
