Model Electrolux FGF379WESJ RANGE – Common Parts & Diagrams

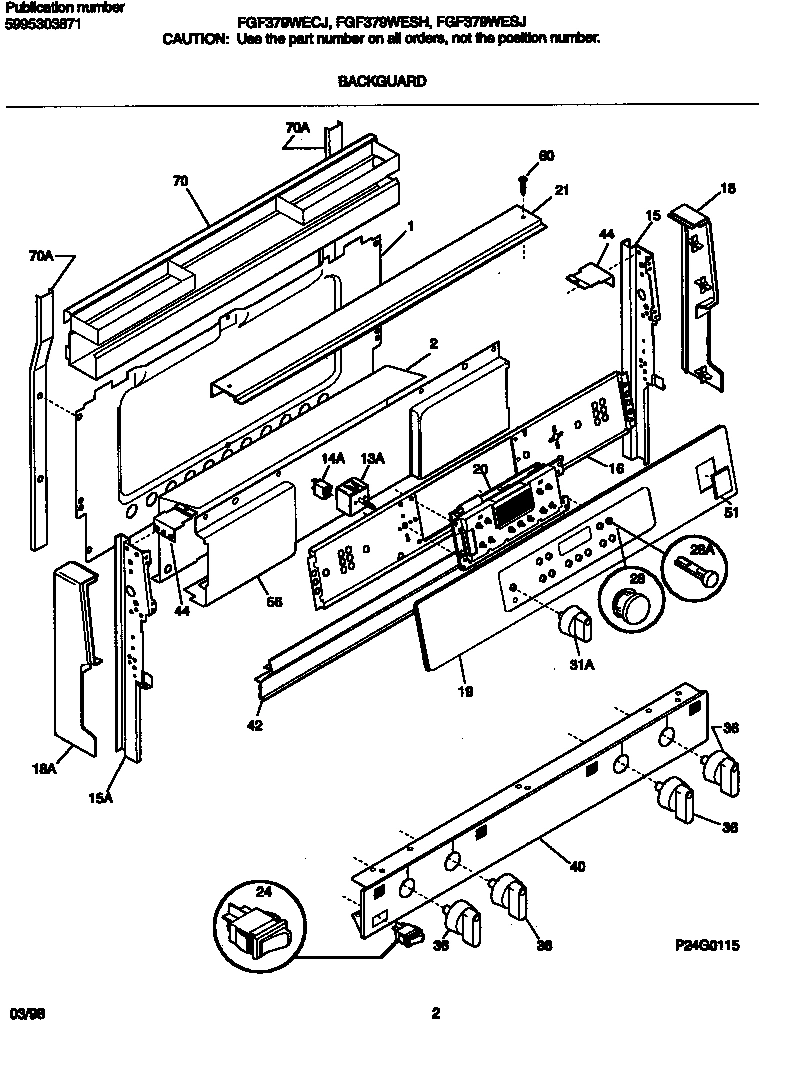

02 - BACKGUARD

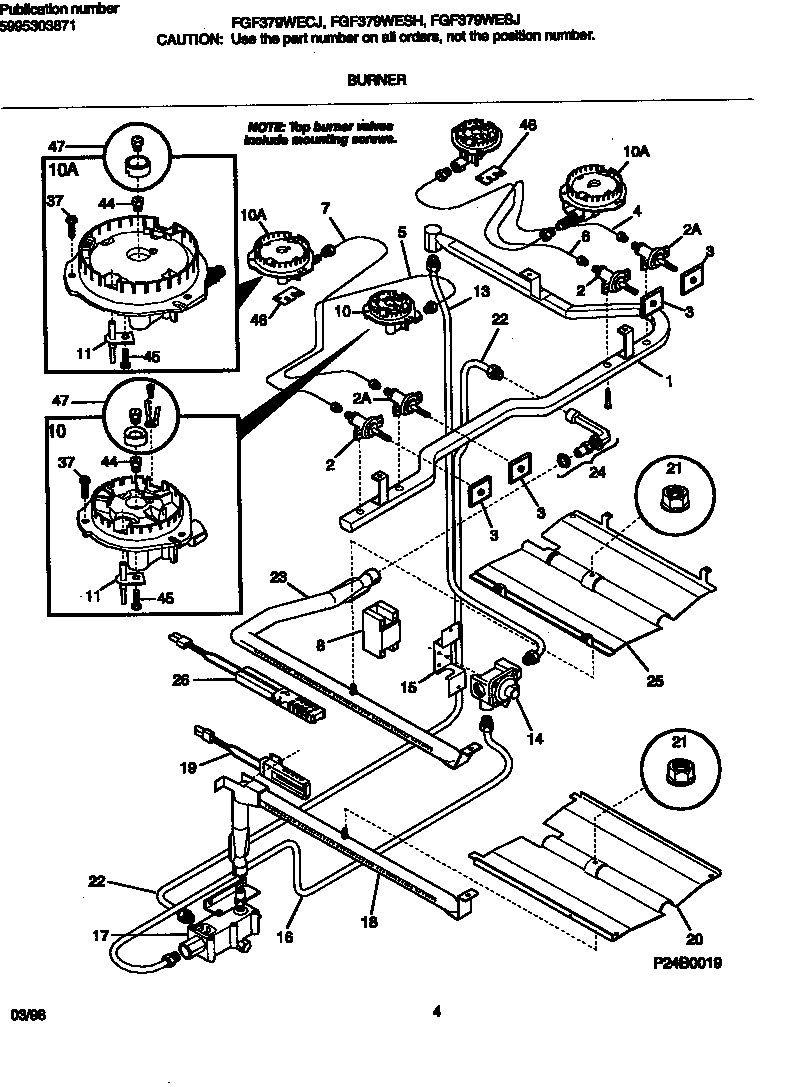

03 - BURNER
04 - BODY
05 - TOP/DRAWER
07 - WIRING DIAGRAM
Common parts from model Electrolux FGF379WESJ RANGE
*38968
SHIELD-INSULATION WCI 08067992 Contact Us For Availability
*38970
PANEL-BODYSIDE,WHITE ,LH WCI 316081029 Contact Us For Availability
*38971
SHIELD-HEAT,BODY SIDE WCI 316088100 Contact Us For Availability
*38972
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*38974
NUT,T-TYPE,LEVELING SCREW WCI 5303288460 Contact Us For Availability
*38977
WCI 08067961 WCI 08067961 Contact Us For Availability
*38978
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
*38980
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*38981
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
*38982
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*38983
WCI 218490900 WCI 218490900 Contact Us For Availability
*38987
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*38989
SCREW, TRUSS HEAD, 8-10 X 0.375, HANDLE, (3) WCI 5303288574 Contact Us For Availability
1
WCI 316029412 WCI 316029412 Contact Us For Availability
1
WCI 316094601 WCI 316094601 Contact Us For Availability
2
WCI 5303935130 WCI 5303935130 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 316092901 WCI 316092901 Contact Us For Availability
3
WCI 316081028 WCI 316081028 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011914 WCI 316011914 Contact Us For Availability
4
WCI 316079401 WCI 316079401 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
7
WCI 316007005 WCI 316007005 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SWITCH-OVEN LIGHT WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
WCI 316105600 WCI 316105600 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
16
WCI 5303307709 WCI 5303307709 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
20
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
20
WCI 316084502 WCI 316084502 Contact Us For Availability
20
WCI 316086403 WCI 316086403 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER WCI 316011308 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, GRAY, SMALL, (2) WCI 316011003 Contact Us For Availability
22
CAP-BURNER, GRAY, LARGE, (1) WCI 316011009 Contact Us For Availability
23
WCI 316087900 WCI 316087900 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
25
WCI 316092300 WCI 316092300 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, BLACK WCI 316080600 Contact Us For Availability
28
PUSH BUTTON, CLOCK/TIMER/EOC, GRAY WCI 316015103 Contact Us For Availability
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051700 WCI 316051700 Contact Us For Availability
38
WCI 316097100 WCI 316097100 Contact Us For Availability
39
WCI 316079500 WCI 316079500 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303288578 WCI 5303288578 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
45
SCREW-IGNITOR MTG, SELF-TAPPING, M3 X 5.8 WCI 316011100 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303307190 WCI 5303307190 Contact Us For Availability
48
SHIELD-MAINTOP,(2) WCI 316077401 Contact Us For Availability
53
WCI 5303288579 WCI 5303288579 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316047705 WCI 316047705 Contact Us For Availability
58
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
80
WCI 316093000 WCI 316093000 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
83
SHIELD-TERMINAL, WARMER WCI 316093300 Contact Us For Availability
84
WCI 316093500 WCI 316093500 Contact Us For Availability
87
WCI 316091902 WCI 316091902 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028103 WCI 316028103 Contact Us For Availability
155
WCI 316095201 WCI 316095201 Contact Us For Availability
× ![]()
