Model Electrolux FGF378WCCC RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

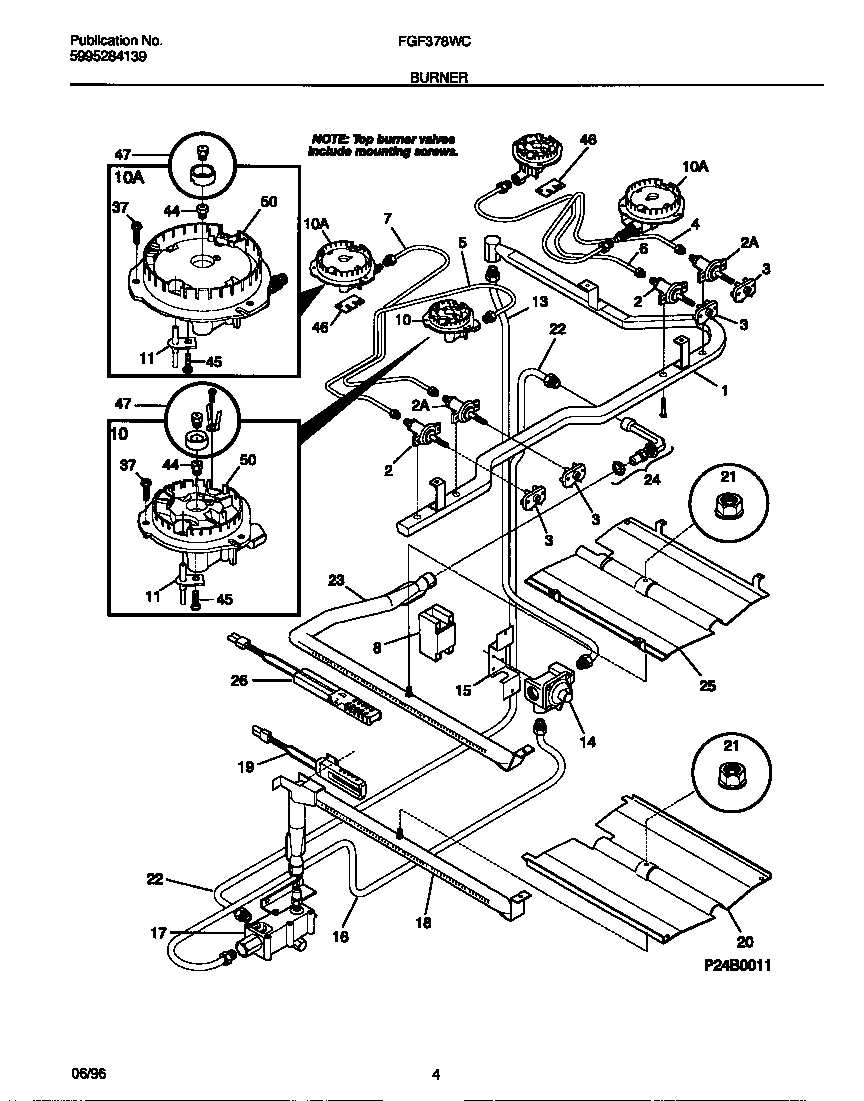

03 - BURNER

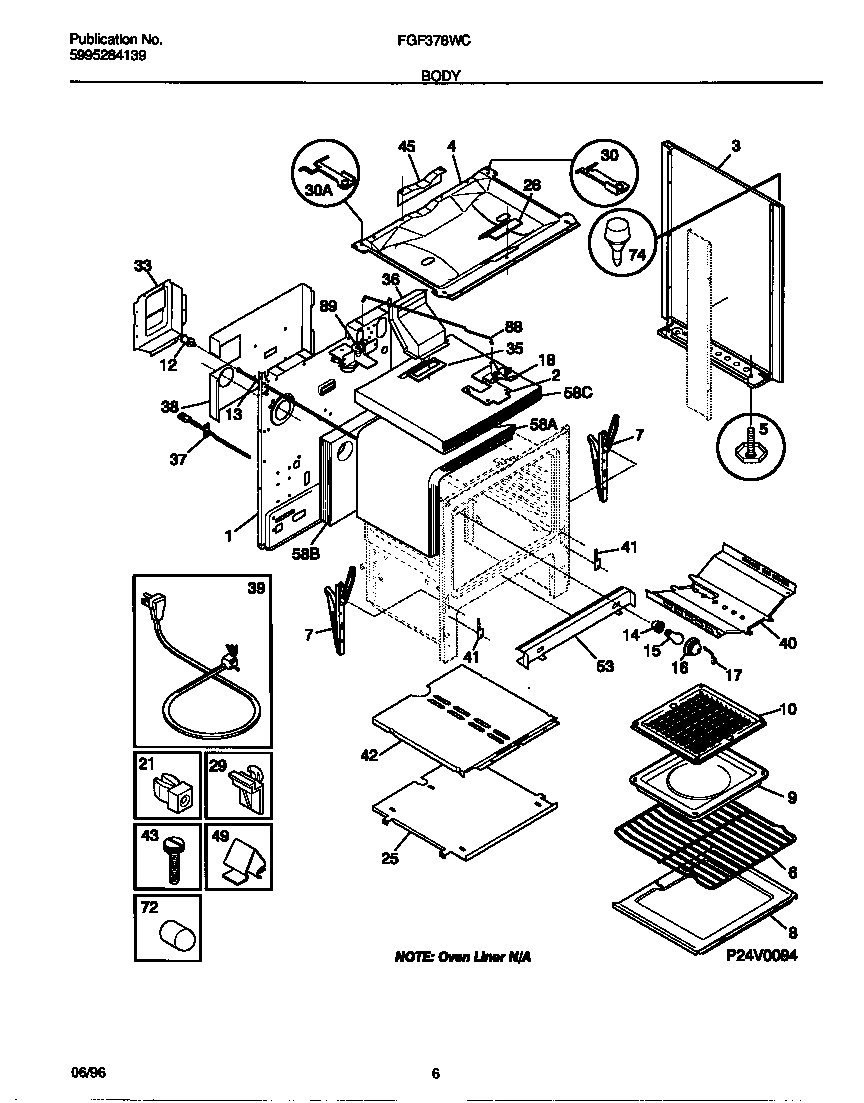

04 - BODY

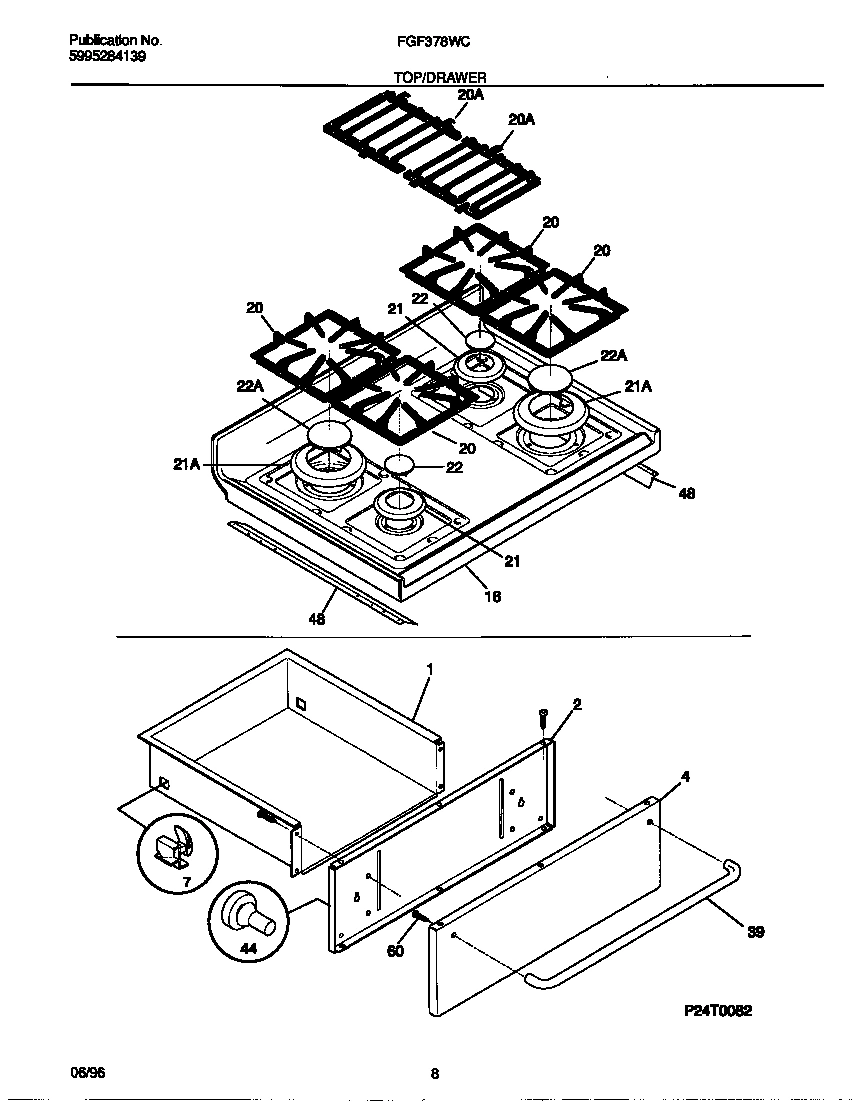

05 - TOP/DRAWER

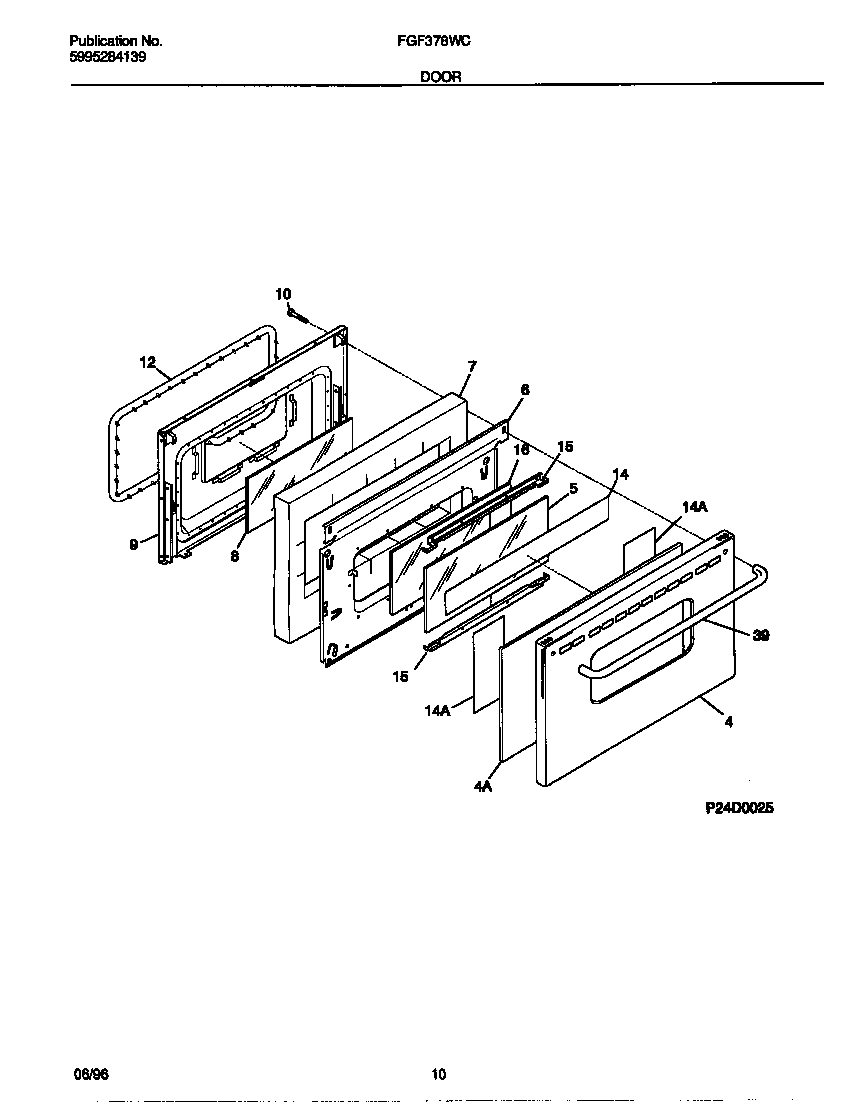

06 - DOOR

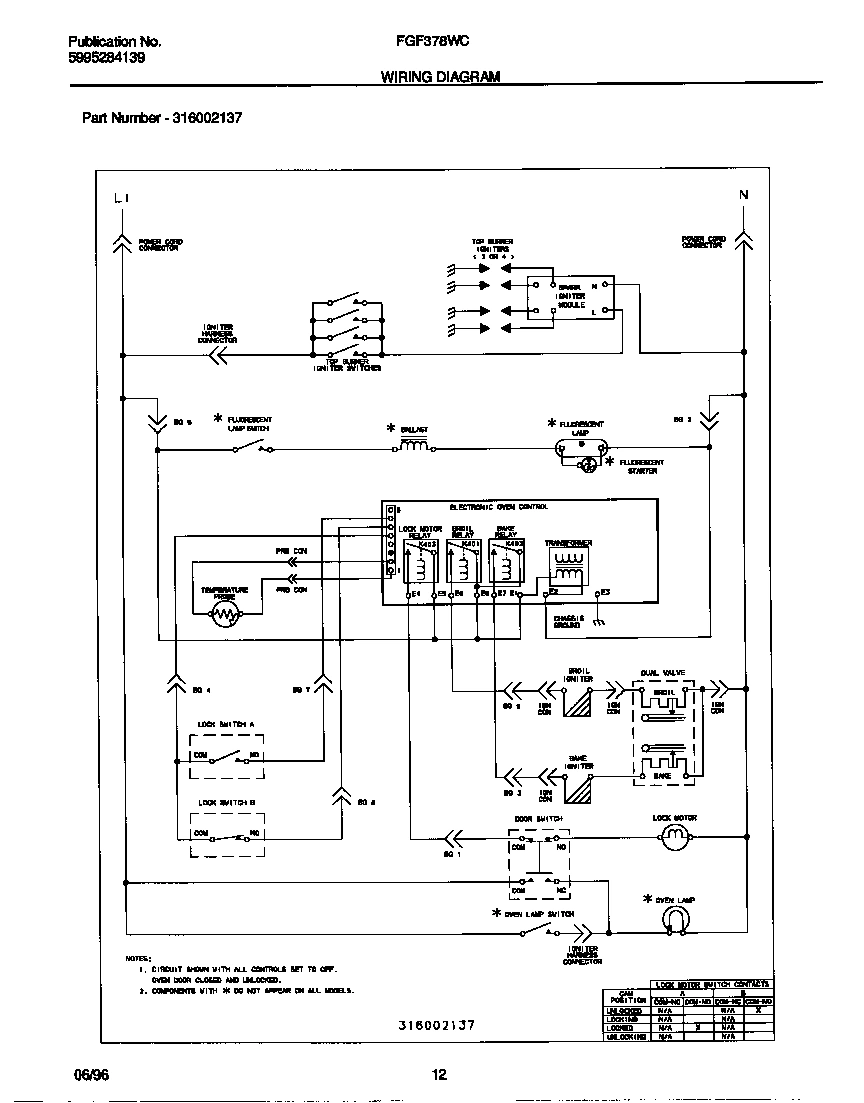

07 - WIRING DIAGRAM
Common parts from model Electrolux FGF378WCCC RANGE
*56124
HARNESS-WIRING, MAIN WCI 316001629 Contact Us For Availability
*56125
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*56126
WCI 218490900 WCI 218490900 Contact Us For Availability
*56127
SCREW, CUP PT, 8-18 X 3/8 WCI 316021108 Contact Us For Availability
*56129
WCI 5303288574 WCI 5303288574 Contact Us For Availability
*56130
WCI 316065301 WCI 316065301 Contact Us For Availability
*56131
WCI 316085500 WCI 316085500 Contact Us For Availability
*56132
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3A
WCI 316081002 WCI 316081002 Contact Us For Availability
3B
WCI 316081003 WCI 316081003 Contact Us For Availability
3C
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
3D
SHIELD-BODYSIDE, (2) (NOT ILLUSTRATED) WCI 316077501 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011912 WCI 316011912 Contact Us For Availability
4
WCI 316083900 WCI 316083900 Contact Us For Availability
4
WCI 316079300 WCI 316079300 Contact Us For Availability
4A
WCI 316079401 WCI 316079401 Contact Us For Availability
4B
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
WCI 316088601 WCI 316088601 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088405 WCI 316088405 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
7A
WCI 316007005 WCI 316007005 Contact Us For Availability
8
WCI 316088701 WCI 316088701 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10
SCREW-HANDLE MTG, 10-32 WCI 316001006 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
16A
WCI 5303307708 WCI 5303307708 Contact Us For Availability
16B
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
16C
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
20
WCI 316084500 WCI 316084500 Contact Us For Availability
20
WCI 316084600 WCI 316084600 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
21
TRIM-RING-BURNER, BLACK, LARGE WCI 316011304 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, MATTE BLACK, (4), SMALL WCI 316011014 Contact Us For Availability
22
CAP-BURNER, MATTE BLACK, LARGE, (2) WCI 316011015 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
SWITCH-ROCKER WCI 316083101 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC WCI 316080600 Contact Us For Availability
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
39
WCI 316079500 WCI 316079500 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
40A
WCI 3200836 WCI 3200836 Contact Us For Availability
40B
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44A
ORIFICE-TOP BURNER, SMALL, (2) WCI 5303210090 Contact Us For Availability
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303307190 WCI 5303307190 Contact Us For Availability
48
SHIELD-MAINTOP WCI 316077401 Contact Us For Availability
50A
BURNER-TOP, SMALL, (2) INCLUDES, 37 WCI 5303935026 Contact Us For Availability
50B
WCI 316090201 WCI 316090201 Contact Us For Availability
53A
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316047705 WCI 316047705 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
60
WCI 5303280311 WCI 5303280311 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
