Model Electrolux FGF378WCCB RANGE – Common Parts & Diagrams

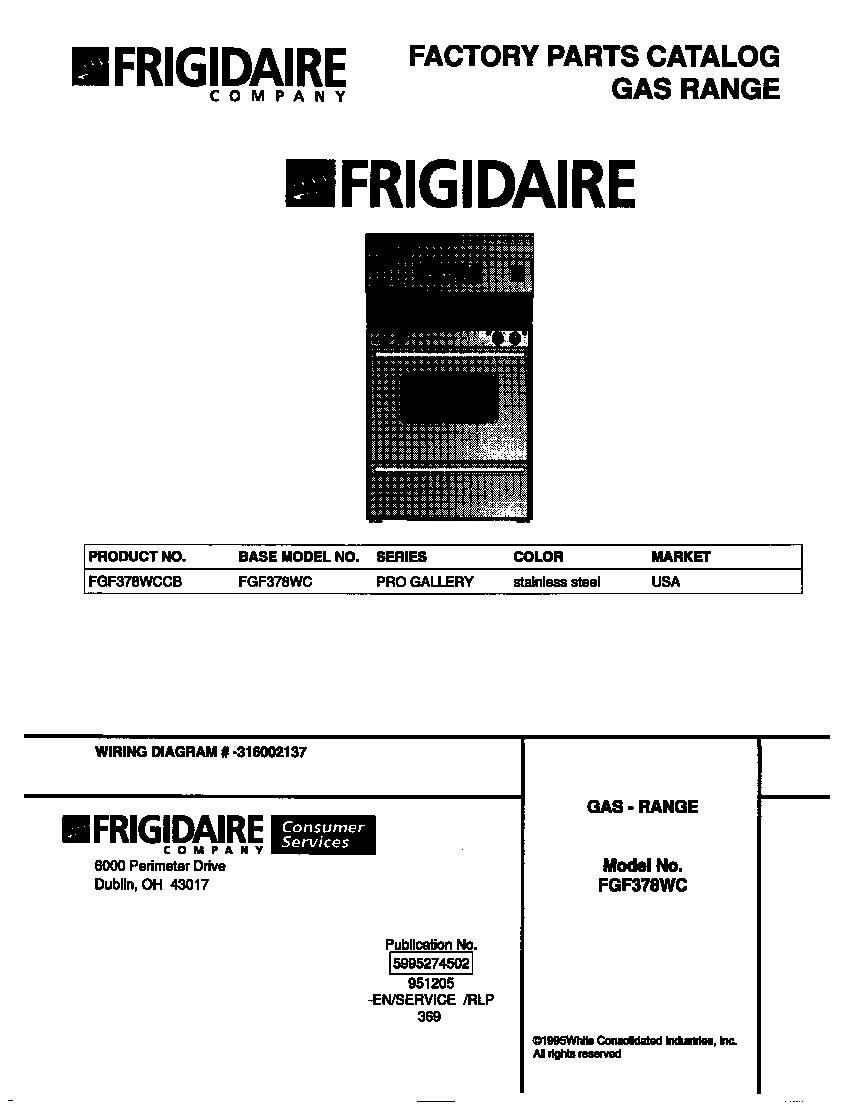

01 - COVER

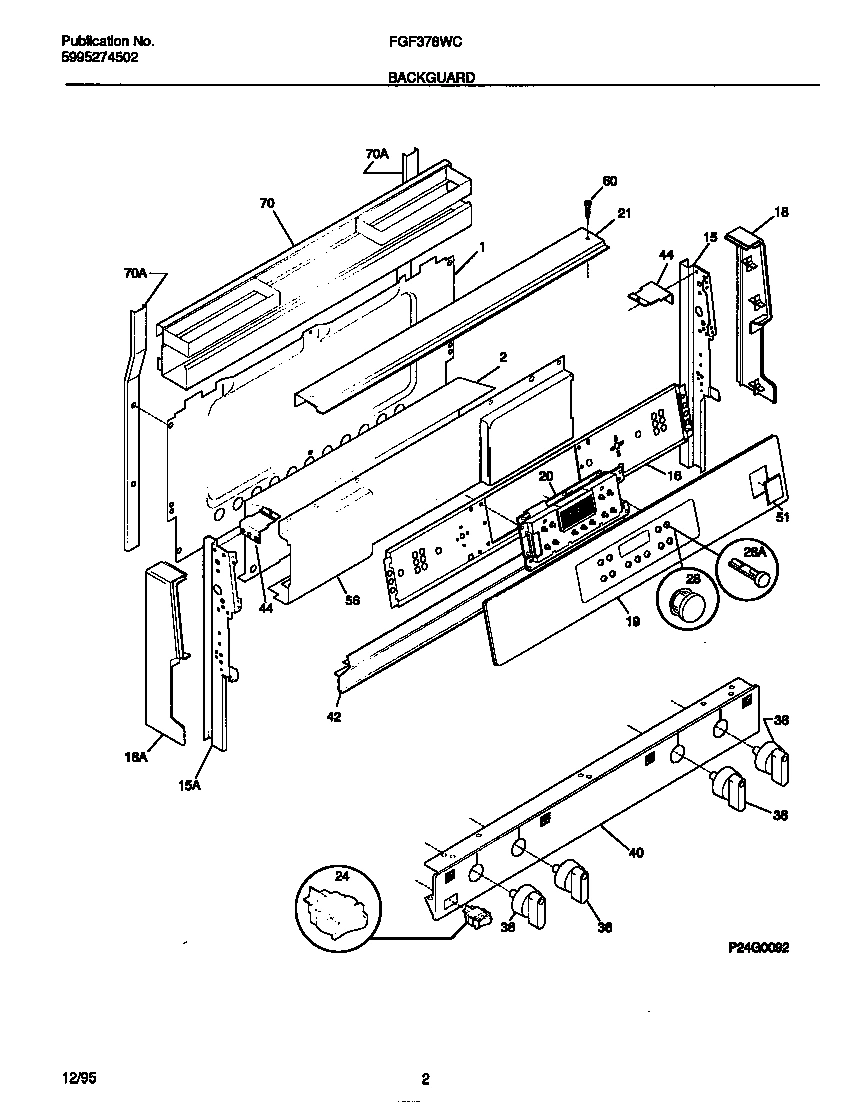

02 - BACKGUARD

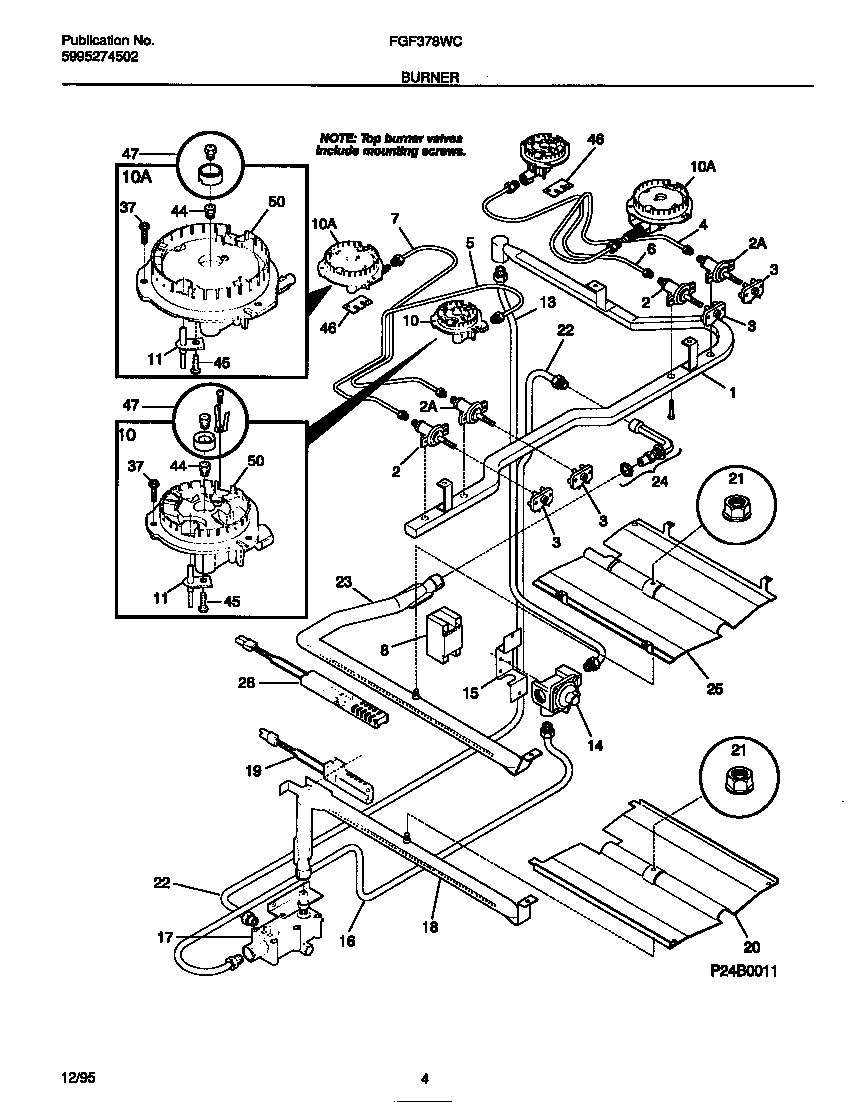

03 - BURNER

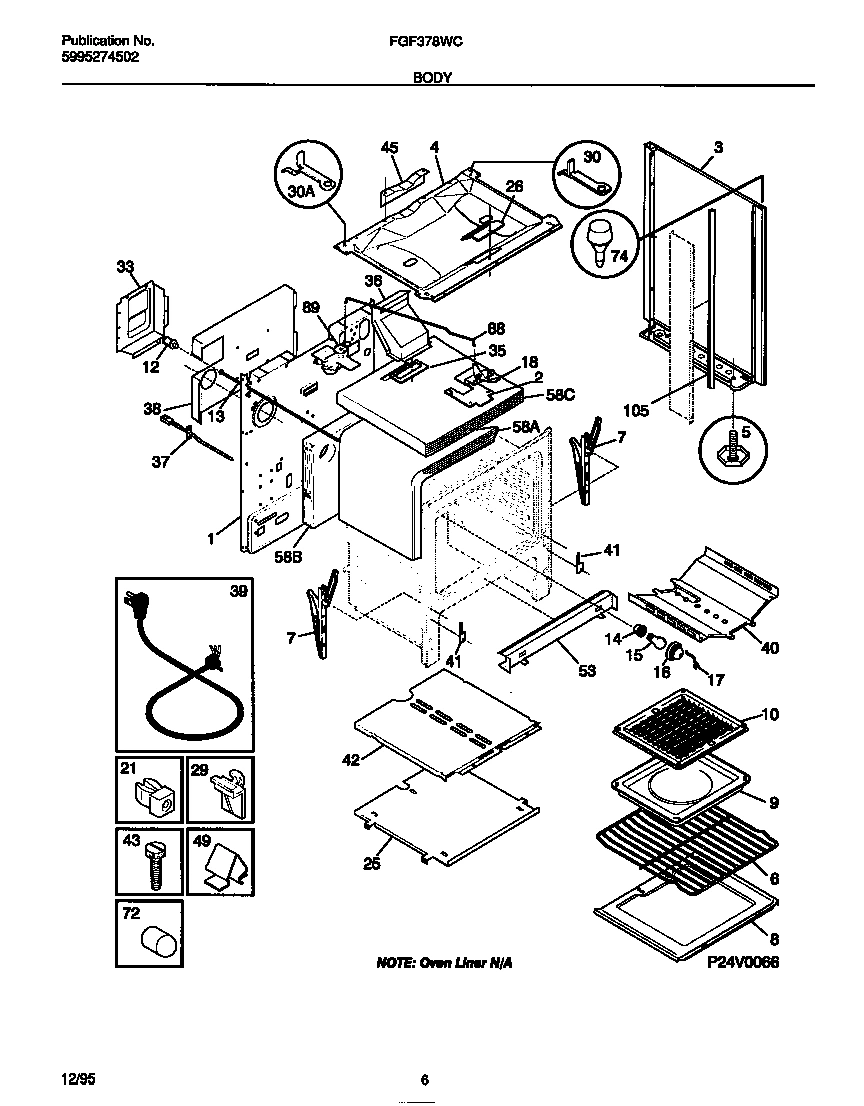

04 - BODY

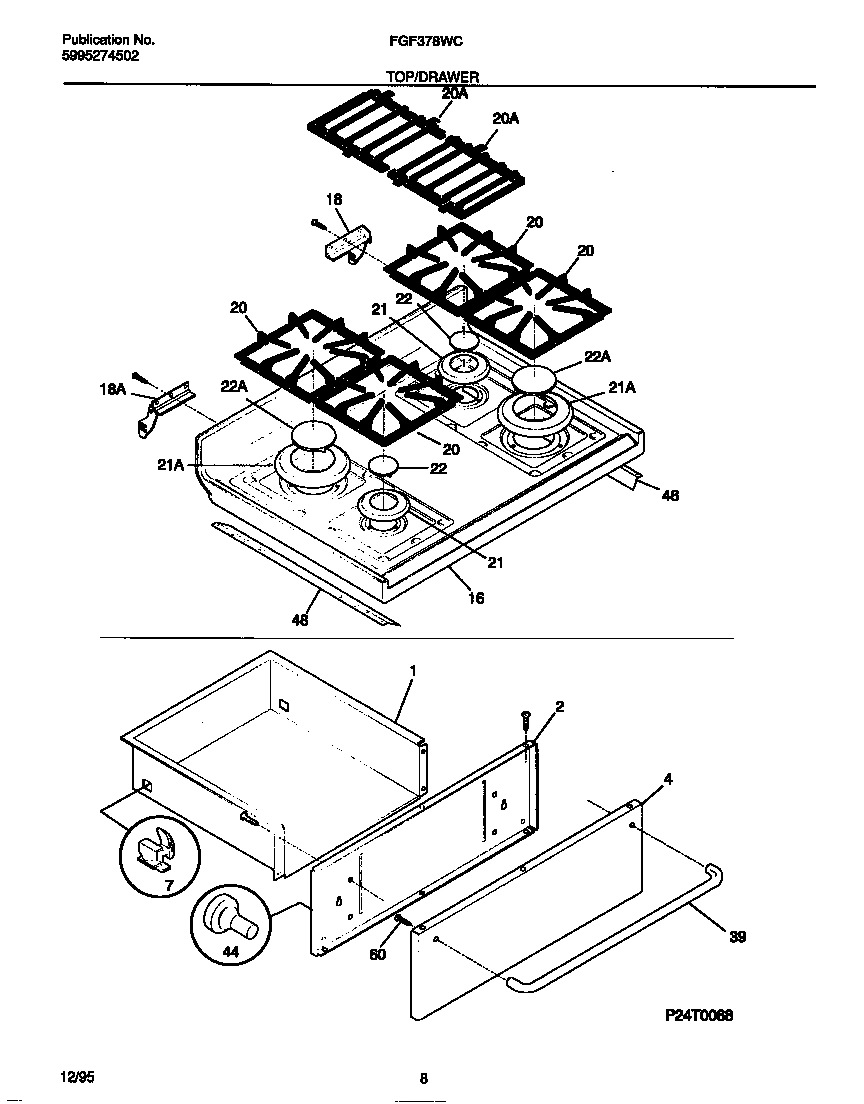

05 - TOP/DRAWER

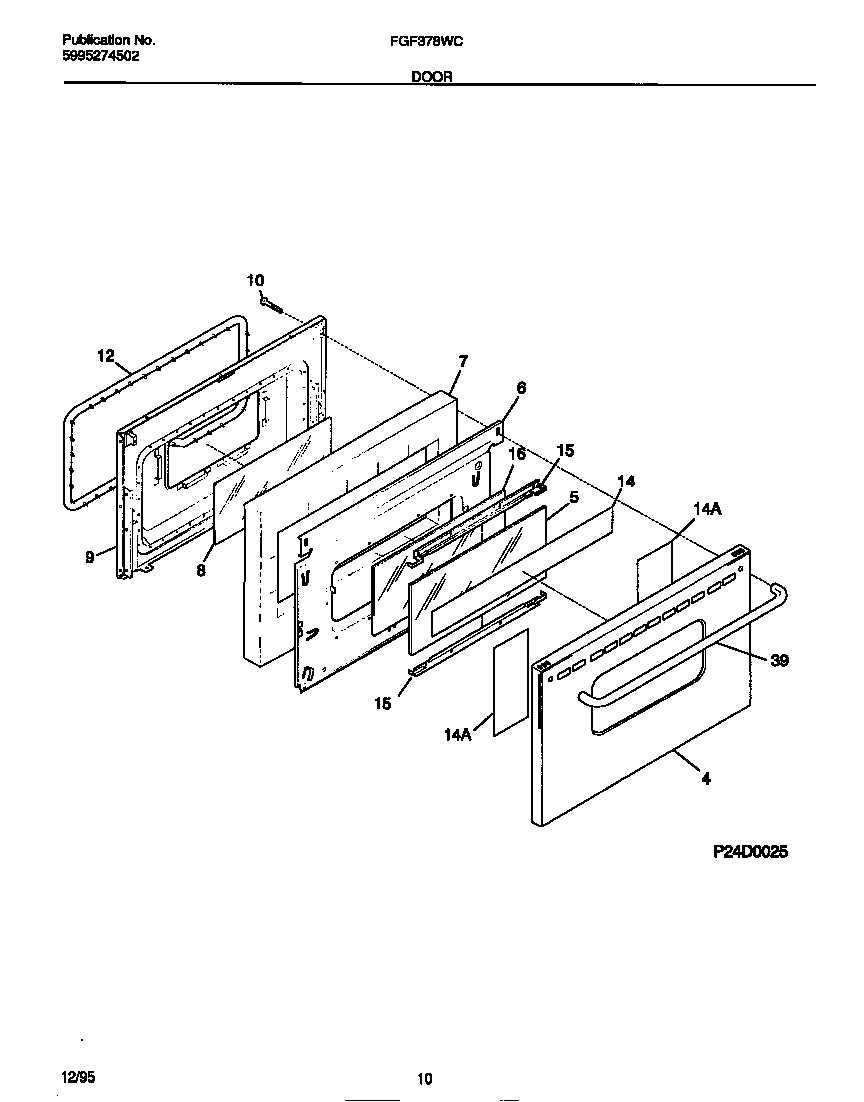

06 - DOOR

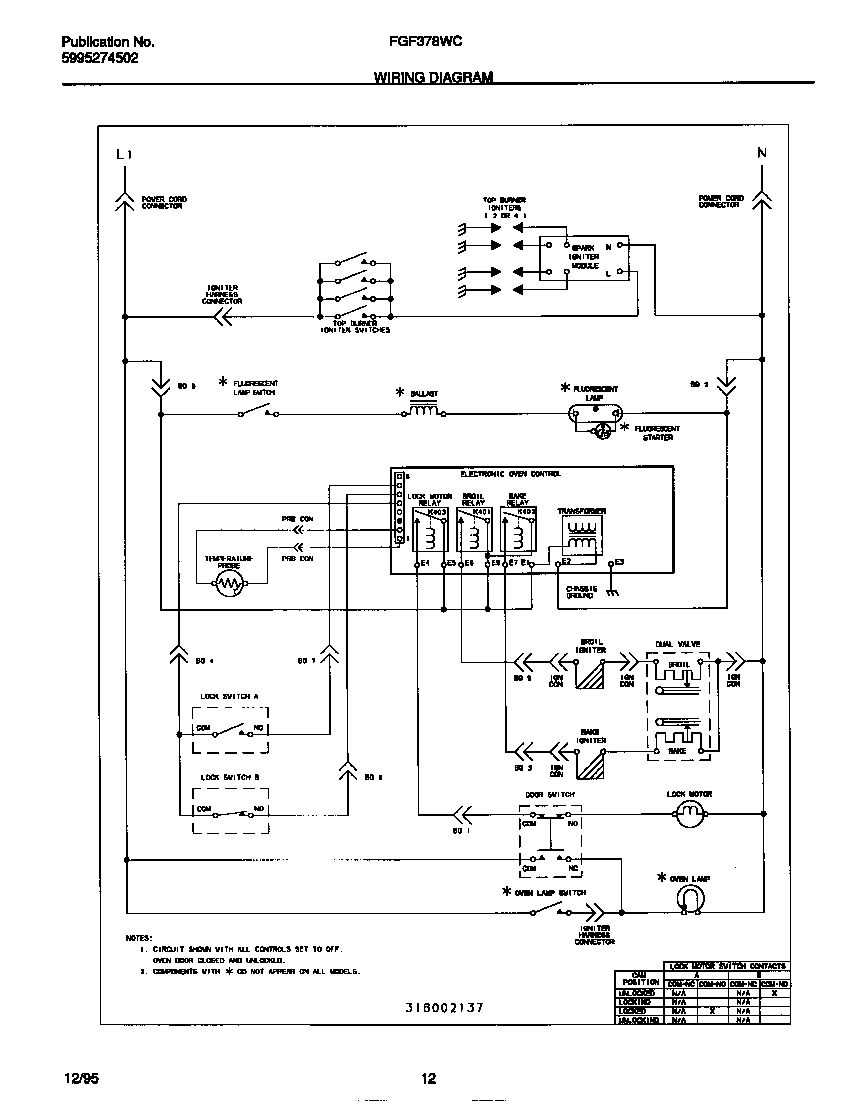

07 - WIRING DIAGRAM
Common parts from model Electrolux FGF378WCCB RANGE
*90843
HARNESS-WIRING, MAIN WCI 316001629 Contact Us For Availability
*90844
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*90845
WCI 218490900 WCI 218490900 Contact Us For Availability
*90846
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*90848
WCI 316065301 WCI 316065301 Contact Us For Availability
*90849
WCI 316085500 WCI 316085500 Contact Us For Availability
*90850
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*90852
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*90854
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131314 WCI 3131314 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
3
SHIELD, INSULATION, GALV STEEL (NOT ILLUSTRAT WCI 08067992 Contact Us For Availability
3
WCI 316081002 WCI 316081002 Contact Us For Availability
3
WCI 316081003 WCI 316081003 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316011912 WCI 316011912 Contact Us For Availability
4
WCI 316079400 WCI 316079400 Contact Us For Availability
4
WCI 316079300 WCI 316079300 Contact Us For Availability
5
WCI 316088601 WCI 316088601 Contact Us For Availability
5
WCI 3934058 WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316088405 WCI 316088405 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
WCI 5303289034 WCI 5303289034 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
8
WCI 316088701 WCI 316088701 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, SMALL, 9000 BTU, (2) WCI 5303935025 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, (2), INCLUDES, 11, 3 WCI 5303935075 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10
SCREW-HANDLE MTG, 10-32 WCI 316001006 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 316065003 WCI 316065003 Contact Us For Availability
16
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
16
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
16
WCI 5303307708 WCI 5303307708 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 3131290 WCI 3131290 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 316001810 WCI 316001810 Contact Us For Availability
20
WCI 5303288408 WCI 5303288408 Contact Us For Availability
20
WCI 316084500 WCI 316084500 Contact Us For Availability
20
WCI 316084600 WCI 316084600 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
21
TRIM-RING-BURNER, BLACK, LARGE WCI 316011304 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
WCI 316011014 WCI 316011014 Contact Us For Availability
22
WCI 316011015 WCI 316011015 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
SWITCH-ROCKER WCI 316083101 Contact Us For Availability
24
WCI 316070400 WCI 316070400 Contact Us For Availability
25
WCI 5303288407 WCI 5303288407 Contact Us For Availability
25
WCI 3131313 WCI 3131313 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC WCI 316080600 No Longer Available
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
36
WCI 5303272844 WCI 5303272844 Contact Us For Availability
38
WCI 316051701 WCI 316051701 Contact Us For Availability
39
WCI 08067961 WCI 08067961 Contact Us For Availability
39
WCI 316079500 WCI 316079500 Contact Us For Availability
40
WCI 3200836 WCI 3200836 Contact Us For Availability
40
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303270104 WCI 5303270104 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL, (4) WCI 5303210090 No Longer Available
44
WCI 316010804 WCI 316010804 Contact Us For Availability
45
WCI 316011100 WCI 316011100 Contact Us For Availability
45
SHIELD-WIRE WCI 08068018 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303307190 WCI 5303307190 Contact Us For Availability
48
WCI 316077400 WCI 316077400 Contact Us For Availability
48
WCI 316077501 WCI 316077501 Contact Us For Availability
50
WCI 316090201 WCI 316090201 Contact Us For Availability
50
BURNER-TOP, SMALL, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
53
WCI 5303271047 WCI 5303271047 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316047705 WCI 316047705 Contact Us For Availability
58
WCI 316054200 WCI 316054200 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
105
WCI 316071900 WCI 316071900 Contact Us For Availability
× ![]()
