Model Electrolux FGF375BHBB RANGE – Common Parts & Diagrams

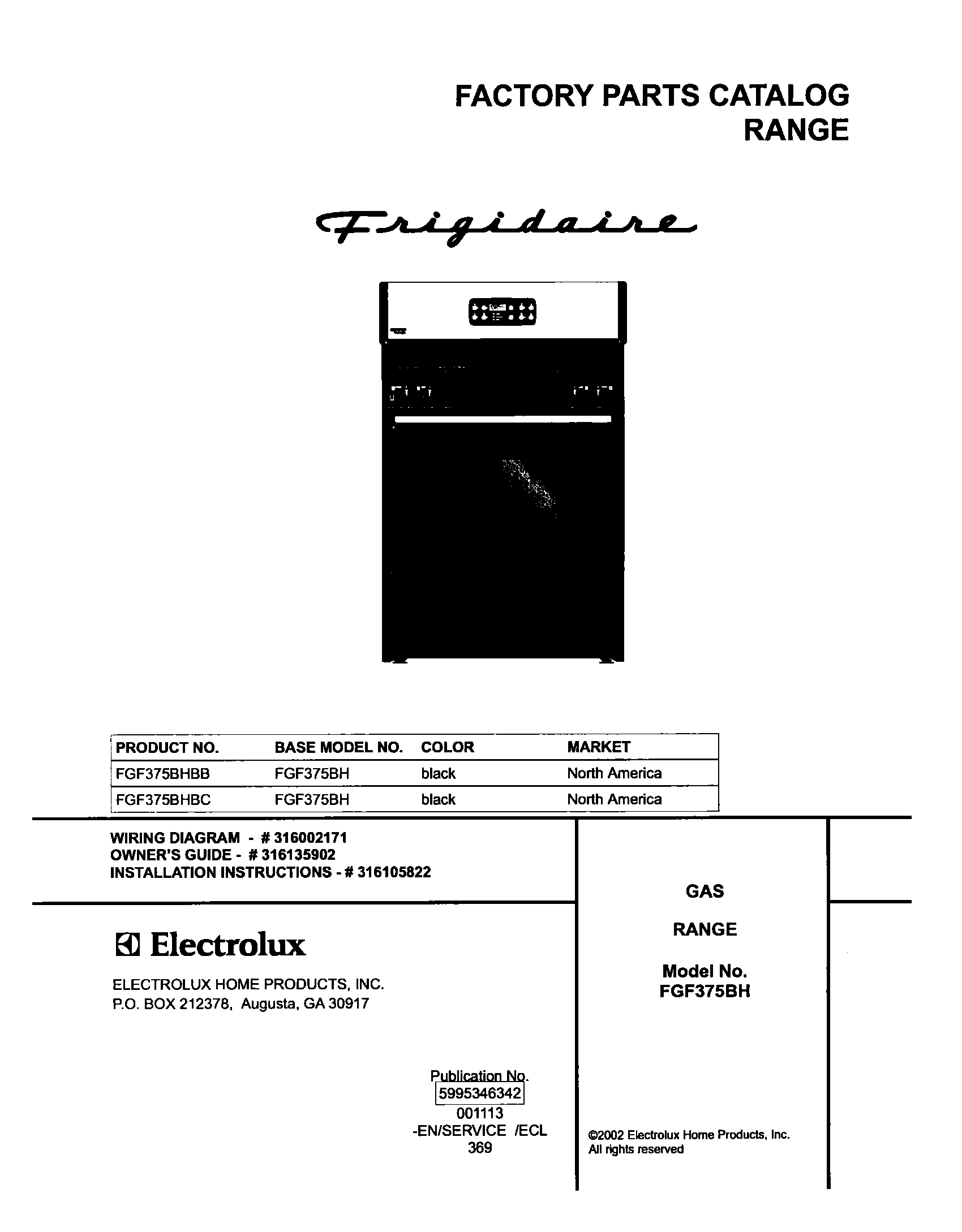

01 - COVER

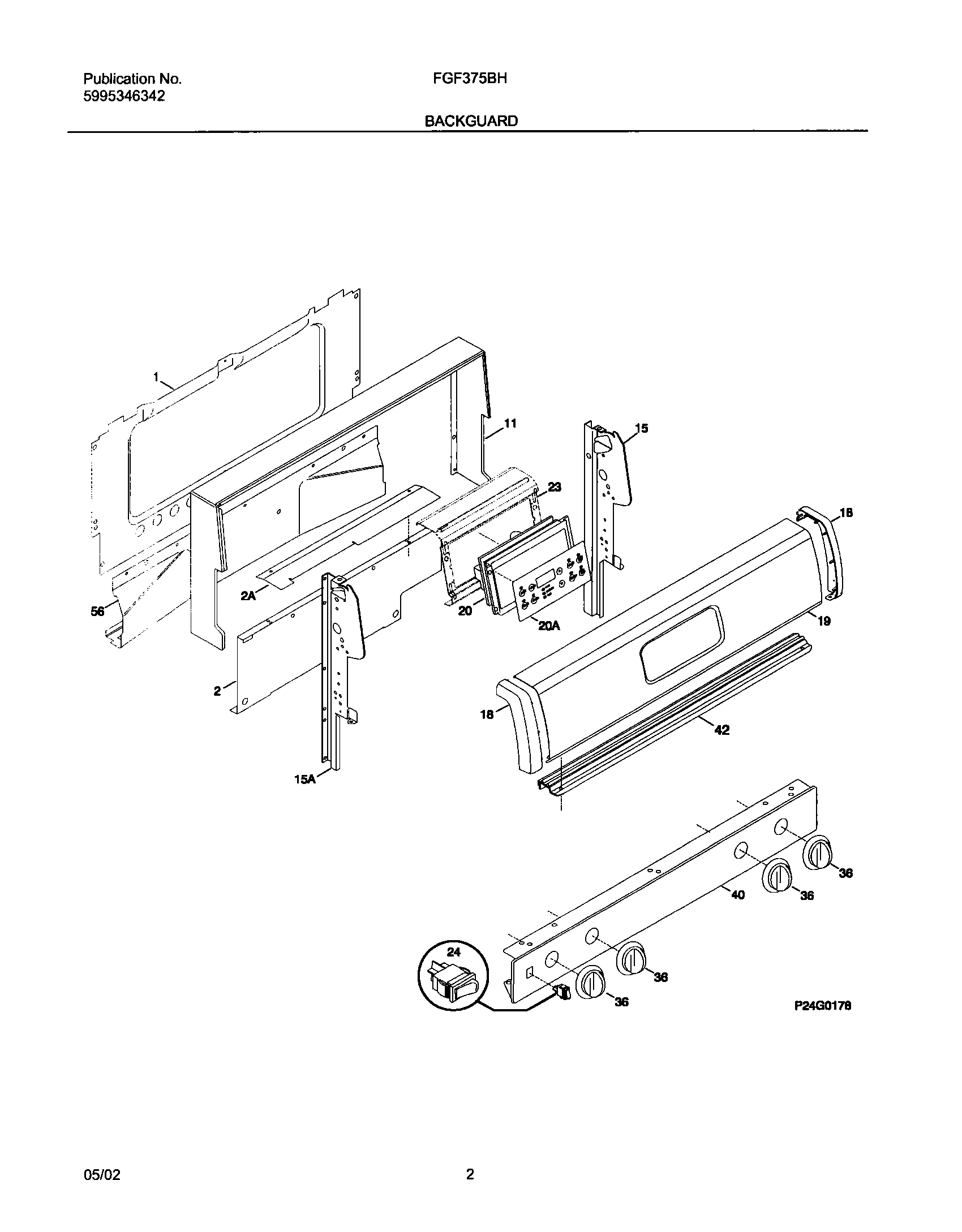

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - TOP/DRAWER
11 - DOOR
12 - WIRING DIAGRAM
Common parts from model Electrolux FGF375BHBB RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
Shield-drawer,liner ,galv steel ,front panel WCI 5303288582 Contact Us For Availability
2A
WCI 316127502 WCI 316127502 Contact Us For Availability
3
WCI 316001826 WCI 316001826 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
Panel-drawer front,black WCI 316084407 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
6
Rack,oven WCI 316067902 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
Glide,drawer ,rear WCI 3051163 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
10B
WCI 316008401 WCI 316008401 Contact Us For Availability
11
Ignitor,top burner ,(4) ,w/mtg bracket WCI 316011200 Contact Us For Availability
12
WCI 5303131601 WCI 5303131601 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
14
Socket-light/lamp,oven WCI 316116400 Contact Us For Availability
14
Reflector,aluminum foil ,black door WCI 5303208656 Contact Us For Availability
14A
Reflector,aluminum foil ,black door WCI 5303208655 Contact Us For Availability
15
WCI 316091600 WCI 316091600 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 5303307708 WCI 5303307708 Contact Us For Availability
17
WCI 5303208499 WCI 5303208499 Contact Us For Availability
17
WCI 316087500 WCI 316087500 Contact Us For Availability
19
Ignitor,oven kit ,w/nut & instr WCI 5303935066 Contact Us For Availability
19
PAN-BURNER, BLACK, SMALL, (2) WCI 316011415 Contact Us For Availability
19A
Pan-burner,large ,black WCI 316011419 Contact Us For Availability
20
GRATE,BLACK ,(4) WCI 316085201 Contact Us For Availability
21
Nut,hex head sems WCI 5303013272 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
Cap-burner,small ,black ,(4) WCI 316122100 Contact Us For Availability
22A
CAP-BURNER,BLACK ,LARGE WCI 316098505 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
24
SWITCH-ROCKER, OVEN LIGHT, BLACK, RH WCI 316083101 Contact Us For Availability
29
GLIDE-DRAWER, FRONT WCI 3051162 Contact Us For Availability
36
WCI 316109512 WCI 316109512 Contact Us For Availability
37
WCI 316069301 WCI 316069301 Contact Us For Availability
39
WCI 316091122 WCI 316091122 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
44
WCI 3131903 WCI 3131903 Contact Us For Availability
48
Shield,deflector ,main top panel ,(2) WCI 316077401 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
170
Template, Anti-tip bracket WCI 316112500 Contact Us For Availability
170
Screw`concrete tpg `1.75 inch ,anti-tip brkt WCI 316116000 Contact Us For Availability
NI
Screw,8-18 x 0.500 ,chrome WCI 316021109 Contact Us For Availability
NI
Screw,hex head cup pt ,8-18 x 0.375 ,black,ba WCI 316021105 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
SCREW-REGULATOR/BRKT,HEX ,8-18 X 3/8 ,NICK, WCI 316021104 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
Screw,wafer hd sq dr ,8-18AB x 0.500 ,burner WCI 5303271648 Contact Us For Availability
NI
WCI 316001629 WCI 316001629 Contact Us For Availability
NI
WCI 316021123 WCI 316021123 Contact Us For Availability
NI
Support,oven bottom WCI 316064600 Contact Us For Availability
NI
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
