Model Electrolux FGF368CJBA RANGE – Common Parts & Diagrams

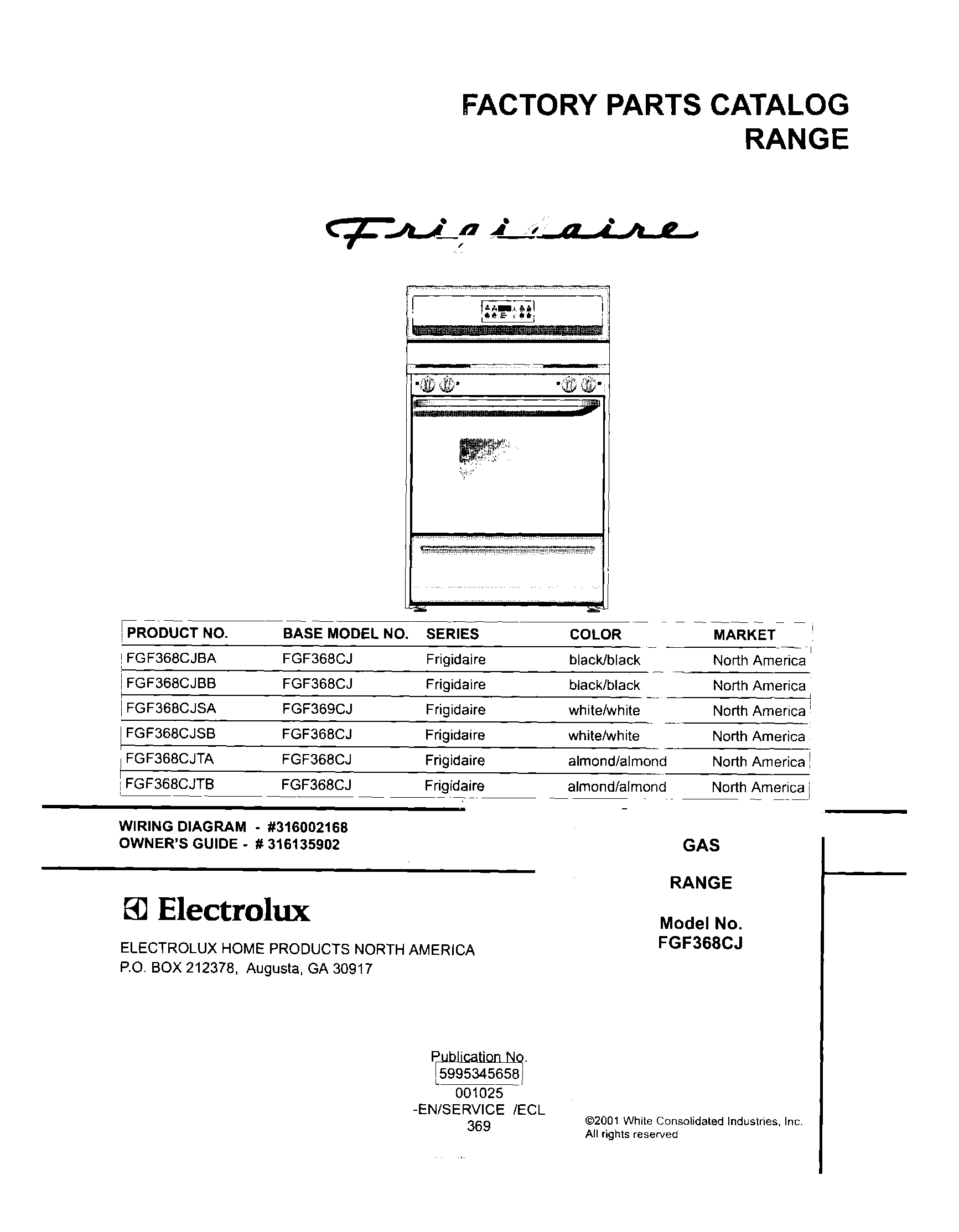

01 - COVER

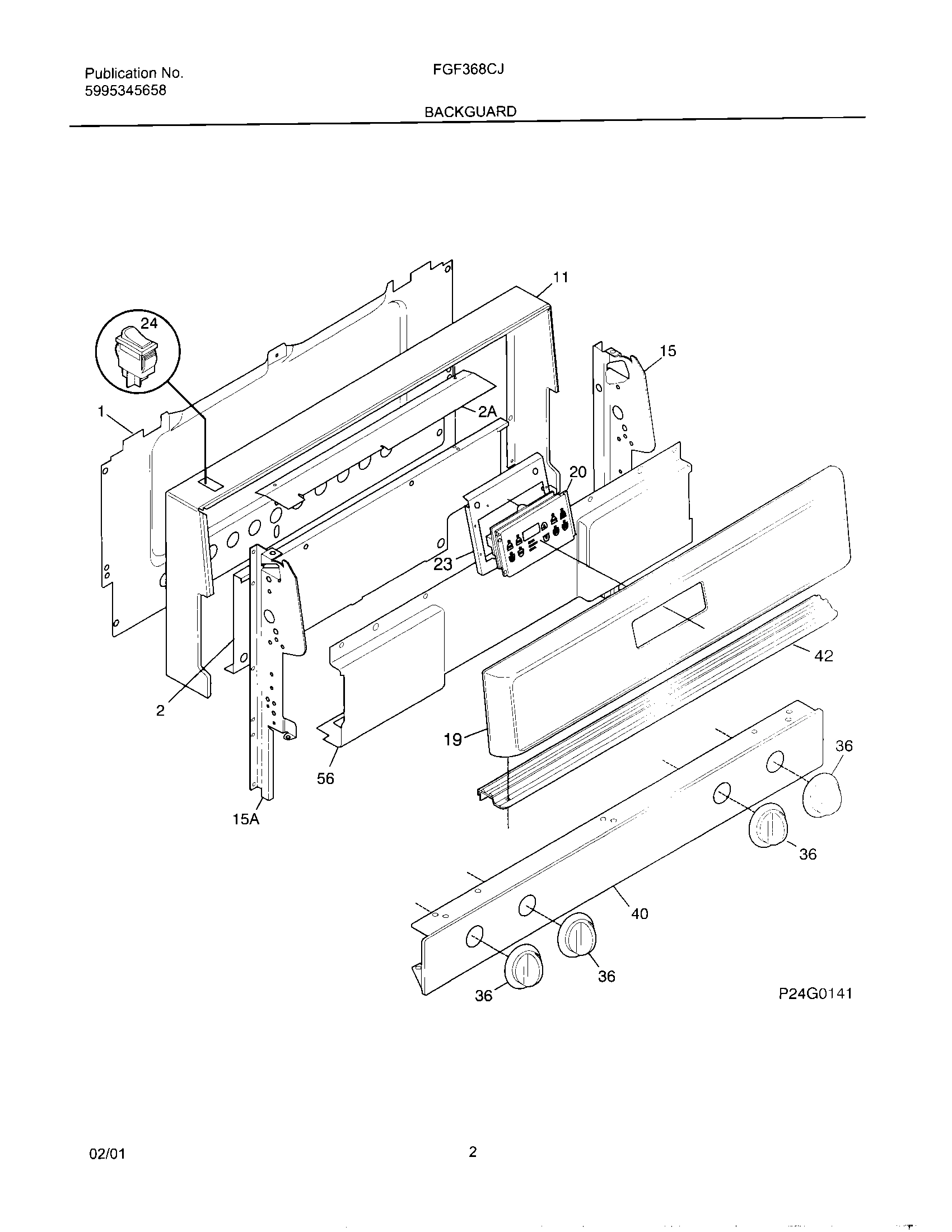

03 - BACKGUARD

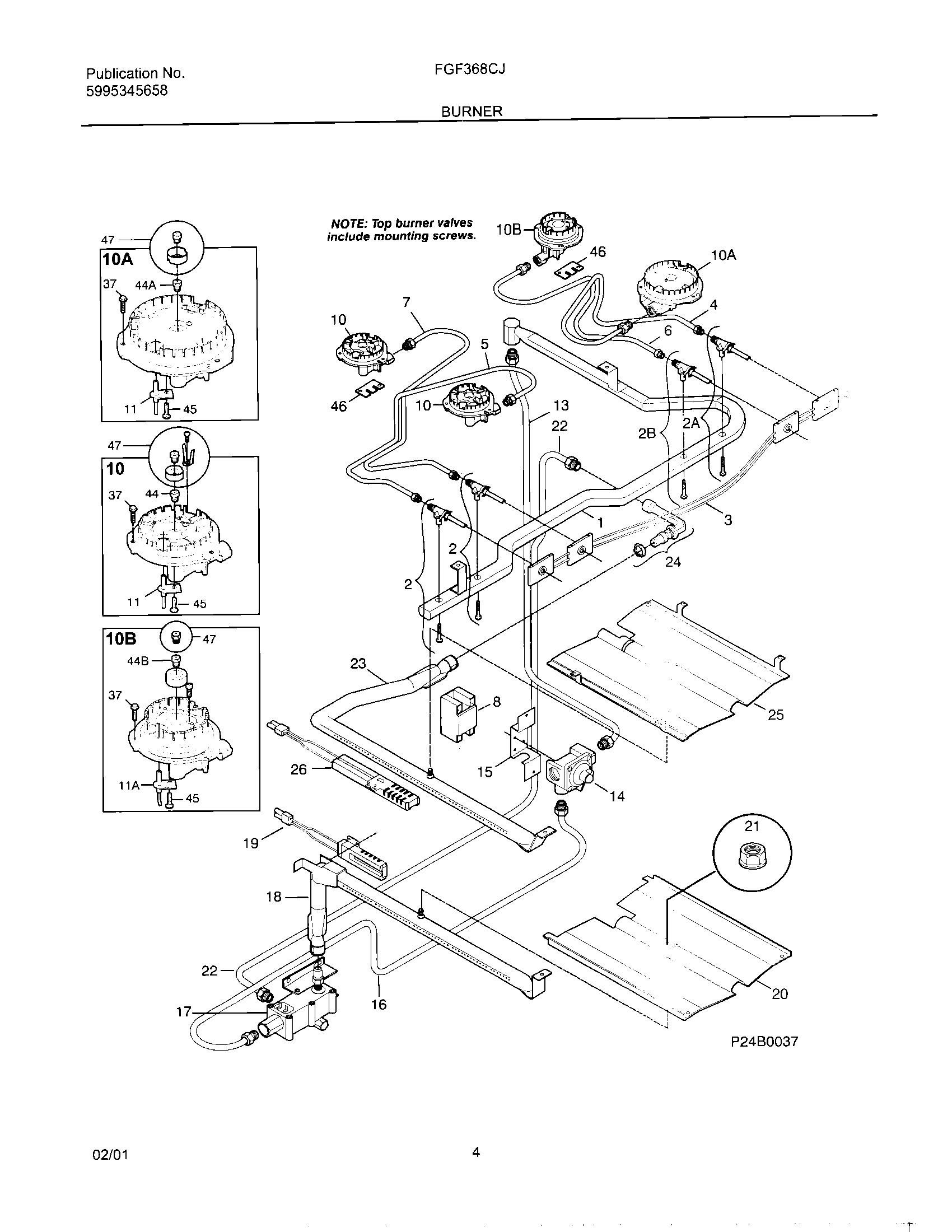

05 - BURNER

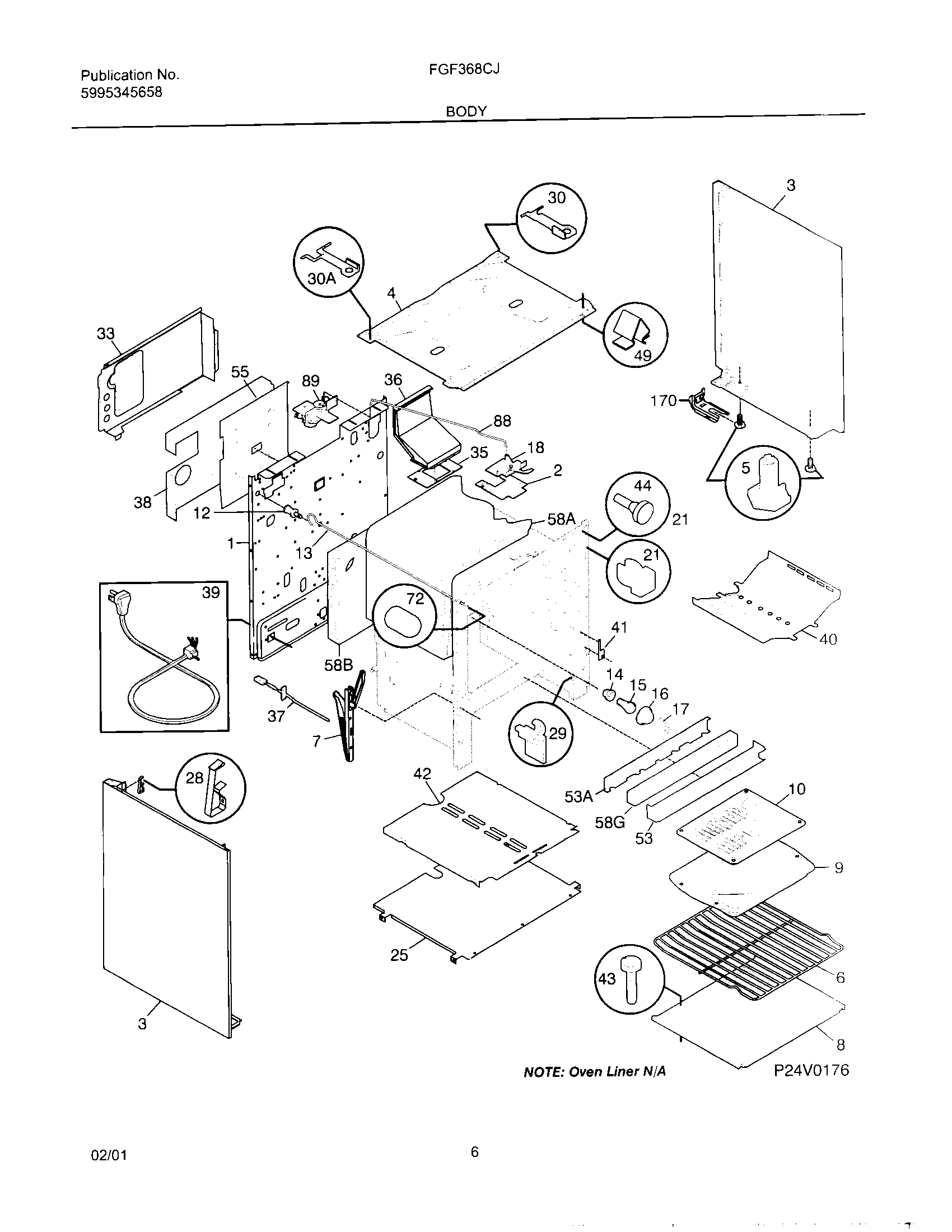

07 - BODY

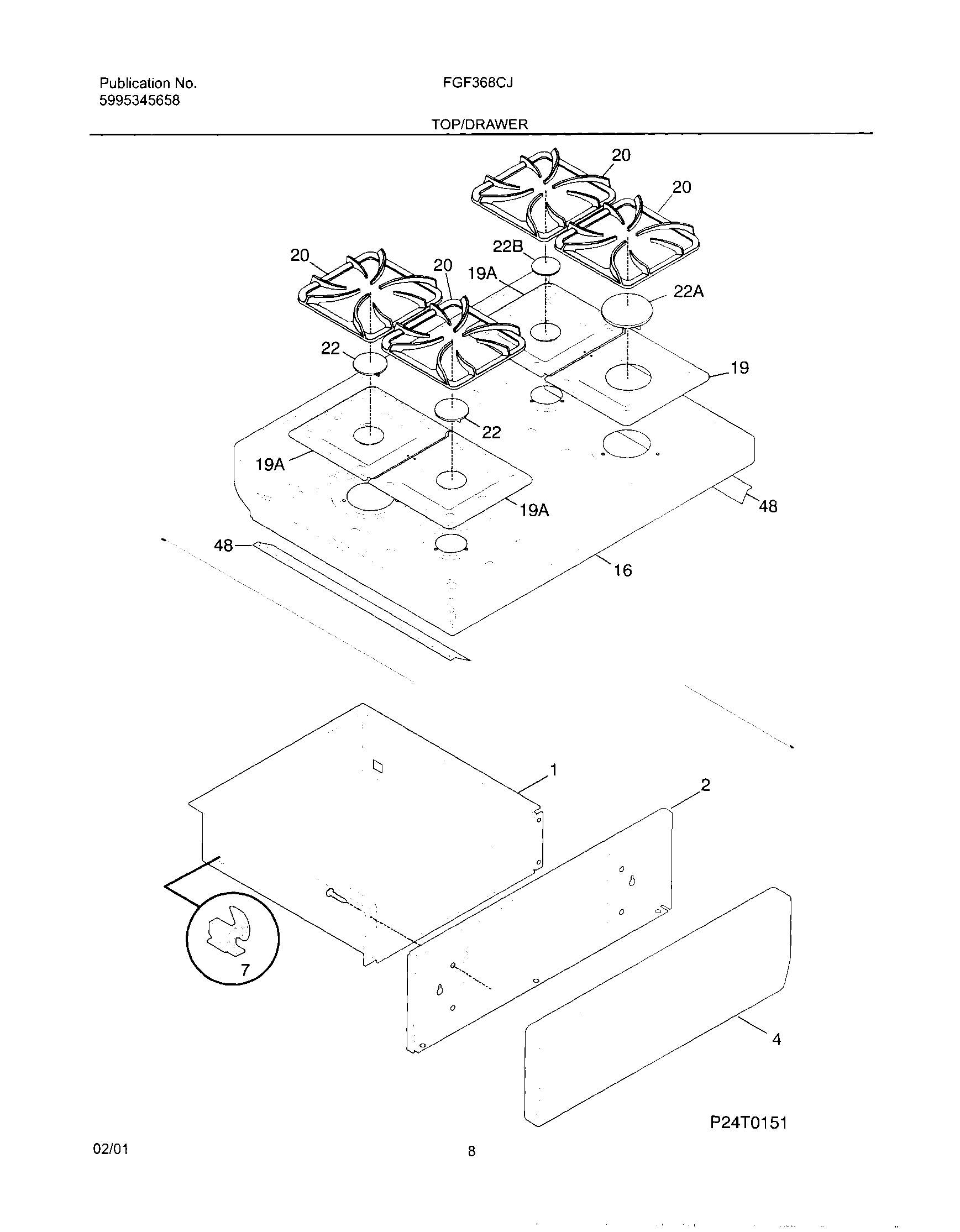

09 - TOP/DRAWER

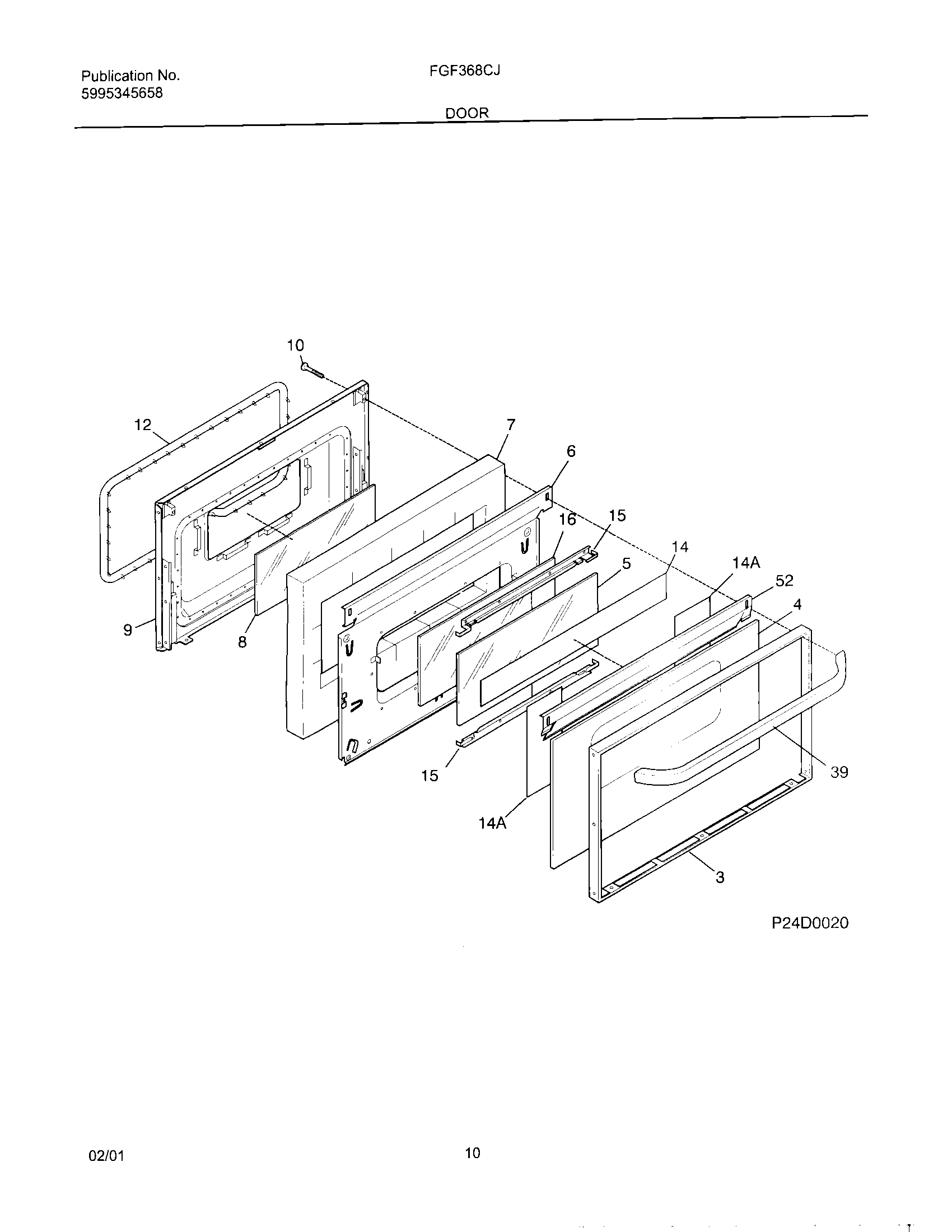

11 - DOOR

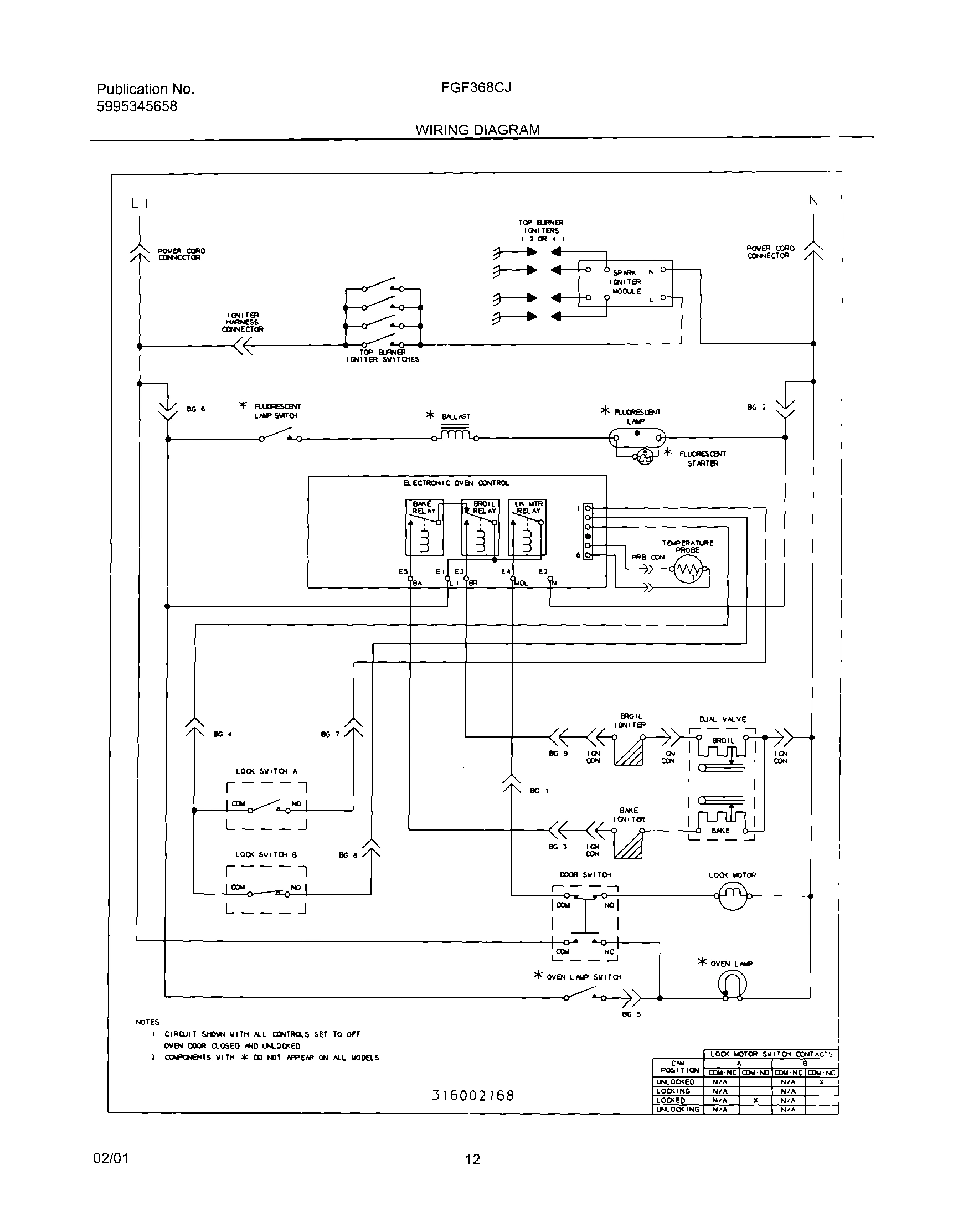

12 - WIRING DIAGRAM
Common parts from model Electrolux FGF368CJBA RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 316127502 WCI 316127502 Contact Us For Availability
2
Shield-drawer,liner ,galv steel , WCI 5303288582 Contact Us For Availability
3
WCI 316001824 WCI 316001824 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
Panel-drawer front,black WCI 316084407 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer hd sq dr , WCI 5303280308 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf , WCI 316065005 Contact Us For Availability
14
Reflector,aluminum foil ,black door WCI 5303208656 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 316114803 WCI 316114803 Contact Us For Availability
19
Pan-burner,small ,black WCI 316011401 Contact Us For Availability
19
Pan-burner,large ,black WCI 316011419 Contact Us For Availability
20
Grate,black ,(4) WCI 316085305 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
CAP-BURNER,BLACK ,LARGE WCI 316098505 Contact Us For Availability
22
WCI 316118800 WCI 316118800 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
Cap-burner,small ,black ,(4) WCI 316122100 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
36
WCI 316109512 WCI 316109512 Contact Us For Availability
39
WCI 316091117 WCI 316091117 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
48
Shield,deflector ,main top panel ,(2) WCI 316077401 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
NI
Cover Plate,burner box WCI 08067757 Contact Us For Availability
NI
WIRING HARNESS,CHASSIS WCI 316001632 Contact Us For Availability
NI
SCREW-HEAT SHIELD,HD SHLDR SQDR , WCI 5303288570 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
