Model Electrolux FGF354BGDF RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

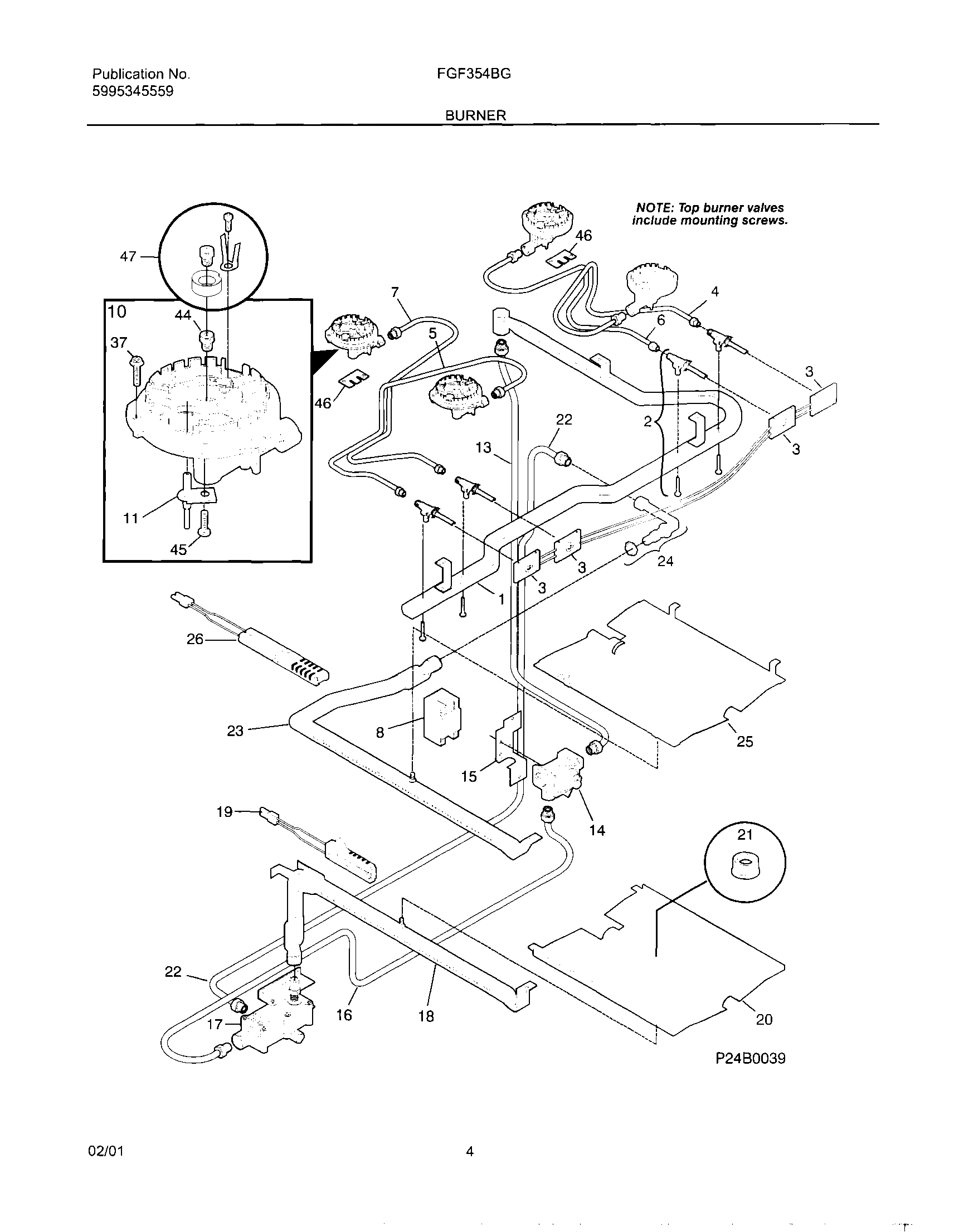

05 - BURNER

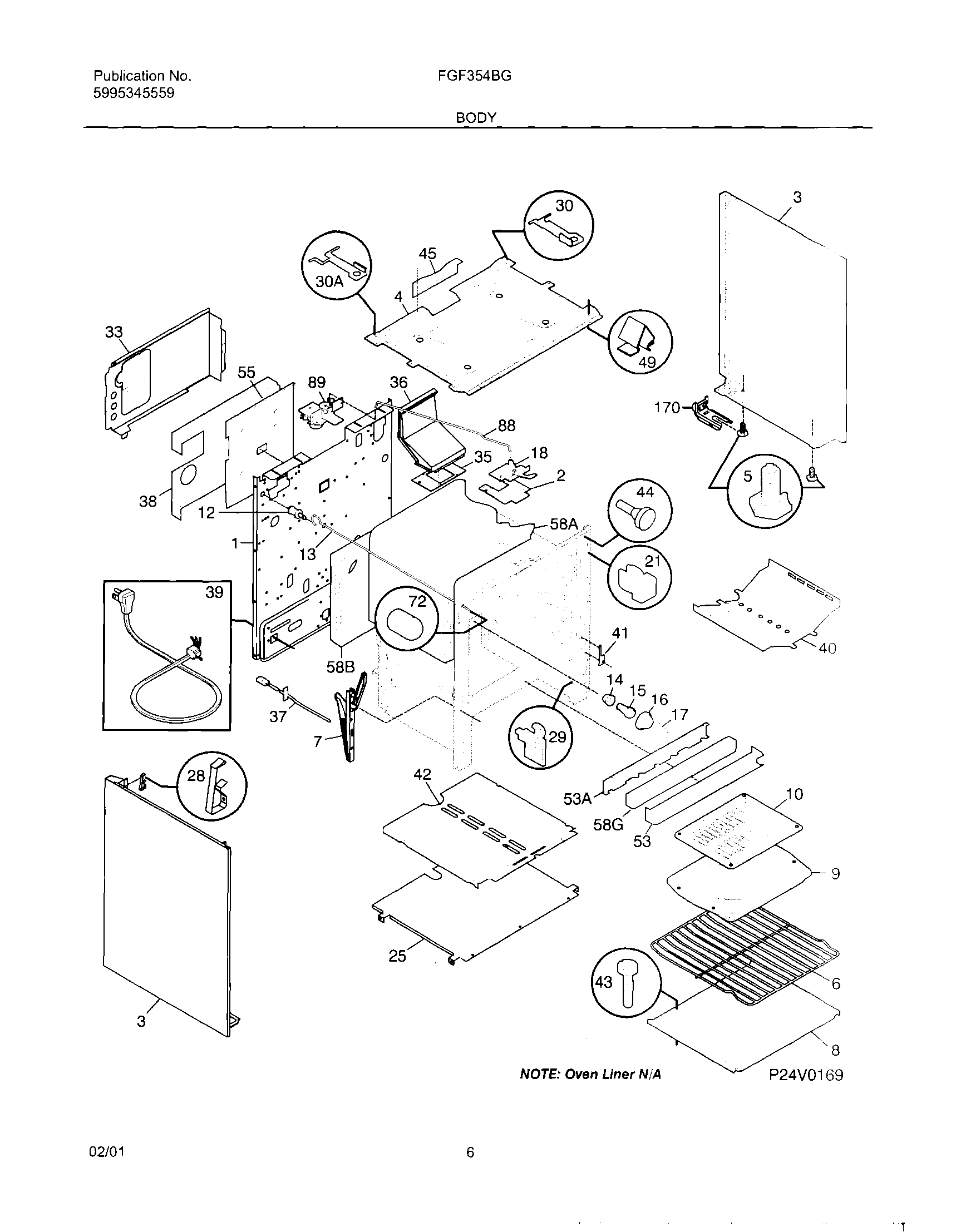

07 - BODY

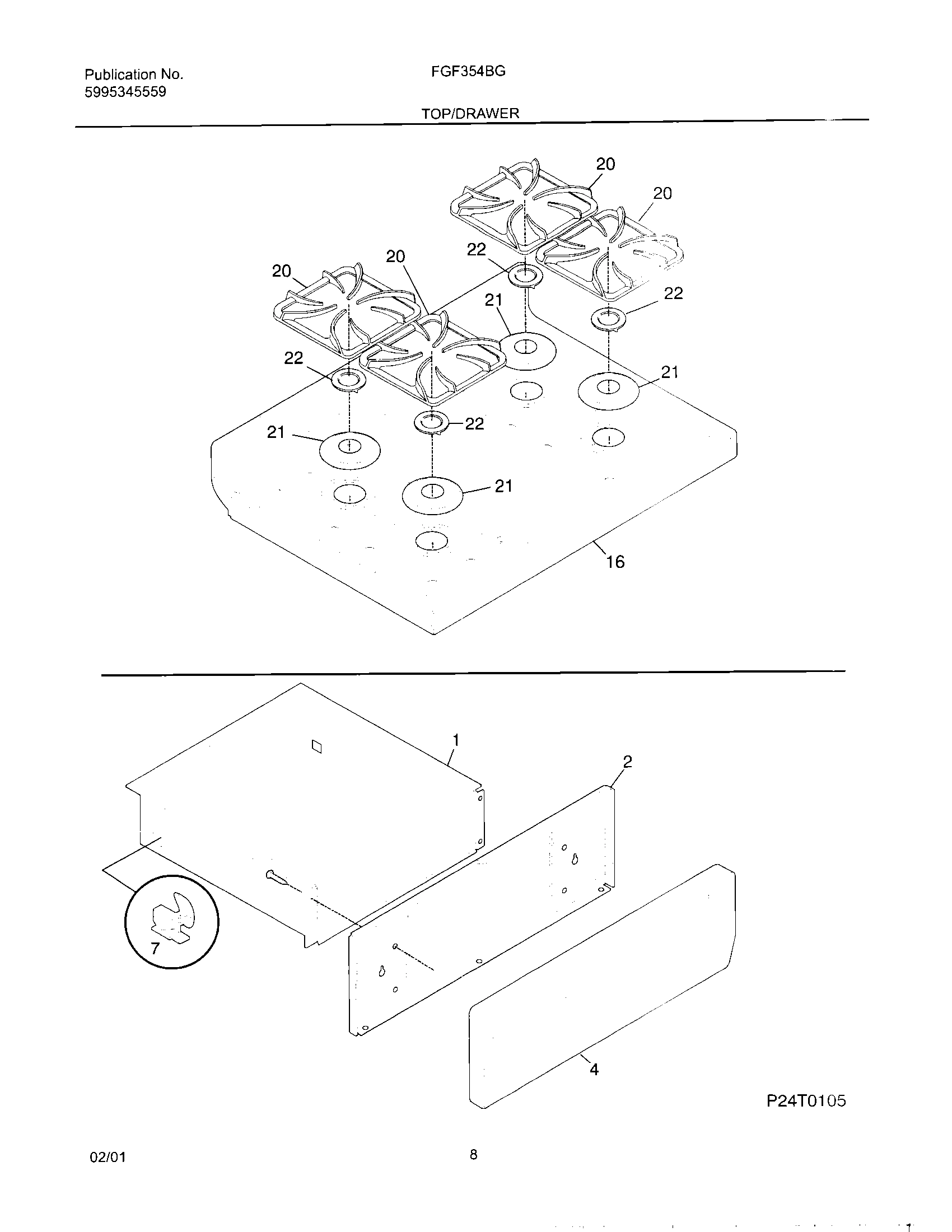

09 - TOP/DRAWER

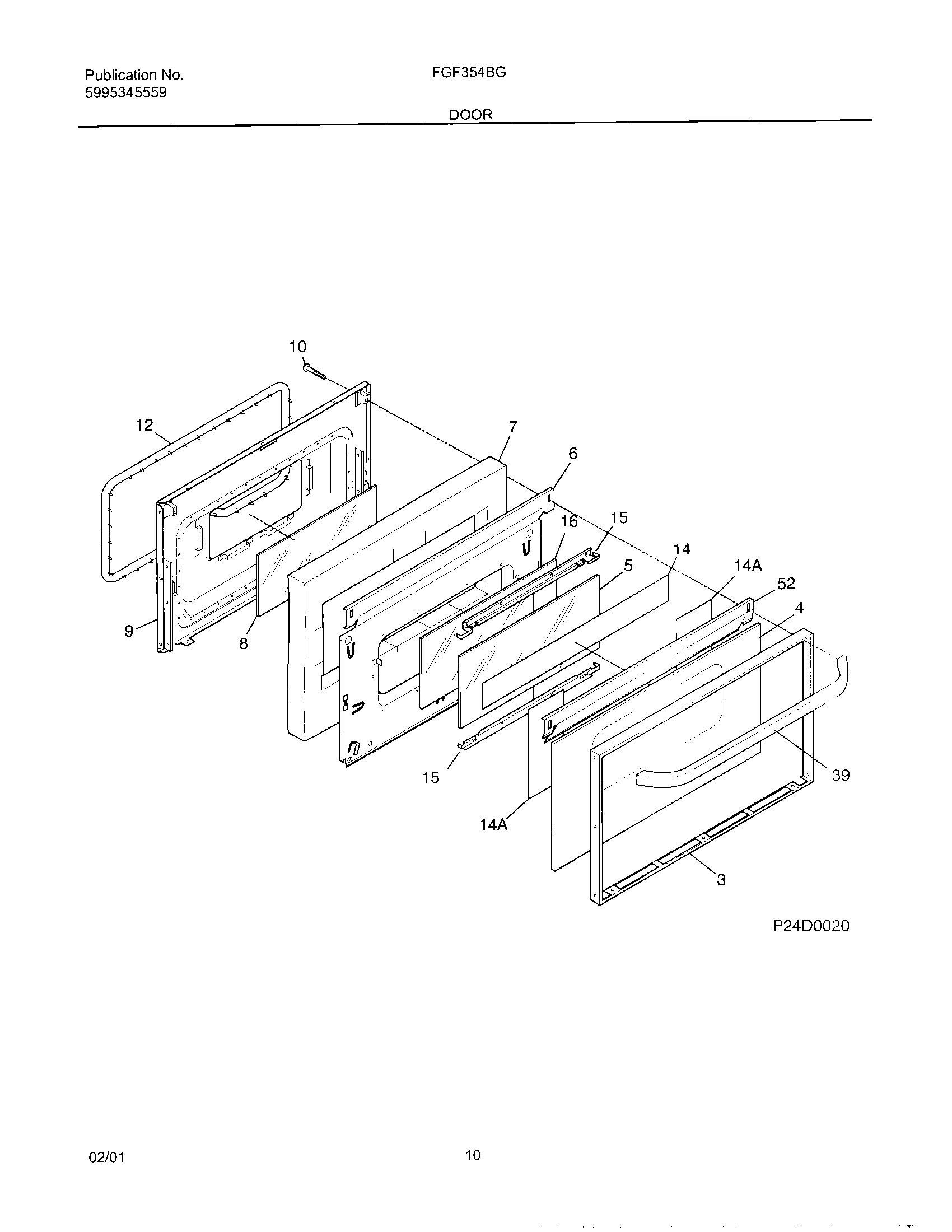

11 - DOOR

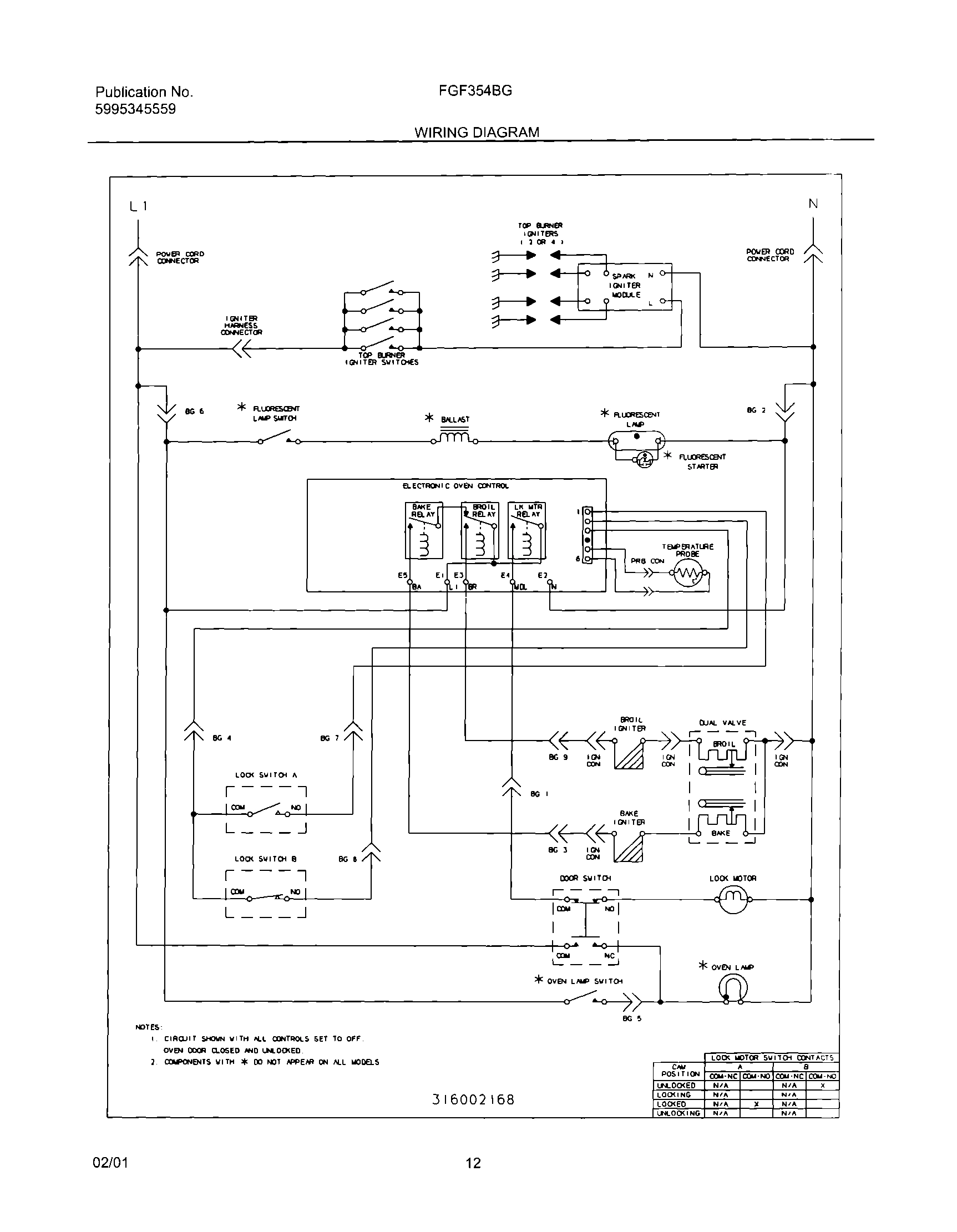

12 - WIRING DIAGRAM
Common parts from model Electrolux FGF354BGDF RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 316134100 WCI 316134100 Contact Us For Availability
2
Shield-drawer,aluminum ,front panel WCI 3131975 Contact Us For Availability
2
Shield-drawer,galv steel ,front panel WCI 5303288582 Contact Us For Availability
3
WCI 316001824 WCI 316001824 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
Panel-drawer front,almond WCI 316084406 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 5303301547 WCI 5303301547 Contact Us For Availability
20
WCI 316101102 WCI 316101102 Contact Us For Availability
20
GRATE,BLACK ,(4) WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING-BURNER, BLACK, SMALL WCI 316011300 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER, POWDER METAL ,GLOSS BLACK ,SMALL, WCI 316122100 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
32
WCI 316101400 WCI 316101400 Contact Us For Availability
36
WCI 316109512 WCI 316109512 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
OVERLAY-CLOCK WCI 316101505 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
