Model Electrolux FGF335CGTA RANGE – Common Parts & Diagrams

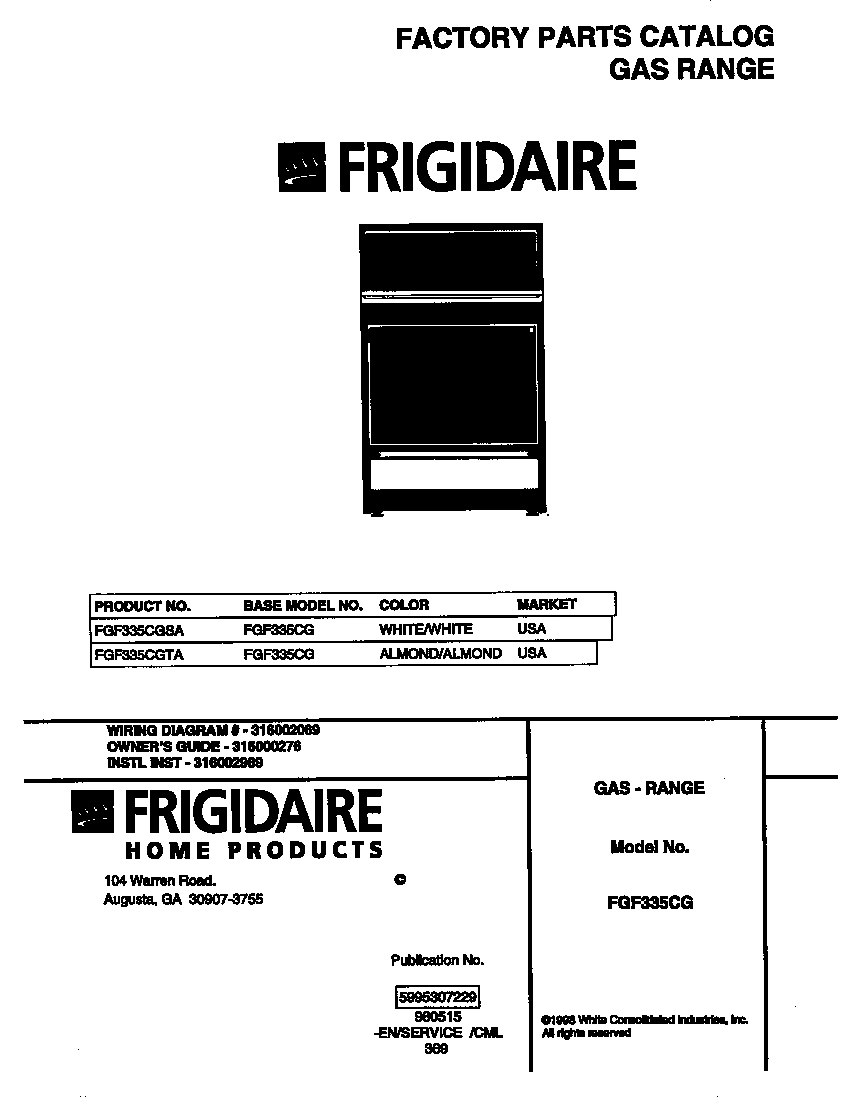

01 - COVER

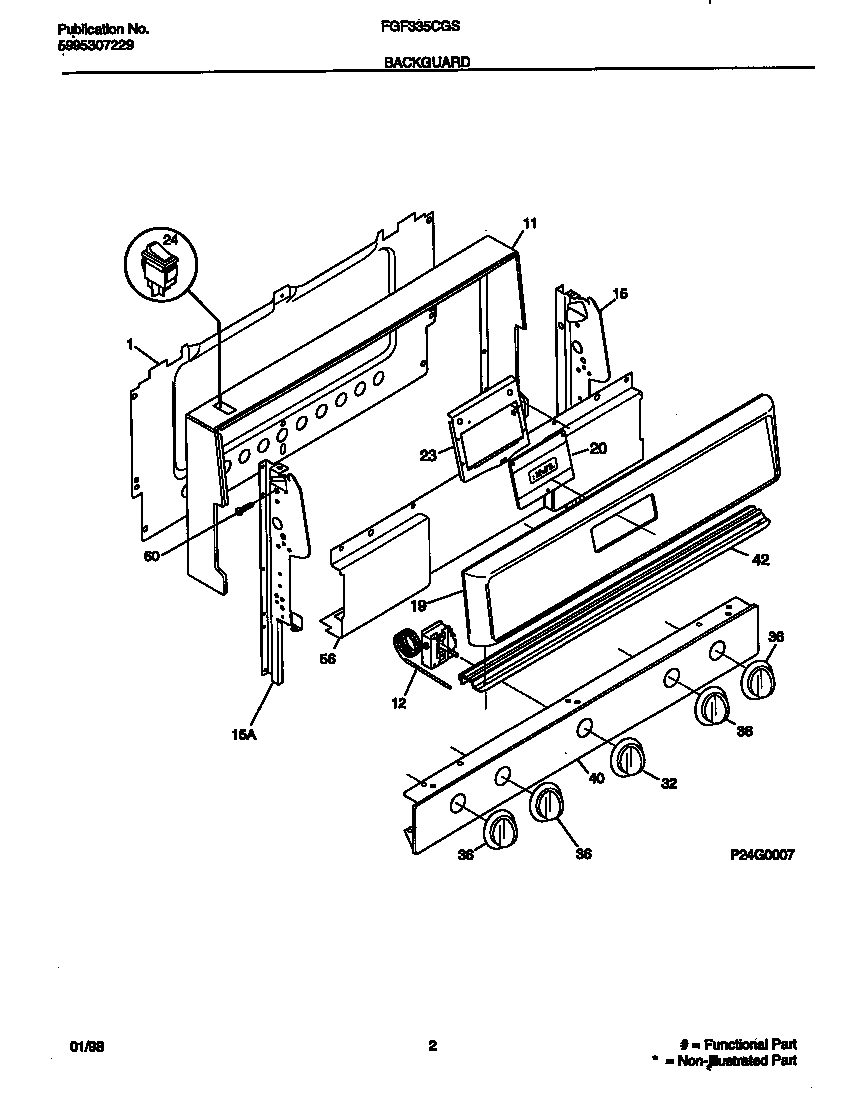

02 - BACKGUARD

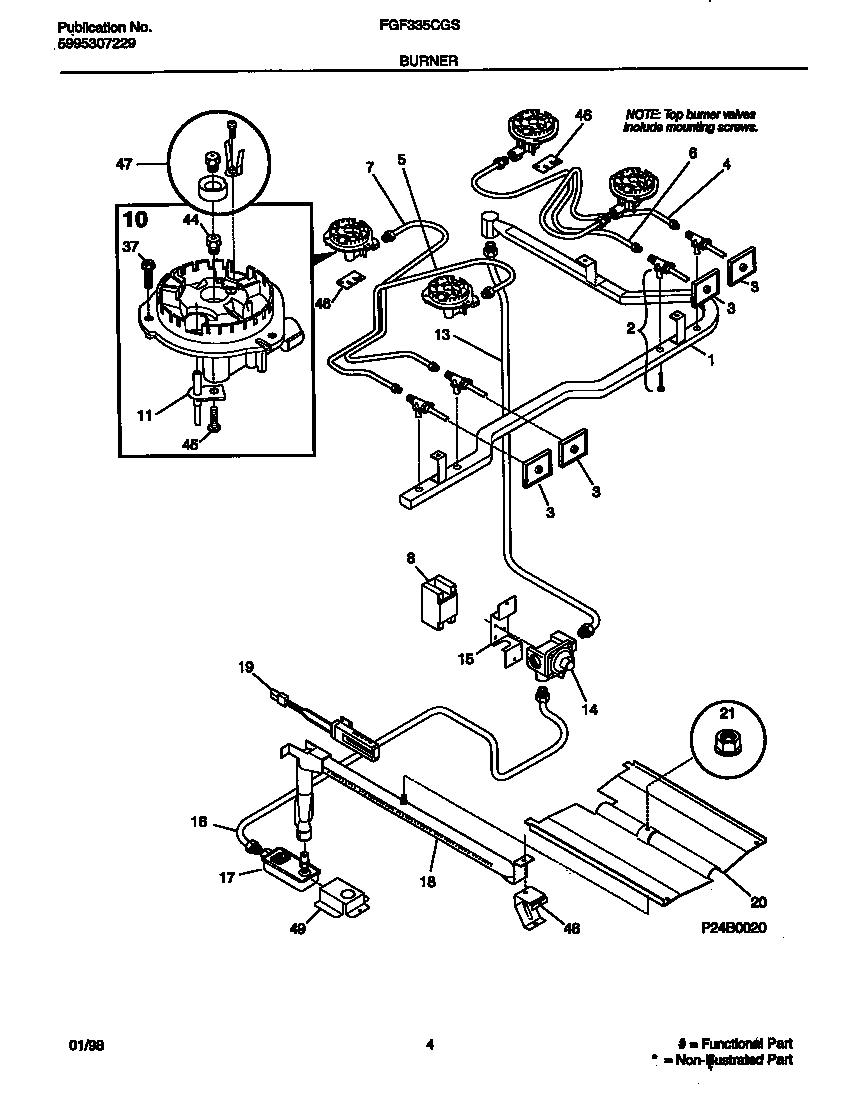

03 - BURNER

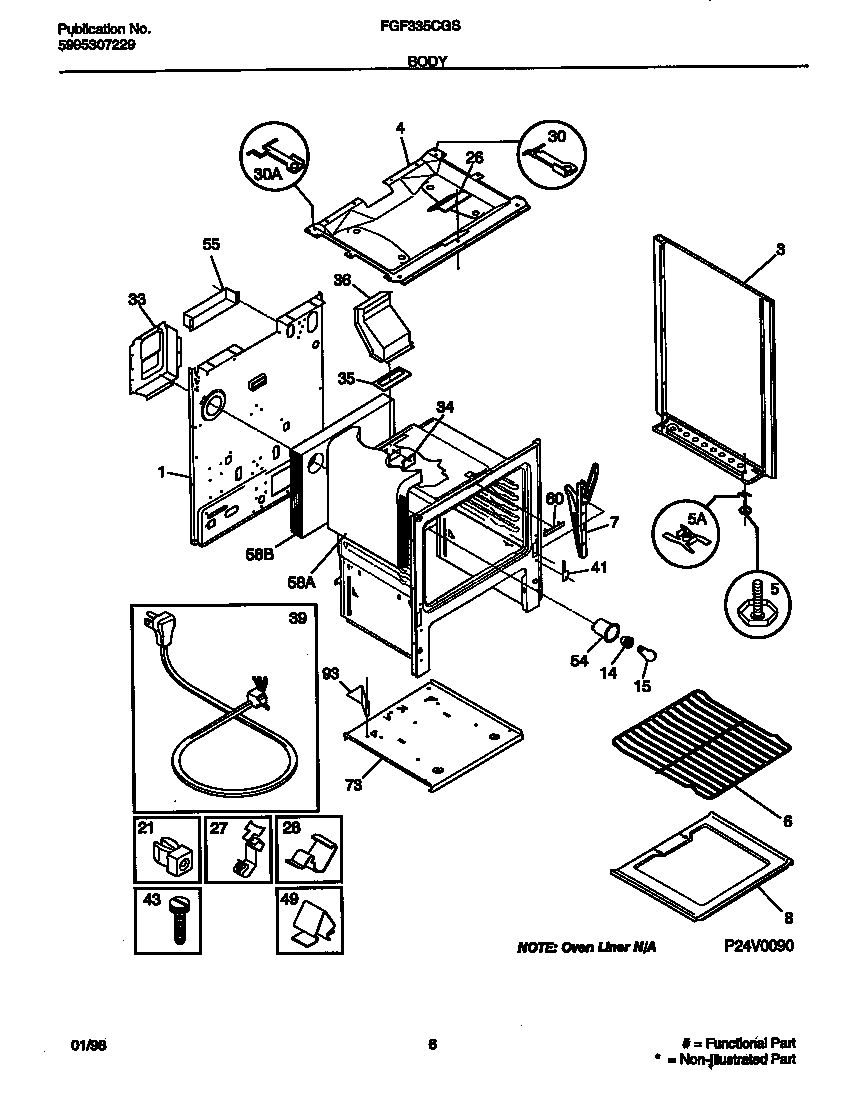

04 - BODY

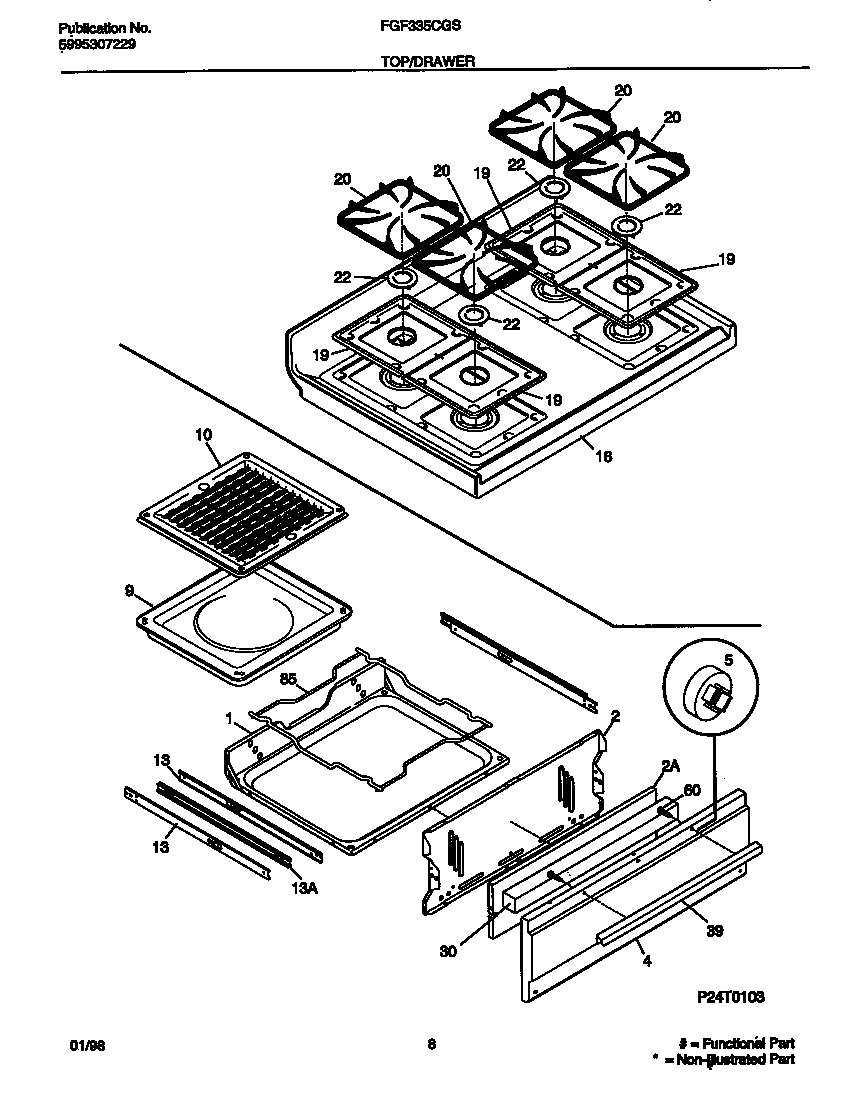

05 - TOP/DRAWER

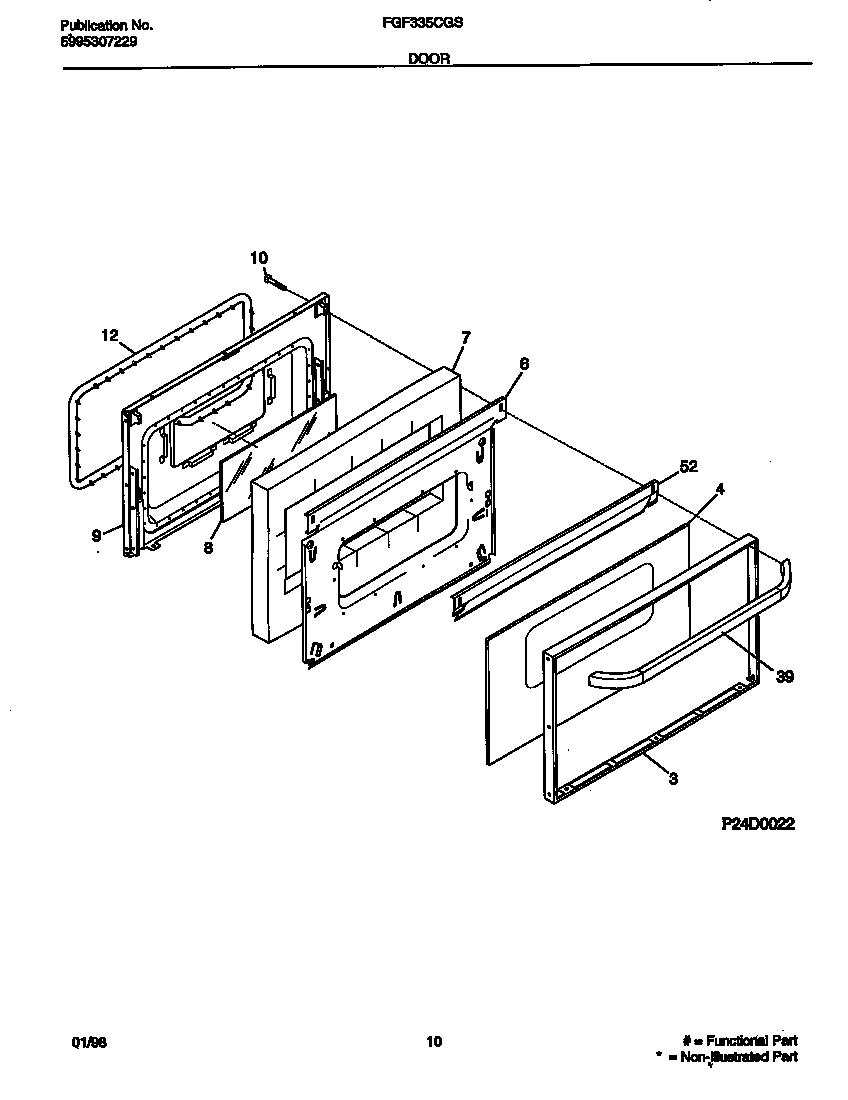

06 - DOOR

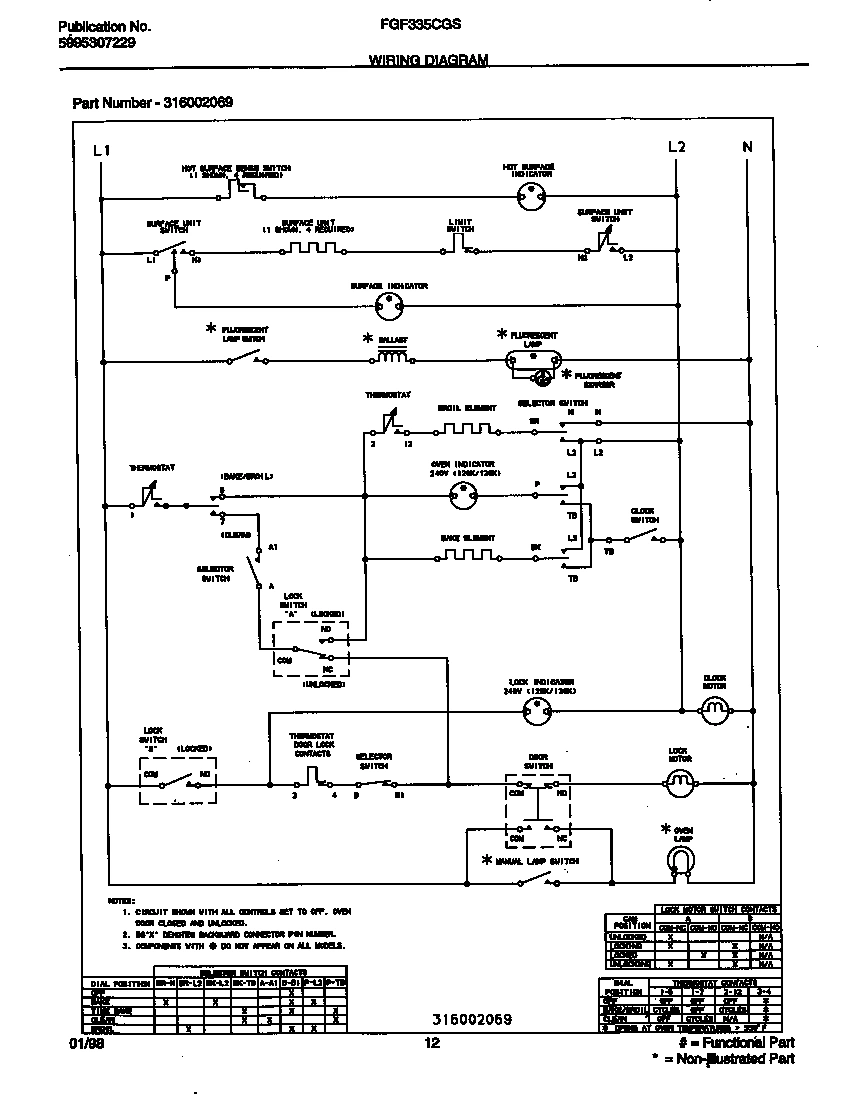

07 - WIRING DIAGRAM
Common parts from model Electrolux FGF335CGTA RANGE
*23091
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*23105
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*23107
SCREW, TRUSS HEAD, 8-10 X 0.375, HANDLE, (3) WCI 5303288574 Contact Us For Availability
*23111
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
CARRIAGE,BROILER WCI 316110401 Contact Us For Availability
2
WCI 5303935130 WCI 5303935130 Contact Us For Availability
2
WCI 316110101 WCI 316110101 Contact Us For Availability
2
WCI 316110800 WCI 316110800 Contact Us For Availability
3
WCI 316067803 WCI 316067803 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316056202 WCI 316056202 Contact Us For Availability
4
WCI 316089004 WCI 316089004 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8
GLASS-OVEN DOOR, AIRWASH WCI 316088600 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10A
WCI 5303131356 WCI 5303131356 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
GLIDE-DRAWER,OUTER WCI 316111500 Contact Us For Availability
13
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
16
WCI 5303301547 WCI 5303301547 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
19
WCI 316011410 WCI 316011410 Contact Us For Availability
20
WCI 316085304 WCI 316085304 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
CAP BURNER GRAY GLO,GRAY WCI 316098508 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
Clip,wire ,bodyside WCI 3011813 Contact Us For Availability
30
WCI 316059200 WCI 316059200 Contact Us For Availability
30
WCI 316059201 WCI 316059201 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 5303273108 WCI 5303273108 Contact Us For Availability
39
WCI 316091116 WCI 316091116 Contact Us For Availability
39
WCI 316026107 WCI 316026107 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
52
WCI 316081302 WCI 316081302 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
WCI 5303289358 WCI 5303289358 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73A
WCI 316109901 WCI 316109901 Contact Us For Availability
73B
WCI 5303281627 WCI 5303281627 Contact Us For Availability
85
WCI 316110500 WCI 316110500 Contact Us For Availability
93
SHIELD-IGNITOR CONNECTION,METAL ,GALVANIZED WCI 316110000 Contact Us For Availability
× ![]()
