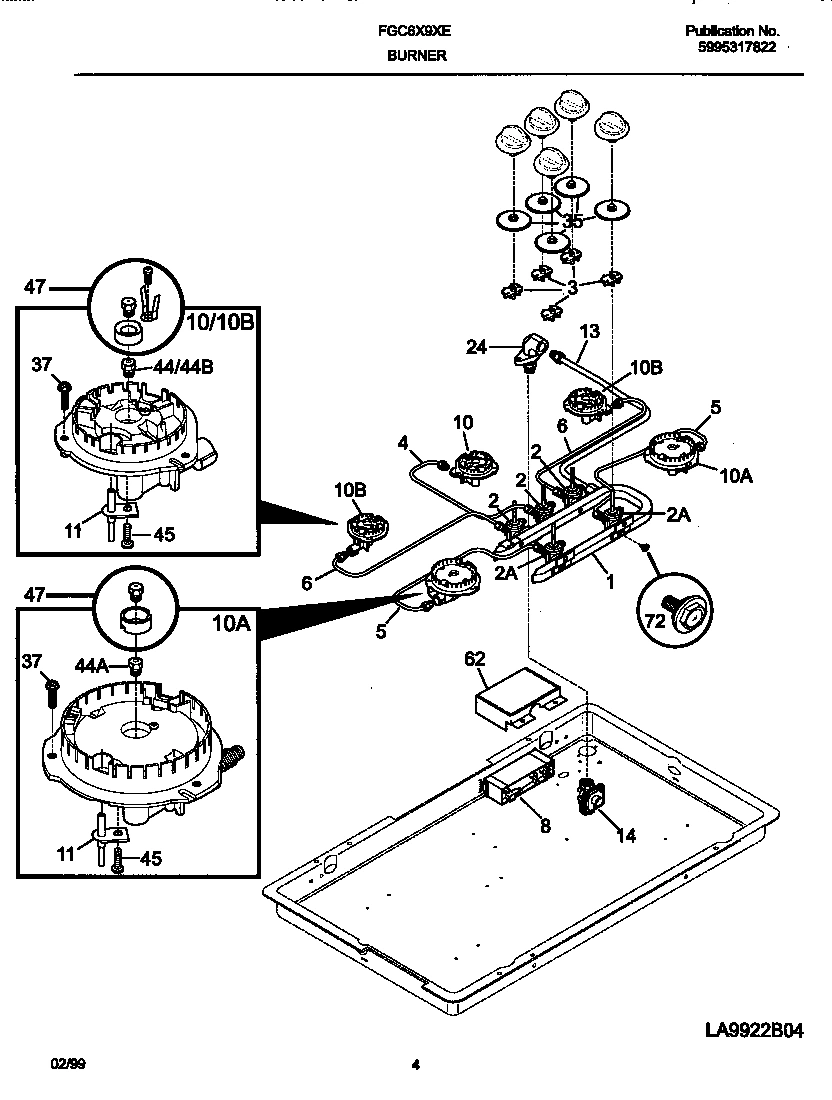

Model Electrolux FGC6X9XESD COOK-TOP – Common Parts & Diagrams

2
VALVE-TOP BURNERS
VALVE-TOP BURNERS WCI 5303935042 Contact Us For Availability
View on Model
2
WCI 318087020
WCI 318087020 WCI 318087020 Contact Us For Availability
View on Model
3
SWITCH-IGNITOR
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
View on Model
4
TUBE-BURNER
TUBE-BURNER WCI 5303305456 Contact Us For Availability
View on Model
5
TUBE-BURNER
TUBE-BURNER WCI 318054601 Contact Us For Availability
View on Model
6
TUBE-BURNER
TUBE-BURNER WCI 318054600 Contact Us For Availability
View on Model
8
WCI 318079000
WCI 318079000 WCI 318079000 Contact Us For Availability
View on Model
10
WCI 318055010
WCI 318055010 WCI 318055010 Contact Us For Availability
View on Model
10
BURNER-TOP,9100
BURNER-TOP,9100 WCI 318055011 Contact Us For Availability
View on Model
10
BURNER-TOP,11000
BURNER-TOP,11000 WCI 318055100 Contact Us For Availability
View on Model
13
CONNECTOR TUBE
CONNECTOR TUBE WCI 318054500 Contact Us For Availability
View on Model
21
WCI 316098509
WCI 316098509 WCI 316098509 Contact Us For Availability
View on Model
24
WCI 318054000
WCI 318054000 WCI 318054000 Contact Us For Availability
View on Model
35
WCI 5303307978
WCI 5303307978 WCI 5303307978 Contact Us For Availability
View on Model
37
SCREW
SCREW WCI 5303320671 Contact Us For Availability
View on Model
43
WCI 318016503
WCI 318016503 WCI 318016503 Contact Us For Availability
View on Model
44
ORIFICE
ORIFICE WCI 318088702 Contact Us For Availability
View on Model
44
ORIFICE,9100
ORIFICE,9100 WCI 318088700 Contact Us For Availability
View on Model
44
ORIFICE,6000
ORIFICE,6000 WCI 318088701 Contact Us For Availability
View on Model
45
BUSHING
BUSHING WCI 318146200 Contact Us For Availability
View on Model
45
SCREW-IGNITOR
SCREW-IGNITOR WCI 316011100 Contact Us For Availability
View on Model
46
WCI 318077000
WCI 318077000 WCI 318077000 Contact Us For Availability
View on Model
47
WCI 5303303991
WCI 5303303991 WCI 5303303991 Contact Us For Availability
View on Model
47
WCI 318127401
WCI 318127401 WCI 318127401 Contact Us For Availability
View on Model
55
WCI 318096700
WCI 318096700 WCI 318096700 Contact Us For Availability
View on Model
61
TRIM RING
TRIM RING WCI 318083900 Contact Us For Availability
View on Model
61
TRIM RING
TRIM RING WCI 318083901 Contact Us For Availability
View on Model
62
WCI 318077500
WCI 318077500 WCI 318077500 Contact Us For Availability
View on Model
72
SCREW-VALVE
SCREW-VALVE WCI 5303323141 Contact Us For Availability
View on Model
73
DEFLECTOR
DEFLECTOR WCI 318057100 Contact Us For Availability
View on Model
73
DEFLECTOR
DEFLECTOR WCI 318057101 Contact Us For Availability
View on Model
101
WCI 318162300
WCI 318162300 WCI 318162300 Contact Us For Availability
View on Model
106
WCI 318162301
WCI 318162301 WCI 318162301 Contact Us For Availability
View on Model
136
FIXATION SUPPORT
FIXATION SUPPORT WCI 5303935029 Contact Us For Availability
View on Model
137
SCREW, 10-24 X 2 1/2
SCREW, 10-24 X 2 1/2 WCI 5303323138 Contact Us For Availability
View on Model
