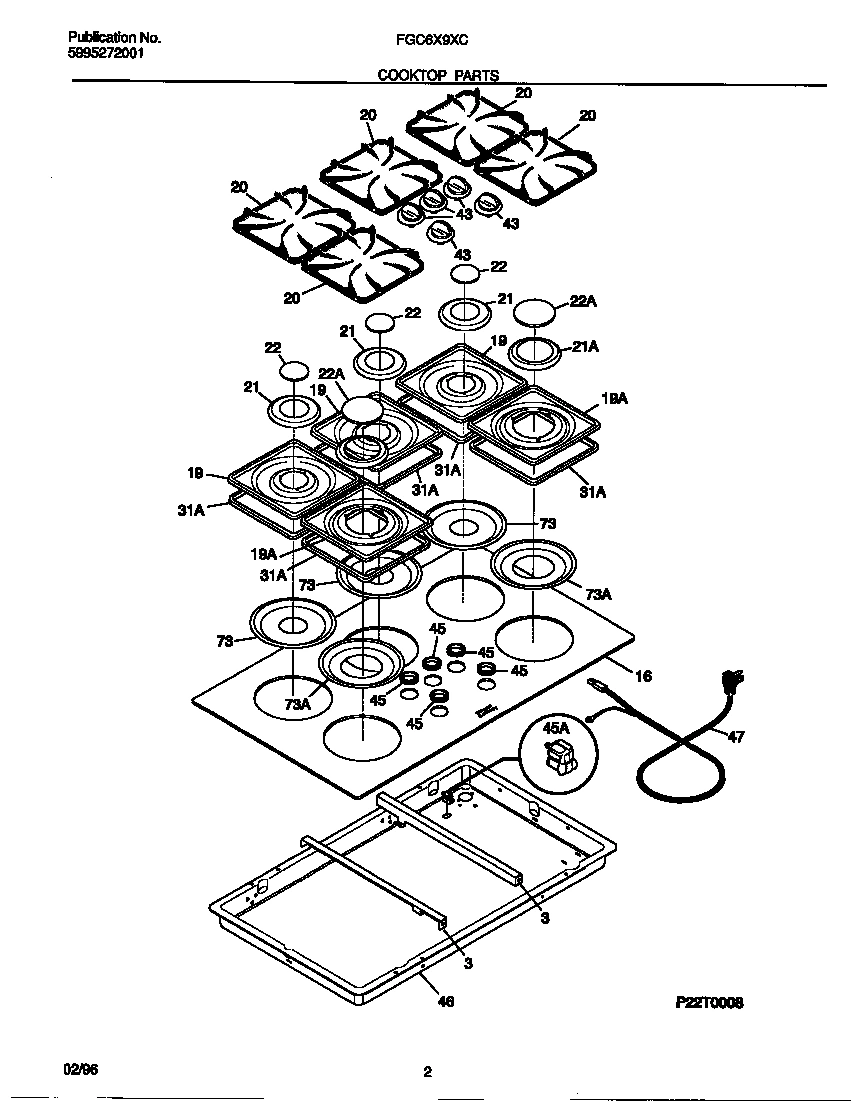

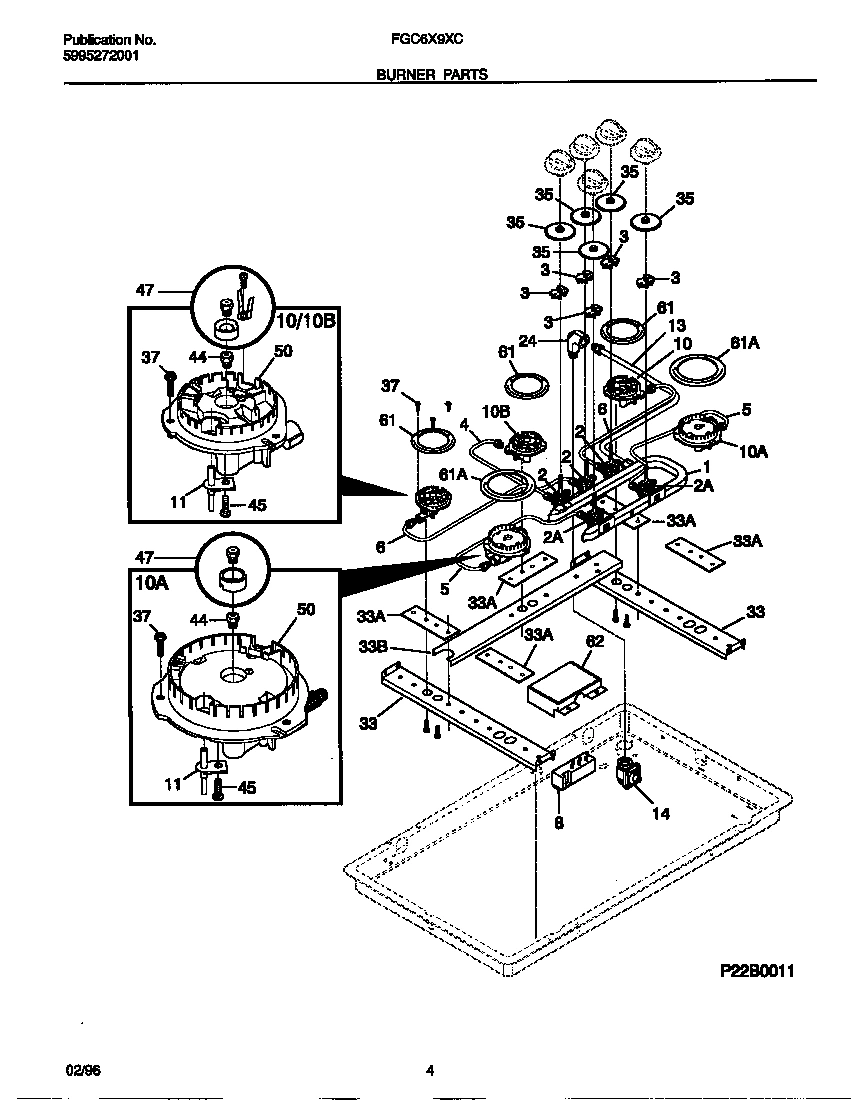

Model Electrolux FGC6X9XCTA COOK-TOP – Common Parts & Diagrams

*95160
WCI 318065000
WCI 318065000 WCI 318065000 Contact Us For Availability
View on Model
*95161
WCI 318052100
WCI 318052100 WCI 318052100 Contact Us For Availability
View on Model
1A
WCI 318078000
WCI 318078000 WCI 318078000 Contact Us For Availability
View on Model
2
VALVE-TOP BURNER, LARGE, (2), W/SCREW
VALVE-TOP BURNER, LARGE, (2), W/SCREW WCI 316036801 Contact Us For Availability
View on Model
2A
VALVE-TOP BURNER, 2-POSITION, (4)
VALVE-TOP BURNER, 2-POSITION, (4) WCI 5303935042 Contact Us For Availability
View on Model
3
SWITCH-IGNITER, (4)
SWITCH-IGNITER, (4) WCI 316032002 Contact Us For Availability
View on Model
4
TUBE-BURNER, RF, RR
TUBE-BURNER, RF, RR WCI 5303305456 Contact Us For Availability
View on Model
5
WCI 318054601
WCI 318054601 WCI 318054601 Contact Us For Availability
View on Model
6A
WCI 318054600
WCI 318054600 WCI 318054600 Contact Us For Availability
View on Model
6B
WCI 5303311261
WCI 5303311261 WCI 5303311261 Contact Us For Availability
View on Model
8
WCI 318079000
WCI 318079000 WCI 318079000 Contact Us For Availability
View on Model
10
WCI 318055000
WCI 318055000 WCI 318055000 Contact Us For Availability
View on Model
10
BURNER ASSY-TOP, SEALED, 9000 BTU, (4), INCLU
BURNER ASSY-TOP, SEALED, 9000 BTU, (4), INCLU WCI 318055001 Contact Us For Availability
View on Model
10
BURNER ASSY-TOP, SEALED, 11000 BTU, (2), INCL
BURNER ASSY-TOP, SEALED, 11000 BTU, (2), INCL WCI 318055100 Contact Us For Availability
View on Model
13
WCI 318054500
WCI 318054500 WCI 318054500 Contact Us For Availability
View on Model
24
WCI 318054000
WCI 318054000 WCI 318054000 Contact Us For Availability
View on Model
33
BRACKET-BURNER MTG, (4)
BRACKET-BURNER MTG, (4) WCI 318072000 Contact Us For Availability
View on Model
33
WCI 5303307977
WCI 5303307977 WCI 5303307977 Contact Us For Availability
View on Model
33
WCI 5303311263
WCI 5303311263 WCI 5303311263 Contact Us For Availability
View on Model
35
WCI 5303307978
WCI 5303307978 WCI 5303307978 Contact Us For Availability
View on Model
43
WCI 318016505
WCI 318016505 WCI 318016505 Contact Us For Availability
View on Model
44A
ORIFICE-TOP BURNER, 9000 BTU, SMALL
ORIFICE-TOP BURNER, 9000 BTU, SMALL WCI 318088700 Contact Us For Availability
View on Model
44B
WCI 318088701
WCI 318088701 WCI 318088701 Contact Us For Availability
View on Model
44C
ORIFICE-TOP BURNER, 11000 BTU, (2), LARGE
ORIFICE-TOP BURNER, 11000 BTU, (2), LARGE WCI 318088702 Contact Us For Availability
View on Model
45
WCI 5303307933
WCI 5303307933 WCI 5303307933 Contact Us For Availability
View on Model
45
WCI 316011100
WCI 316011100 WCI 316011100 Contact Us For Availability
View on Model
46
WCI 318077000
WCI 318077000 WCI 318077000 Contact Us For Availability
View on Model
47
WCI 5303303991
WCI 5303303991 WCI 5303303991 Contact Us For Availability
View on Model
47
WCI 5303318666
WCI 5303318666 WCI 5303318666 Contact Us For Availability
View on Model
50A
BURNER-TOP, SMALL, (4), INCLUDES 37
BURNER-TOP, SMALL, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
View on Model
61
TRIM RING, CHROME, (3), SMALL
TRIM RING, CHROME, (3), SMALL WCI 318083900 Contact Us For Availability
View on Model
61
TRIM RING, CHROME, (2), LARGE
TRIM RING, CHROME, (2), LARGE WCI 318083901 Contact Us For Availability
View on Model
62
WCI 318077500
WCI 318077500 WCI 318077500 Contact Us For Availability
View on Model
73
SHIELD-HEAT, (3), SMALL
SHIELD-HEAT, (3), SMALL WCI 318057100 Contact Us For Availability
View on Model
73
SHIELD-HEAT, (2), LARGE
SHIELD-HEAT, (2), LARGE WCI 318057101 Contact Us For Availability
View on Model
