Model Electrolux FGC6X8XESA COOK-TOP – Common Parts & Diagrams

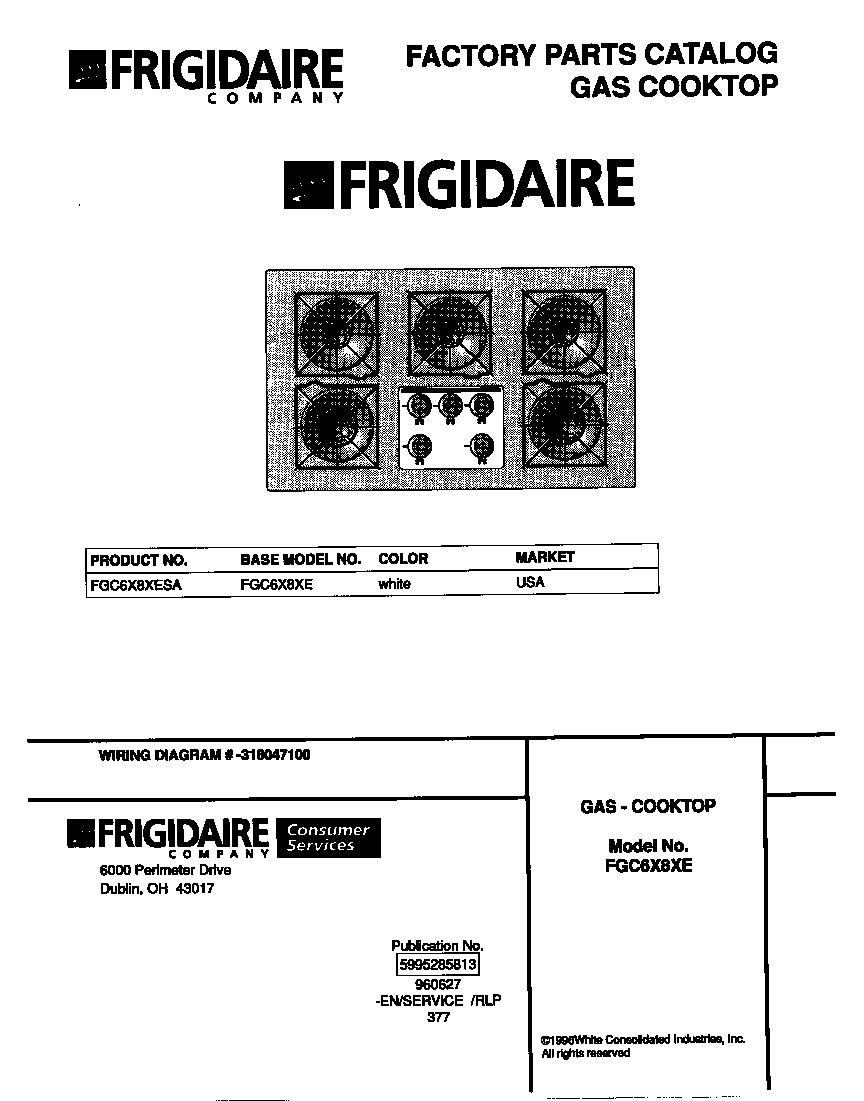

01 - COVER

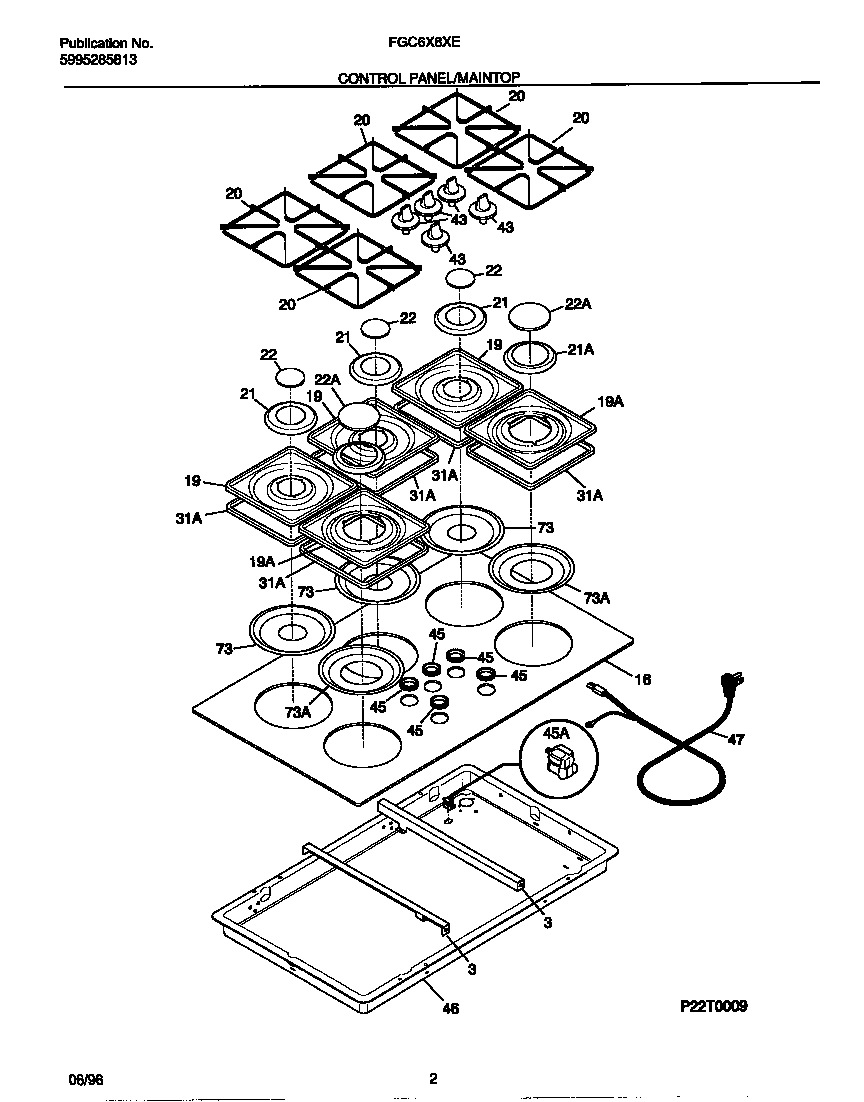

02 - CONTROL PANEL/MAIN TOP

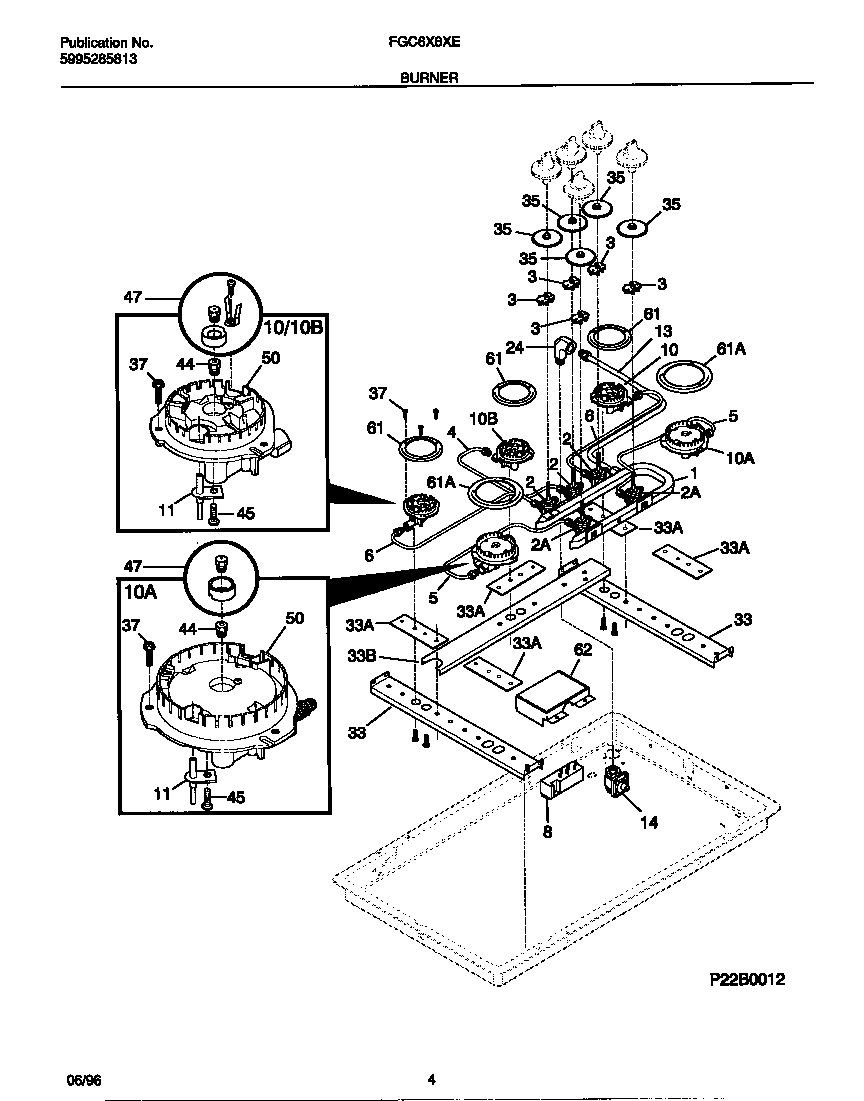

03 - BURNER

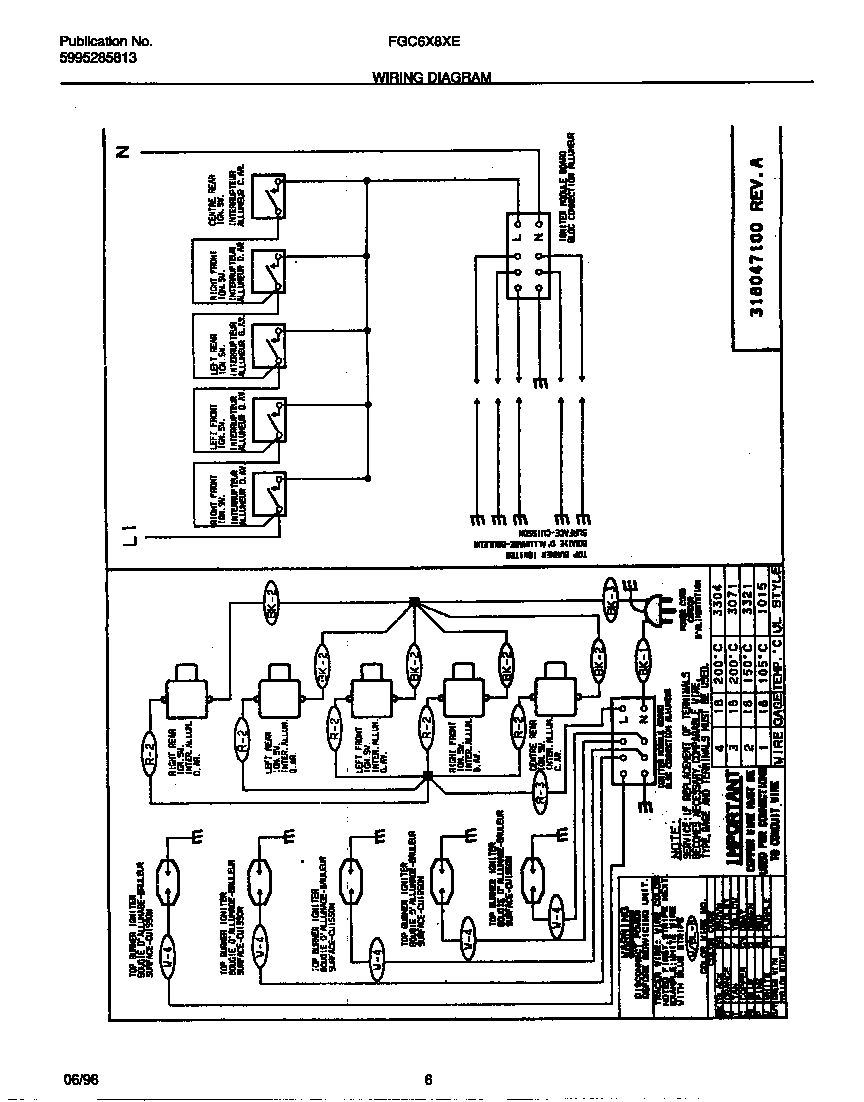

04 - WIRING DIAGRAM
Common parts from model Electrolux FGC6X8XESA COOK-TOP
*65441
WCI 318065000 WCI 318065000 Contact Us For Availability
*65444
WCI 318052100 WCI 318052100 Contact Us For Availability
1
WCI 318078000 WCI 318078000 Contact Us For Availability
2
VALVE-TOP BURNER, 2-POSITION, (4) WCI 5303935042 Contact Us For Availability
2
VALVE-TOP BURNER, LARGE, (2), W/SCREW WCI 316036801 Contact Us For Availability
3
SWITCH-IGNITER, (4) WCI 316032002 Contact Us For Availability
4
TUBE-BURNER, RF, RR WCI 5303305456 Contact Us For Availability
5
WCI 318054601 WCI 318054601 Contact Us For Availability
6
WCI 318054600 WCI 318054600 Contact Us For Availability
8
WCI 318079000 WCI 318079000 Contact Us For Availability
10
WCI 318055000 WCI 318055000 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, 9000 BTU (1) (INCLUD WCI 318055001 Contact Us For Availability
10
BURNER ASSY-TOP, SEALED, 11000 BTU, (2), INCL WCI 318055100 Contact Us For Availability
13
WCI 318054500 WCI 318054500 Contact Us For Availability
22
CAP-BURNER, GLOSS GREY, SMALL, (2) WCI 316011016 Contact Us For Availability
22
CAP-BURNER, GLOSS GREY, LARGE, (2) WCI 316011017 Contact Us For Availability
24
WCI 318054000 WCI 318054000 Contact Us For Availability
33
BRACKET-BURNER MTG, (4) WCI 318072000 Contact Us For Availability
33
WCI 5303307977 WCI 5303307977 Contact Us For Availability
33
WCI 5303311263 WCI 5303311263 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
43
WCI 318099101 WCI 318099101 Contact Us For Availability
44
ORIFICE-TOP BURNER, 9000 BTU, SMALL WCI 318088700 Contact Us For Availability
45
WCI 5303307933 WCI 5303307933 Contact Us For Availability
45
WCI 316011100 WCI 316011100 Contact Us For Availability
46
WCI 318077000 WCI 318077000 Contact Us For Availability
47
WCI 5303303991 WCI 5303303991 Contact Us For Availability
50
BURNER-TOP, SMALL, (4) WCI 5303302430 Contact Us For Availability
61
TRIM RING, CHROME, (4), SMALL WCI 318083900 Contact Us For Availability
61
TRIM RING, CHROME, (2), LARGE WCI 318083901 Contact Us For Availability
62
WCI 318077500 WCI 318077500 Contact Us For Availability
73
SHIELD-HEAT, (4), SMALL WCI 318057100 Contact Us For Availability
73
SHIELD-HEAT, (2), LARGE WCI 318057101 Contact Us For Availability
× ![]()
