Model Electrolux FGC6X7XESD COOK-TOP – Common Parts & Diagrams

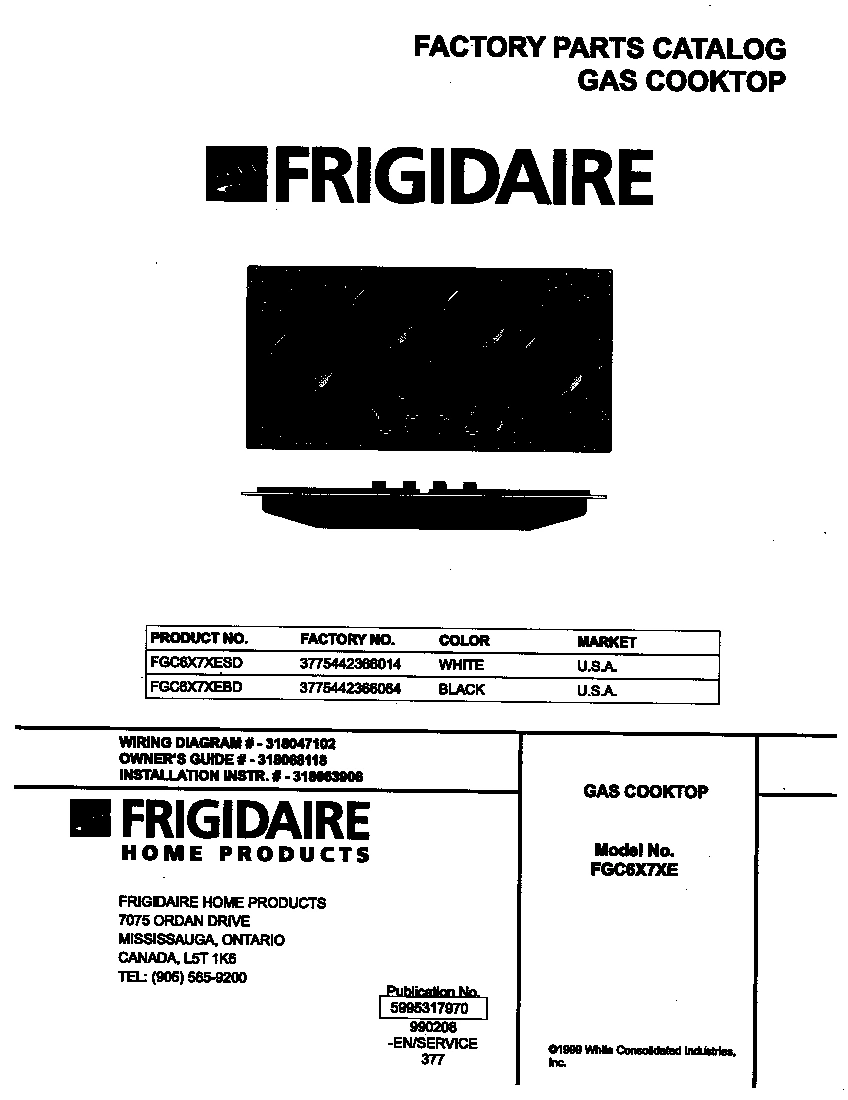

01 - COVER

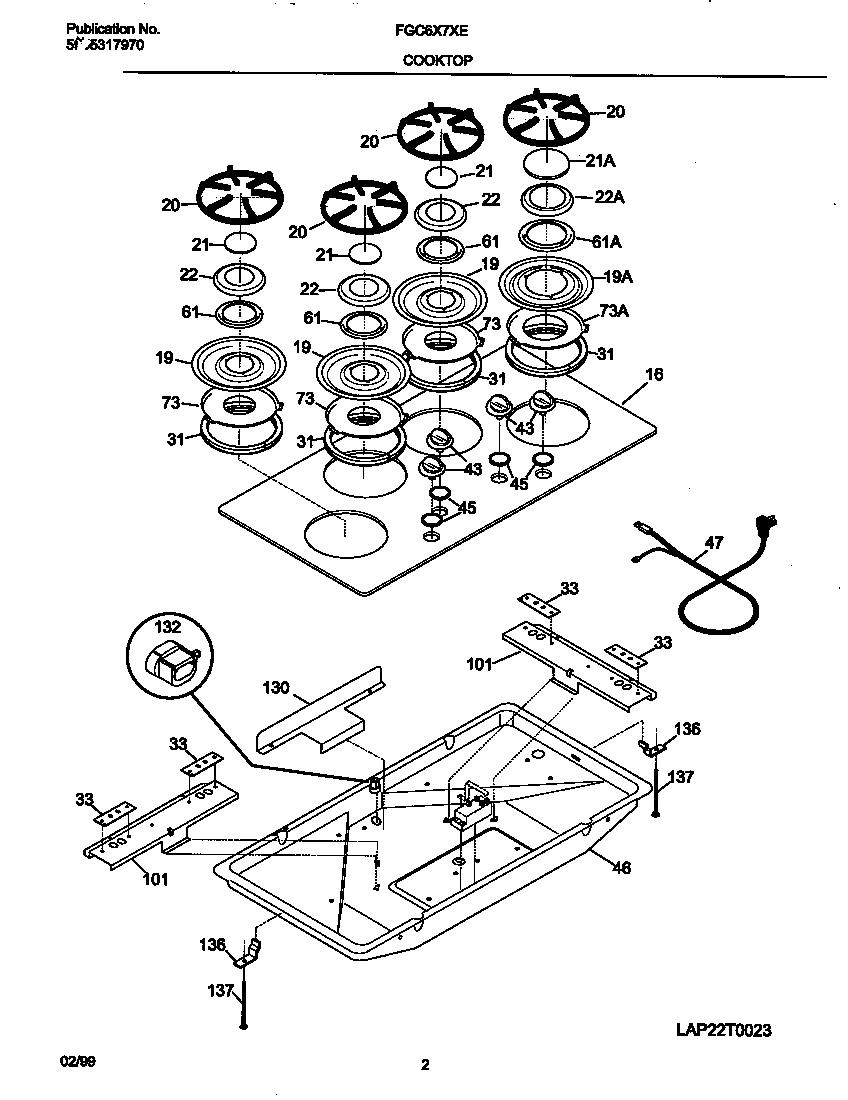

02 - COOKTOP

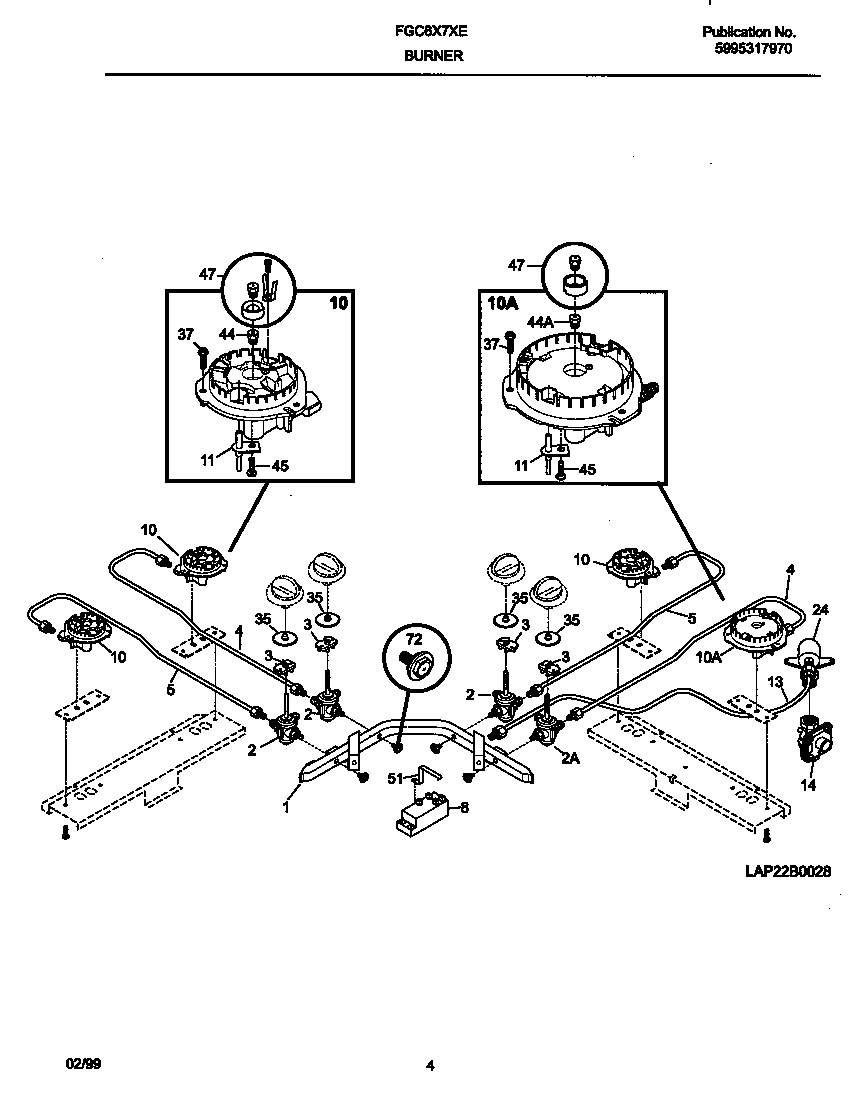

03 - BURNER

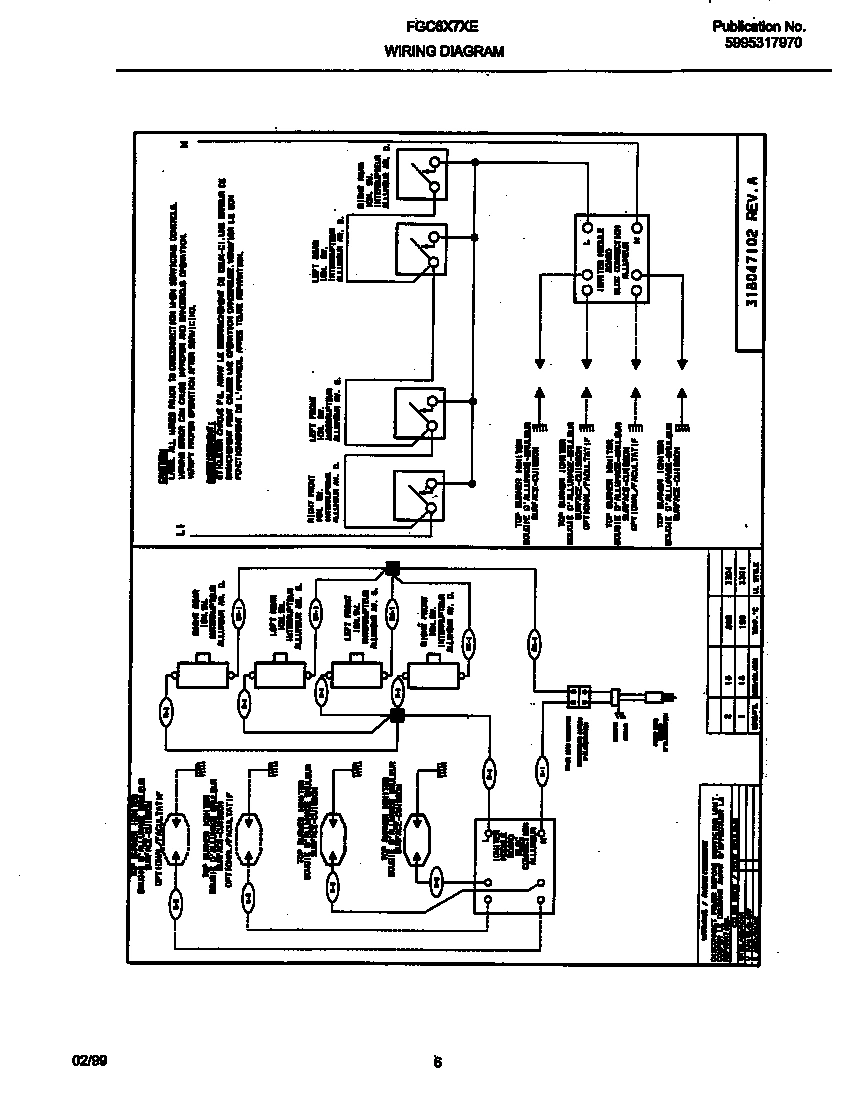

04 - WIRING DIAGRAM
Common parts from model Electrolux FGC6X7XESD COOK-TOP
1
WCI 318177100 WCI 318177100 Contact Us For Availability
2
VALVE-TOP BURNER WCI 5303935042 Contact Us For Availability
2
WCI 318087020 WCI 318087020 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
4
WCI 318054604 WCI 318054604 Contact Us For Availability
5
WCI 318054605 WCI 318054605 Contact Us For Availability
10
BURNER ASSY,9100 WCI 318055011 Contact Us For Availability
10
BURNER ASSY WCI 318055100 Contact Us For Availability
13
TUBE CONNECTOR MANIFOLD WCI 318054504 Contact Us For Availability
21
CAP-BURNER LARGE,GREY WCI 316098509 Contact Us For Availability
24
WCI 318054000 WCI 318054000 Contact Us For Availability
33
BRACKET-BURNER MTG WCI 318072000 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
37
SCREW WCI 5303320671 Contact Us For Availability
43
KNOB-TOP VALVE WHITE WCI 318016507 Contact Us For Availability
44
ORIFICE WCI 318088702 Contact Us For Availability
44
ORIFICE,9100 WCI 318088700 Contact Us For Availability
45
BUSHING WCI 5303307933 Contact Us For Availability
45
SCREW-IGNITOR MTG WCI 316011100 Contact Us For Availability
46
WCI 318077100 WCI 318077100 Contact Us For Availability
47
WCI 318127405 WCI 318127405 Contact Us For Availability
51
WCI 318024200 WCI 318024200 Contact Us For Availability
61
TRIM RING WCI 318083900 Contact Us For Availability
61
TRIM RING WCI 318083901 Contact Us For Availability
72
SCREW-VALVE WCI 5303323141 Contact Us For Availability
73
SHIELD-BURNER,SMALL WCI 318143400 Contact Us For Availability
73
SHIELD-BURNER,LARGE WCI 318143401 Contact Us For Availability
101
BRACKET-BURNER WCI 318090400 Contact Us For Availability
130
WCI 318125001 WCI 318125001 Contact Us For Availability
× ![]()
