Model Frigidaire FGC6X7XES4 COOKTOP – Common Parts & Diagrams

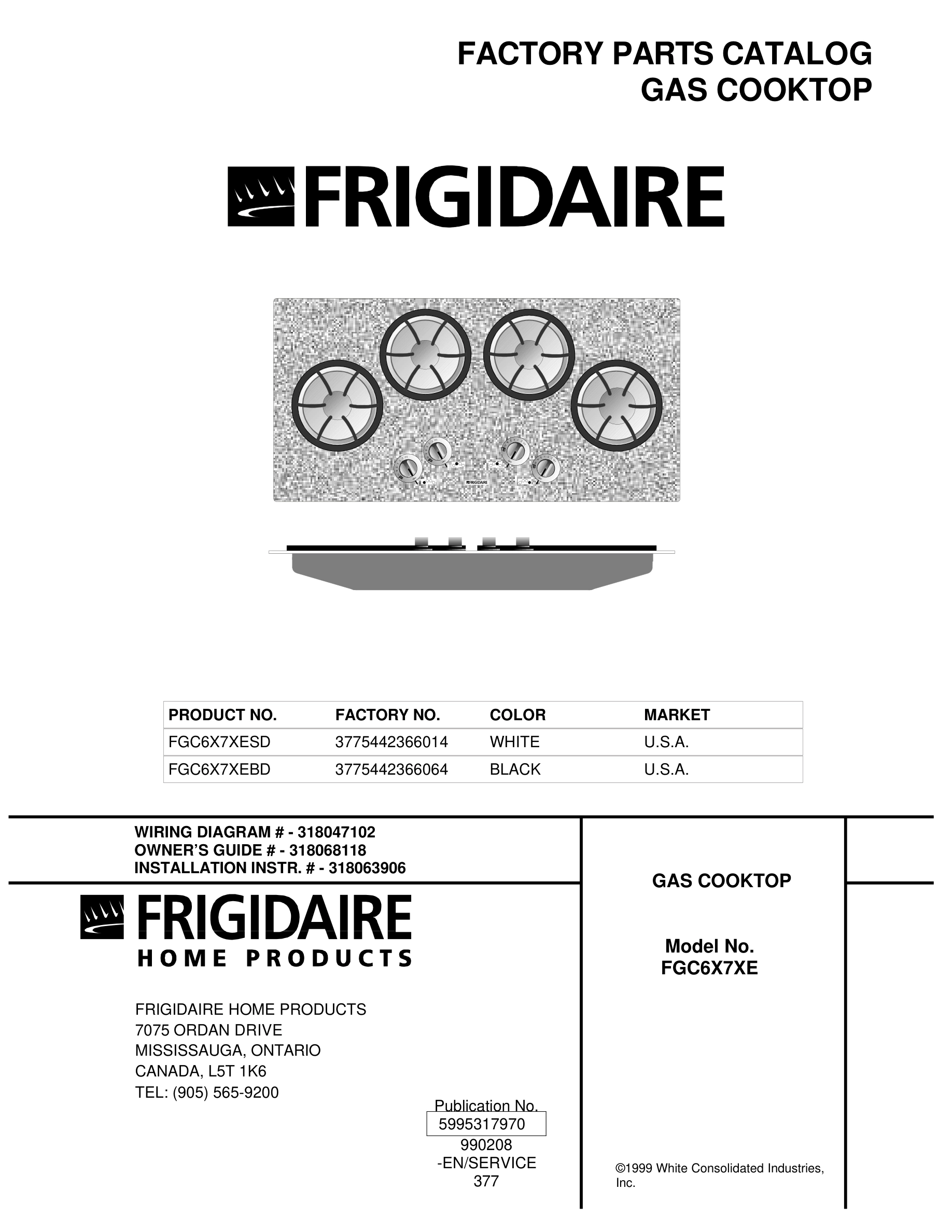

01 - COVER

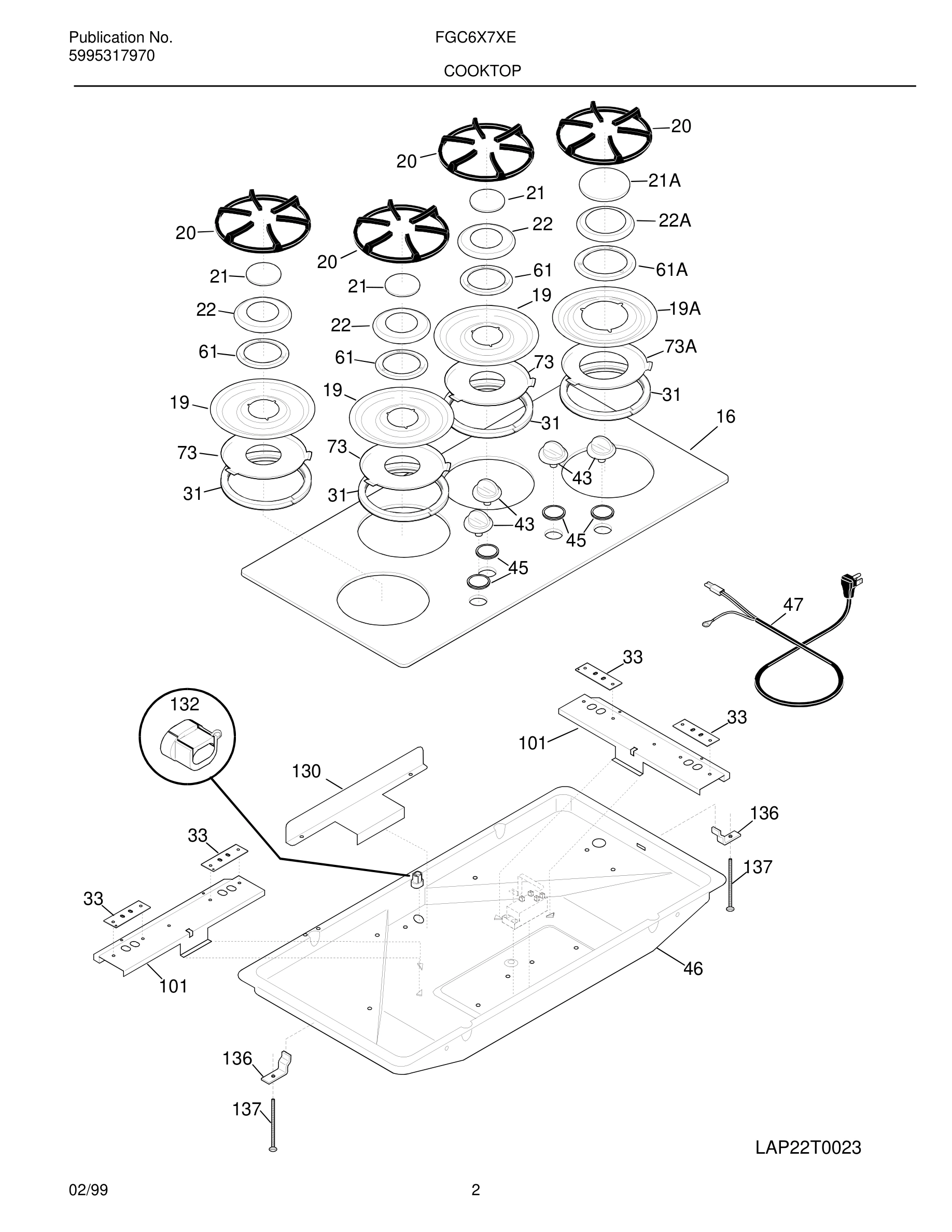

03 - COOKTOP
05 - BURNER
06 - WIRING DIAGRAM
Common parts from model Frigidaire FGC6X7XES4 COOKTOP
1
Man i fold Pipe WCI 318177100 Contact Us For Availability
2#
Valve-top burner WCI 5303935042 Contact Us For Availability
2A
Valve-top burner WCI 318087020 Contact Us For Availability
3#
Switch-ignitor WCI 316032002 Contact Us For Availability
4#
Tube-burner WCI 318054604 Contact Us For Availability
5#
Tube-burner WCI 318054605 Contact Us For Availability
10#
Burner Assy-top (9100 BTU) WCI 318055011 Contact Us For Availability
10A
Burner Ass-top (11000 BTU) WCI 318055100 Contact Us For Availability
13
Tube con nec tor man i fold WCI 318054504 Contact Us For Availability
21A
Cap-burner large grey WCI 316098509 Contact Us For Availability
22A
Trim ring large grey WCI 318050600 Contact Us For Availability
24
El bow fiting WCI 318054000 Contact Us For Availability
31
Gas ket pan WCI 318052900 Contact Us For Availability
33
Bracket burner mtg WCI 318072000 Contact Us For Availability
35
Bush ing-insulation WCI 5303307978 Contact Us For Availability
37
Screw met ric M3 X 5/8 WCI 5303320671 Contact Us For Availability
43
Knob-control white WCI 318016507 Contact Us For Availability
44
Or i fice (9100 BTU) WCI 318088700 Contact Us For Availability
44A
Or i fice (11000 BTU) WCI 318088702 Contact Us For Availability
45
Bush ing WCI 5303307933 Contact Us For Availability
45
Screw-ignitor mtg WCI 316011100 Contact Us For Availability
46
Burner Box WCI 318077100 Contact Us For Availability
47
Cord-electric power WCI 5303303991 Contact Us For Availability
47#
LP Con ver sion Kit WCI 318127405 Contact Us For Availability
51
Bracket spark mod ule WCI 318024200 Contact Us For Availability
61
Trim ring (stain less) WCI 318083900 Contact Us For Availability
61A
Trim ring (stain less) WCI 318083901 Contact Us For Availability
72
Screw valve 1/4-20 X 5/16 WCI 5303323141 Contact Us For Availability
73
Shield burner small WCI 318143400 Contact Us For Availability
73A
Shield burner large WCI 318143401 Contact Us For Availability
101
Bracket-burner WCI 318090400 Contact Us For Availability
130
Shield burner box WCI 318125001 Contact Us For Availability
136
Fix a tion sup port WCI 5303935029 Contact Us For Availability
137
Screw, 10-24 X 2 ½ WCI 5303323138 Contact Us For Availability
× ![]()
