Model Electrolux FGC6X5XEDD COOK-TOP – Common Parts & Diagrams
01 - COVER

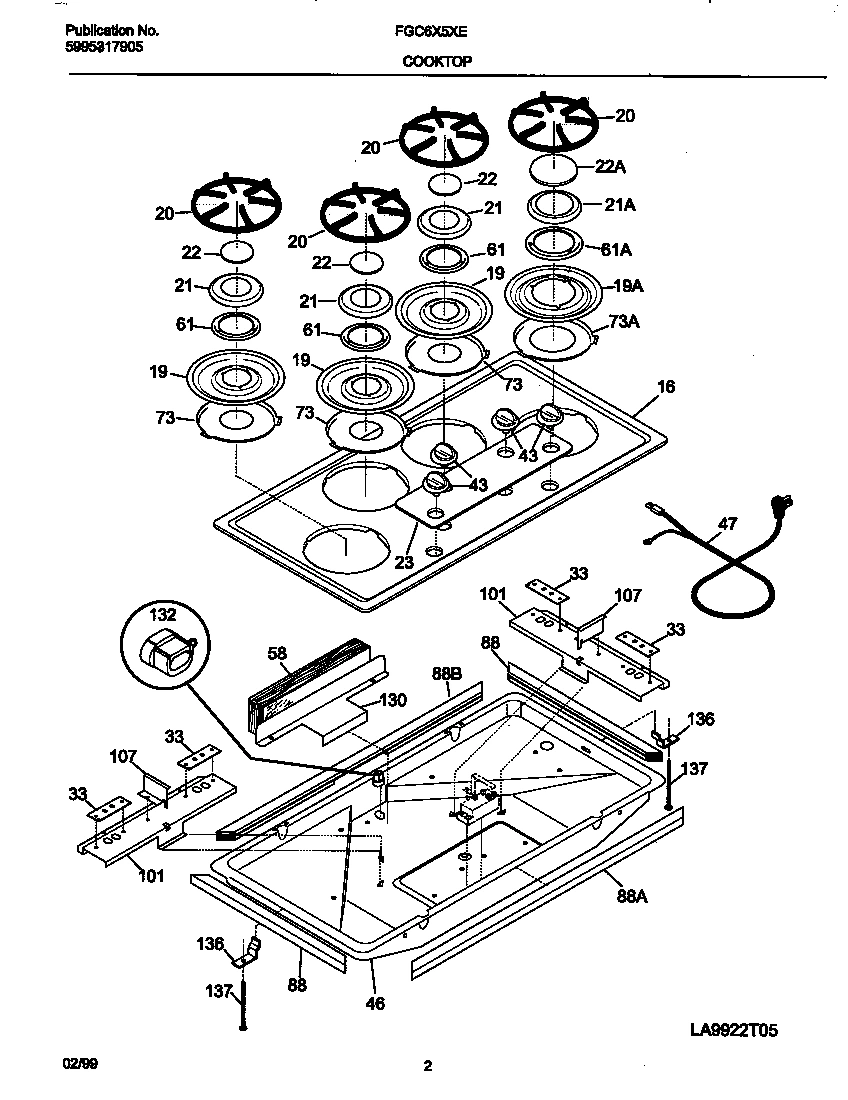

02 - COOKTOP
03 - BURNER
04 - WIRING DIAGRAM
Common parts from model Electrolux FGC6X5XEDD COOK-TOP
1
WCI 318177100 WCI 318177100 Contact Us For Availability
2
VALVE-TOP BURNER WCI 5303935042 Contact Us For Availability
2
WCI 318087020 WCI 318087020 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
4
WCI 318054604 WCI 318054604 Contact Us For Availability
5
WCI 318054605 WCI 318054605 Contact Us For Availability
10
BURNER ASSY,9100 WCI 318055011 Contact Us For Availability
10
BURNER ASSY WCI 318055100 Contact Us For Availability
13
TUBE CONNECTOR MANIFOLD WCI 318054504 Contact Us For Availability
21
TRIM-RING,SMALL WCI 316011304 Contact Us For Availability
22
CAP-BURNER,BLACK ,LARGE WCI 316098505 Contact Us For Availability
24
WCI 318054000 WCI 318054000 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
37
SCREW WCI 5303320671 Contact Us For Availability
43
KNOB-TOP VALVE BLACK WCI 318016506 Contact Us For Availability
44
ORIFICE WCI 318088702 Contact Us For Availability
44
ORIFICE,9100 WCI 318088700 Contact Us For Availability
45
SCREW-IGNITOR MTG WCI 316011100 Contact Us For Availability
46
WCI 318077100 WCI 318077100 Contact Us For Availability
47
WCI 5303303991 WCI 5303303991 Contact Us For Availability
47
WCI 5304410022 WCI 5304410022 Contact Us For Availability
51
WCI 318024200 WCI 318024200 Contact Us For Availability
58
WCI 5303326117 WCI 5303326117 Contact Us For Availability
61
TRIM RING WCI 318083900 Contact Us For Availability
61
TRIM RING WCI 318083901 Contact Us For Availability
72
SCREW-VALVE WCI 5303323141 Contact Us For Availability
73
SHIELD-BURNER,SMALL WCI 318143400 Contact Us For Availability
73
SHIELD-BURNER,LARGE WCI 318143401 Contact Us For Availability
88
WCI 318052800 WCI 318052800 Contact Us For Availability
88
WCI 318052801 WCI 318052801 Contact Us For Availability
88
GASKET-COOKTOP WCI 318052802 Contact Us For Availability
101
BRACKET-BURNER WCI 318090400 Contact Us For Availability
107
WCI 318113600 WCI 318113600 Contact Us For Availability
130
WCI 318125001 WCI 318125001 Contact Us For Availability
136
FIXATION SUPPORT WCI 5303935029 Contact Us For Availability
137
SCREW WCI 5303323138 Contact Us For Availability
× ![]()
