Model Electrolux FFVU17F2SC3 FREEZER, UPRIGHT – Common Parts & Diagrams

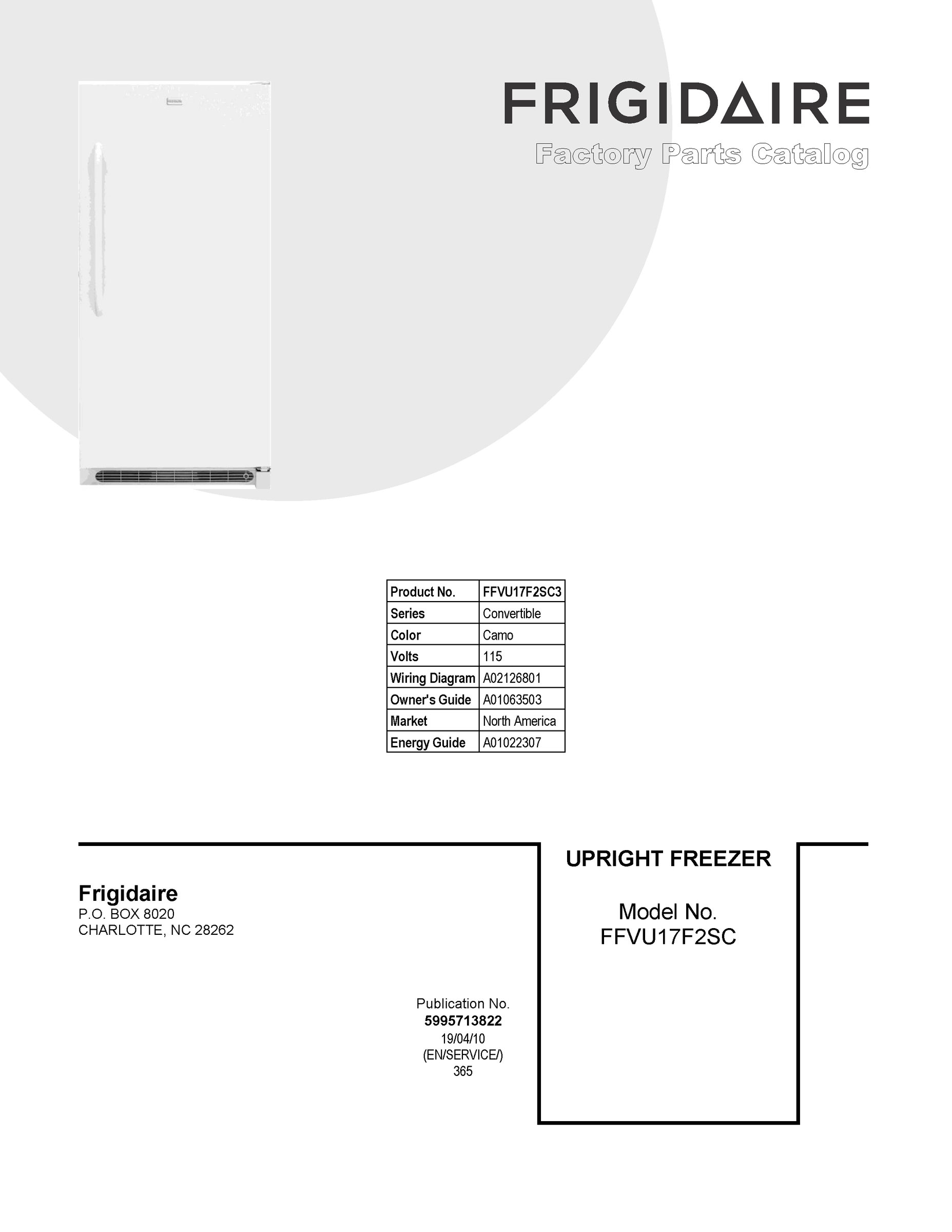

01 - COVER SHEET

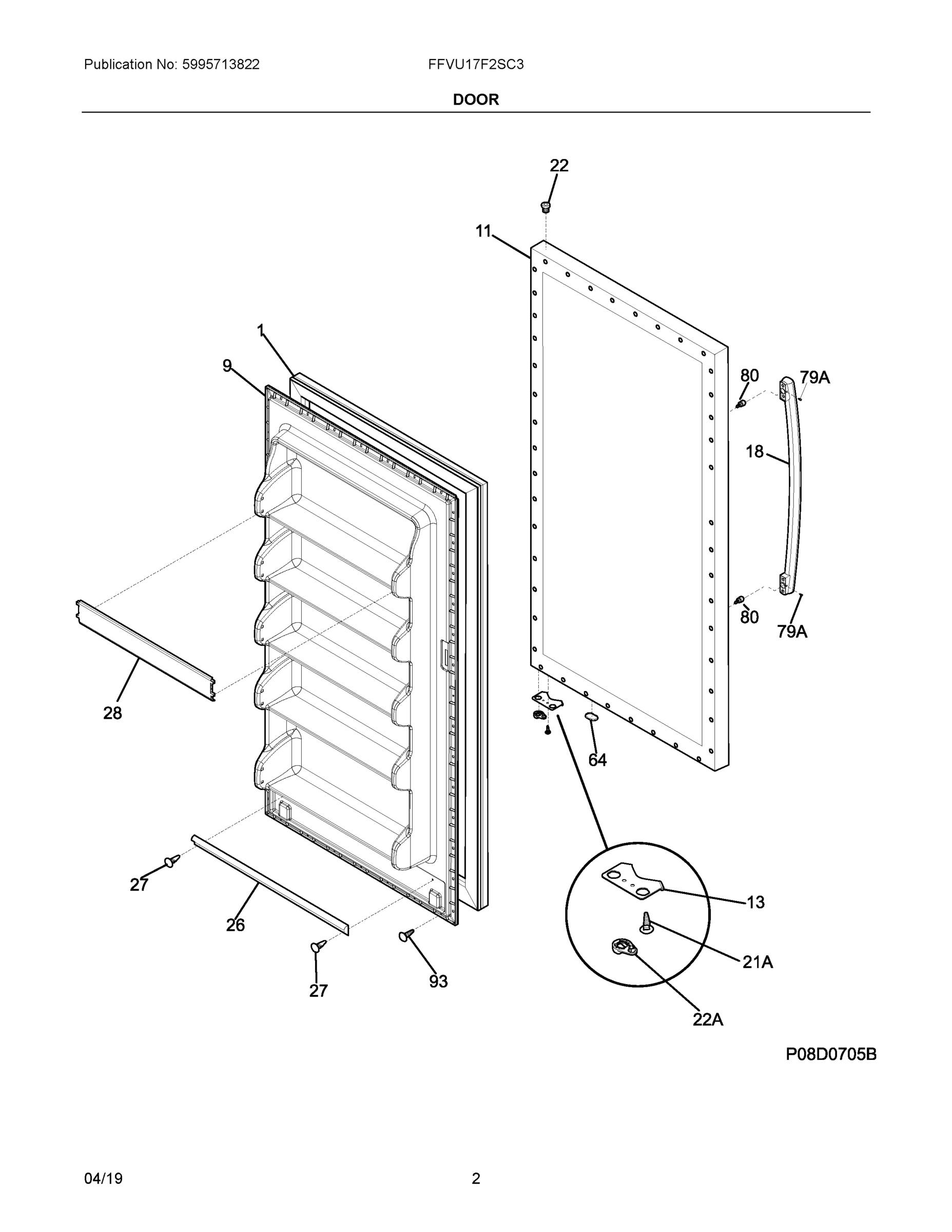

02 - DOOR

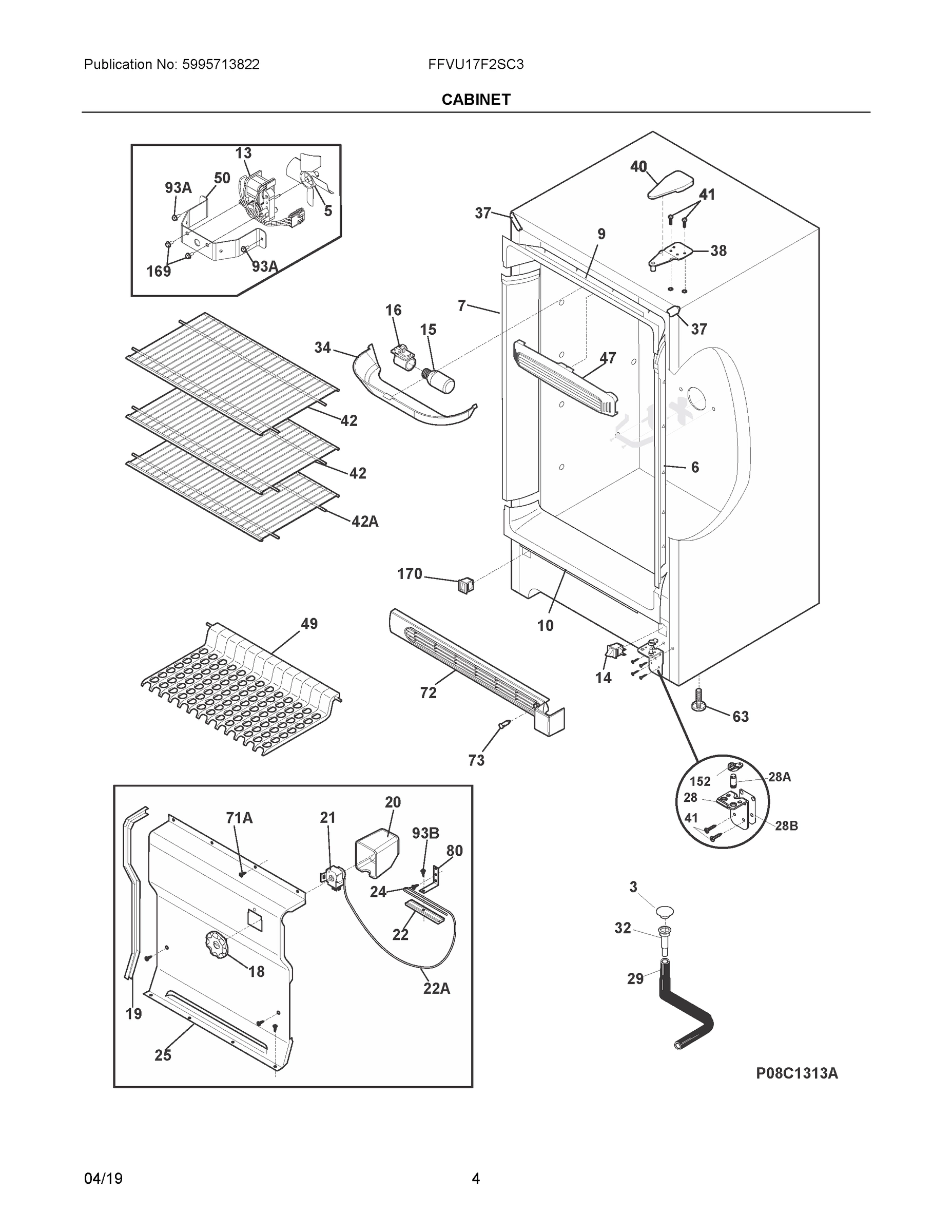

03 - CABINET

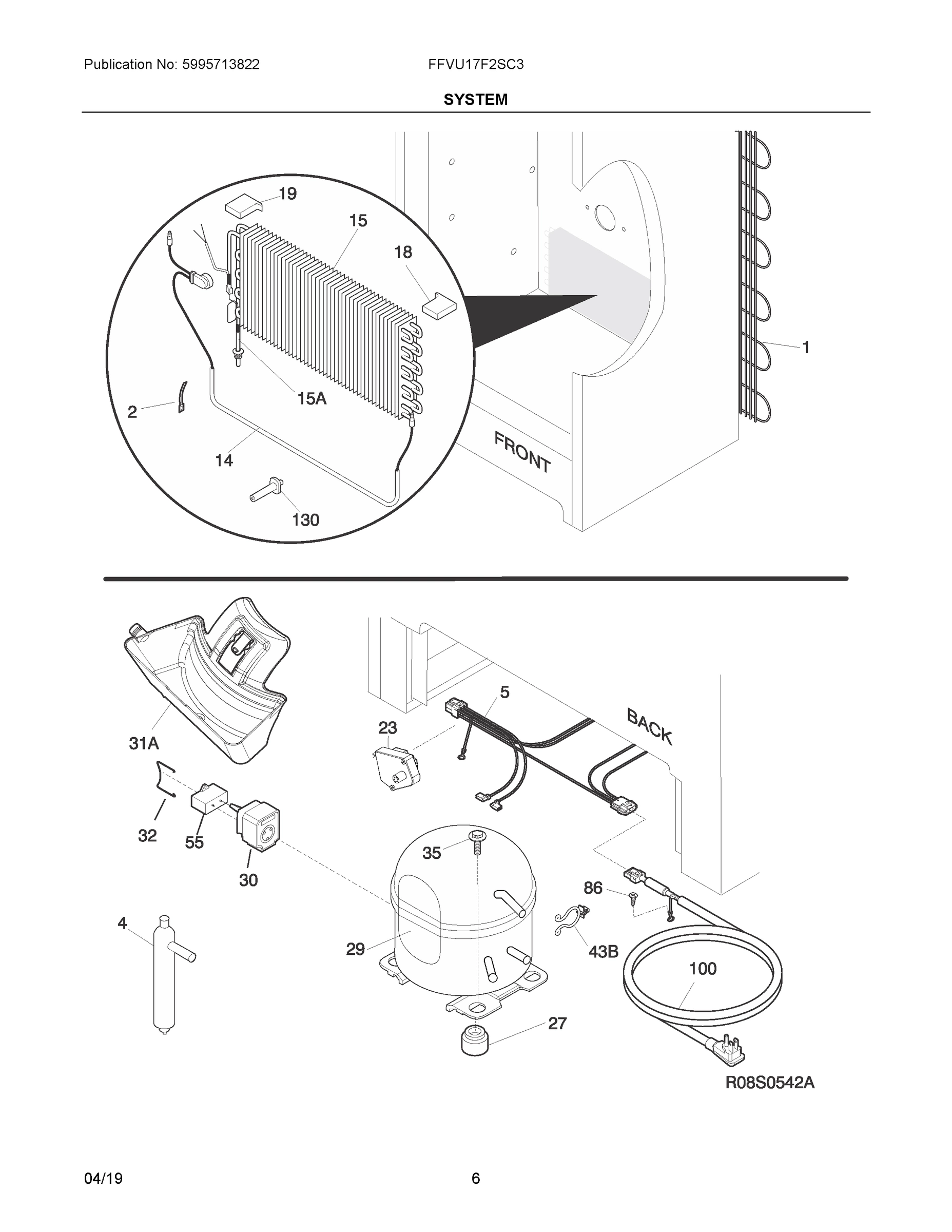

04 - SYSTEM
Common parts from model Electrolux FFVU17F2SC3 FREEZER, UPRIGHT
1
CONDENSER WCI 5300083897 Contact Us For Availability
1
GASKET, BLACK WCI 5304506304 Contact Us For Availability
2
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
5
HARNESS-MAIN WCI 297170200 Contact Us For Availability
7
BREAKER, BOTTOM WCI 297403902 Contact Us For Availability
9
BREAKER, TOP WCI 297403901 Contact Us For Availability
9
PANEL-INNER DOOR WCI 297382701 Contact Us For Availability
10
HEATER-DRAIN PAN WCI 297334500 Contact Us For Availability
13
DOOR STOP WCI 297416200 Contact Us For Availability
14
HEATER ASSEMBLY, DEFROST, W/THERMOSTAT WCI 5304497251 Contact Us For Availability
15A
HEAT EXCHANGER, SUCT/CAP TUBE WCI 297217900 Contact Us For Availability
16
SOCKET, LIGHT/LAMP, 25 W WCI 297139501 Contact Us For Availability
18
INSULATOR-EVAP, STYROFOAM, RH WCI 297078701 Contact Us For Availability
19
GASKET-EVAP COVER WCI 216204902 Contact Us For Availability
19
INSULATOR-EVAP, STYROFOAM, LH WCI 297078801 Contact Us For Availability
20
COVER, TEMP CONTROL WCI 216967201 Contact Us For Availability
21

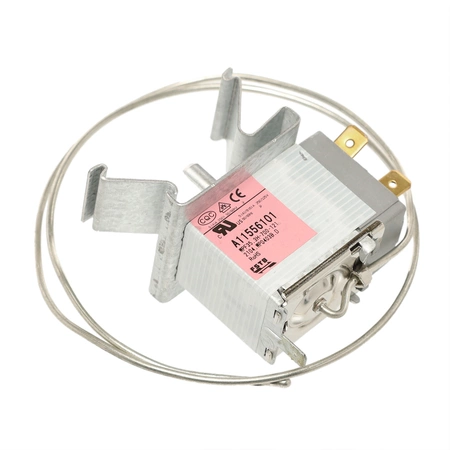

CONTROL, TEMPERATURE WCI 5304511828 Contact Us For Availability
21A
SCREW, DOOR STOP MTG, FH38-16X.750, P TWIN WCI 297197500 Contact Us For Availability
22
BEARING, HINGE, NATURAL, TOP WCI 216970802 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 216823500 Contact Us For Availability
22A
TUBE, SENSOR SLEEVE, PLASTIC, CLEAR WCI 5303916855 Contact Us For Availability
25
COVER-EVAPORATOR WCI 297099250 Contact Us For Availability
26
RAMP, DOOR CLOSER WCI 297415900 Contact Us For Availability
26
GASKET, SECONDARY WCI 297387100 Contact Us For Availability
27
CLIP, PANEL MTG WCI 5303212828 Contact Us For Availability
28
RACK, DOOR WCI 5304494023 Contact Us For Availability
28A
PIN, BOTTOM HINGE WCI 297438300 Contact Us For Availability
28B
HINGE, REVERSIBLE, BOTTOM RH WCI 297416301 Contact Us For Availability
30
CONTROLLER, COMPRESSOR WCI 297259515 Contact Us For Availability
34
SLEEVE WCI 5304511843 Contact Us For Availability
34
SHIELD-LIGHT WCI 297184400 Contact Us For Availability
35
CLIP, WIRE RETAINER WCI 216273000 Contact Us For Availability
38
HINGE-UPPER WCI 297283803 Contact Us For Availability
42A
SHELF, 14.50 X 23.88, WIRE WCI 297441901 Contact Us For Availability
47
BAFFLE, AIR WCI 297192903 Contact Us For Availability
50
BRACKET, FAN MOTOR MOUNT WCI 216394050 Contact Us For Availability
63
SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WCI 216396900 Contact Us For Availability
64
PLUG-BUTTON, DOOR BASE WCI 297014702 Contact Us For Availability
71A
SCREW, 8-18AB X.470 QX WCI 297146820 Contact Us For Availability
73
LIGHT SIGNAL, ROUND, GREEN WCI 5304495394 Contact Us For Availability
79A
SCREW-SET WCI 297295900 Contact Us For Availability
130
SUPPORT, EVAPORATOR MTG WCI 297244700 Contact Us For Availability
169
SCREW, HEX WASHER HEAD, 8-32 X 0.500, BRACKET WCI 216912401 Contact Us For Availability
NI
SCREW, 8-18X.50 AB, #10 WCI 216858001 Contact Us For Availability
NI
INSULATION, 24", SUCTION LINE WCI 297001704 Contact Us For Availability
NI
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
NI
WCI 216337701 WCI 216337701 Contact Us For Availability
NI
WCI 297048000 WCI 297048000 Contact Us For Availability
NIA
WCI 5304511026 WCI 5304511026 Contact Us For Availability
NIA
CLIP, PANEL MTG KIT, (40) WCI 5304406520 Contact Us For Availability
NIA
WCI 297164650 WCI 297164650 Contact Us For Availability
NIB
WCI 297164651 WCI 297164651 Contact Us For Availability
× ![]()
