Model Electrolux FFTR1621RW2 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

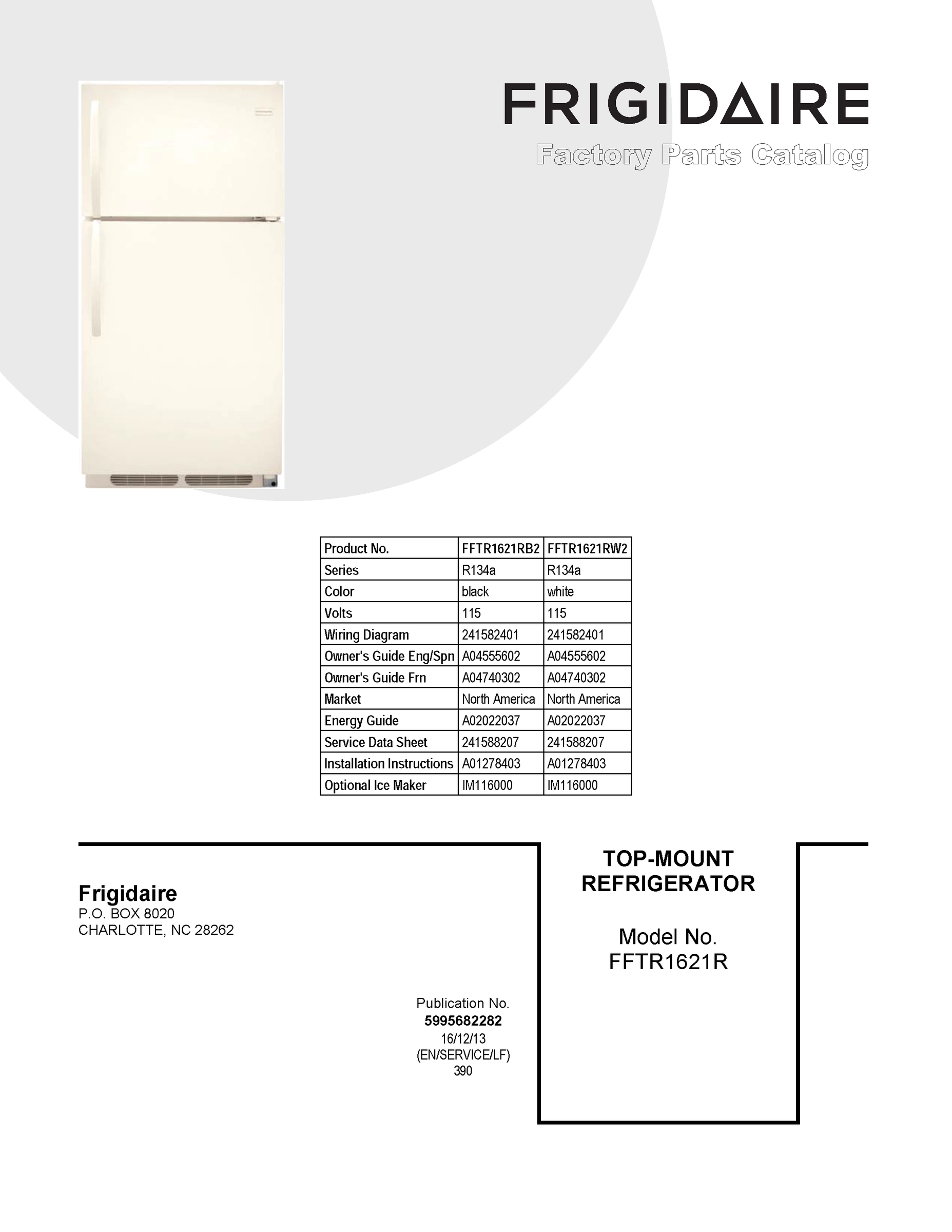

01 - COVER SHEET
02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFTR1621RW2 REFRIGERATOR, TOP MOUNT
1
GASKET, FREEZER DOOR, WHITE, MAGNETIC WCI 242193201 Contact Us For Availability
1
WCI 242230902 WCI 242230902 Contact Us For Availability
1
WCI 241785407 WCI 241785407 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
GASKET-REFR DOOR, WHITE, MAGNETIC WCI 242193204 Contact Us For Availability
2
WCI 242229401 WCI 242229401 Contact Us For Availability
5
WCI 242219302 WCI 242219302 Contact Us For Availability
6
WCI 5304497413 WCI 5304497413 Contact Us For Availability
7
WCI 240337712 WCI 240337712 Contact Us For Availability
7
WCI 242287501 WCI 242287501 Contact Us For Availability
8
WCI 242237301 WCI 242237301 Contact Us For Availability
9
WCI 242229301 WCI 242229301 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE, (2) WCI 240381301 Contact Us For Availability
11
SHELF, FREEZER WCI 240358007 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
FREEZER DOOR, COMPLETE, WHITE WCI 807460010 Contact Us For Availability
12
DIFFUSER, AIR, TOP WCI 241542001 Contact Us For Availability
12
NAMEPLATE, FRIGIDAIRE WCI 242016301 Contact Us For Availability
12
WCI 242249201 WCI 242249201 Contact Us For Availability
13
WCI 242219204 WCI 242219204 Contact Us For Availability
13
DIFFUSER, AIR, BOTTOM WCI 240362601 Contact Us For Availability
13A
DOOR STOP, WHITE, FRZR WCI 240312414 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
14
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
15
WCI 5303918275 WCI 5303918275 Contact Us For Availability
15
REFRIGERATOR DOOR, COMPLETE, WHITE WCI 807460110 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801302 WCI 241801302 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
18B
WCI 218428101 WCI 218428101 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
WCI 241537103 WCI 241537103 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
21A
SCREW, #10-16 X 1/2 WCI 240521303 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
WCI 5304507146 WCI 5304507146 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 215774901 Contact Us For Availability
23
WCI 241705102 WCI 241705102 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
FRAME, SLIDING SHELF, FULL WIDTH WCI 240372401 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24A
FRAME, SLIDING SHELF, FULL WIDTH, W/HANGER TA WCI 240372404 Contact Us For Availability
25
WCI 5304497604 WCI 5304497604 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240364503 Contact Us For Availability
26
WCI 241920605 WCI 241920605 Contact Us For Availability
29
WCI 5303918659 WCI 5303918659 Contact Us For Availability
29
TRIM, SHELF, FRONT WCI 240357703 Contact Us For Availability
30
WCI 297259528 WCI 297259528 Contact Us For Availability
31
PAN-MEAT, W/O GRAPHICS, CLEAR WCI 240530811 Contact Us For Availability
32
WCI 5304497418 WCI 5304497418 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, WHITE WCI 240313802 Contact Us For Availability
35A
SPACER-HINGE, CENTER, WHITE WCI 240336802 Contact Us For Availability
37
WCI 242161201 WCI 242161201 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
PANEL, GLASS SHELF, FULL WIDTH WCI 240350619 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 240354401 Contact Us For Availability
41
TRIM-SHELF, 22.16", REAR WCI 240561501 Contact Us For Availability
41
WCI 5304500407 WCI 5304500407 Contact Us For Availability
42
TRACK, MEAT PAN HANGER, LH WCI 240530601 Contact Us For Availability
42
WCI 240578904 WCI 240578904 Contact Us For Availability
42A
TRACK, MEAT PAN HANGER, RH WCI 240530701 Contact Us For Availability
43
ROLLER ASSY, FRONT LH, (2) WCI 241889002 Contact Us For Availability
47
GLASS-SHELF, CRISPER COVER WCI 242087903 Contact Us For Availability
48
WCI 240535101 WCI 240535101 Contact Us For Availability
48A
BIN-DOOR WCI 240383801 Contact Us For Availability
48B
BIN-DOOR WCI 240383901 Contact Us For Availability
49
WCI 240535001 WCI 240535001 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
WCI 242050604 WCI 242050604 Contact Us For Availability
59
WCI 240442708 WCI 240442708 Contact Us For Availability
61
WCI 241639502 WCI 241639502 Contact Us For Availability
72
GRILLE/KICKPLATE, WHITE WCI 240368301 Contact Us For Availability
74
SCREW, CR PAN HD, 10-16 X 0.500 WCI 215503203 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
WCI 240335202 WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
85
WCI 241856910 WCI 241856910 Contact Us For Availability
89
COVER-ACCESS, WITH LABEL WCI 241733906 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
123
SCREW, HANGER/RLR MTG, 8-10 X 7/16 WCI 215005101 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NI
SCREW, HEX WSHR HD, 8-15A X 0.500 WCI 218843801 Contact Us For Availability
NIA
ROLLER ASSY, FRONT RH, (2) WCI 241889001 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WIRING HARNESS, CONTROL BOX WCI 240388701 Contact Us For Availability
NIA
WCI 241705801 WCI 241705801 Contact Us For Availability
NIA
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET WCI 241586701 Contact Us For Availability
NIB
SPACER, SHELF WCI 5303299664 Contact Us For Availability
NIB
WCI 218515401 WCI 218515401 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
