Model Electrolux FFTR1514TW2 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

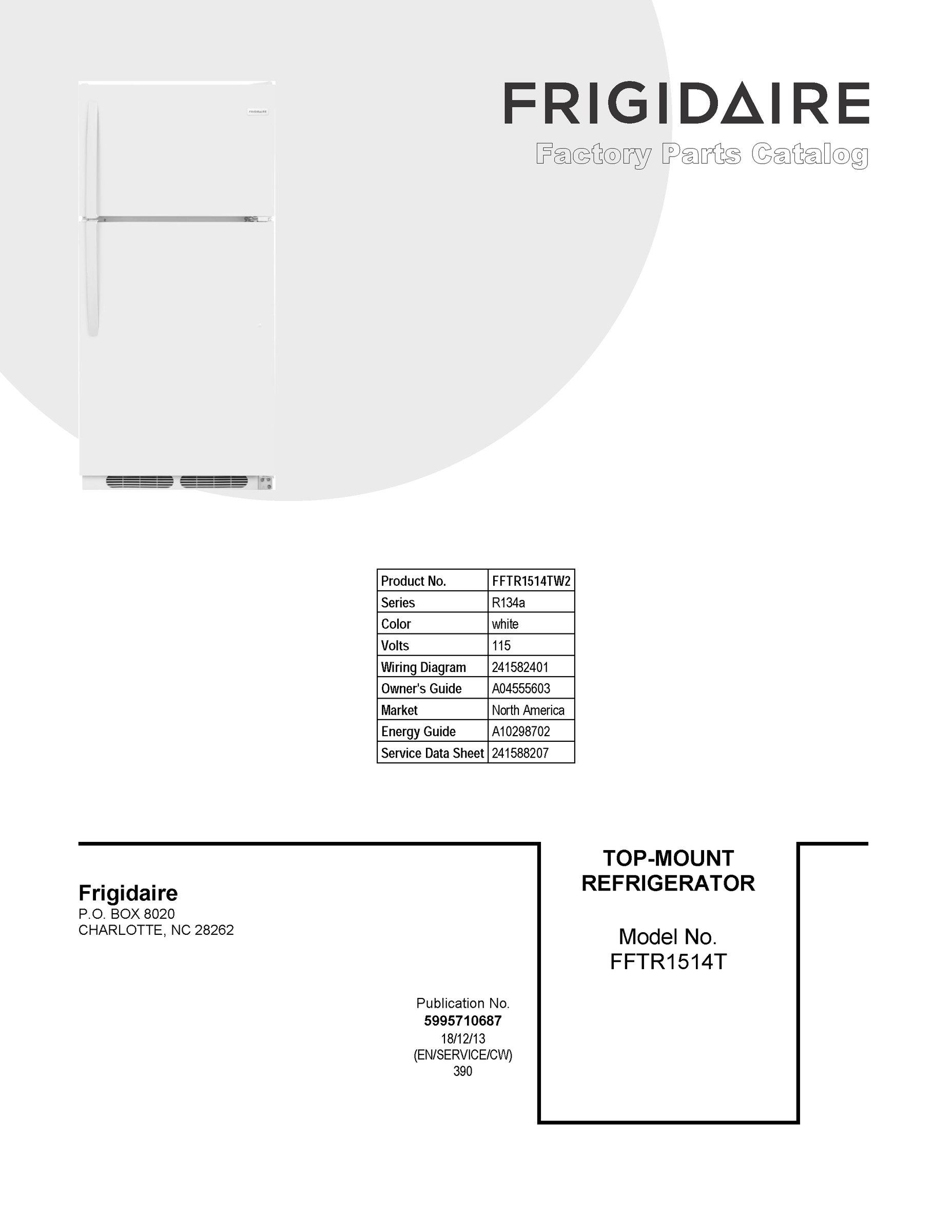

01 - COVER SHEET

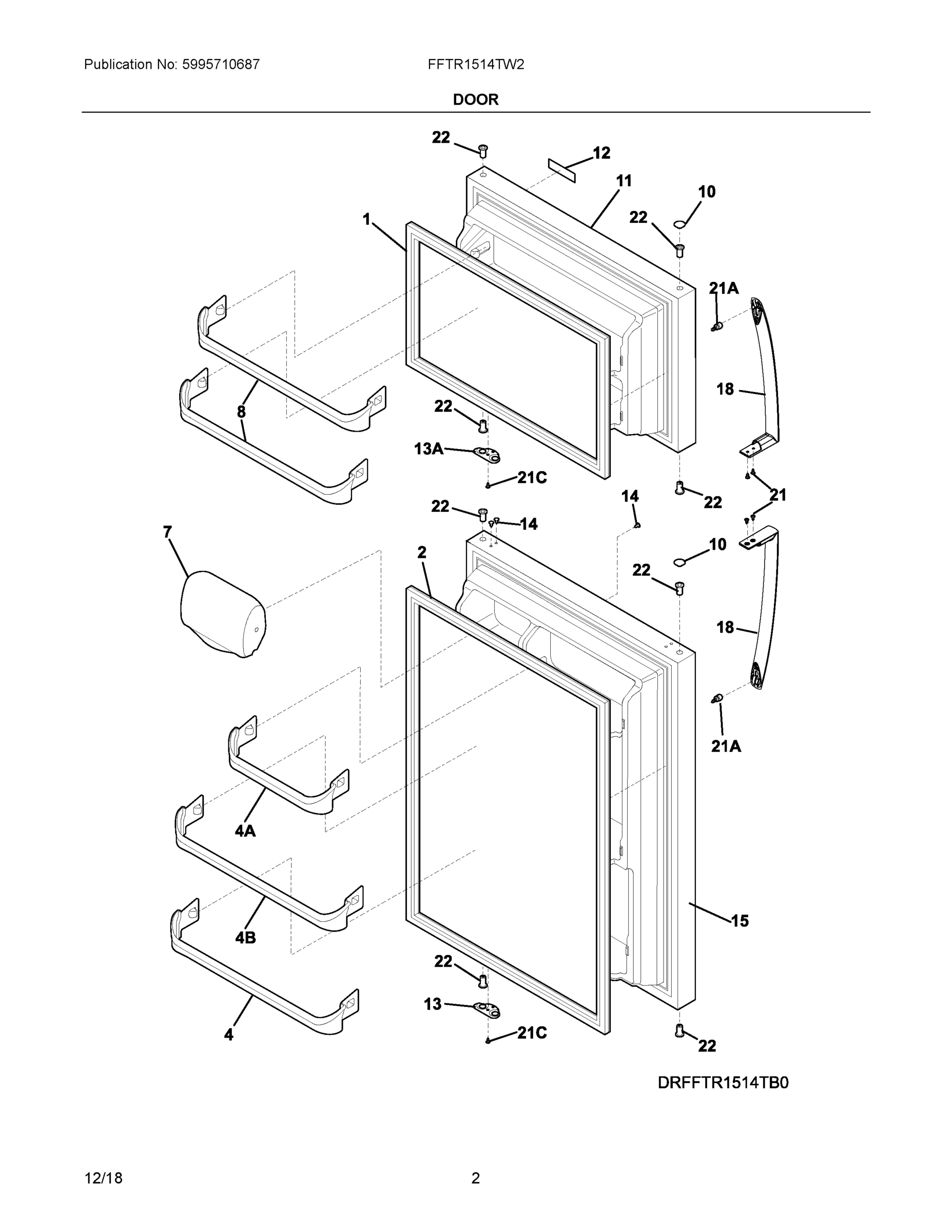

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFTR1514TW2 REFRIGERATOR, TOP MOUNT
1
GASKET, FREEZER DOOR, WHITE, MAGNETIC WCI 242193201 Contact Us For Availability
1
COVER, EVAPORATOR FAN WCI 242230902 Contact Us For Availability
1
CONDENSER, DYNAMIC WCI 241785407 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
GASKET, REFRIG DOOR, WHITE WCI 242193202 Contact Us For Availability
2
KNOB, SLIDING, DAMPER WCI 242229401 Contact Us For Availability
4
RACK-DOOR WCI 240535101 Contact Us For Availability
4A
RACK-DOOR, 12.03" WCI 240535301 Contact Us For Availability
4B
RACK-DOOR WCI 240535201 Contact Us For Availability
5
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
6
RING, LOCKING, (2) WCI 5304497413 Contact Us For Availability
7
DOOR-DAIRY WCI 240337712 Contact Us For Availability
7
GROMMET, EVAPORATOR FAN, REAR WCI 242287501 Contact Us For Availability
8
RACK-DOOR WCI 240535001 Contact Us For Availability
8
GROMMET, EVAPORATOR FAN, FRONT WCI 242237301 Contact Us For Availability
9
SHROUD BRACKET, EVAPORATOR FAN WCI 242229301 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE, (2) WCI 240381301 Contact Us For Availability
11
SHELF, FREEZER WCI 240358007 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
12
DIFFUSER, AIR, TOP WCI 241542001 Contact Us For Availability
12
NAMEPLATE, WHITE WCI 5304511144 Contact Us For Availability
12
COVER, CONNECTION, ICE MAKER WCI 242249201 Contact Us For Availability
13
MOTOR-BLOWER WCI 242219204 Contact Us For Availability
13
DIFFUSER, AIR, BOTTOM WCI 240362601 Contact Us For Availability
13
DOOR STOP, WHITE, REF WCI 240312421 Contact Us For Availability
13A
DOOR STOP, WHITE, FRZR WCI 240312414 Contact Us For Availability
14
SWITCH-LIGHT/LAMP WCI 241554901 Contact Us For Availability
14
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918275 Contact Us For Availability
15
REFRIGERATOR DOOR, COMPLETE, WHITE WCI 807460108 Contact Us For Availability
16
SOCKET-LIGHT WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
TROUGH-DRAIN WCI 241801302 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
CONTROL-TEMPERATURE WCI 241537103 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
21A
SCREW, #10-16 X 1/2 WCI 240521303 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 215774901 Contact Us For Availability
22A
BEARING-HINGE, NATURAL, (8) WCI 5304507146 Contact Us For Availability
23
TIMER-DEFROST WCI 241705102 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
SHELF, SLIDING, WIRE WCI 240360906 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
25
COVER, CRISPER PANS, W/2 HUMID CNTLS WCI 5304497604 Contact Us For Availability
25
CLIP-COMPRESSOR MTG WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240364503 Contact Us For Availability
26
PAN-DEFROST WCI 241920605 Contact Us For Availability
29
S/A PUR-COMP. & GROMMETS WCI 5304517439 Contact Us For Availability
30
CONTROLLER, COMPRESSOR WCI 297259528 Contact Us For Availability
32
CLIP, CONTROLLER WCI 5304497418 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, WHITE WCI 240313802 Contact Us For Availability
35A
SPACER-HINGE, CENTER, WHITE WCI 240336802 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE, (2) WCI 242161201 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 240313703 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 240354401 Contact Us For Availability
41
GROMMET, SHELF MTG WCI 5304500407 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8, WHITE WCI 240578904 Contact Us For Availability
43
ROLLER ASSY, FRONT LH WCI 241889002 Contact Us For Availability
47
GLASS-SHELF, CRISPER COVER WCI 242087903 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
56
PIN-LOWER HINGE WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD, CONDENSER FAN WCI 242050604 Contact Us For Availability
59
SCREW-#10-32 X 3/4, WHITE WCI 240442708 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
61
BLADE-CONDENSER FAN WCI 241639502 Contact Us For Availability
72
GRILLE/KICKPLATE, WHITE WCI 240368301 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
85
TUBE-CONNECTOR, SUCTION WCI 241856910 Contact Us For Availability
89
COVER-ACCESS, WITH LABEL WCI 241733906 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NI
SCREW, HEX WSHR HD, 8-15A X 0.500 WCI 218843801 Contact Us For Availability
NIA
WCI 241889001 WCI 241889001 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WIRING HARNESS, CONTROL BOX WCI 240388701 Contact Us For Availability
NIA
SPACER-SHELF WCI 241705801 Contact Us For Availability
NIA
CLIP-GRILLE WCI 218515401 Contact Us For Availability
NIA
WCI 241586701 WCI 241586701 Contact Us For Availability
NIB
SPACER, SHELF WCI 5303299664 Contact Us For Availability
NIB
SCRE WCI 240359403 Contact Us For Availability
× ![]()
