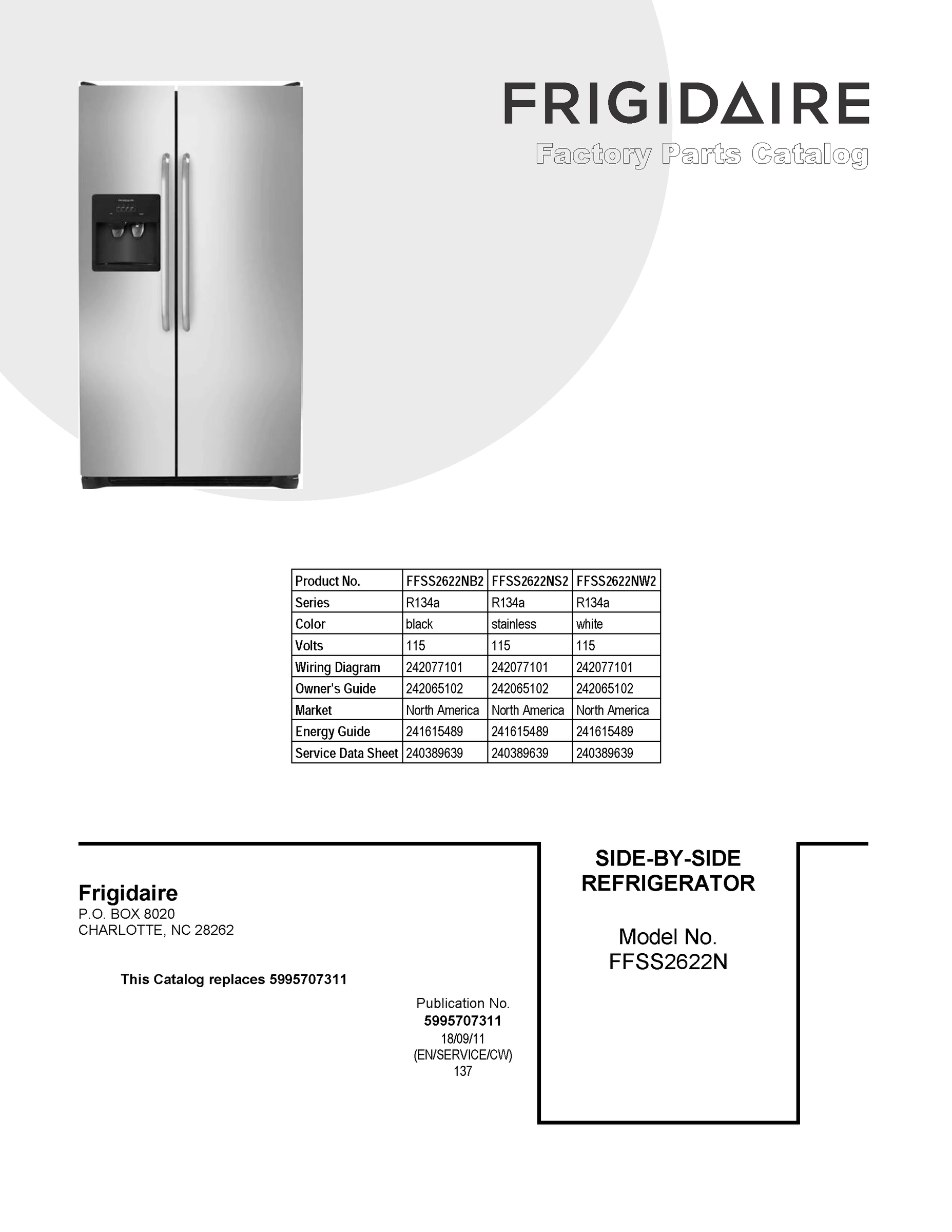

Model Electrolux FFSS2622NW2 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET

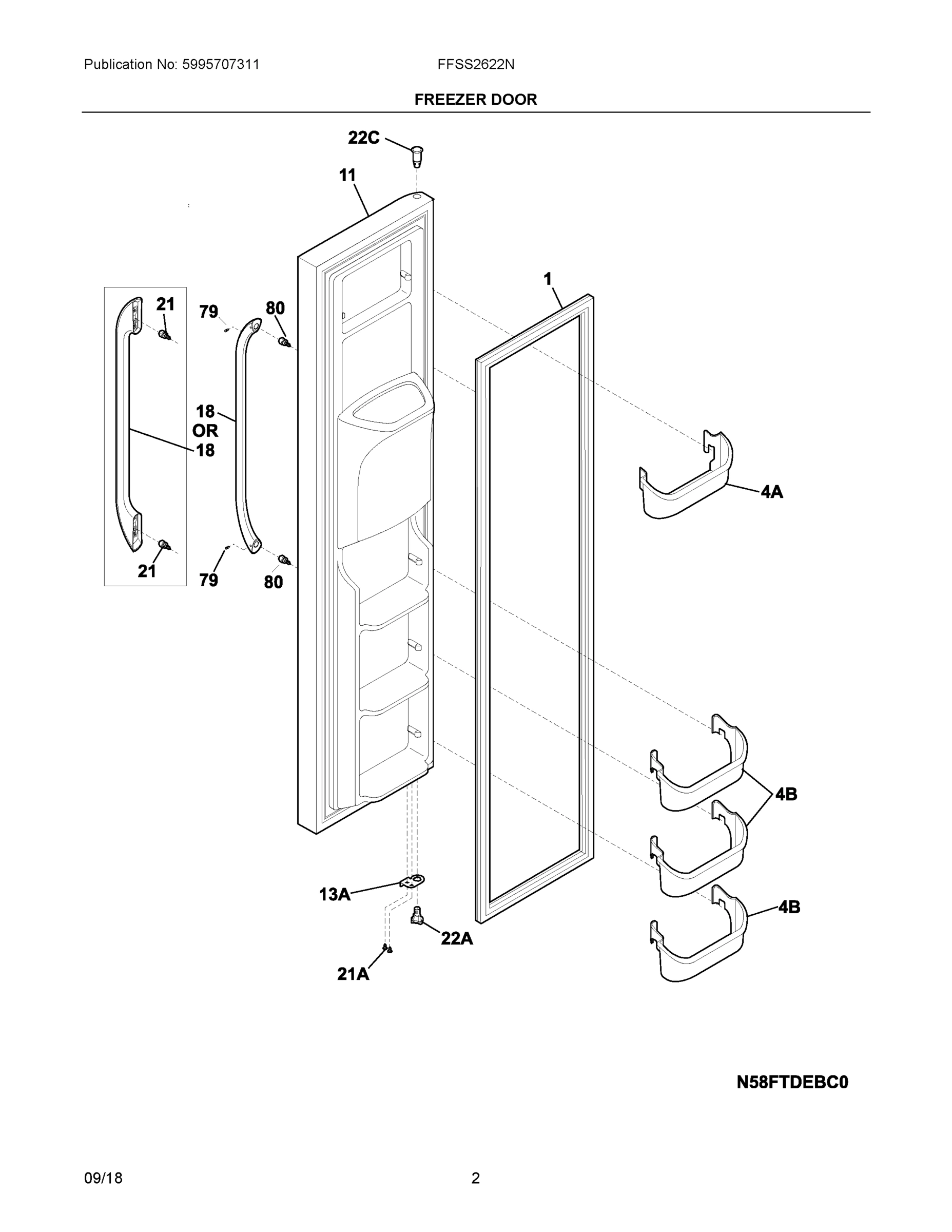

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS
07 - SYSTEM
08 - ICE & WATER DISPENSER
09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING SCHEMATIC
12 - WIRING DIAGRAM
Common parts from model Electrolux FFSS2622NW2 REFRIGERATOR, SIDE-BY-SIDE
1
TUBE, WATER, 60", NATURAL, DOOR WCI 218976409 Contact Us For Availability
2
GASKET-REFR DOOR, WHITE, MAGNETIC WCI 241786001 Contact Us For Availability
2
AUGER-ICE WCI 241716101 Contact Us For Availability
3
CAM-DRIVE WCI 241685201 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM, (2) WCI 218679614 Contact Us For Availability
4
BIN-DOOR, PSEUDO, BOTTOM WCI 240323001 Contact Us For Availability
4
CONTAINER-ICE, BUCKET ONLY WCI 241734001 Contact Us For Availability
4A
BIN-DOOR, FRZR-UPPER WCI 240334201 Contact Us For Availability
4B
BIN-DOOR WCI 240351601 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
6
DRUM-ICE DISP WCI 241685101 Contact Us For Availability
7
DOOR-DAIRY WCI 240326203 Contact Us For Availability
7
FRONT-ICE CONTAINER WCI 241734201 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
8
MODULE-DISPENSER WCI 242083401 Contact Us For Availability
9
BUSHING-MOTOR MTG WCI 241563601 Contact Us For Availability
10
BAR-DRIVE WCI 241726501 Contact Us For Availability
10
SPRING-TORSION WCI 241688901 Contact Us For Availability
10
COVER-AIR DUCT WCI 240435912 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241719711 Contact Us For Availability
11
SHELF, FLIP UP, WIRE WCI 241657602 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
DOOR-FRZR, WHITE, COMPLETE ASSY WCI 242026490 Contact Us For Availability
11A
SHELF, FIXED, FREEZER WCI 241657502 Contact Us For Availability
11B
SHELF, FIXED, UPPER, FREEZER WCI 241657504 Contact Us For Availability
12
HARNESS-WIRING WCI 5304456664 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 241942603 Contact Us For Availability
13
THERMOSTAT, ICE MAKER WCI 5304456665 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 241942604 Contact Us For Availability
14
HEATER-DEFROST WCI 242044113 Contact Us For Availability
14
SWITCH, LIGHT/LAMP WCI 240505801 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
14
LABEL-MODULE COVER, WHITE WCI 242083001 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918284 Contact Us For Availability
15
SWITCH-MICRO, (3) WCI 5304456667 Contact Us For Availability
15
DOOR-REFR, WHITE, COMPLETE ASSY WCI 242038890 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 218906802 Contact Us For Availability
16
SOCKET-LIGHT WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
SCREW WCI 241679801 Contact Us For Availability
18
HANDLE-DOOR, WHITE WCI 242059101 Contact Us For Availability
18
HANDLE-DOOR, WHITE WCI 242059103 Contact Us For Availability
20
COVER, MOTOR WCI 241734902 Contact Us For Availability
21
THERMOSTAT-DEFROST, KIT WCI 5303918214 Contact Us For Availability
21
THERMISTOR-REFR WCI 241608401 Contact Us For Availability
21
SCREW, TYPE AB, #10-16 X .5 WCI 241695904 Contact Us For Availability
21A
THERMISTOR-FRZR WCI 241608501 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
21D
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
22
PLATE-DOOR CLOSER WCI 241917801 Contact Us For Availability
22
BEARING-HINGE, GRAY WCI 241990301 Contact Us For Availability
22A
BEARING-HINGE(FRZ), CLOSER WCI 241990302 Contact Us For Availability
22B
BEARING, HINGE, TOP WCI 241760403 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760401 Contact Us For Availability
23
CONTROL, ELECTRONIC, W/HOUSING WCI 241739712 Contact Us For Availability
23
PLATE-FRONT WCI 241684001 Contact Us For Availability
23
DRIP TRAY, WHITE WCI 241947001 Contact Us For Availability
24
LEVER ARM WCI 5304456675 Contact Us For Availability
24
ACTUATOR-WATER, WHITE WCI 242083601 Contact Us For Availability
24A
ACTUATOR-ICE, WHITE WCI 242083501 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 240599301 Contact Us For Availability
25
SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 240350903 Contact Us For Availability
26
PAN-CRISPER, UPPER WCI 240351061 Contact Us For Availability
26A
CONTROL-HUMIDITY WCI 240362201 Contact Us For Availability
27
PAN-CRISPER, LOWER WCI 240351207 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE WCI 241688401 Contact Us For Availability
30
STARTER, PTC WCI 241707701 Contact Us For Availability
30A
DOOR CENTER WCI 241688501 Contact Us For Availability
30B
INSULATION-DOOR WCI 241688601 Contact Us For Availability
30C
DOOR SEAL WCI 241688701 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
DAMPER-ROTARY WCI 241689301 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
38C
BOARD-CONTROL WCI 242053503 Contact Us For Availability
39
PIN-HINGE WCI 241688801 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 241946711 Contact Us For Availability
40A
COVER-UPPER HINGE, WHITE WCI 241946712 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
CLIP-GRILLE WCI 218515403 Contact Us For Availability
43
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
45A
SPRING-SOLENOID WCI 241675902 Contact Us For Availability
45B
E-RING-SOLENOID WCI 241676001 Contact Us For Availability
45C
ACTUATOR-SOLENOID WCI 241676101 Contact Us For Availability
46
CONTROL ROD WCI 241716002 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350649 Contact Us For Availability
47
SPRING-CONTROL ROD WCI 241731801 Contact Us For Availability
47A
INSERT-PAN COVER, GLASS WCI 240350603 Contact Us For Availability
48
BRACKET-CONTROL ROD WCI 241684602 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 240356401 Contact Us For Availability
49
BASKET-SLIDING WCI 240564401 Contact Us For Availability
49
RAIL ASSY WCI 241734501 Contact Us For Availability
50
GUIDE-SOLENOID WCI 241675601 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796405 Contact Us For Availability
51
HANGER-BASKET, RH WCI 240343002 Contact Us For Availability
51
ROTATION STOP WCI 241676301 Contact Us For Availability
52
HANGER-BASKET, LH WCI 240343102 Contact Us For Availability
52
SPACER-FIXED BLADES WCI 241684901 Contact Us For Availability
53
PIN-SPIRAL, FIXED BLADES WCI 241690402 Contact Us For Availability
54
NUT-AUGER WCI 241685001 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
55
WASHER WCI 241690306 Contact Us For Availability
56
E-RING WCI 241690201 Contact Us For Availability
56
SCREW-MICRO SWITCH, PAN HEAD WCI 241689201 Contact Us For Availability
57
DOOR-ACCESS WCI 241734101 Contact Us For Availability
58
SCREW, 10-32 X 3/8 WCI 241548003 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018404 Contact Us For Availability
61
FAN BLADE, CONDENSER FAN WCI 240524102 Contact Us For Availability
72
GRILLE/KICKPLATE, WHITE WCI 240324409 Contact Us For Availability
74
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
BEARING PLATE WCI 241688302 Contact Us For Availability
87A
BEARING PLATE WCI 241688301 Contact Us For Availability
90
LIGHT PIPE, REFLECTOR WCI 241732703 Contact Us For Availability
91
DUCT-ICE MAKER WCI 240380101 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
100
SUPPORT-CRISPER CVR WCI 241993101 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101
SCREW, HEX SEMS HEAD, 8-18AB X 1-3/4 WCI 241637202 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 242303001 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
140
CHANNEL, WTR TUBE COVER WCI 240430501 Contact Us For Availability
151
COVER-WATER FILTER WCI 242069701 Contact Us For Availability
NI
ICE CONTAINER ASSY, W/MOVING PARTS WCI 241860803 Contact Us For Availability
NI
HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918328 Contact Us For Availability
NI
DEFLECTOR-ICE CONTAINER WCI 240507202 Contact Us For Availability
NIA
WCI 241993001 WCI 241993001 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NIA
GROMMET-SHELF MTG, .96" LONG WCI 241550701 Contact Us For Availability
NIA
WCI 218976419 WCI 218976419 Contact Us For Availability
NIA
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NIA
HARNESS-WIRING, CONTROL BOX WCI 241737801 Contact Us For Availability
NIA
HARNESS-WIRING, ICMKR/CONTAINER WCI 241522901 Contact Us For Availability
NIA
CLIP, SENSOR WCI 241519401 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIB
WCI 218976429 WCI 218976429 Contact Us For Availability
NIB
CLIP-SLIDE, CRISPER WCI 241595202 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
WCI 240363602 WCI 240363602 Contact Us For Availability
NIC
WCI 240542901 WCI 240542901 Contact Us For Availability
NID
WCI 240561701 WCI 240561701 Contact Us For Availability
× ![]()
