Model Electrolux FFHT1614QQ2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - DOOR

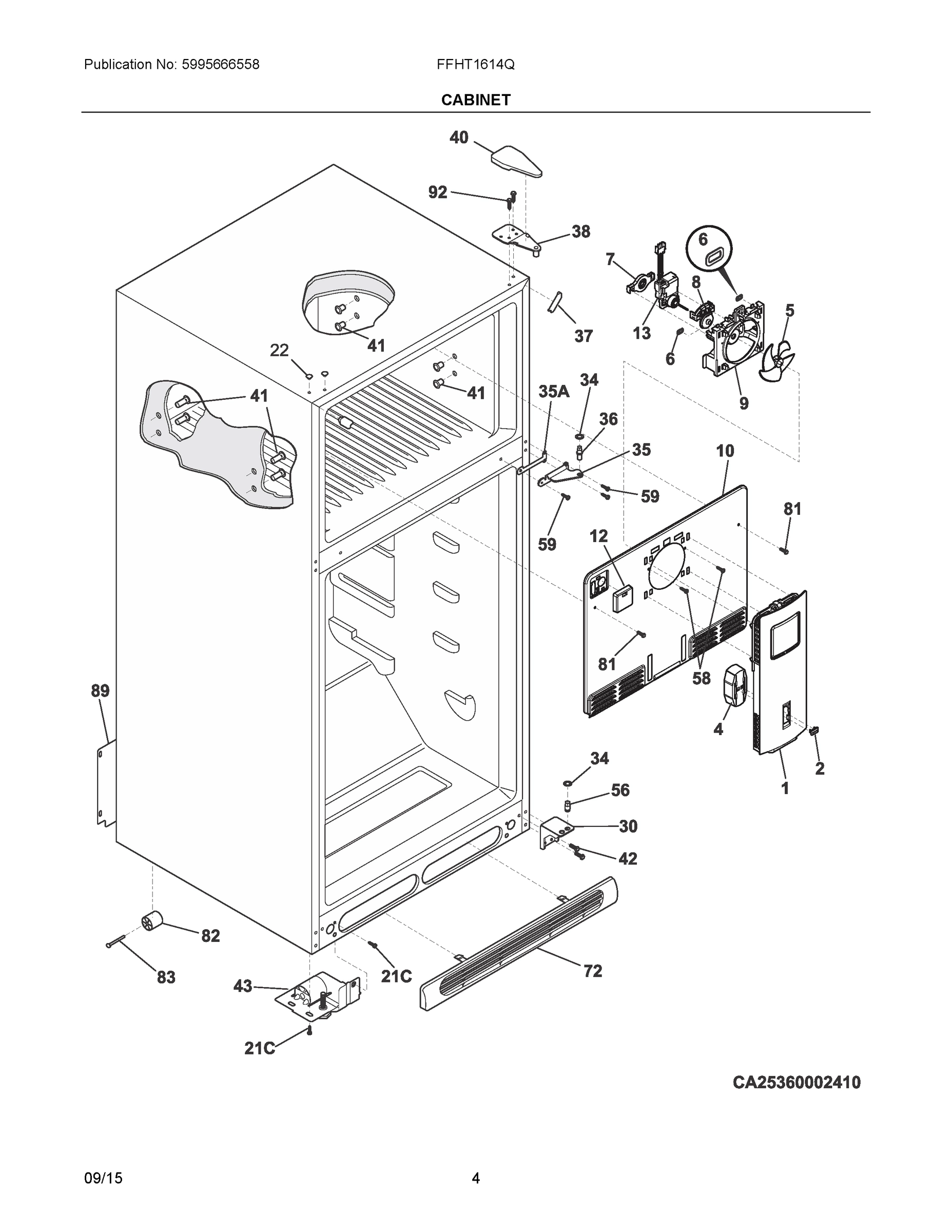

03 - CABINET

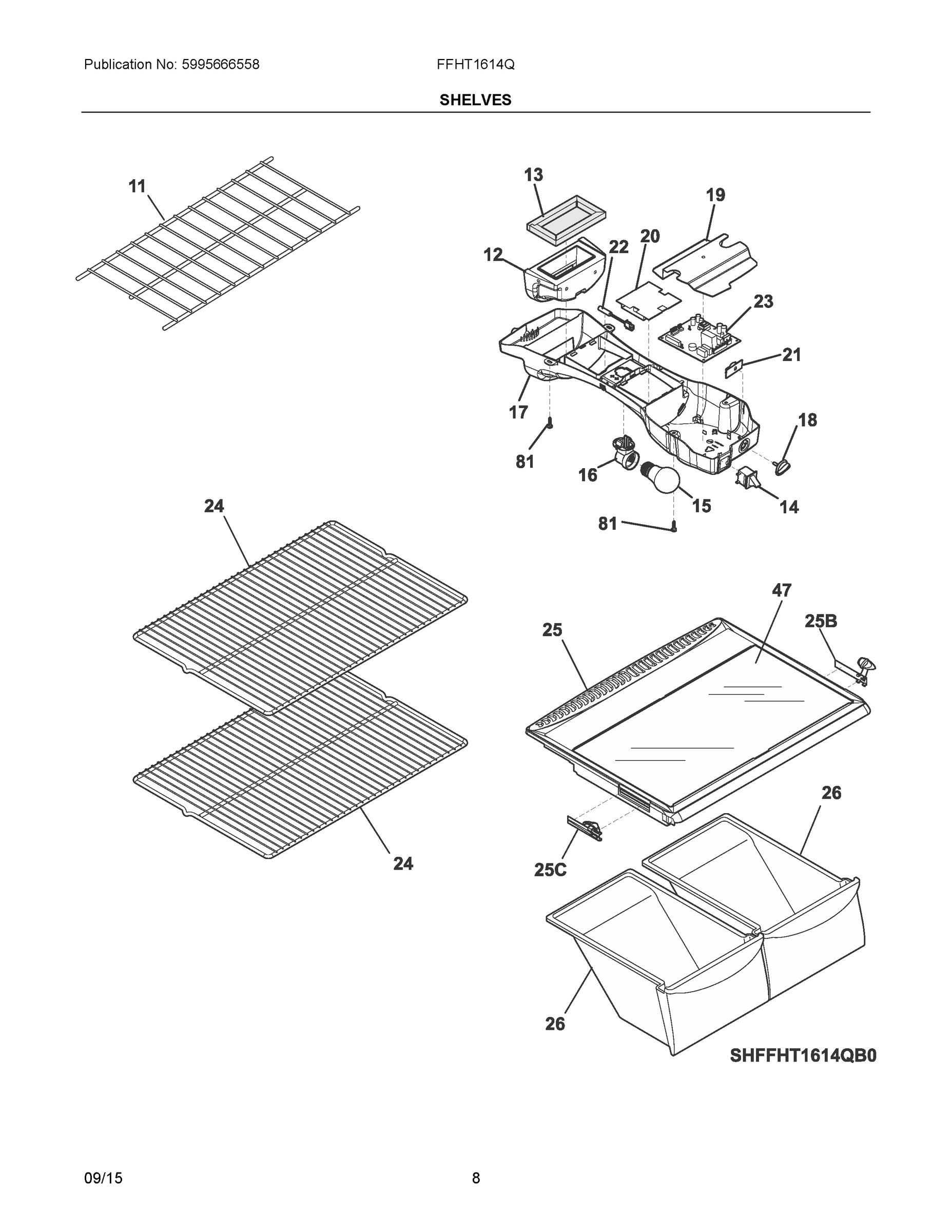

04 - SHELVES

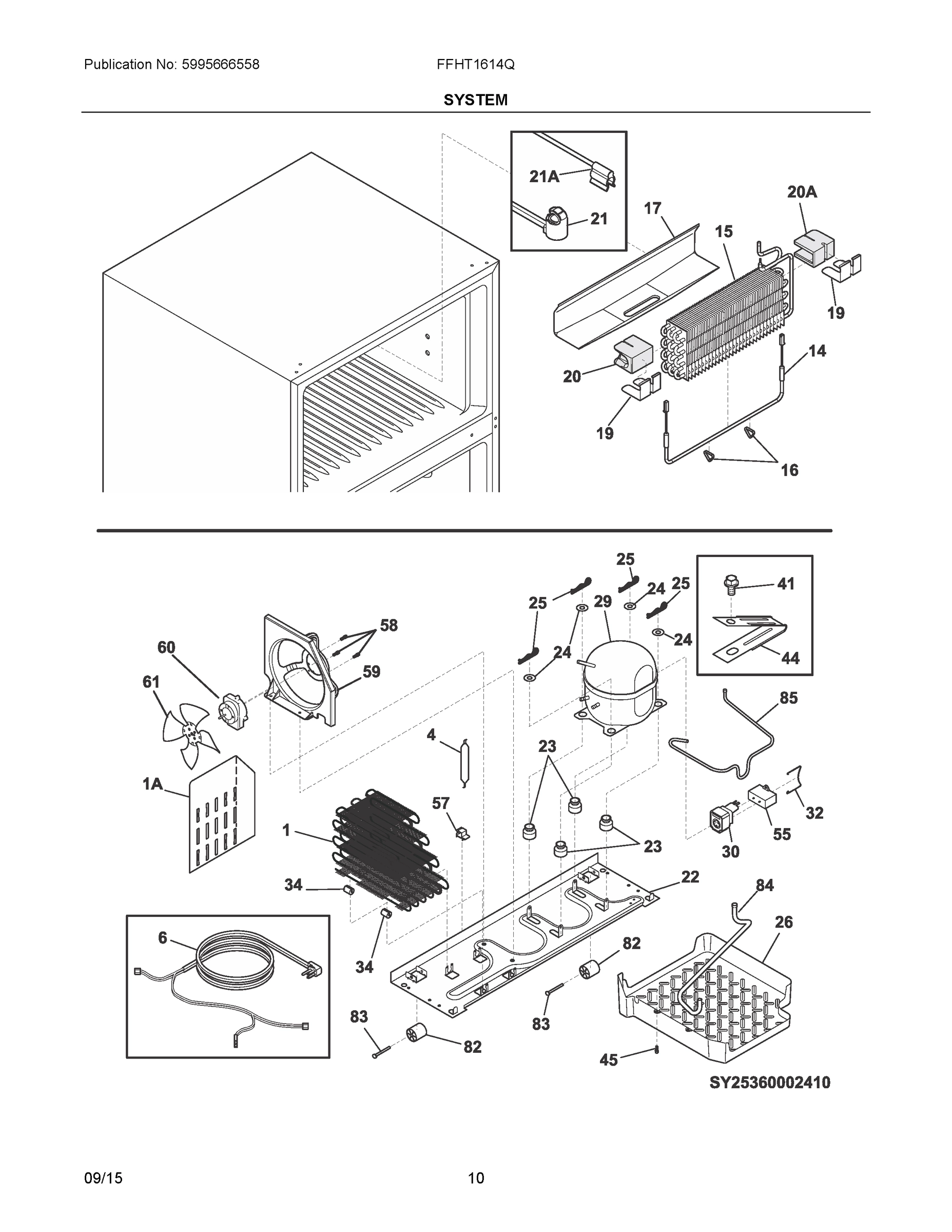

05 - SYSTEM

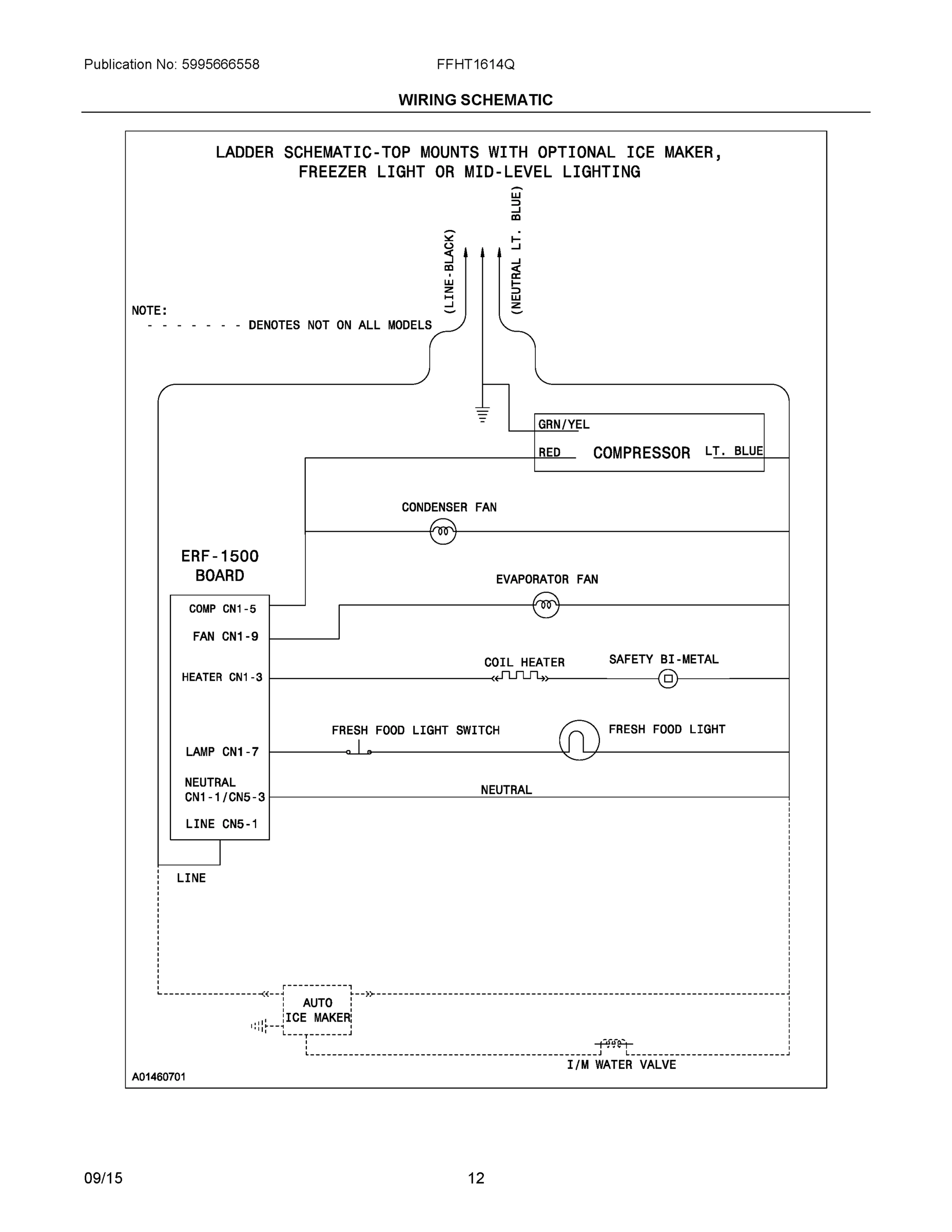

06 - WIRING SCHEMATIC

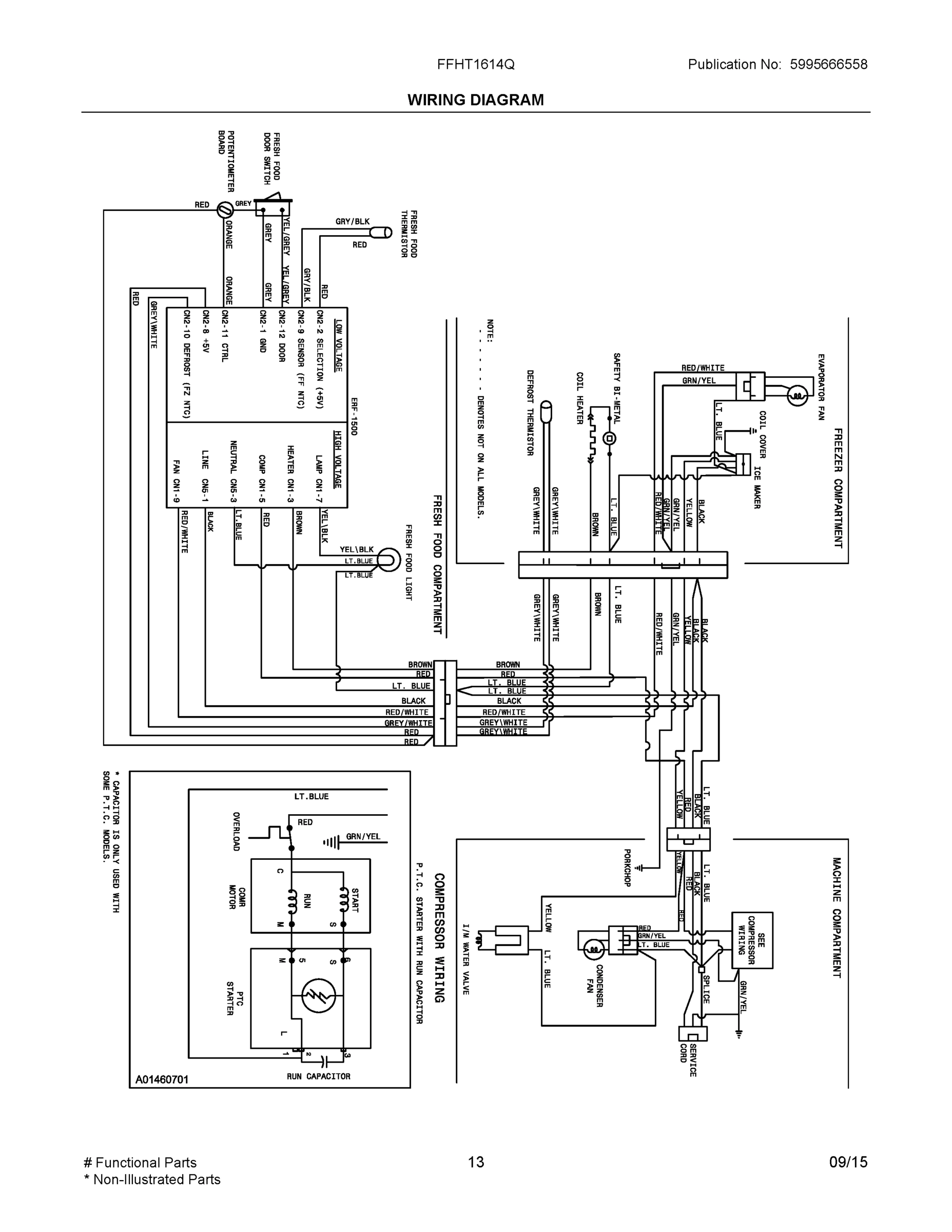

07 - WIRING DIAGRAM
Common parts from model Electrolux FFHT1614QQ2 REFRIGERATOR
1
GASKET, FREEZER DOOR, WHITE, MAGNETIC WCI 242193201 Contact Us For Availability
1
WCI 5304502821 WCI 5304502821 Contact Us For Availability
1
WCI 242230902 WCI 242230902 Contact Us For Availability
2
GASKET-REFR DOOR, WHITE, MAGNETIC WCI 242193204 Contact Us For Availability
2
WCI 242229401 WCI 242229401 Contact Us For Availability
4
WCI 240535101 WCI 240535101 Contact Us For Availability
4B
WCI 240535201 WCI 240535201 Contact Us For Availability
5
WCI 242219302 WCI 242219302 Contact Us For Availability
6
WCI 5304497413 WCI 5304497413 Contact Us For Availability
7
WCI 242287501 WCI 242287501 Contact Us For Availability
8
WCI 242237301 WCI 242237301 Contact Us For Availability
9
WCI 242229301 WCI 242229301 Contact Us For Availability
10
PLUG-BUTTON, BISQUE, HINGE BRG HOLE, (2) WCI 240381302 Contact Us For Availability
11
SHELF, FREEZER WCI 240358007 Contact Us For Availability
12
NAMEPLATE, FRIGIDAIRE WCI 242016301 Contact Us For Availability
12
WCI 242249201 WCI 242249201 Contact Us For Availability
12
DIFFUSER, AIR, CONTROL BOX WCI 242228801 Contact Us For Availability
13
GASKET, AIR DIFFUSER WCI 242240601 Contact Us For Availability
13A
DOOR STOP, BISQUE, FRZR WCI 240312416 Contact Us For Availability
14
PLUG-BUTTON, BISQUE WCI 240494002 Contact Us For Availability
15
WCI 5303918275 WCI 5303918275 Contact Us For Availability
15
REFRIGERATOR DOOR, COMPLETE, BISQUE WCI 807460112 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 242216701 WCI 242216701 Contact Us For Availability
17
WCI 241801302 WCI 241801302 Contact Us For Availability
18
KNOB, COLD CONTROL WCI 242217001 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
WCI 5303918638 WCI 5303918638 Contact Us For Availability
21A
WCI 5303918645 WCI 5303918645 Contact Us For Availability
24
WCI 240360906 WCI 240360906 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
25
WCI 5304497604 WCI 5304497604 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240364503 Contact Us For Availability
30
WCI 297259505 WCI 297259505 Contact Us For Availability
35
BRACKET-CTR HINGE, BISQUE WCI 240313804 Contact Us For Availability
37
TRIM-CABINET CORNER, BISQUE, (2) WCI 242161203 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
COVER-UPPER HINGE, BISQUE WCI 240354403 Contact Us For Availability
41
WCI 5304500407 WCI 5304500407 Contact Us For Availability
43
ROLLER ASSY, FRONT LH, (2) WCI 241889002 Contact Us For Availability
47
GLASS-SHELF, CRISPER COVER WCI 242087903 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
61
WCI 241639502 WCI 241639502 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
89
COVER-ACCESS, WITH LABEL WCI 241733906 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NIA
ROLLER ASSY, FRONT RH, (2) WCI 241889001 Contact Us For Availability
NIA
WCI 218515401 WCI 218515401 Contact Us For Availability
NIA
WCI 241705801 WCI 241705801 Contact Us For Availability
NIB
SPACER, SHELF WCI 5303299664 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
