Model FFHS2611LBB – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR
05 - REFRIGERATOR DOOR
07 - CABINET
09 - SHELVES

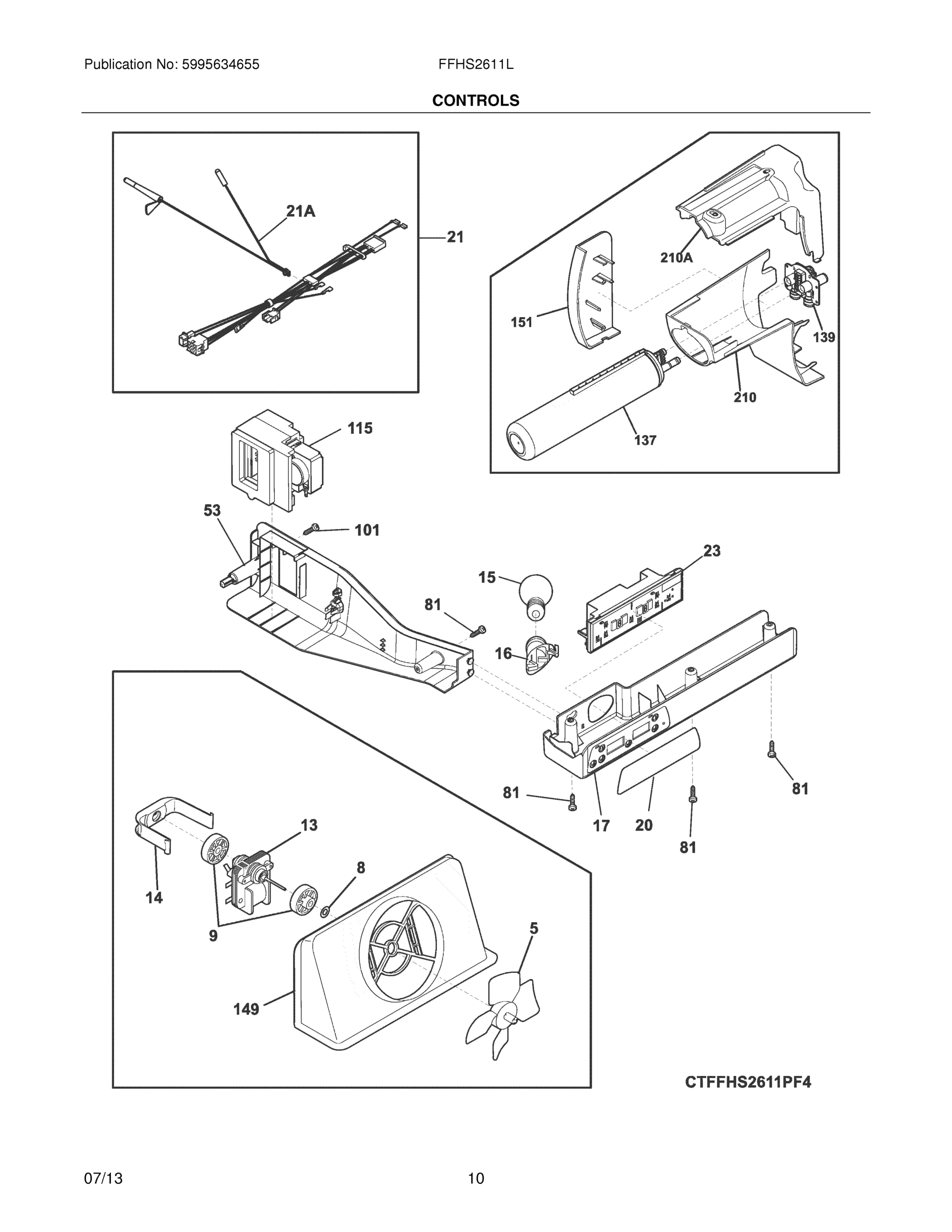

11 - CONTROLS
13 - SYSTEM

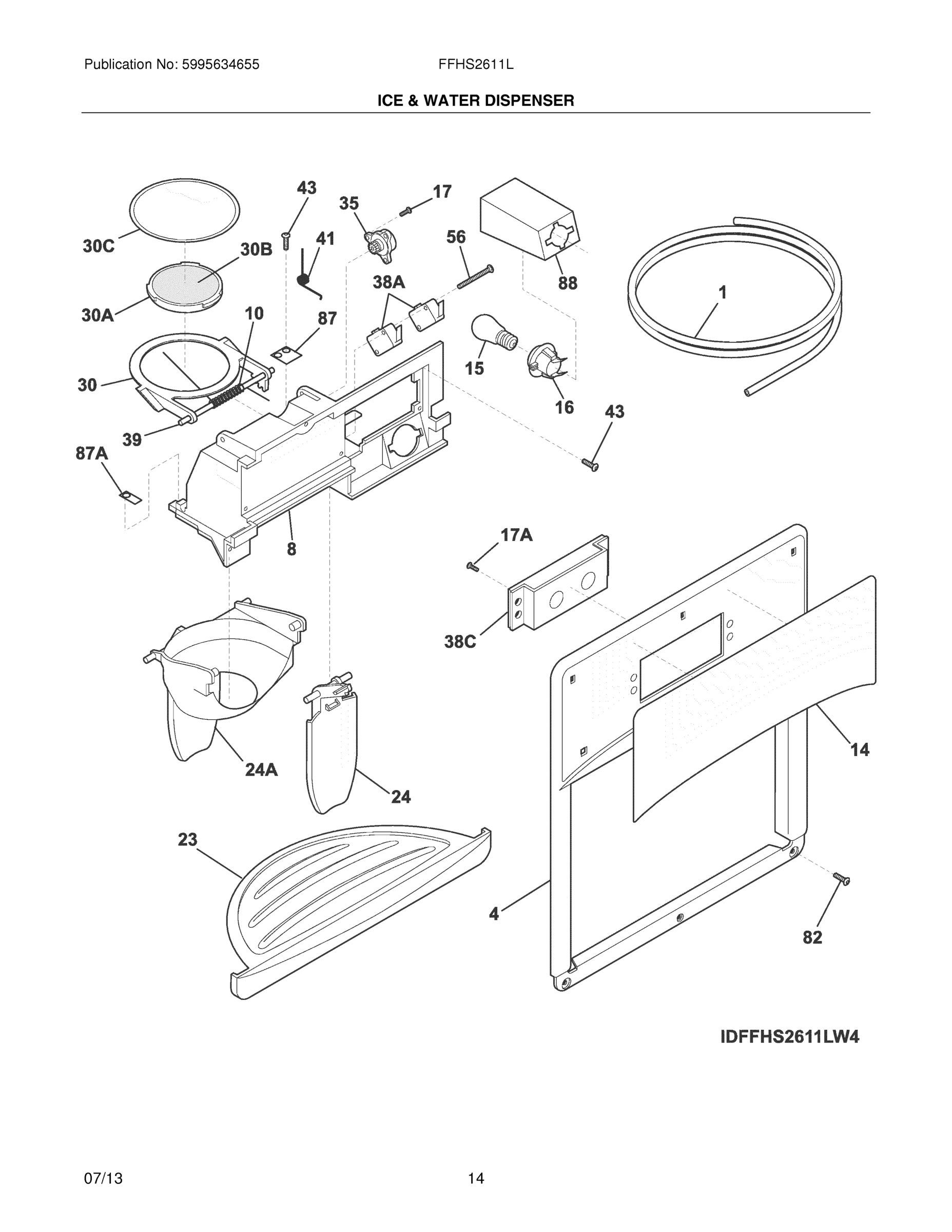

15 - ICE & WATER DISPENSER
17 - ICE CONTAINER

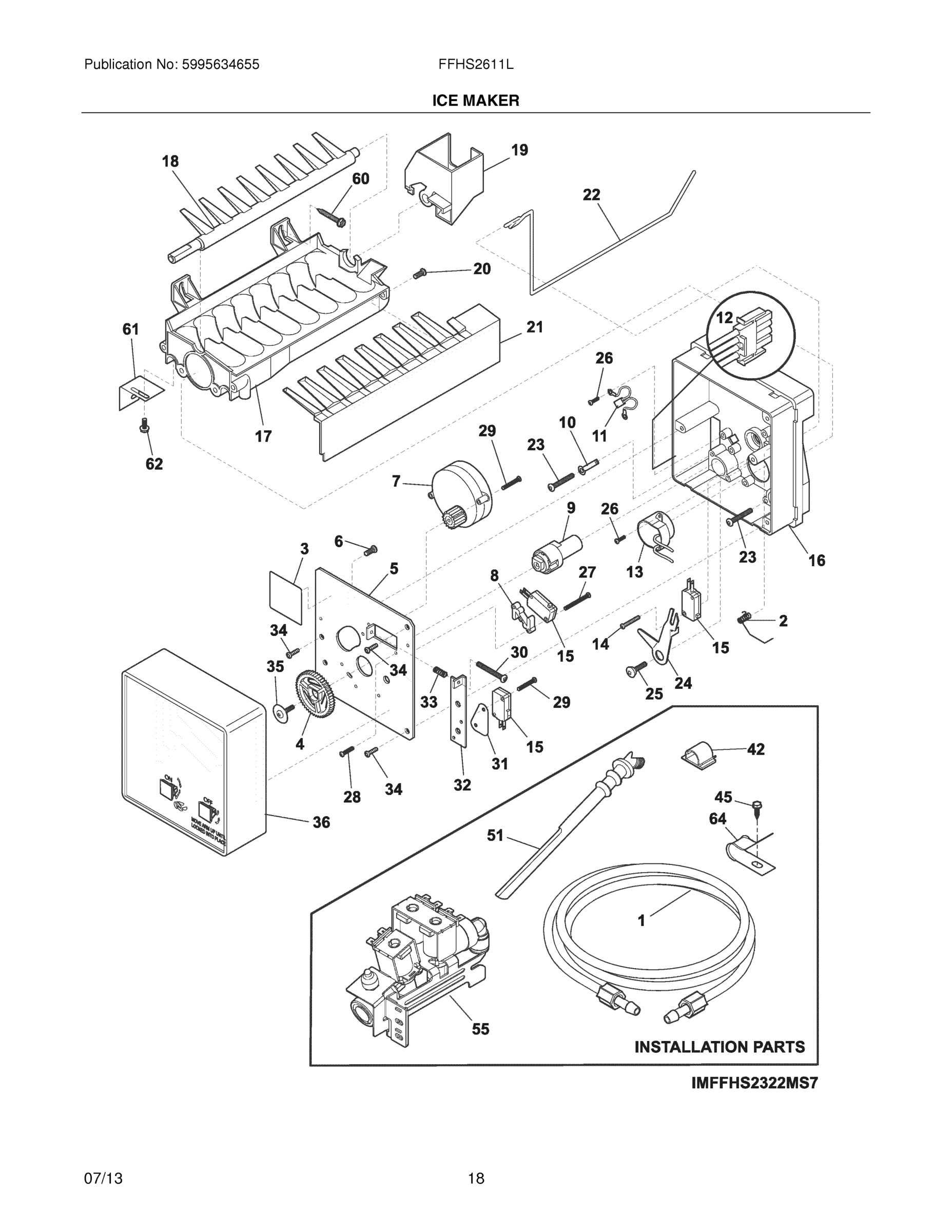

19 - ICE MAKER

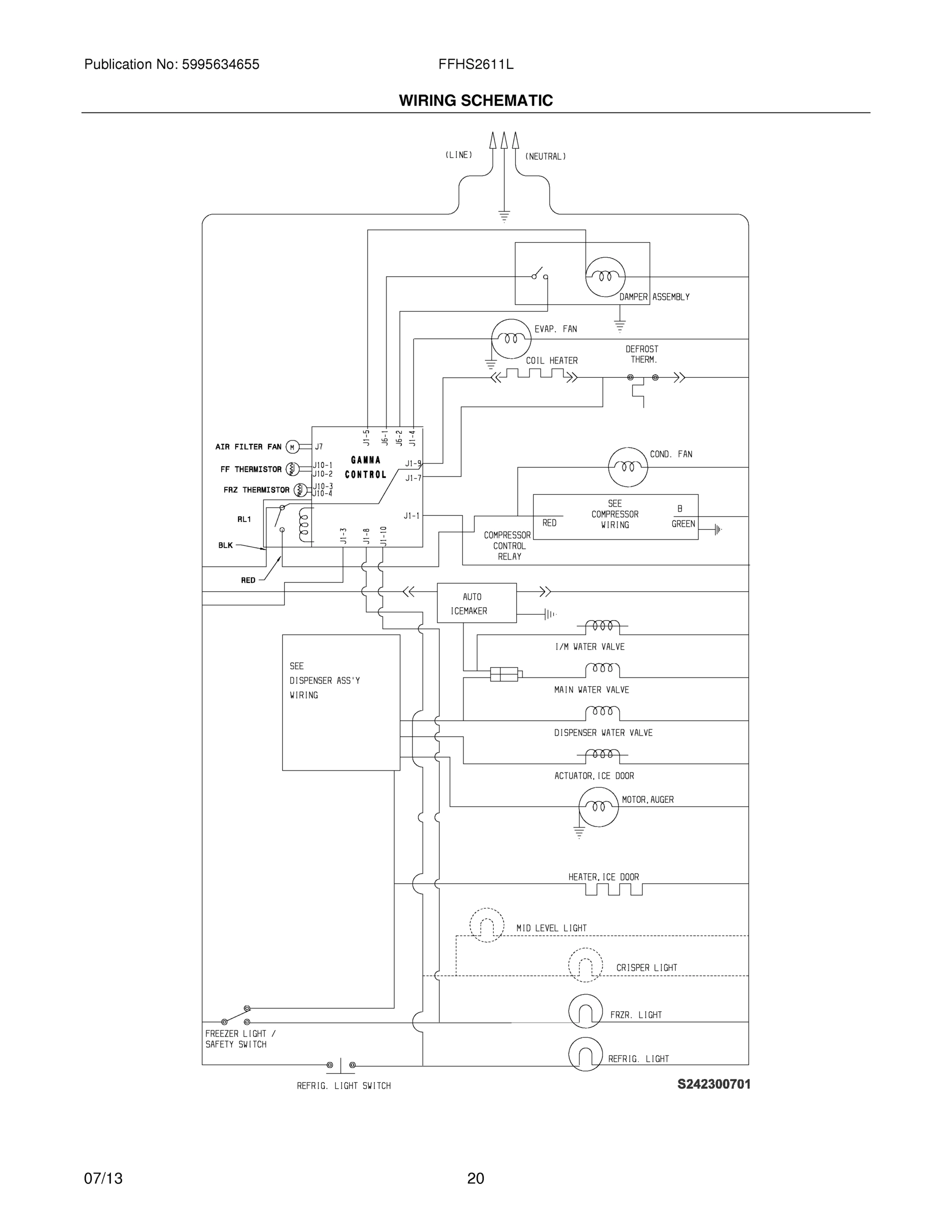

20 - WIRING SCHEMATIC

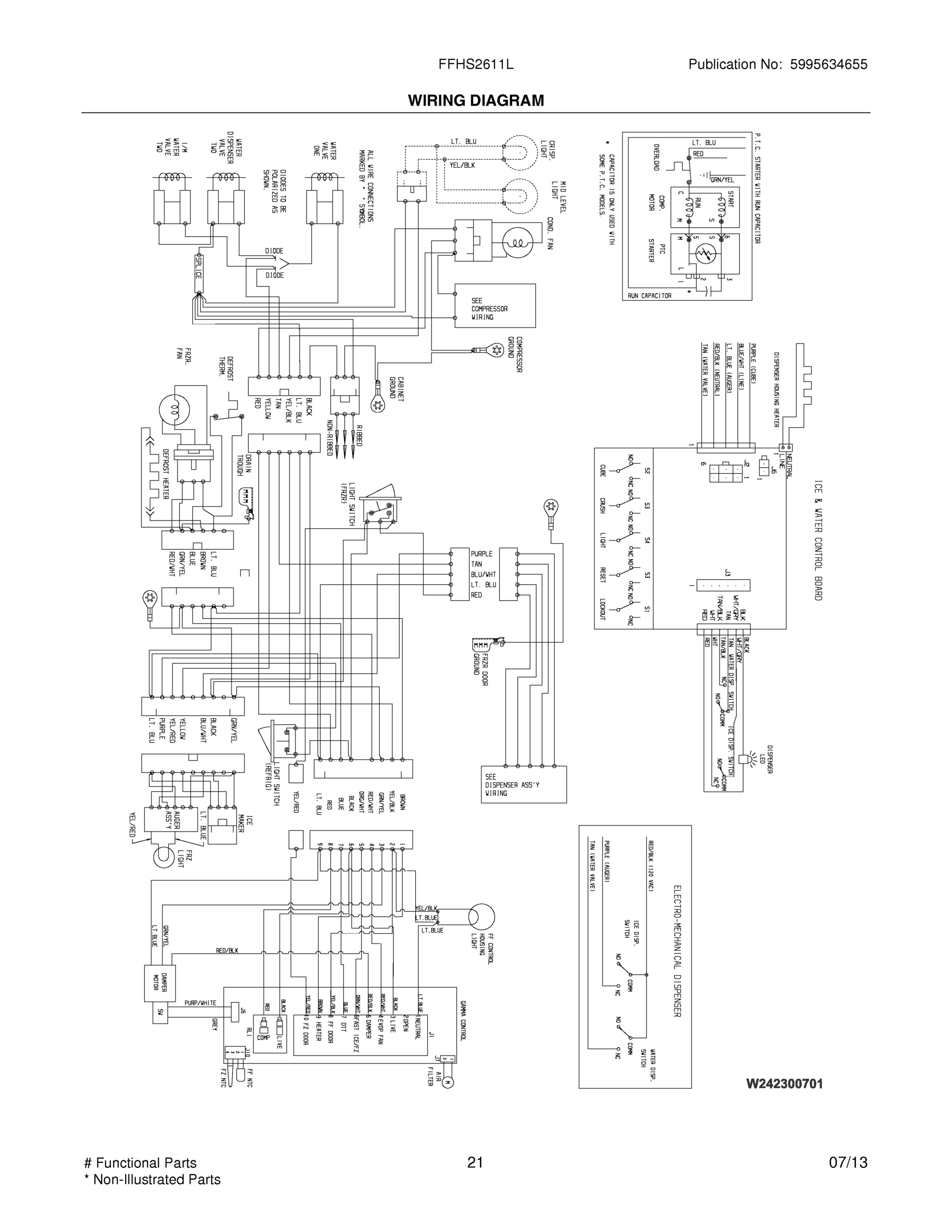

21 - WIRING DIAGRAM
