Model FFHS2611LB6 – Common Parts & Diagrams

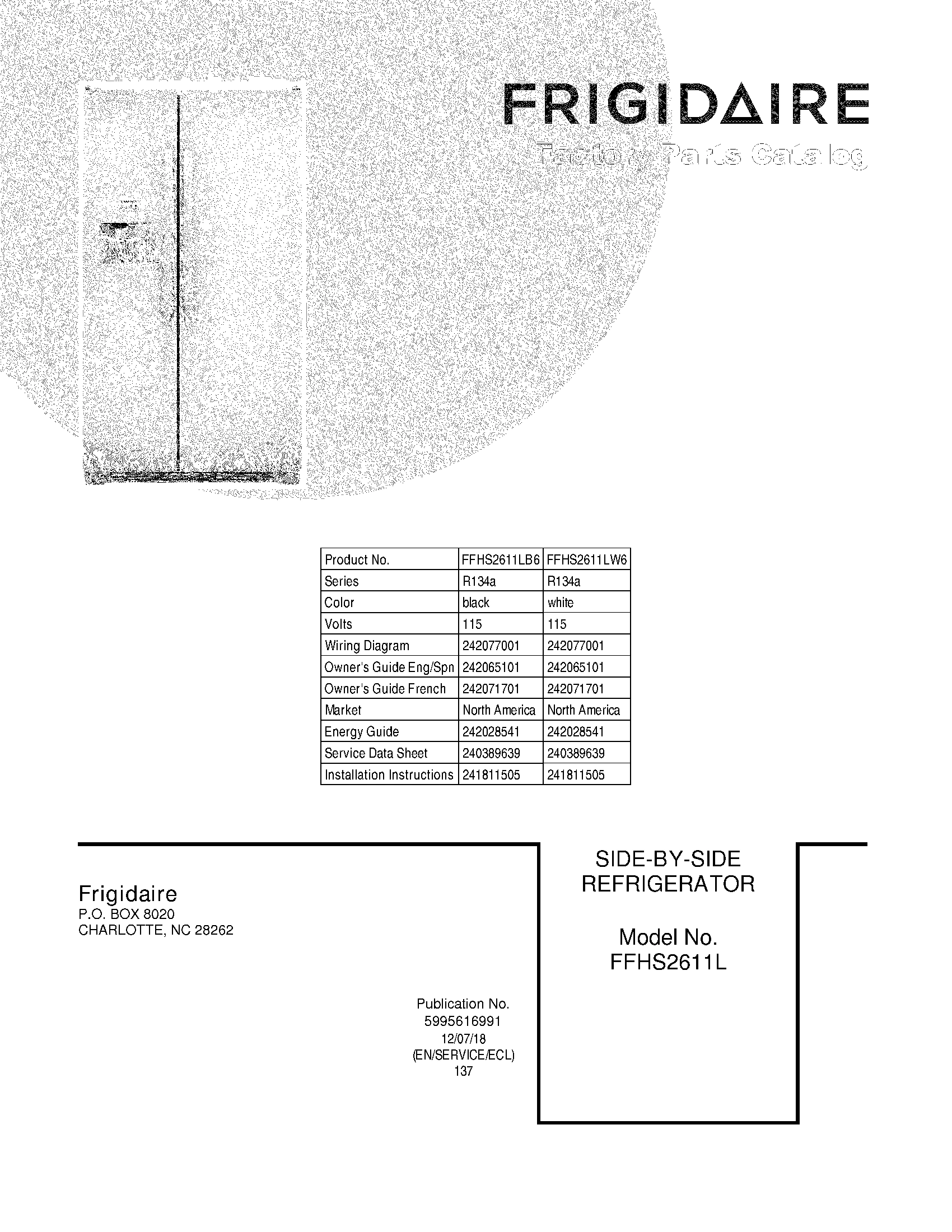

01 - COVER

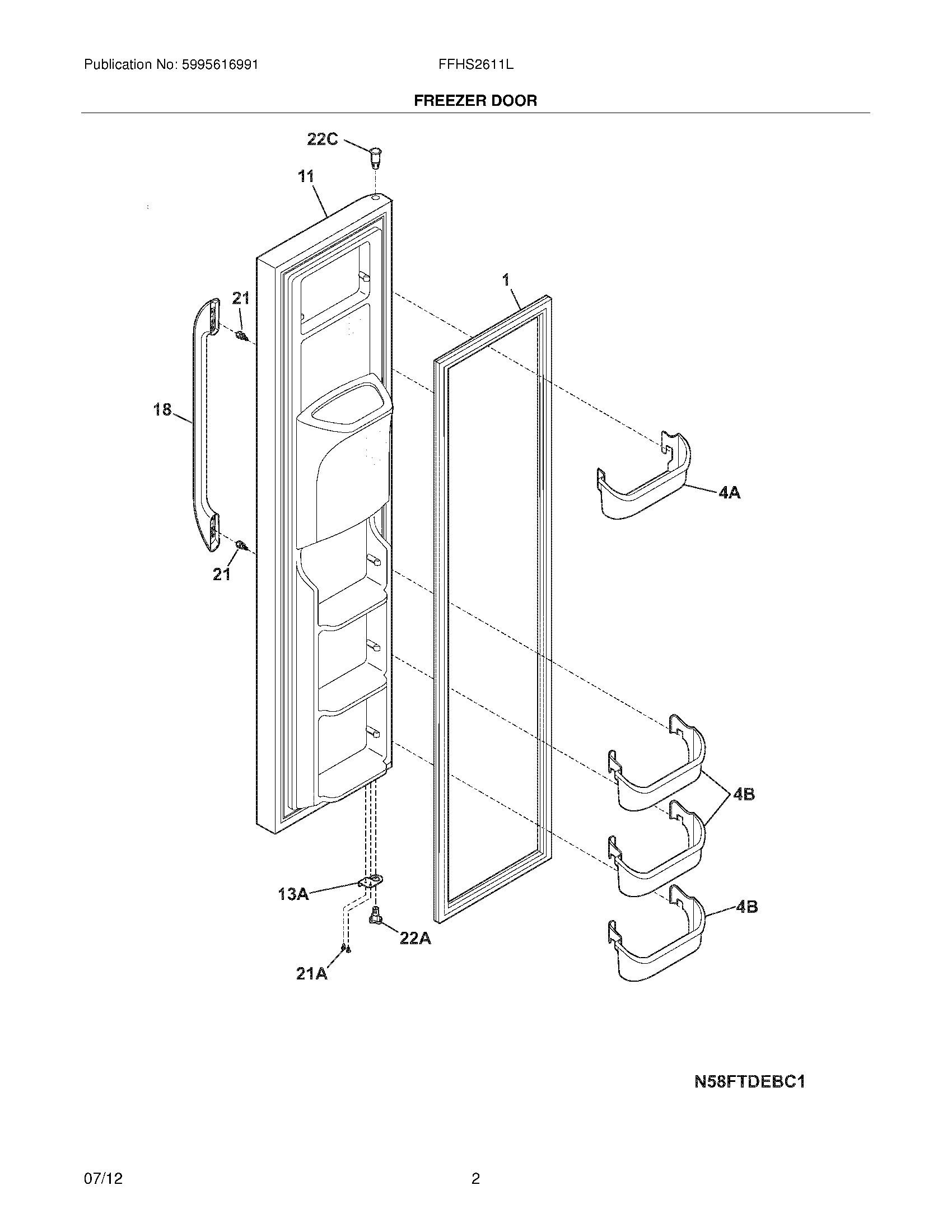

03 - FREEZER DOOR

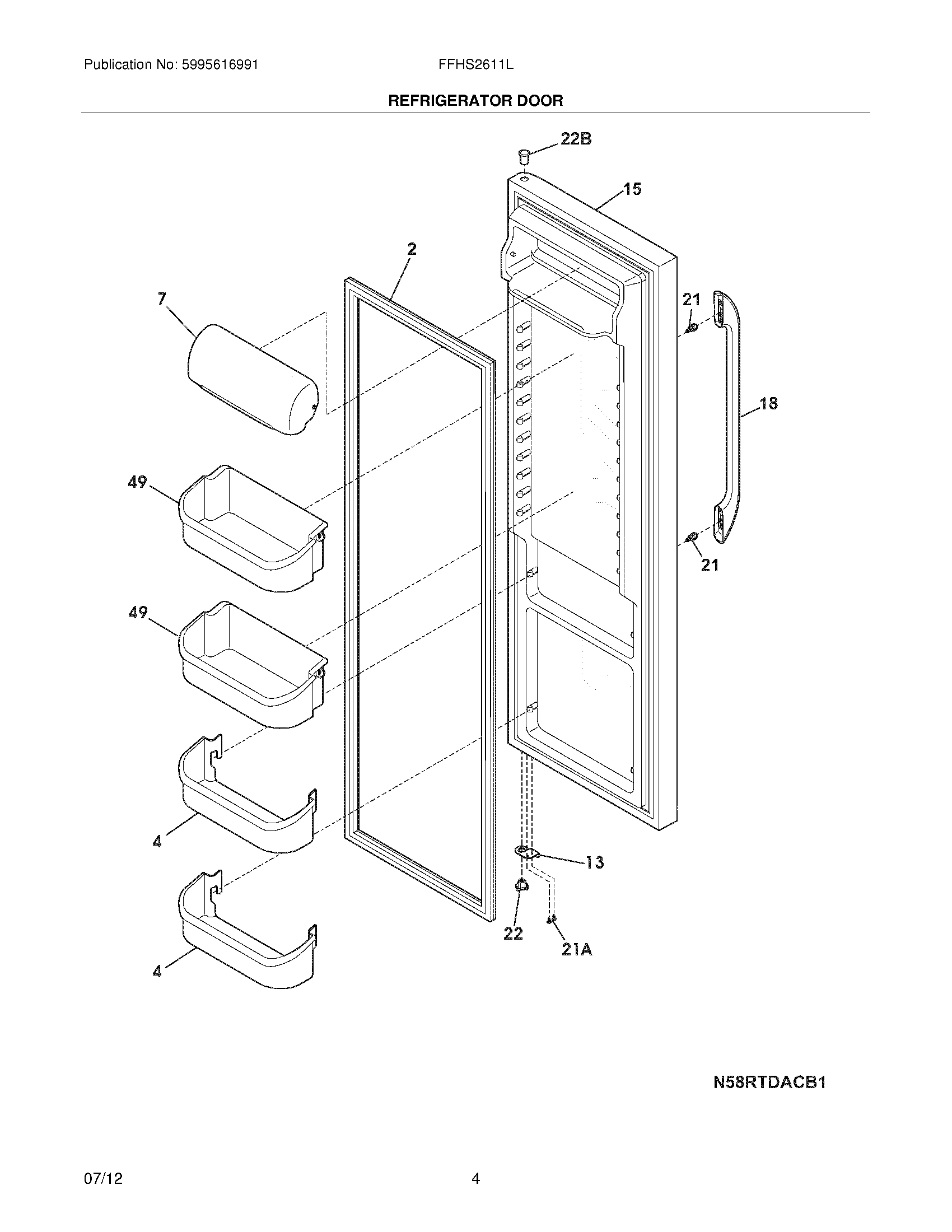

05 - REFRIGERATOR DOOR

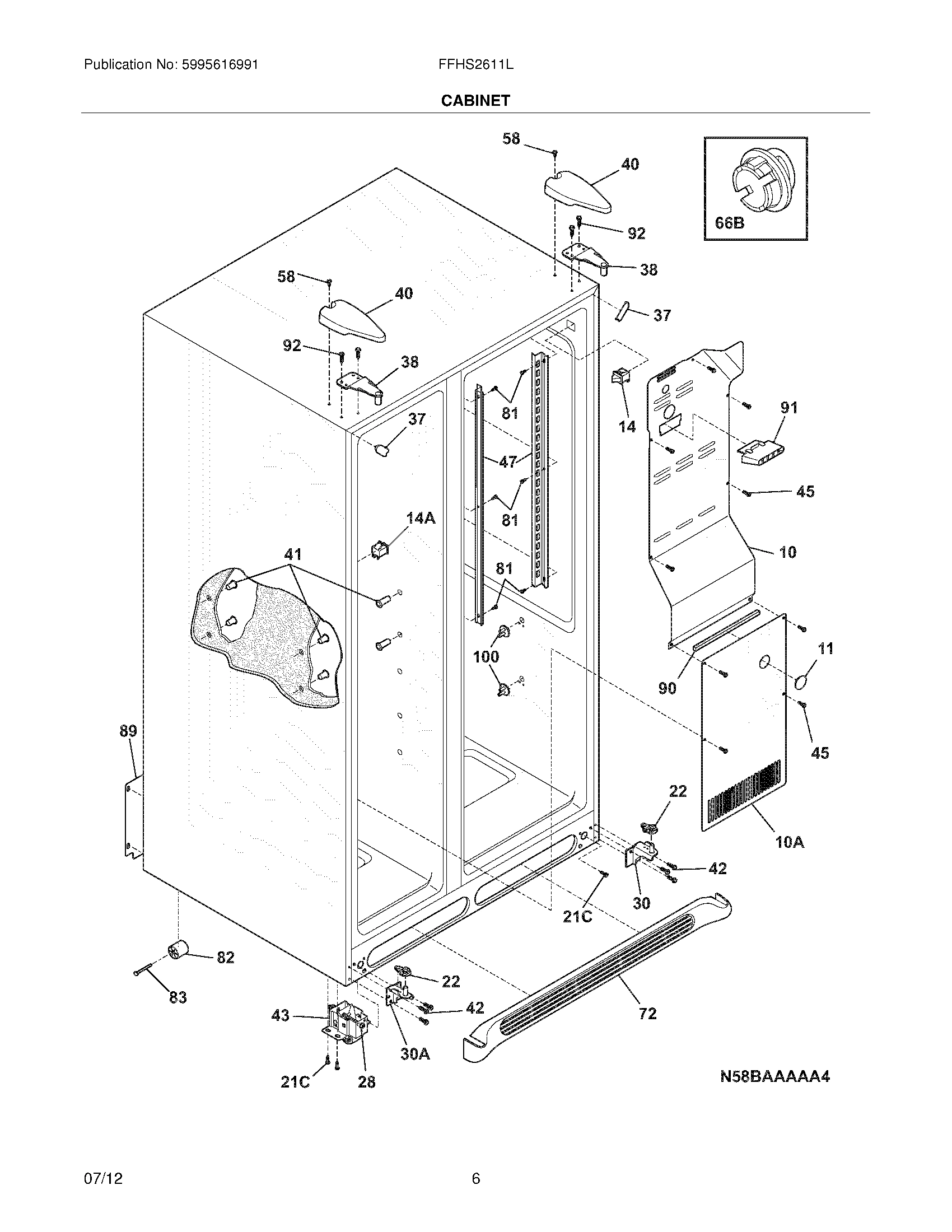

07 - CABINET

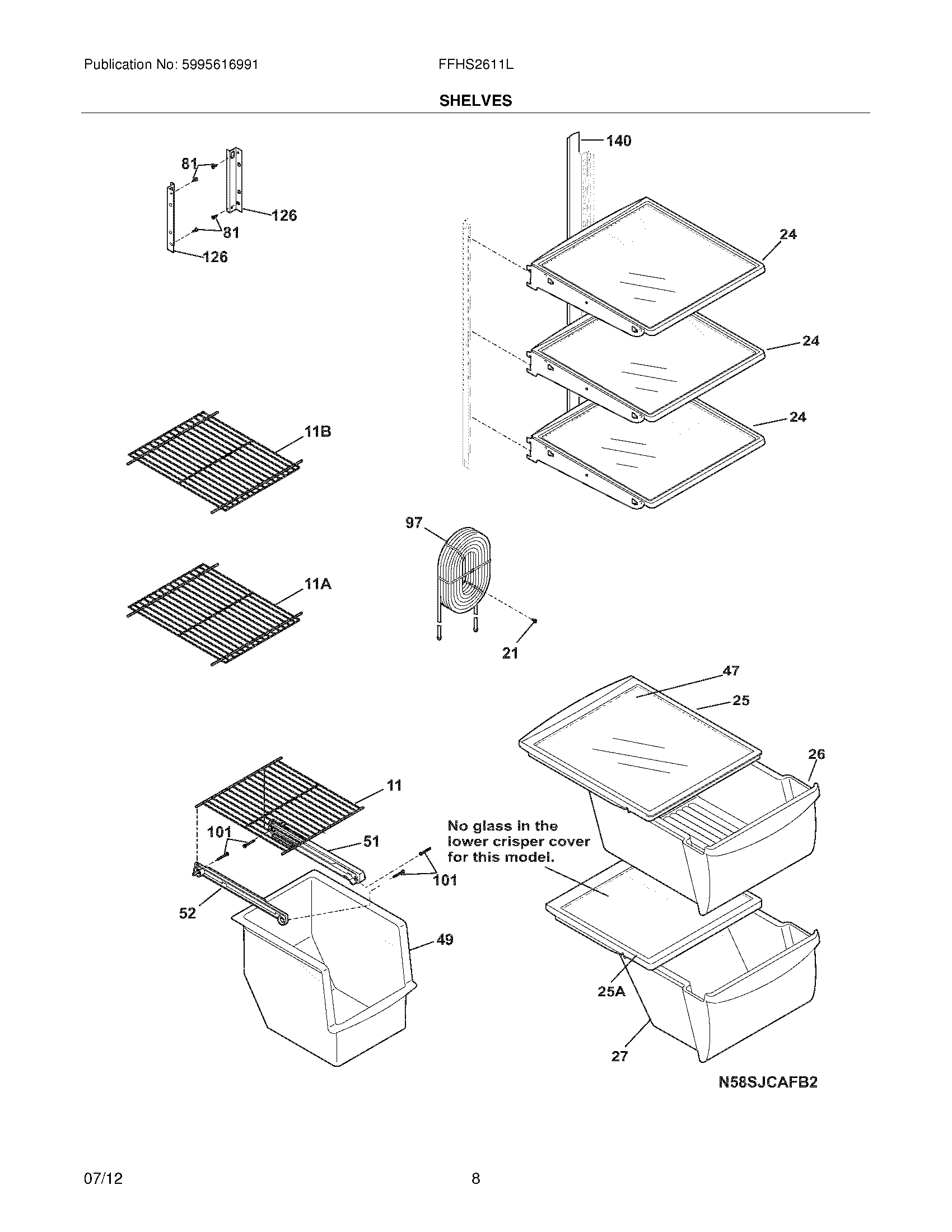

09 - SHELVES
11 - CONTROLS
13 - SYSTEM

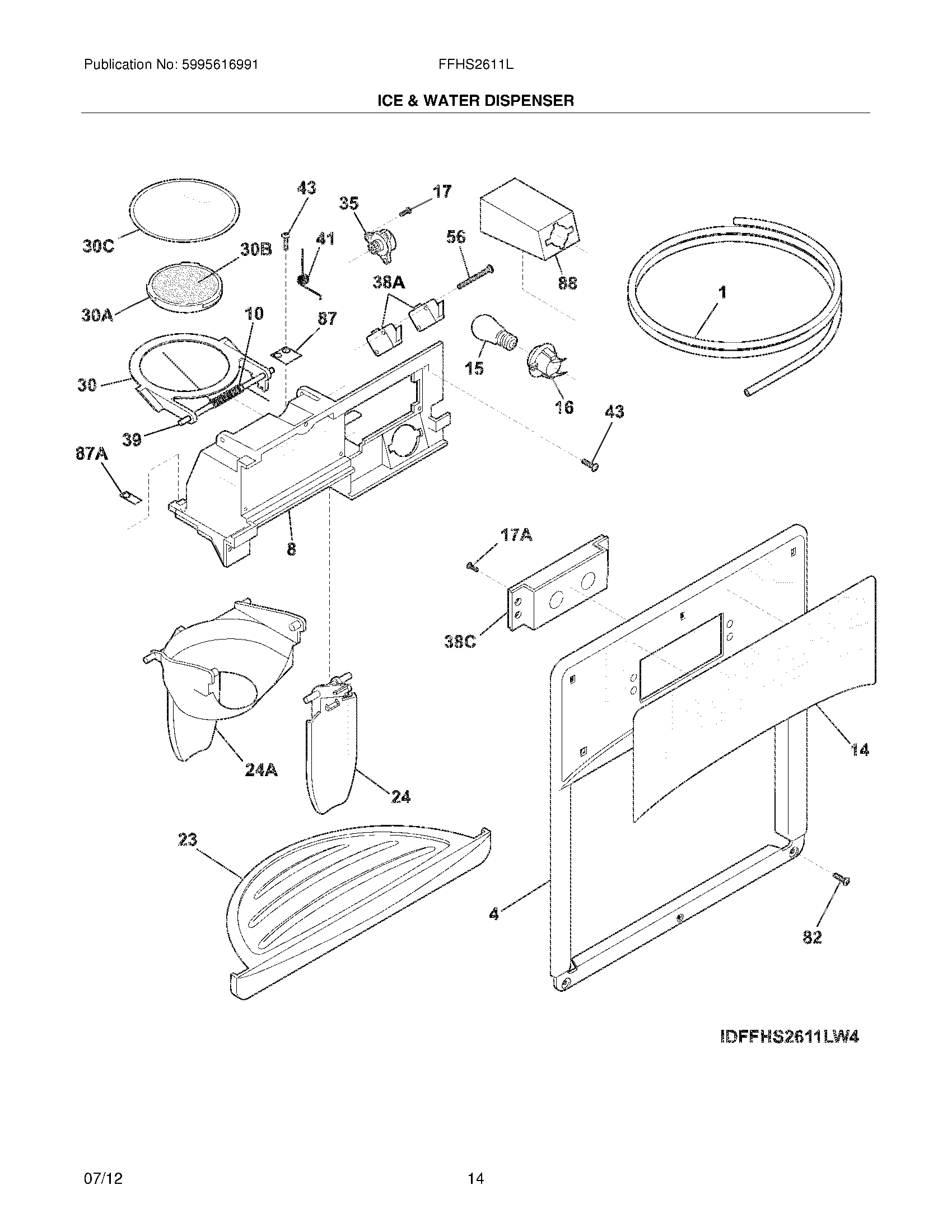

15 - ICE & WATER DISPENSER
17 - ICE CONTAINER
19 - ICE MAKER
20 - WIRING SCHEMATIC
21 - WIRING DIAGRAM
