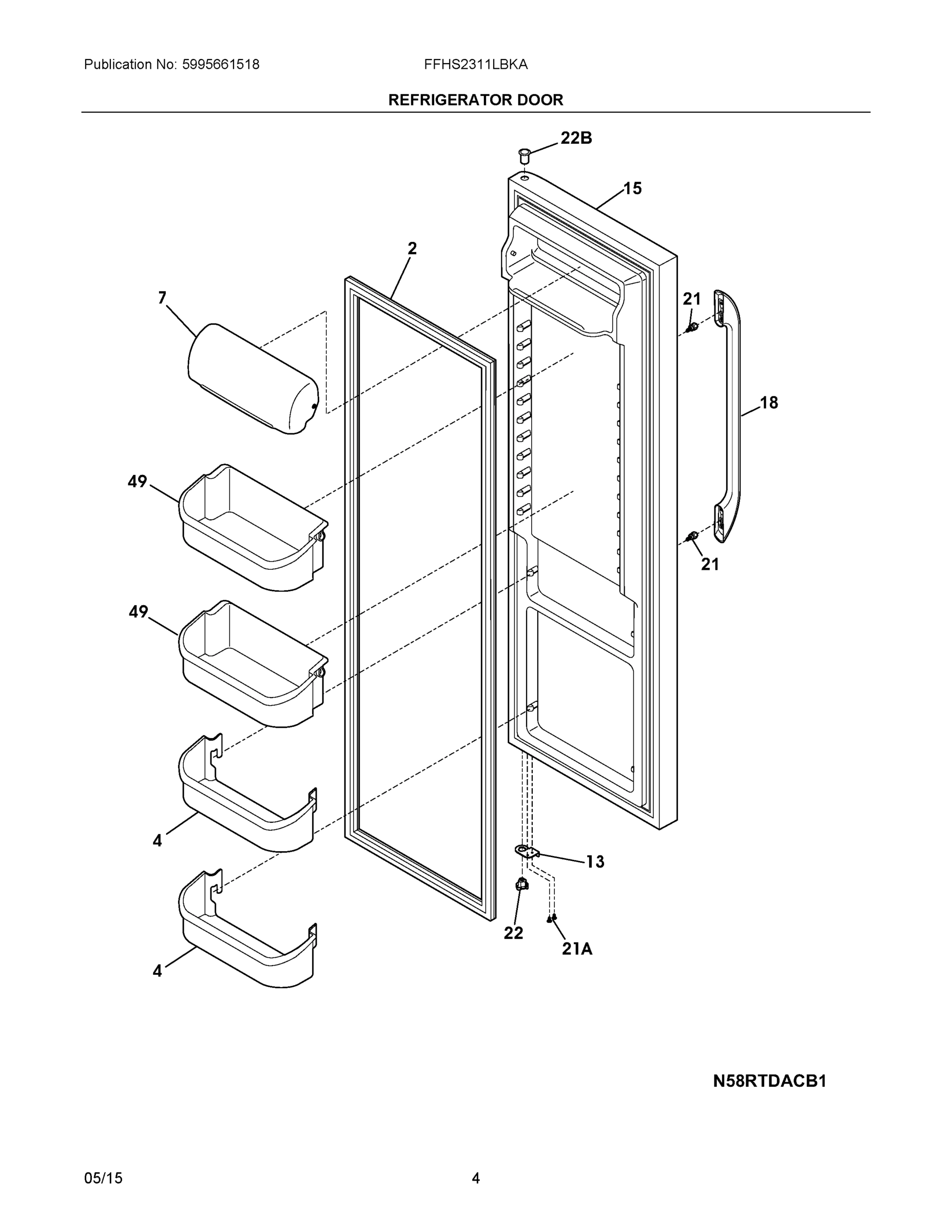

Model Electrolux FFHS2311LBKA REFRIGERATOR – Common Parts &amp; Diagrams

1

241786008 Frigidaire Refrigerator Gasket Backorder WCI 241786008 $56.07

1

242106606 Frigidaire Refrigerator Condenser Backorder WCI 242106606 $103.36

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

241786015 Frigidaire Door Gasket In Stock WCI 241786015 $57.01

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $36.15

4

241679003 Frigidaire Dispenser Cover In Stock WCI 241679003 $30.42

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $27.18

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $27.00

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

5304521699 Frigidaire Refrigerator Machine Wi Backorder WCI 5304521699 $85.76

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

WCI 241680507 WCI 241680507 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

240435911 Frigidaire Refrigerator Cover Backorder WCI 240435911 $63.45

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

807688301 Frigidaire Refrigerator Spring Backorder WCI 807688301 $11.87

10A

241719710 Frigidaire Refrigerator Evaporator Backorder WCI 241719710 $71.09

11

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $50.26

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11

DOOR-FRZR, BLACK, COMPLETE ASSY WCI 242026472 Contact Us For Availability

11A

5304532465 Frigidaire Refrigerator Shelf and Backorder WCI 5304532465 $32.28

11B

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $32.80

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $38.11

13

808602602 Frigidaire Refrigerator Motor In Stock WCI 808602602 $118.23

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14

242044113 Frigidaire Refrigerator Defrost Hea In Stock WCI 242044113 $65.42

14

242135301 Frigidaire Refrigerator Evaporator In Stock WCI 242135301 $4.97

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $11.32

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241633512 Frigidaire Refrigerator Control Box Backorder WCI 241633512 $64.09

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

HANDLE-DOOR, BLACK WCI 242059104 No Longer Available

18

242221501 Frigidaire Refrigerator Auger Motor In Stock WCI 242221501 $123.61

18

HANDLE-DOOR, BLACK WCI 242059102 Contact Us For Availability

20

241604010 Frigidaire Refrigerator Control Box In Stock WCI 241604010 $2.70

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $90.32

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

21A

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.60

21A

242278801 Frigidaire Refrigerator Thermistor In Stock WCI 242278801 $54.68

21AA

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

22

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

22

241856502 Frigidaire Door Closer Plate In Stock WCI 241856502 $14.03

22

242015302 Frigidaire Refrigerator Bearing Hin In Stock WCI 242015302 $6.34

22A

242000502 Frigidaire Hinge Bearing In Stock WCI 242000502 $4.59

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

23

241649003 Frigidaire Refrigerator Drip Tray In Stock WCI 241649003 $38.99

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

24

240355277 Frigidaire Refrigerator "Spill-Safe In Stock WCI 240355277 $119.53

24

241682003 Frigidaire Refrigerator Black Water In Stock WCI 241682003 $35.82

24A

241681903 Frigidaire Refrigerator Ice Dispens In Stock WCI 241681903 $52.87

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $38.18

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $53.20

26

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $134.67

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $47.70

29

5304537072 Frigidaire Compressor with Clip, E In Stock WCI 5304537072 $177.51

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

241941005 Frigidaire Refrigerator Start Devic In Stock WCI 241941005 $91.14

30

242034601 Frigidaire Refrigerator Lower Hinge In Stock WCI 242034601 $37.38

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30A

242034604 Frigidaire Refrigerator Lower Hinge In Stock WCI 242034604 $28.96

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

32

297030500 Frigidaire Refrigerator Clip Backorder WCI 297030500 $7.67

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35

WCI 241689301 No Longer Available

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

37

WCI 242161202 No Longer Available

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

240327207 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327207 $36.72

38AA

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C

5304525097 Frigidaire Refrigerator 4 Button S Backorder WCI 5304525097 $61.40

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $34.43

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

42

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

45D

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $28.07

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

240324501 Frigidaire Bin Door Shelf In Stock WCI 240324501 $47.27

49

240564301 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564301 $81.20

49

241734401 Frigidaire Refrigerator Rail Assemb Backorder WCI 241734401 $124.20

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $38.55

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $11.76

51

WCI 241676301 WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

241608902 Frigidaire Refrigerator Control Box In Stock WCI 241608902 $60.96

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $33.24

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $16.17

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

SCREW-MICRO SWITCH, PAN HEAD WCI 241689201 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $80.30

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

66B

WCI 240374301 WCI 240374301 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

85

241856909 Frigidaire Refrigerator Connector T In Stock WCI 241856909 $94.62

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87

TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

WCI 241686101 WCI 241686101 Contact Us For Availability

89

COVER-ACCESS, W/LABEL WCI 241733901 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

242220208 Frigidaire Refrigerator Water Inlet In Stock WCI 242220208 $27.62

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $3.46

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.16

115

242303001 Frigidaire Refrigerator Damper Asse In Stock WCI 242303001 $50.63

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126A

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

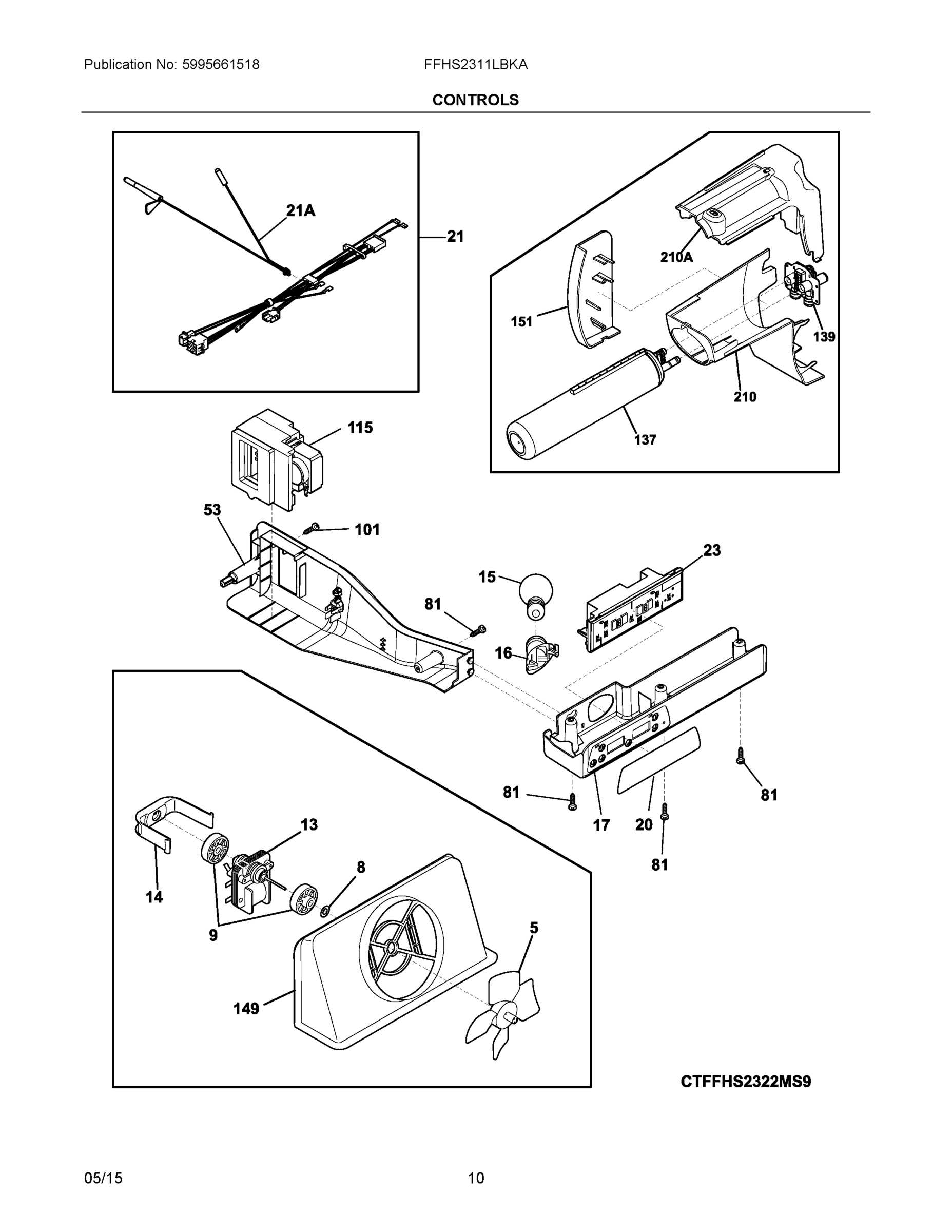

139

BASE-WATER FILTER Backorder WCI 242009604 $20.15

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $37.45

210

241983814 Frigidaire Refrigerator Water Housi In Stock WCI 241983814 $47.02

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $6.51

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $10.85

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $39.43

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $50.64

218976439 Frigidaire Refrigerator Water Inlet In Stock WCI 218976439 $12.22

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $5.40

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

241679201 Frigidaire Refrigerator Wiring Harn Backorder WCI 241679201 $51.99

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $5.55

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

5304521761 Frigidaire Refrigerator Harness Backorder WCI 5304521761 $38.38

5304521777 Frigidaire Refrigerator Wiring Har In Stock WCI 5304521777 $61.51

HARNESS-WIRING, ICMKR/CONTAINER WCI 241522901 Contact Us For Availability

NIB

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

NIB

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

NIB

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $22.19

NIC

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

NICA

5304521693 Frigidaire Refrigerator Facade Har Backorder WCI 5304521693 $20.38

NID

242220206 Frigidaire Refrigerator Water Inlet In Stock WCI 242220206 $29.90
