Model Electrolux FFGF3054TDF RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - BACKGUARD

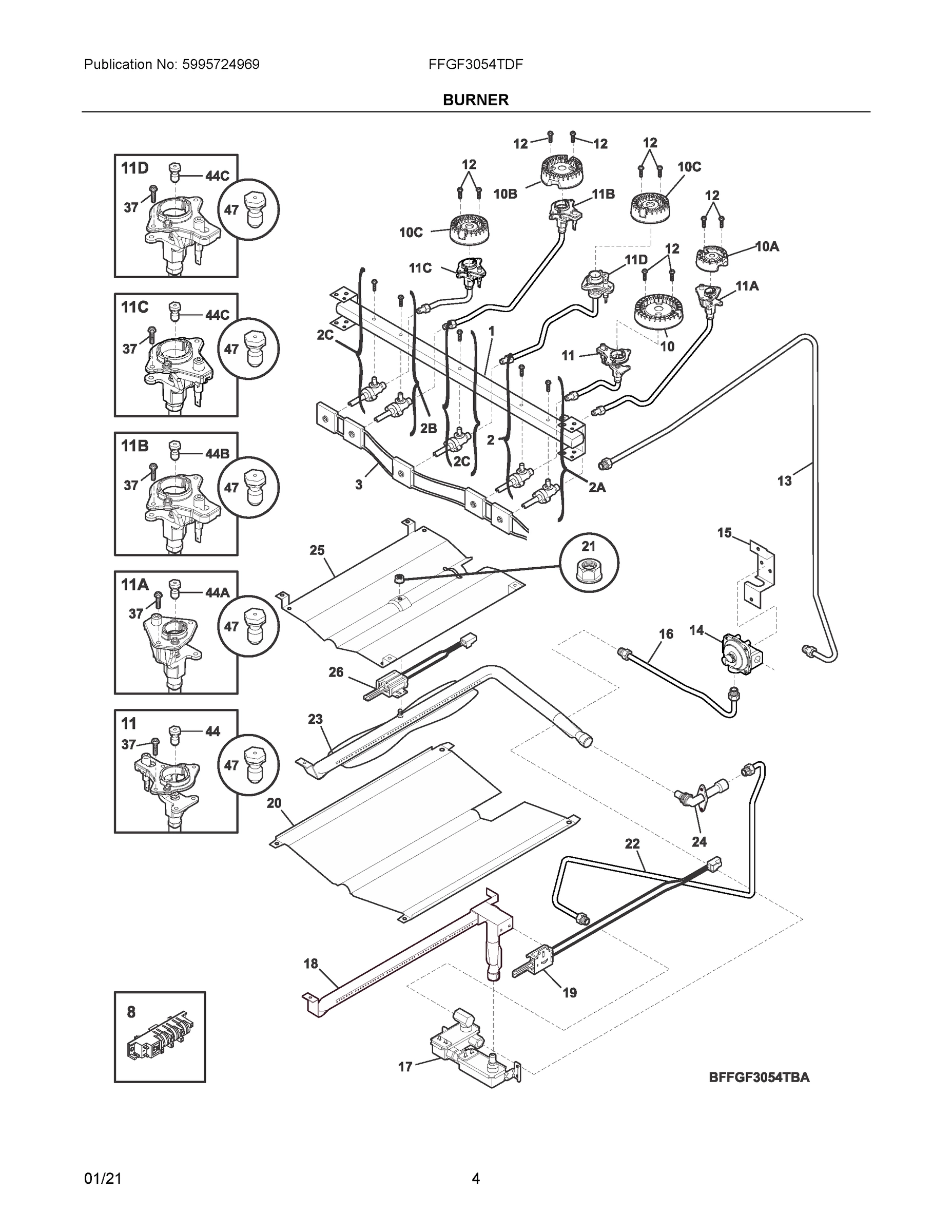

03 - BURNER

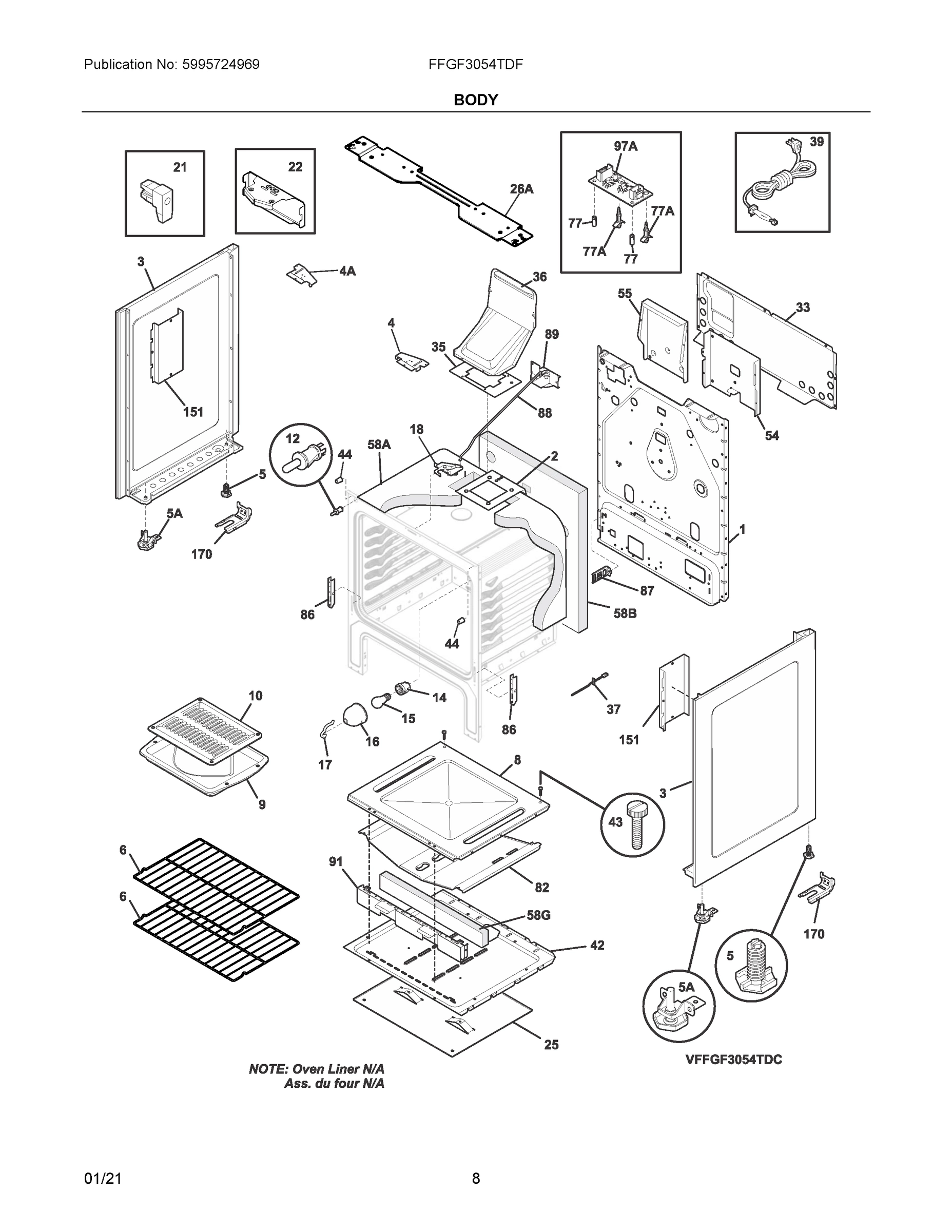

04 - BODY

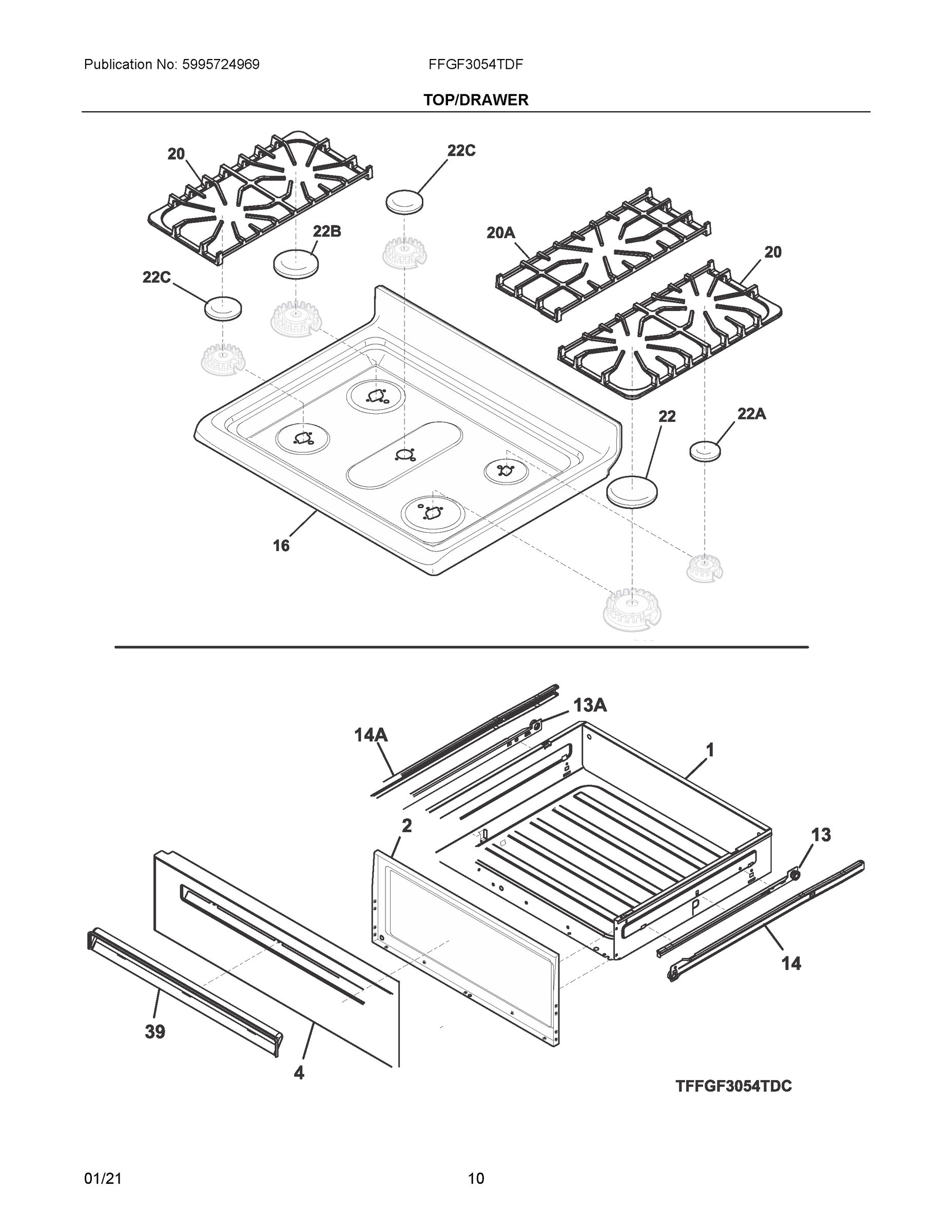

05 - TOP/DRAWER

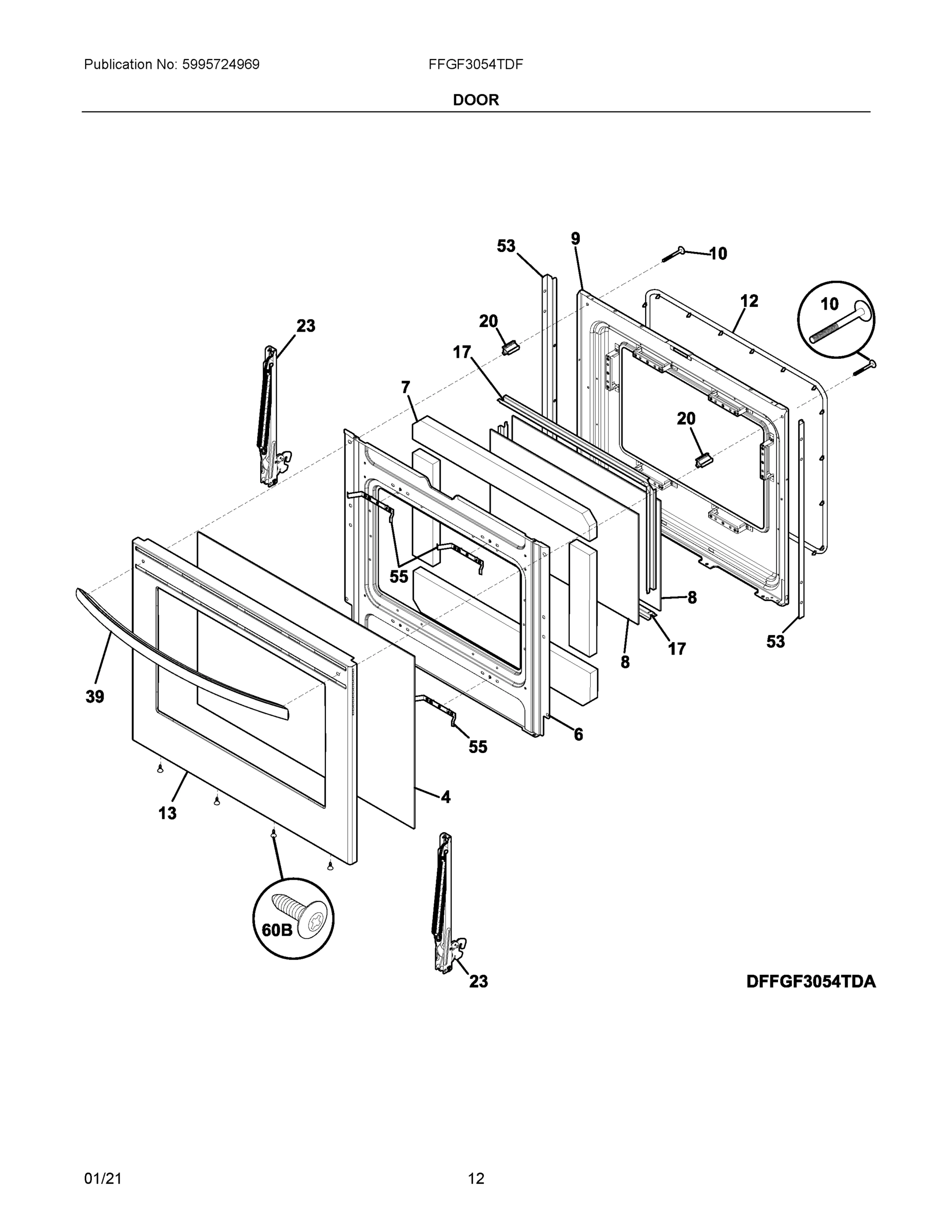

06 - DOOR
Common parts from model Electrolux FFGF3054TDF RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
1
MANIFOLD, PIPE WCI 5304513540 Contact Us For Availability
2
SHIELD, BACKGUARD, INNER WCI 5304508980 Contact Us For Availability
2A
VALVE, TOP BURNER, BLACK STEM, 500BTU WCI 5304506547 Contact Us For Availability
2B
VALVE, TOP BURNER, BLUE STEM, 1125BTU WCI 5304506549 Contact Us For Availability
2C
VALVE, TOP BURNER, GREEN STEM, 850BTU WCI 5304506548 Contact Us For Availability
3
PANEL, BODYSIDE, BLACK, RH WCI 316400144 Contact Us For Availability
3A
PANEL, BODYSIDE, BLACK, LH WCI 316400145 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452754 Contact Us For Availability
4
PANEL, DRAWER, BLACK STAINLESS, W/INTEGRTD HO WCI 5304510528 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316402316 Contact Us For Availability
8
SPARK MODULE WCI 808608804 Contact Us For Availability
9
LINER-OVEN DOOR WCI 316423807 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
BURNER, SEALED, 17K WCI 316438400 Contact Us For Availability
10
INSERT, BROILER PANOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 12K WCI 316438000 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY .,, TOP BURNER, RIGHT FR WCI 316536622 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536612 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 5304498835 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13
TUBE-MANIFOLD SUPPLY WCI 316489101 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
REGULATOR, PRESSURE WCI 316091711 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
16
MAIN TOP, BLACK WCI 316610006 Contact Us For Availability
16
TUBE, VALVE-REGULATOR, 3/8 WCI 5304507348 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
19
PANEL, BACKGUARD, BLACK STAINLESS WCI 5304509316 Contact Us For Availability
20
CONTROL, ES300, GAS WCI 5304516117 Contact Us For Availability
20
GRATE, BURNER, BLACK, SIDE, (2) WCI 807327101 Contact Us For Availability
20
BAFFLE, OVEN BURNER WCI 5304519024 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284102 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK, ES300 WCI 316419145 Contact Us For Availability
20A
GRATE, BURNER, BLACK, CENTER WCI 807412601 Contact Us For Availability
22
TUBE, VALVE-MIXER, 3/8 WCI 5304507768 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
22
CAP-BURNER, 17K, BLACK, MATTE, 3MM WCI 5304527846 Contact Us For Availability
22A
CAP-BURNER, 5A, BLACK, MATTE, 3MM WCI 5304524590 Contact Us For Availability
22B
CAP-BURNER, 12K, BLACK, MATTE, 3MM WCI 5304527844 Contact Us For Availability
22C
CAP-BURNER, 9.5K, BLACK, MATTE, 3MM WCI 5304527843 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575902 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
24
ELBOW, MIXER WCI 5304516894 Contact Us For Availability
24
SWITCH ROCKER, BLACK WCI 5304527841 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
BAFFLE, BROILER WCI 5304497666 Contact Us For Availability
26
IGNITOR, BROILER WCI 5304506545 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316405900 Contact Us For Availability
35
GASKET-FLUE WCI 316542102 Contact Us For Availability
36
KNOB, TOP VALVE, BLACK WCI 5304507386 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
HANDLE, DOOR, BLACK STAINLESS WCI 5304509119 Contact Us For Availability
42
DEFLECTOR, BACKGUARD WCI 808754601 Contact Us For Availability
44
ORIFICE, BURNER, 17K WCI 316527509 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44B
ORIFICE, BURNER, 12K WCI 316527502 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
47
LP CON WCI GRLP4 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408301 Contact Us For Availability
56
SHIELD, BACKGUARD, INNER WCI 316230708 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
77
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
97A
BOARD, AC DETECT WCI 5304515148 Contact Us For Availability
170
ANTI TIP KIT, ASSY, W/TEMPLATE WCI 316112005 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NIA
WCI 5304494425 WCI 5304494425 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
NIB
WCI 5304505563 WCI 5304505563 Contact Us For Availability
× ![]()
