Model Electrolux FFGF3023LWF GAS RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - BACKGUARD

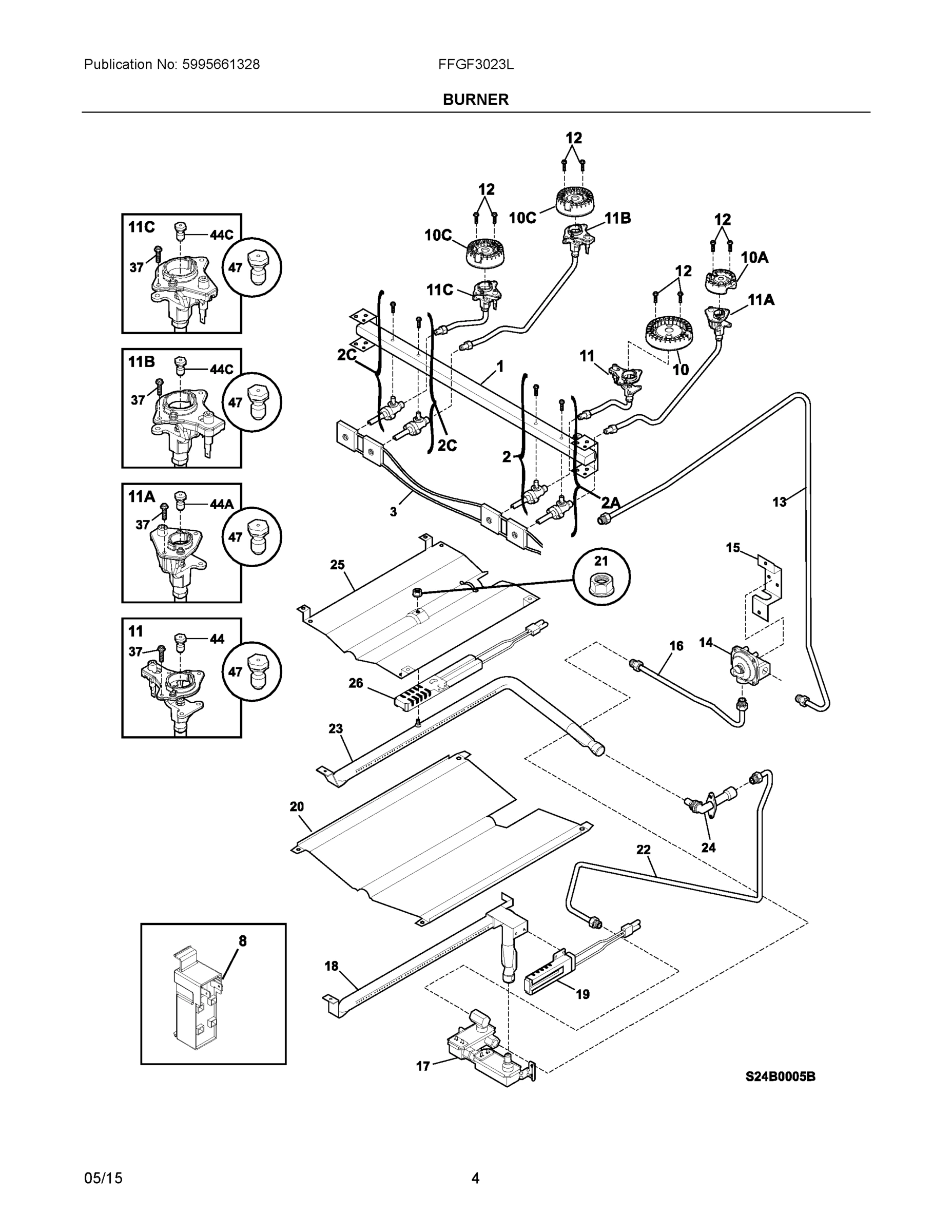

03 - BURNER

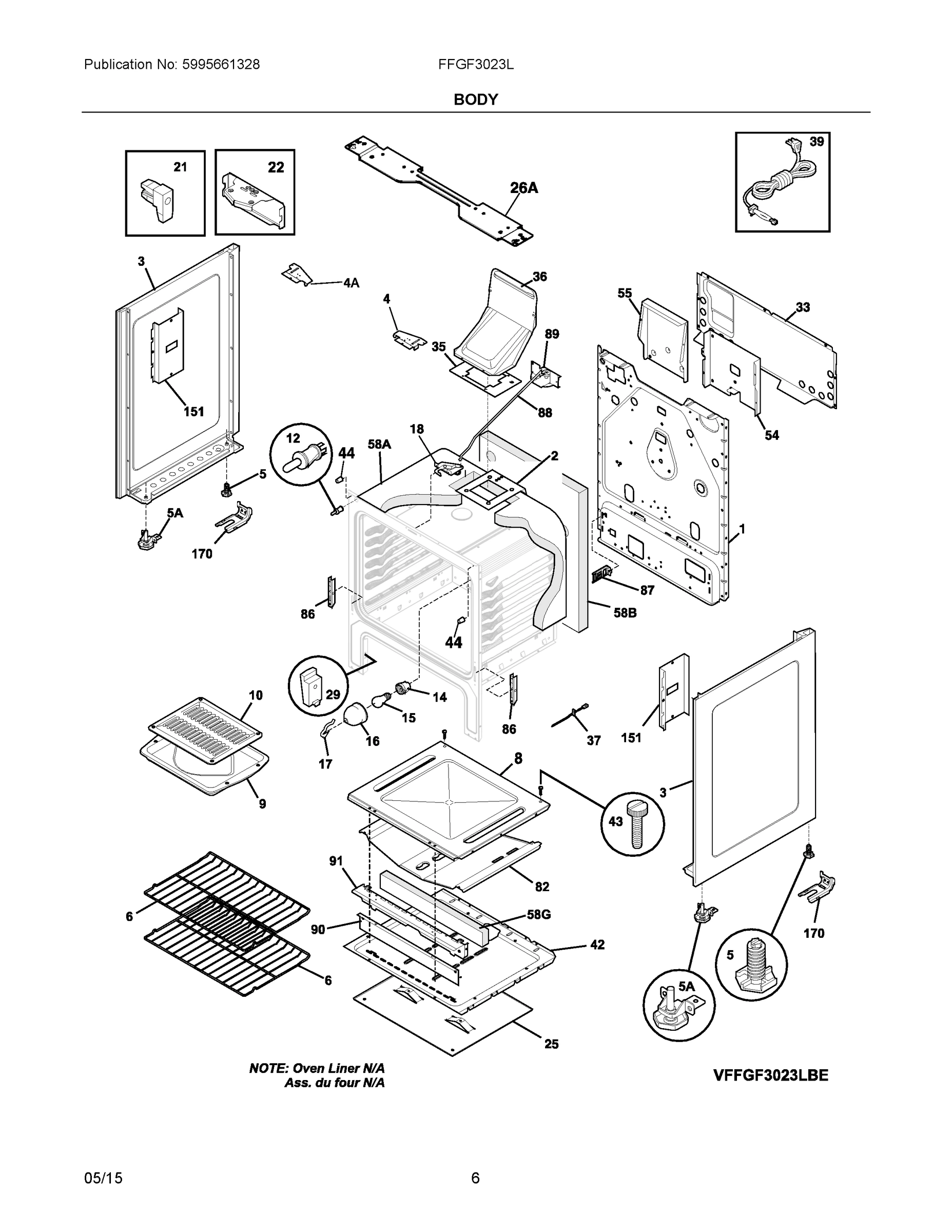

04 - BODY

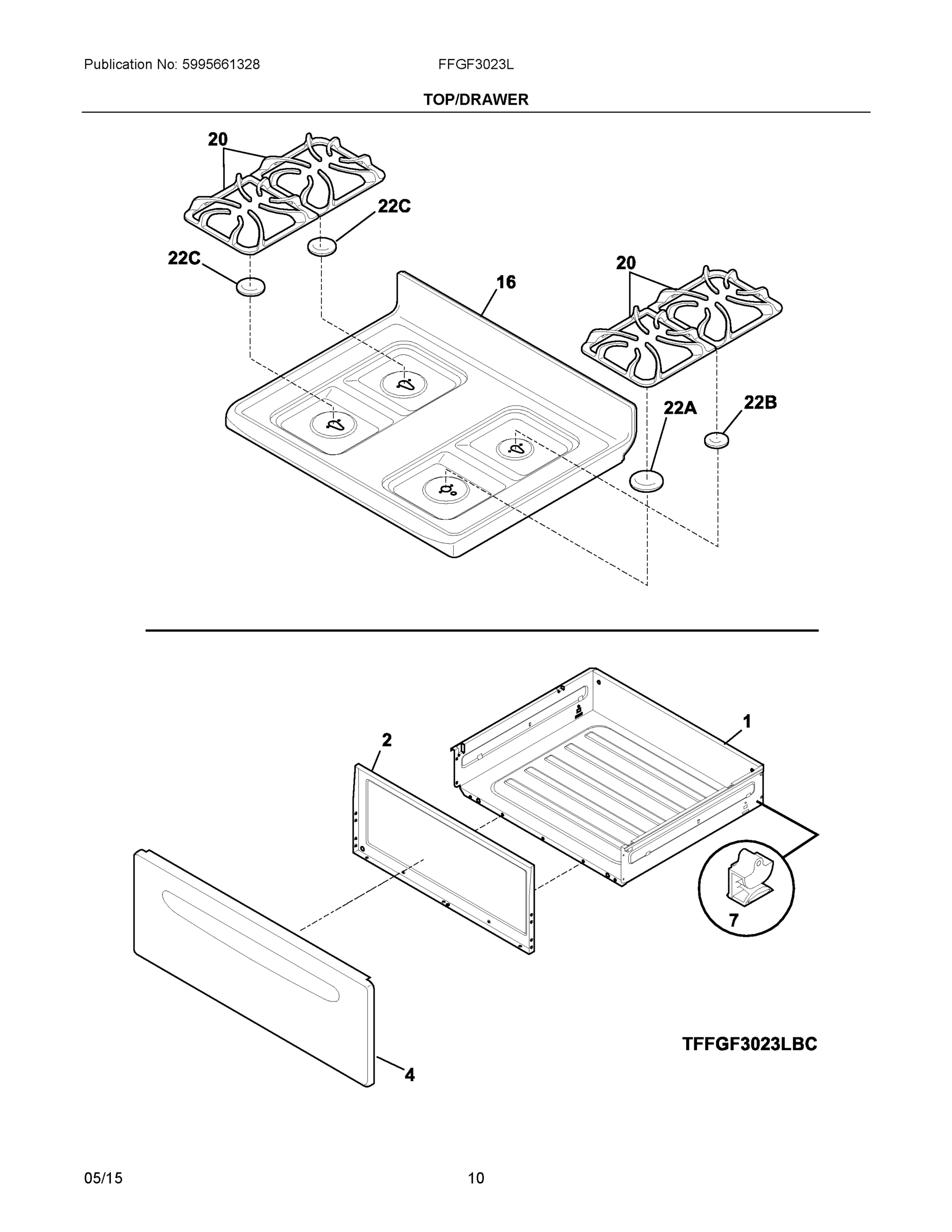

05 - TOP/DRAWER

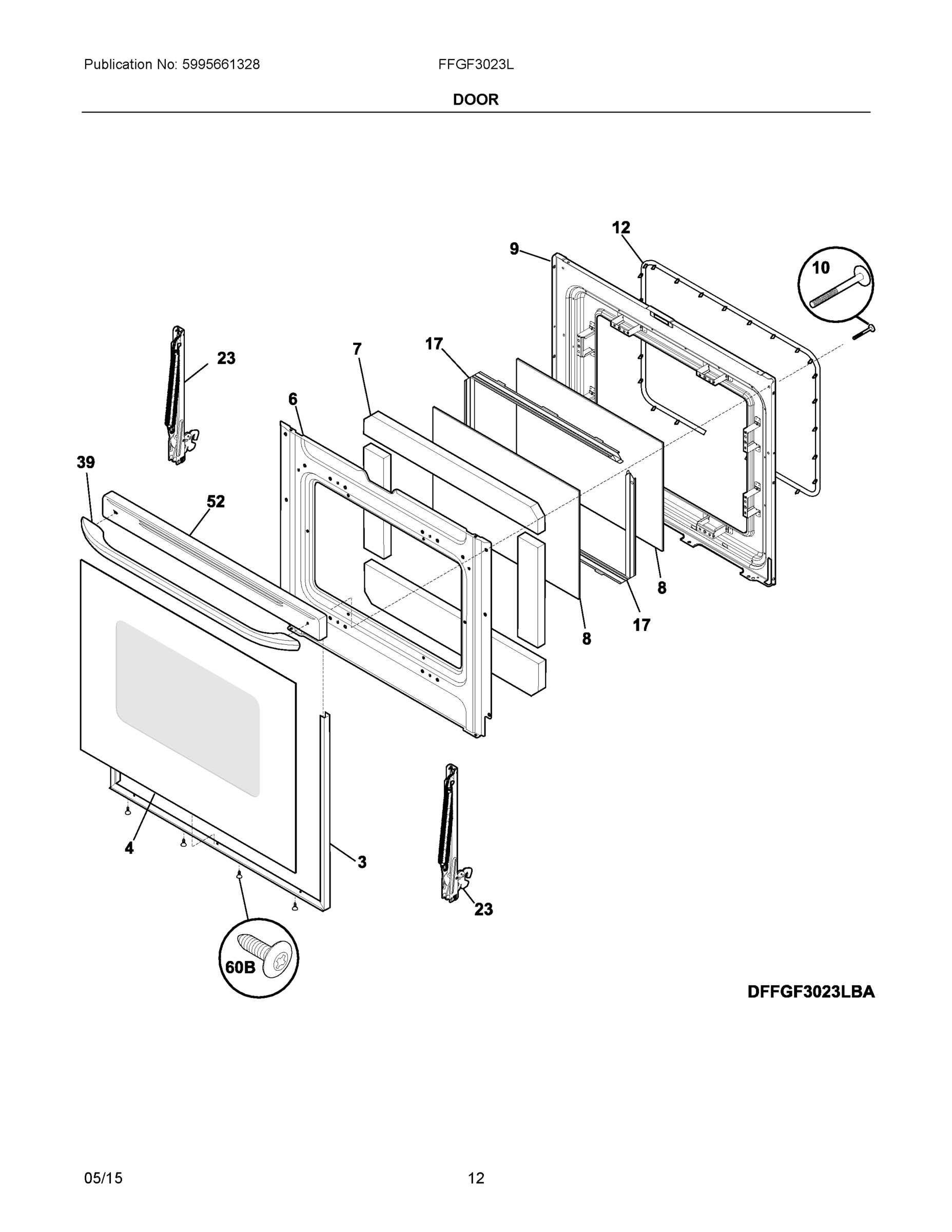

06 - DOOR
Common parts from model Electrolux FFGF3023LWF GAS RANGE
1
WCI 316417900 WCI 316417900 Contact Us For Availability
2
VALVE, TOP BURNER, 1125 BTU, BLUE STEM WCI 5303935306 Contact Us For Availability
2
SHIELD, BACKGUARD, INNER WCI 316497600 Contact Us For Availability
2A
VALVE, 5K TOP BURNER, W/MTG SCREW WCI 5303935308 Contact Us For Availability
2C
VALVE, 9.5K BURNER, W/MTG SCREW WCI 5303935305 Contact Us For Availability
3
WCI 316580611 WCI 316580611 Contact Us For Availability
4
PANEL, DRAWER, WHITE, FRONT WCI 316403401 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316403900 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
9
WCI 316423807 WCI 316423807 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
10
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT FRON WCI 316536614 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536600 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445501 Contact Us For Availability
13
TUBE, 3/8, ALUMINUM, RGLTR TO MANF, WITH FITT WCI 316489100 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
15
SUPPORT, BACKGUARD, WHITE, RH WCI 316411403 Contact Us For Availability
15A
SUPPORT, BACKGUARD, WHITE, LH WCI 316411402 Contact Us For Availability
16
MAINTOP, ASSEMBLY, WHITE WCI 316254506 Contact Us For Availability
17
VALVE, SAFETY WCI 316031501 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
19
PANEL, BACKGUARD, WHITE WCI 316541647 Contact Us For Availability
20
GRATE, BLACK WCI 316202405 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE, ES300 WCI 316419137 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 5303013272 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
BRACKET-CLOCK MTG, BLACK WCI 316441600 Contact Us For Availability
23
HINGE, OVEN DOOR, RED WCI 316575902 Contact Us For Availability
23
BURNER, BROILER WCI 316404302 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
25
WCI 5304497666 WCI 5304497666 Contact Us For Availability
26
IGNITOR, BAKE BURNER WCI 316489403 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316405900 Contact Us For Availability
36
KNOB, TOP VALVE, WHITE, (4) WCI 316543906 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, WHITE WCI 316545301 Contact Us For Availability
40
PANEL-MANIFOLD, WHITE WCI 316290410 Contact Us For Availability
44
ORIFICE, BURNER, 14K WCI 316527511 Contact Us For Availability
44
SPACER, OVEN DOOR WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
52
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316403700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NIA
WCI 316021109 WCI 316021109 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316401500 WCI 316401500 Contact Us For Availability
NIA
SCREW, HEX, 8-18 X 3/8, NICK, (3), REGULA WCI 316021104 Contact Us For Availability
× ![]()
