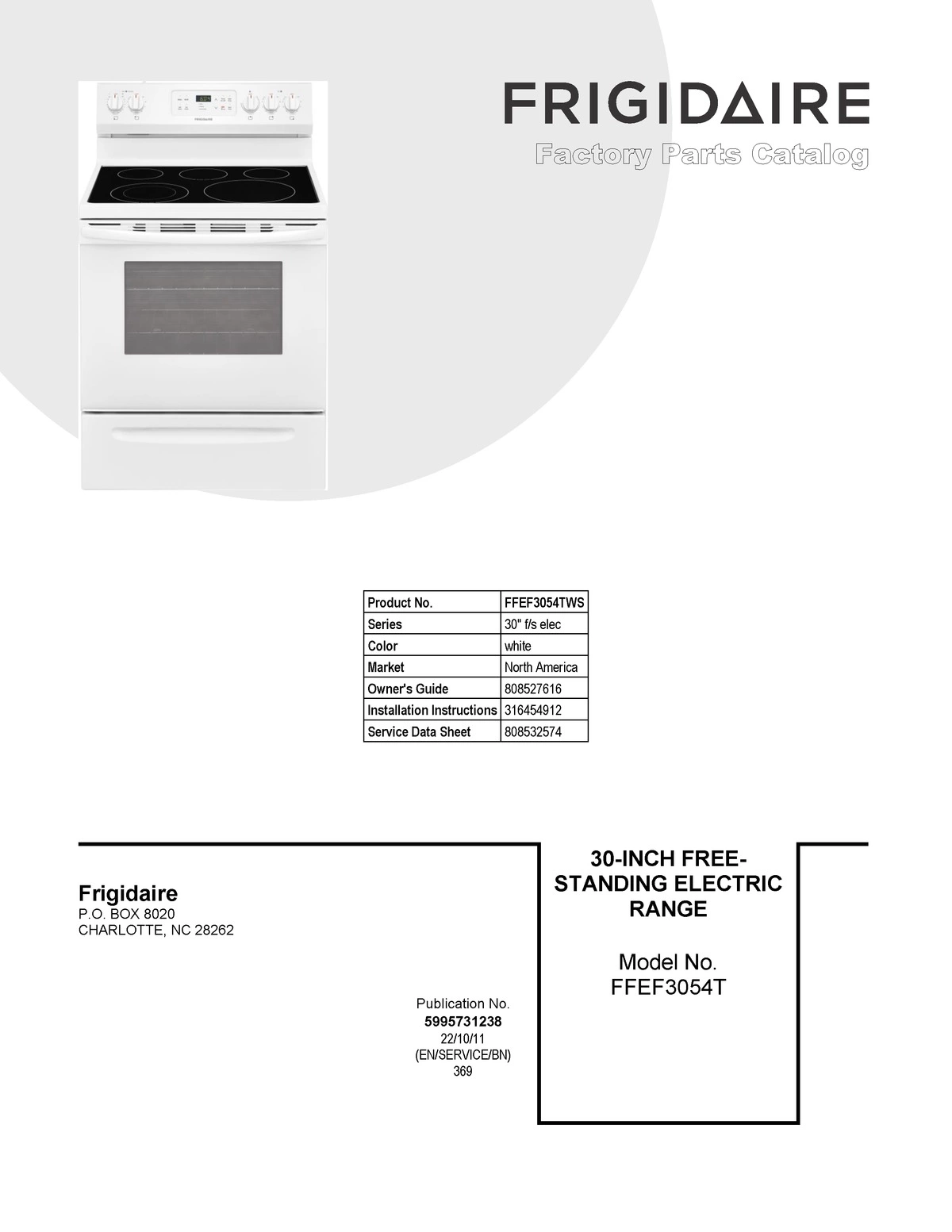

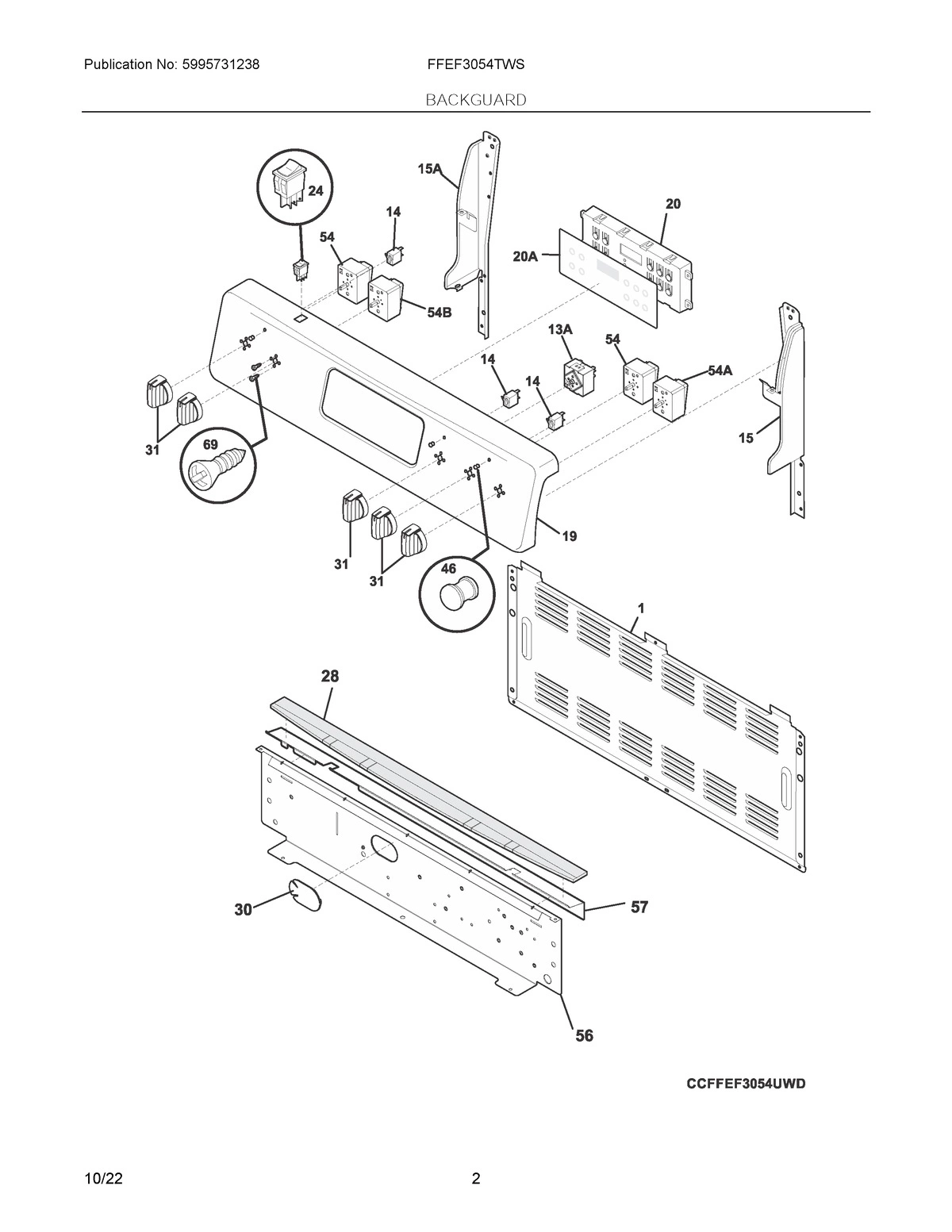

Model Electrolux FFEF3054TWS RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

1
DRAWER, UTILITY
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
View on Model
1
SHIELD, BACKGUARD, REAR WALL
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
View on Model
2
LINER, DRAWER
LINER, DRAWER WCI 5304527989 Contact Us For Availability
View on Model
3
PANEL, BODYSIDE, WHITE, RH
PANEL, BODYSIDE, WHITE, RH WCI 316400142 Contact Us For Availability
View on Model
3A
PANEL, BODYSIDE, WHITE, LH
PANEL, BODYSIDE, WHITE, LH WCI 316400143 Contact Us For Availability
View on Model
4
GLASS ASSEMBLY, OUTER, WHITE
GLASS ASSEMBLY, OUTER, WHITE WCI 316559108 Contact Us For Availability
View on Model
4
PANEL, DRAWER, WHITE, OUTER, W/INTGR HANDLE
PANEL, DRAWER, WHITE, OUTER, W/INTGR HANDLE WCI 5304511973 Contact Us For Availability
View on Model
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
View on Model
6
SHIELD, WOOL
SHIELD, WOOL WCI 316406328 Contact Us For Availability
View on Model
8
PANEL, OVEN BOTTOM
PANEL, OVEN BOTTOM WCI 316400601 No Longer Available
View on Model
9
PAN, BROILER
PAN, BROILER WCI 316081900 Contact Us For Availability
View on Model
10
INSERT, BROILER PAN
INSERT, BROILER PAN WCI 316082000 Contact Us For Availability
View on Model
11
BRACKET, REAR SUPPORT, (2)
BRACKET, REAR SUPPORT, (2) WCI 5304517906 Contact Us For Availability
View on Model
13
GLIDE, DRAWER, BLACK, RH INNER
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
View on Model
13A
GLIDE, DRAWER, BLACK, LH INNER
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
View on Model
13A
SWITCH, INFINITE, WARMER
SWITCH, INFINITE, WARMER WCI 5304522964 Contact Us For Availability
View on Model
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
View on Model
14
RECEPTACLE, OVEN LIGHT
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
View on Model
14
GLIDE, DRAWER, BLACK, RH OUTER
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
View on Model
14A
GLIDE, DRAWER, BLACK, LH OUTER
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
View on Model
15
LAMP, OVEN LIGHT
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
View on Model
15
CAP, END, WHITE, RH
CAP, END, WHITE, RH WCI 808754505 Contact Us For Availability
View on Model
15A
CAP, END, WHITE, LH
CAP, END, WHITE, LH WCI 808754506 Contact Us For Availability
View on Model
15B
ELEMENT, SURFACE, 12", 2700W
ELEMENT, SURFACE, 12", 2700W WCI 316291200 Contact Us For Availability
View on Model
15C
ELEMENT, WARMER, 100 W
ELEMENT, WARMER, 100 W WCI 5304521951 Contact Us For Availability
View on Model
16
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK/WHITE
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK/WHITE WCI 5304513844 Contact Us For Availability
View on Model
17
RETAINER, LENS
RETAINER, LENS WCI 316087500 Contact Us For Availability
View on Model
17
SPACER, GLASS
SPACER, GLASS WCI 5304504811 Contact Us For Availability
View on Model
18
BRACKET-HINGE, MAIN TOP
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
View on Model
19
PANEL, BACKGUARD, WHITE
PANEL, BACKGUARD, WHITE WCI 5304522350 Contact Us For Availability
View on Model
20A
OVERLAY, CLOCK, WHITE, ES300
OVERLAY, CLOCK, WHITE, ES300 WCI 316419144 Contact Us For Availability
View on Model
22
BRACKET-BODYSIDE, (2)
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
View on Model
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
View on Model
28
INSULATION, MANIFOLD PANEL
INSULATION, MANIFOLD PANEL WCI 316528700 Contact Us For Availability
View on Model
31
KNOB, CONTROL, WHITE
KNOB, CONTROL, WHITE WCI 5304508957 Contact Us For Availability
View on Model
39
HANDLE, DOOR, WHITE
HANDLE, DOOR, WHITE WCI 5304522047 Contact Us For Availability
View on Model
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
View on Model
52
CAP, DOOR TRIM, WHITE
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
View on Model
52
CLIP, ELEMENT MTG
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
View on Model
56
SHIELD, BACKGUARD, WHITE, INNER
SHIELD, BACKGUARD, WHITE, INNER WCI 316234029 Contact Us For Availability
View on Model
57
COVER, ACCESS
COVER, ACCESS WCI 316283600 Contact Us For Availability
View on Model
57
SHIELD, STEAM
SHIELD, STEAM WCI 808950202 Contact Us For Availability
View on Model
58
INSULATION, OVEN BOTTOM
INSULATION, OVEN BOTTOM WCI 316403803 Contact Us For Availability
View on Model
58A
INSULATION, OVEN WRAPPER
INSULATION, OVEN WRAPPER WCI 316406602 Contact Us For Availability
View on Model
59
VENT TUBE, ASSEMBLY, W/CATALYST
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
View on Model
62
TERMINAL BLOCK KIT
TERMINAL BLOCK KIT WCI 5303935271 Contact Us For Availability
View on Model
66
ELEMENT, BROIL, 4 PASS
ELEMENT, BROIL, 4 PASS WCI 316203200 Contact Us For Availability
View on Model
67
ELEMENT, BAKE, 4 PASS
ELEMENT, BAKE, 4 PASS WCI 316075103 Contact Us For Availability
View on Model
68
SUPPORT, ELEMENT, BROIL
SUPPORT, ELEMENT, BROIL WCI 316404002 Contact Us For Availability
View on Model
71
SHIELD, REAR WALL
SHIELD, REAR WALL WCI 316283204 Contact Us For Availability
View on Model
88
ROD, AUTO LATCH
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
View on Model
170
ANTI TIP KIT, ASSY, W/TEMPLATE
ANTI TIP KIT, ASSY, W/TEMPLATE WCI 316112005 Contact Us For Availability
View on Model
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
View on Model
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44*
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
View on Model
NI
SCREW, 10-16 X .486
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
View on Model
NI
WCI 5304516199
WCI 5304516199 WCI 5304516199 Contact Us For Availability
View on Model
NI
WCI 316282700
WCI 316282700 WCI 316282700 Contact Us For Availability
View on Model
NI
WCI 316506000
WCI 316506000 WCI 316506000 Contact Us For Availability
View on Model
NIA
WCI 316247300
WCI 316247300 WCI 316247300 Contact Us For Availability
View on Model
