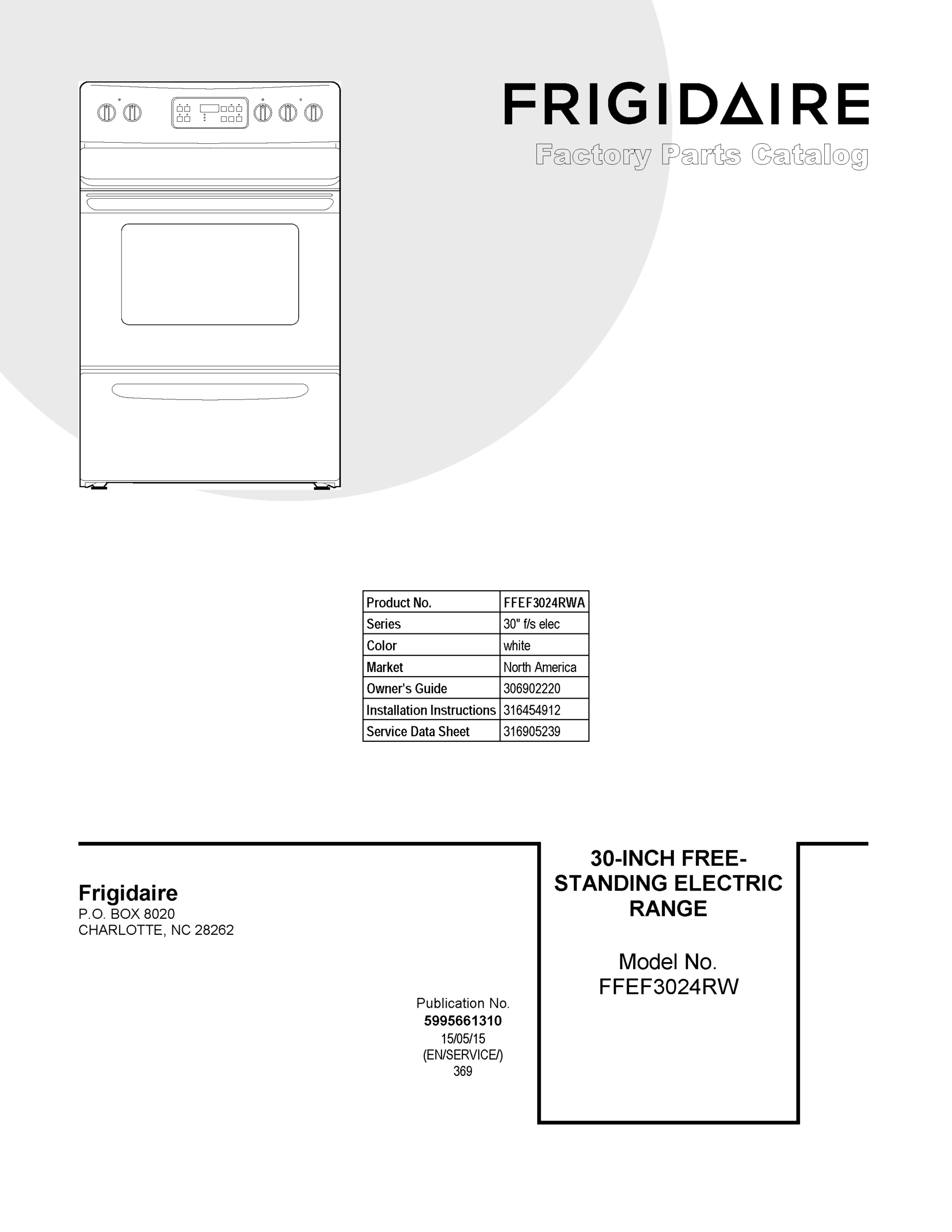

Model Electrolux FFEF3024RWA ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux FFEF3024RWA ELECTRIC RANGE
4
PANEL, DRAWER FRONT, WHITE WCI 316403501 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 316405600 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
8A
WCI 316411106 WCI 316411106 Contact Us For Availability
9
LINER, OVEN DOOR WCI 316423707 Contact Us For Availability
9
PAN, BROILER OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
10
INSERT, BROILER PAN OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 316405000 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
SUPPORT, BACKGUARD, WHITE, RH WCI 316411403 Contact Us For Availability
15A
ELEMENT, DUAL, 9"/6", SURFACE, 1300W/1200W, ( WCI 316555800 Contact Us For Availability
15A
SUPPORT, BACKGUARD, WHITE, LH WCI 316411402 Contact Us For Availability
16
WCI 316282950 WCI 316282950 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE, ES330I WCI 316419354 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
BRACKET-CLOCK MTG, BLACK WCI 316441600 Contact Us For Availability
23
HINGE, OVEN DOOR, BLACK WCI 316575909 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
26B
BRACKET, CHASSIS SUPPORT, FRONT WCI 316214202 Contact Us For Availability
31
KNOB, CONTROL, WHITE, (4) WCI 316543800 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, WHITE WCI 316545301 Contact Us For Availability
44
SPACER, OVEN DOOR WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58
INSULATION, OVEN SUMP WCI 316403802 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316406602 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 316406500 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
62
WCI 5303935271 WCI 5303935271 Contact Us For Availability
66
ELEMENT, BROIL WCI 316203301 Contact Us For Availability
67
ELEMENT, BAKE, HIDDEN WCI 316413800 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
87
BRACKET, CABLE MTG WCI 316081200 Contact Us For Availability
88
ROD, AUTO LATCH WCI 316203500 Contact Us For Availability
106
BRACKET, MOTOR MTG. WCI 316404100 Contact Us For Availability
107
COVER, FAN WCI 316026701 Contact Us For Availability
108
WCI 316256100 WCI 316256100 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
WCI 316418900 WCI 316418900 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
WCI 316247300 WCI 316247300 Contact Us For Availability
NI
WCI 316580297 WCI 316580297 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
