Model Electrolux FES387CHSD RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

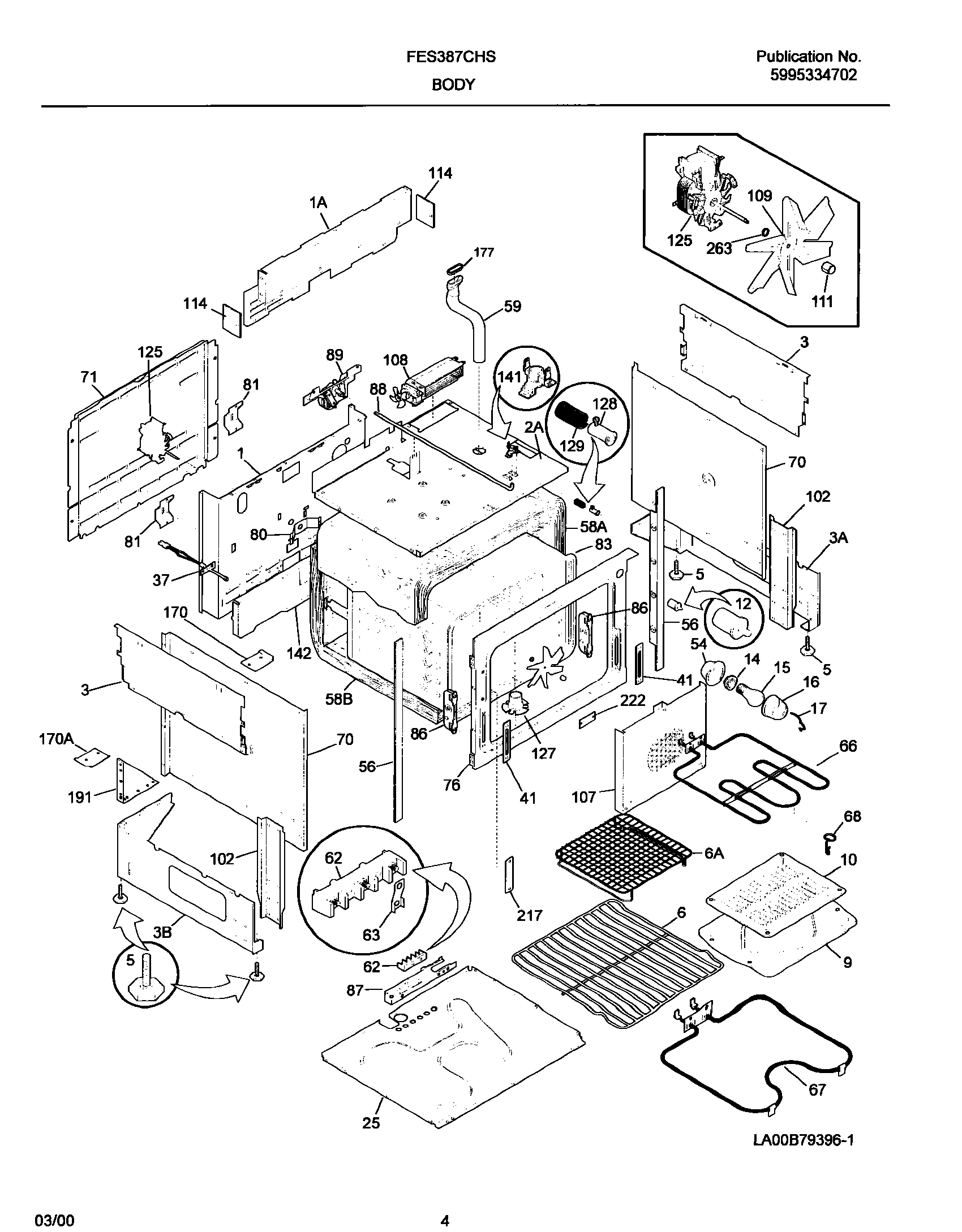

05 - BODY

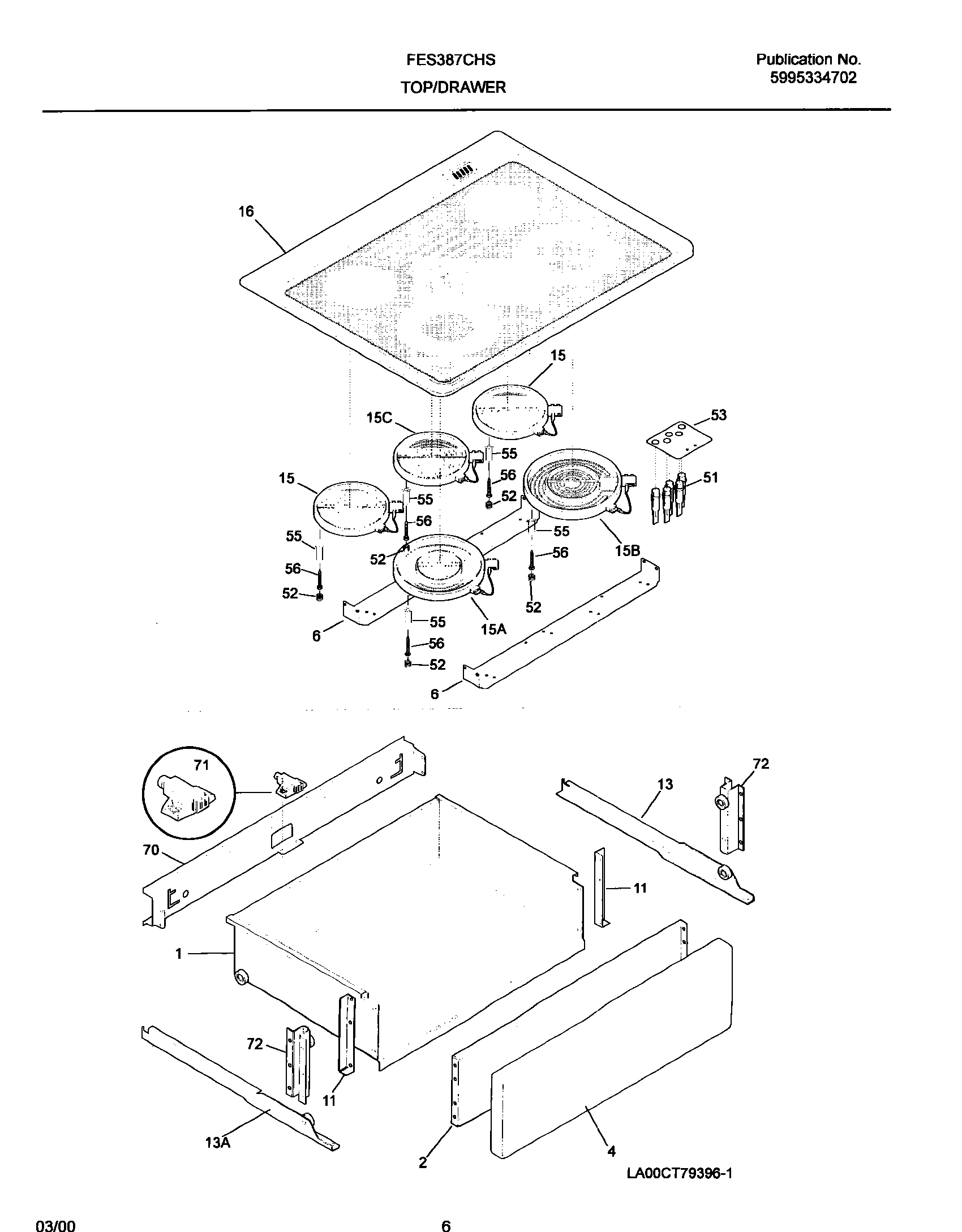

07 - TOP/DRAWER

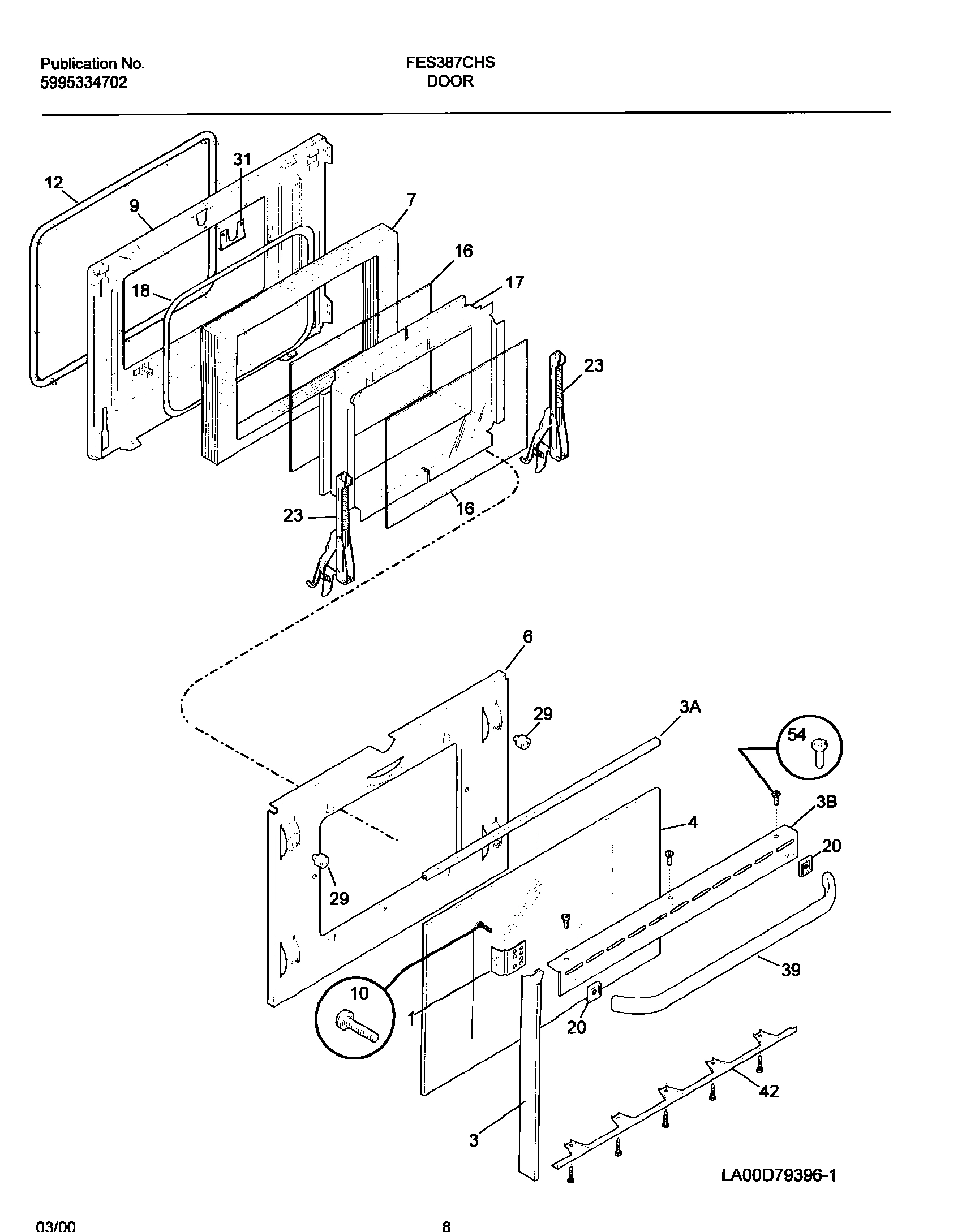

09 - DOOR

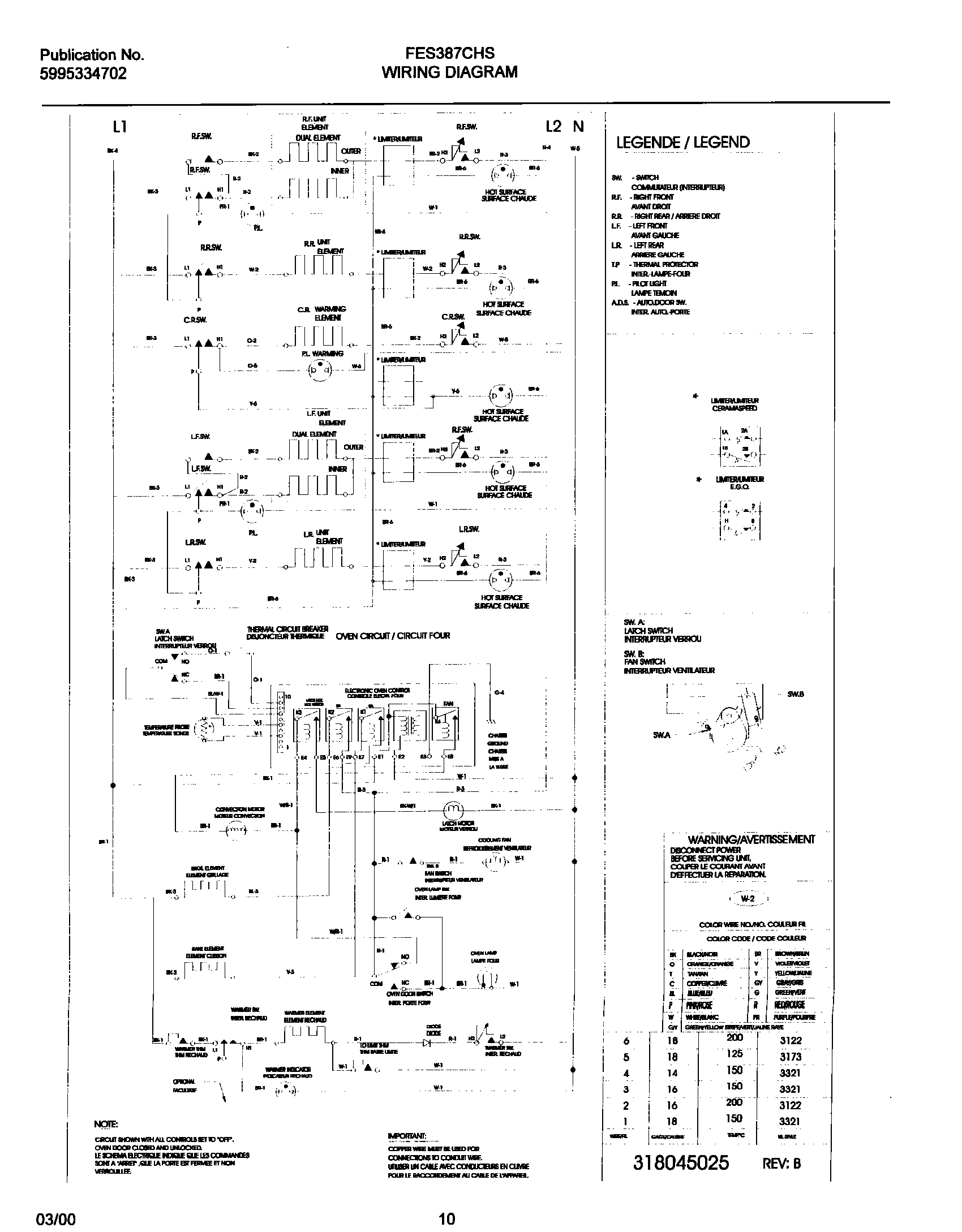

10 - WIRING DIAGRAM
Common parts from model Electrolux FES387CHSD RANGE
1
BRACKET-TRIM WCI 318043100 Contact Us For Availability
2
WCI 318108000 WCI 318108000 Contact Us For Availability
3
TRIM-OVEN DOOR,WHITE,SIDE WCI 318049206 Contact Us For Availability
3A
WCI 318028900 WCI 318028900 Contact Us For Availability
3B
TRIM-OVEN DOOR, WHITE WCI 318049020 Contact Us For Availability
4
GLASS-OVEN DOOR, WHITE WCI 318041102 Contact Us For Availability
4
PANEL-DRAWER WCI 5303311126 Contact Us For Availability
6
WCI 318111101 WCI 318111101 Contact Us For Availability
6
WCI 318056802 WCI 318056802 Contact Us For Availability
6A
WCI 5303311206 WCI 5303311206 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
SCREW, 10-24 X 5/8 WCI 5303324305 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
13
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13A
WCI 5303311130 WCI 5303311130 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15A
WCI 318178000 WCI 318178000 Contact Us For Availability
15C
ELEMENT-WARMER/120W WCI 318178103 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 318041603 Contact Us For Availability
16
MAIN TOP AND GLASS ASSY WCI 318079525 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
SPACER-HANDLE,WHITE WCI 318014301 Contact Us For Availability
23
WCI 5303311215 WCI 5303311215 Contact Us For Availability
25
Shield,heat ,lower WCI 318179107 Contact Us For Availability
29
WCI 318147410 WCI 318147410 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
36
WCI 318164500 WCI 318164500 Contact Us For Availability
39
HANDLE-DOOR, WHITE WCI 316091119 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
TRIM-OVEN DOOR, WHITE WCI 5303311194 Contact Us For Availability
51
WCI 5303297484 WCI 5303297484 Contact Us For Availability
53
WCI 318125930 WCI 318125930 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
55
WCI 5303317178 WCI 5303317178 Contact Us For Availability
56
WCI 5303317179 WCI 5303317179 Contact Us For Availability
56
WCI 318002602 WCI 318002602 Contact Us For Availability
58A
WCI 5303310539 WCI 5303310539 Contact Us For Availability
58B
WCI 318132609 WCI 318132609 Contact Us For Availability
59
WCI 318072502 WCI 318072502 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
80
WCI 5303320846 WCI 5303320846 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089609 WCI 318089609 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
WCI 318111803 WCI 318111803 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
SWITCH LATCH WCI 318120710 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
114
WCI 318175100 WCI 318175100 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
SWITCH WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170
WCI 318175700 WCI 318175700 Contact Us For Availability
170A
WCI 318175701 WCI 318175701 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
191
BRACKET WCI 5303304030 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
222
COVERING PLATE WCI 318080000 Contact Us For Availability
NI
SCREW WCI 5303311124 Contact Us For Availability
NI
WCI 5303311207 WCI 5303311207 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
× ![]()
