Model Electrolux FES367CESB RANGE – Common Parts & Diagrams

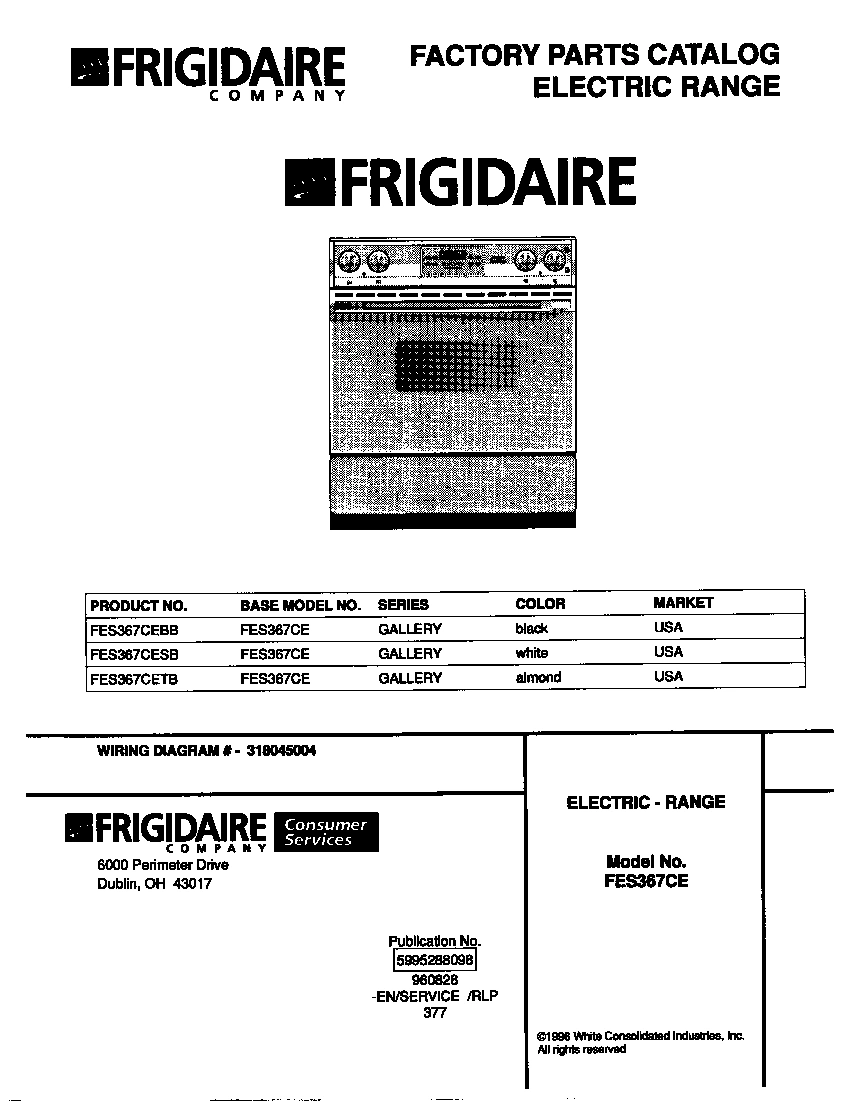

01 - COVER

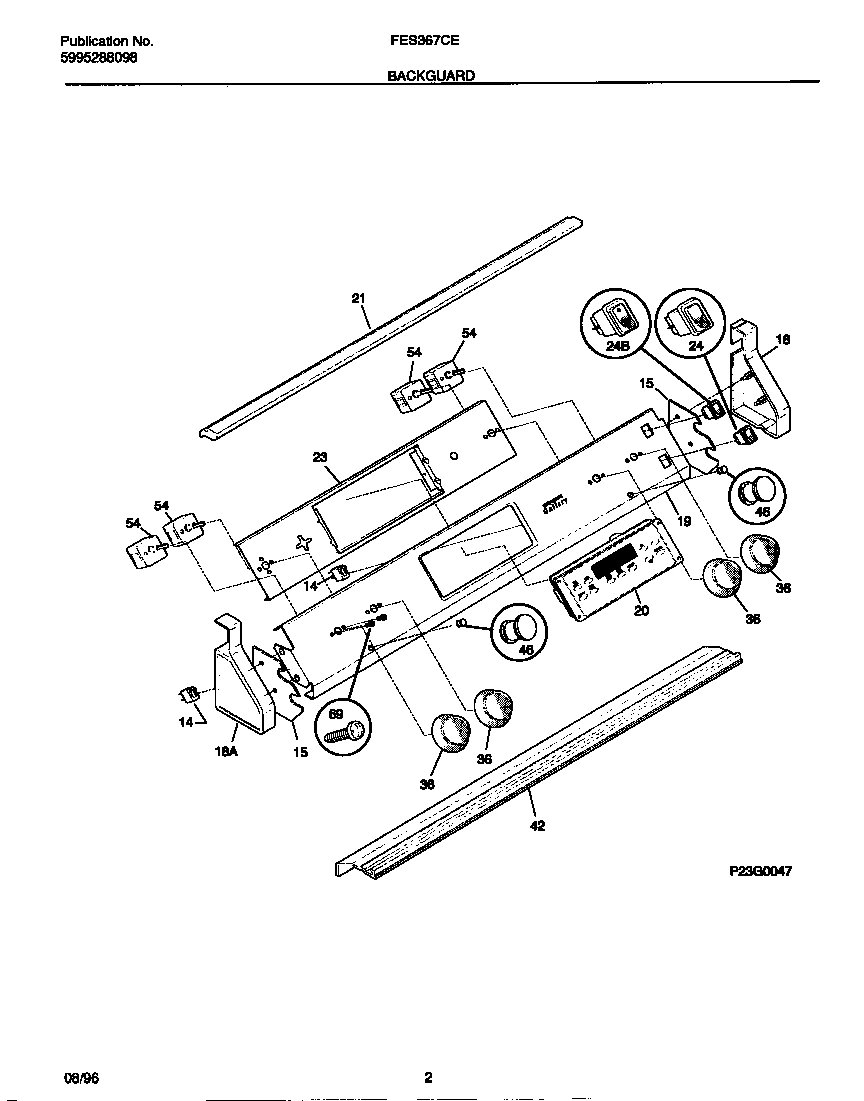

02 - BACKGUARD

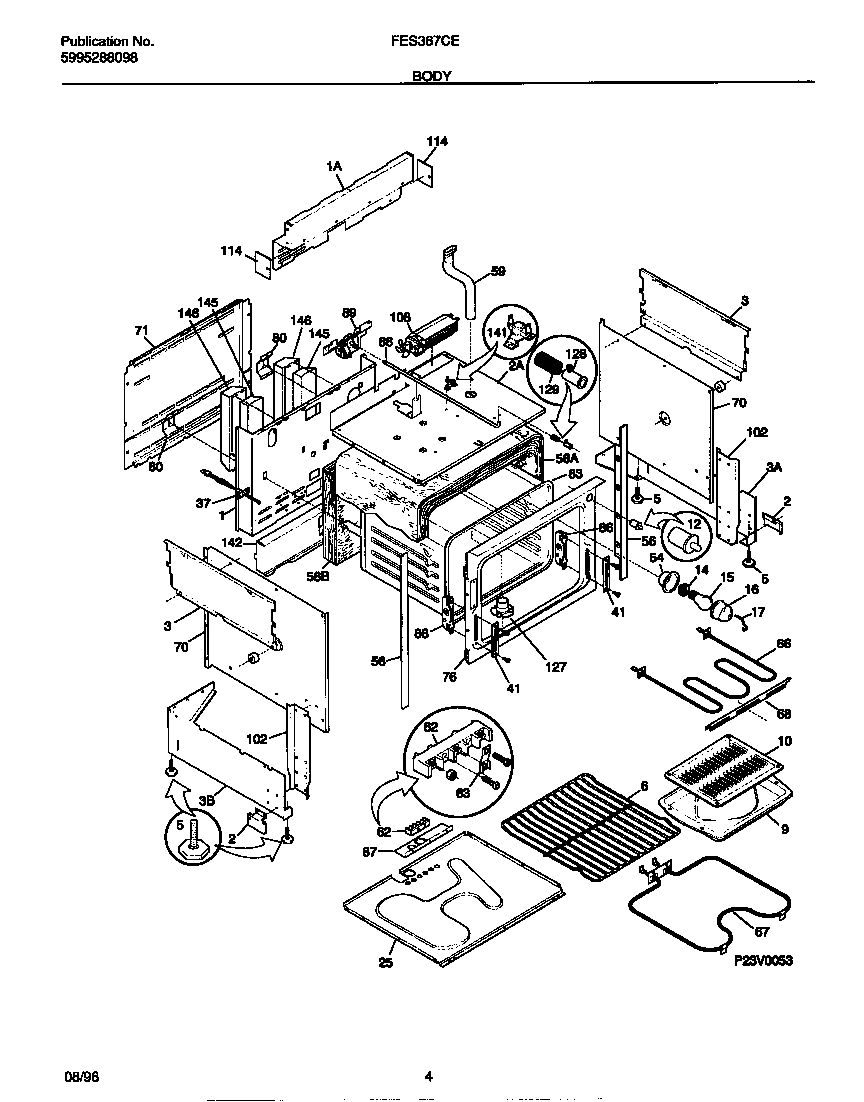

03 - BODY

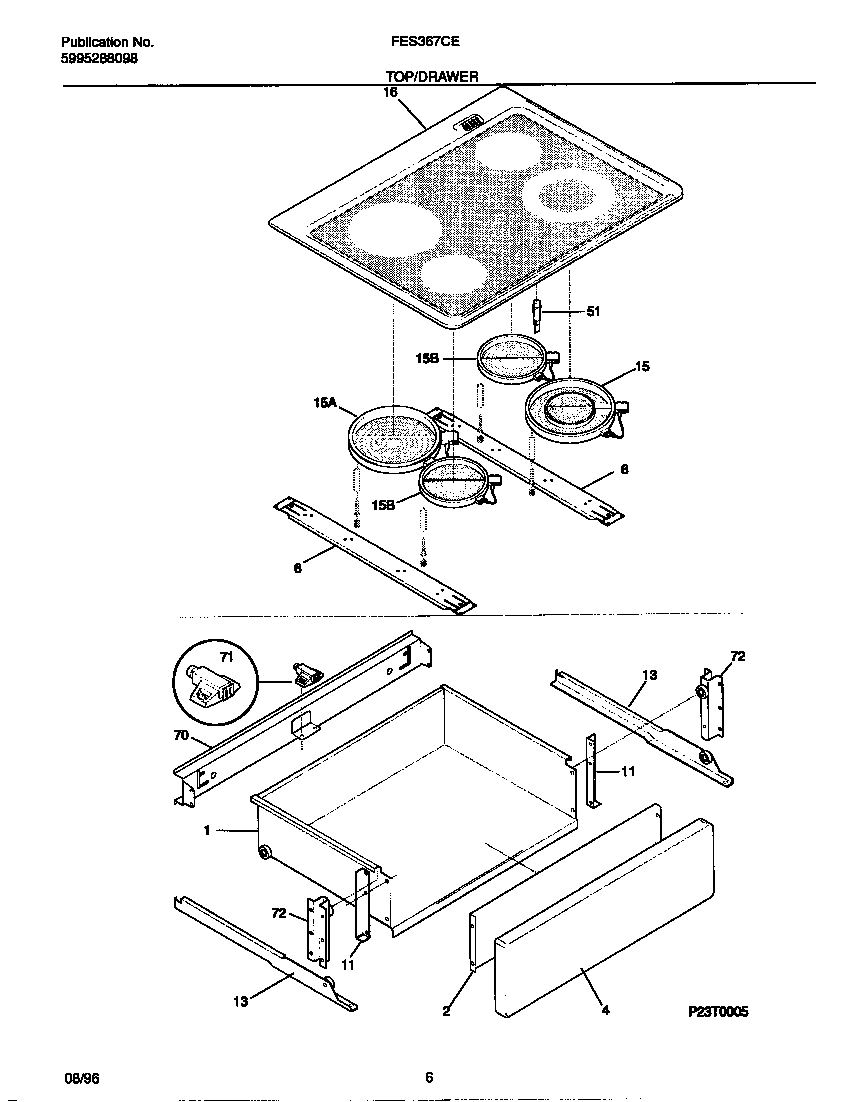

04 - TOP/DRAWER

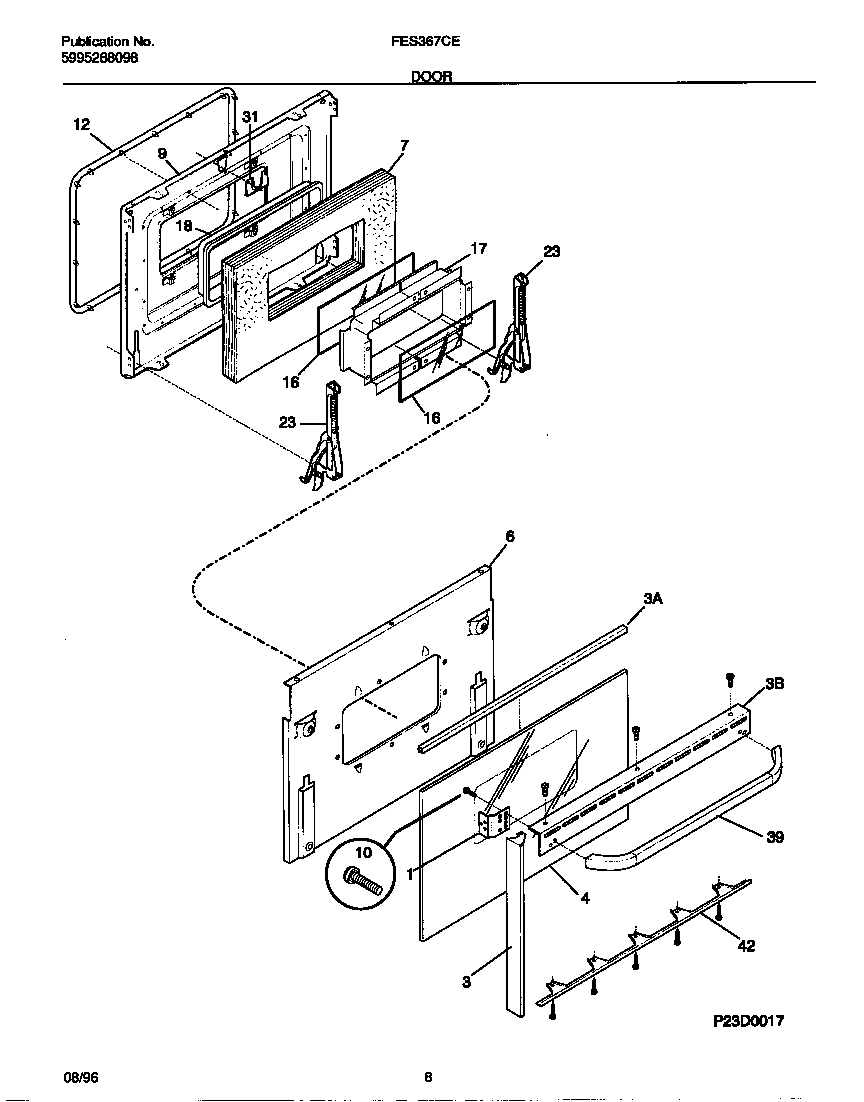

05 - DOOR

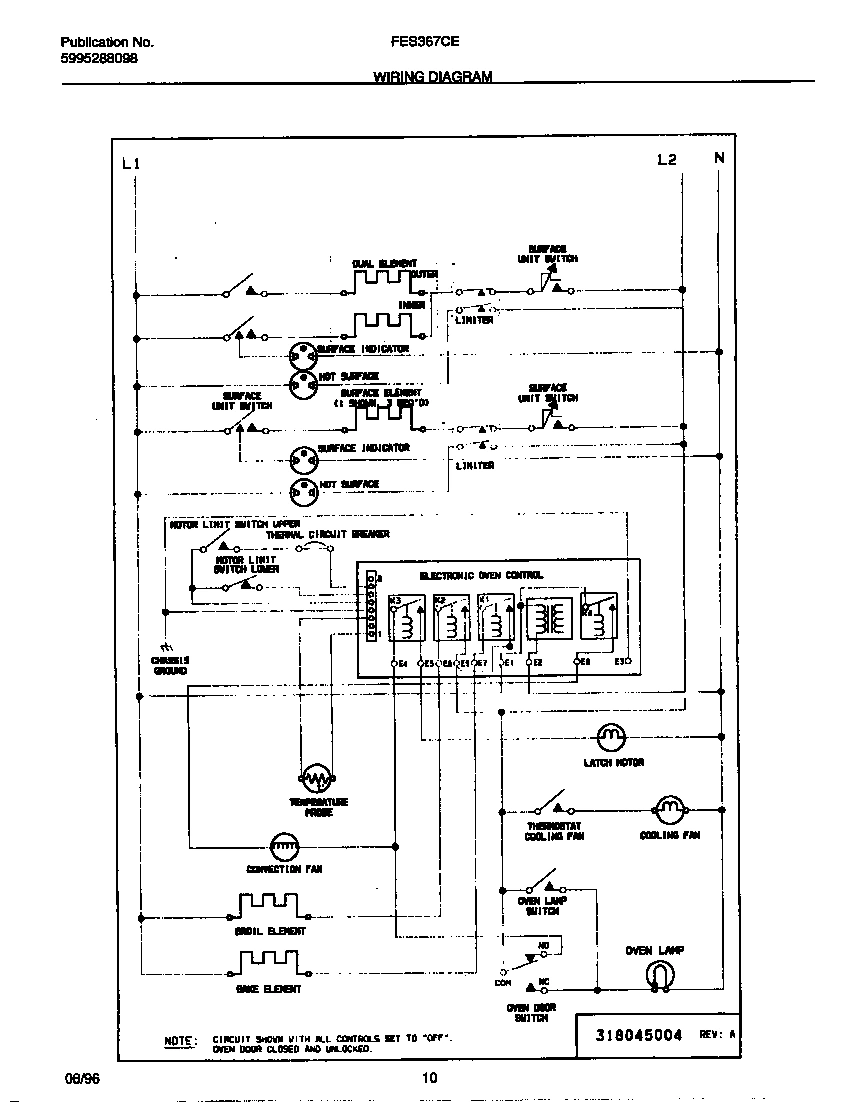

06 - WIRING DIAGRAM
Common parts from model Electrolux FES367CESB RANGE
*60803
WCI 316005700 WCI 316005700 Contact Us For Availability
*60804
WCI 318055600 WCI 318055600 Contact Us For Availability
*60806
BRACKET-BACKSPLASH WCI 5303304030 Contact Us For Availability
*60809
WCI 5303311207 WCI 5303311207 Contact Us For Availability
*60810
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
*60812
WCI 3016303 WCI 3016303 Contact Us For Availability
*60813
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*60814
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*60816
WCI 5303317178 WCI 5303317178 Contact Us For Availability
*60817
SCREW-ELEMENT WCI 5303317179 Contact Us For Availability
*60821
PLUG, DOOR LINER WCI 5308007939 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
1
WCI 5303311161 WCI 5303311161 Contact Us For Availability
2
WCI 08012736 WCI 08012736 Contact Us For Availability
2
WCI 5303311158 WCI 5303311158 Contact Us For Availability
2
WCI 318108000 WCI 318108000 Contact Us For Availability
3
WCI 5303280349 WCI 5303280349 Contact Us For Availability
3
WCI 5303280351 WCI 5303280351 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3
WCI 318028900 WCI 318028900 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, SIDE, (2) WCI 318049206 Contact Us For Availability
3
Trim,oven door ,white ,lower WCI 5303311194 Contact Us For Availability
4
WCI 318041102 WCI 318041102 Contact Us For Availability
4
PANEL-DRAWER WCI 5303311126 Contact Us For Availability
5A
SCREW-LEVELING WCI 318175510 No Longer Available
5B
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203575 Contact Us For Availability
5C
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203576 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
WCI 5303311190 WCI 5303311190 Contact Us For Availability
6
WCI 318056810 WCI 318056810 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048800 WCI 318048800 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
13A
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13B
WCI 5303311130 WCI 5303311130 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 318050407 WCI 318050407 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER ,(2) WCI 318041603 Contact Us For Availability
16
WCI 318079501 WCI 318079501 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
23
WCI 318024700 WCI 318024700 Contact Us For Availability
25
WCI 5303311141 WCI 5303311141 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
HANDLE-DOOR, WHITE, OVEN WCI 316091119 Contact Us For Availability
39
SPACER-HANDLE, WHITE, (2) (NOT ILLUSTRATED) WCI 318014301 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
WCI 318049020 WCI 318049020 Contact Us For Availability
51
LIGHT-INDICATOR WCI 5303297484 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TRIM-OVEN FRONT WCI 318002602 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
59
WCI 318072502 WCI 318072502 Contact Us For Availability
63A
WCI 5303310517 WCI 5303310517 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
127B
WCI 5303311195 WCI 5303311195 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
WCI 318005000 WCI 318005000 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
145
WCI 5303311108 WCI 5303311108 Contact Us For Availability
146
WCI 318038500 WCI 318038500 Contact Us For Availability
× ![]()
