Model Electrolux FES355CCSD RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

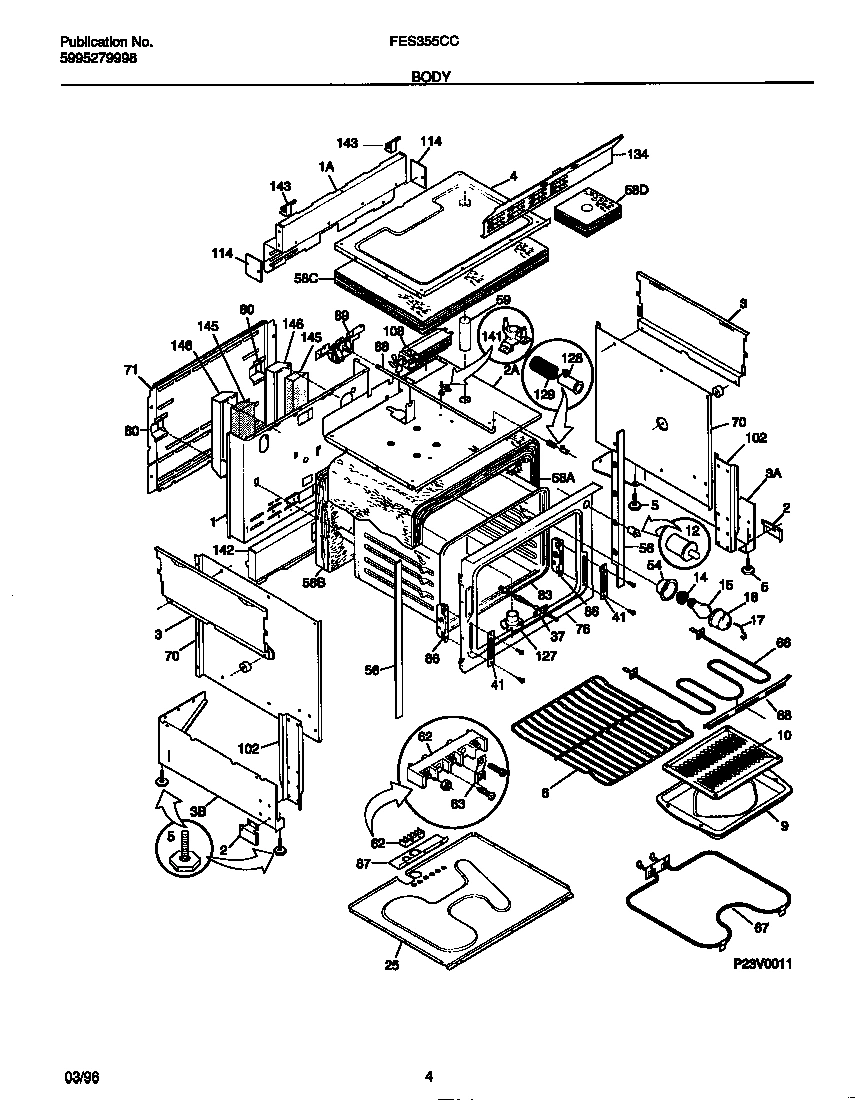

03 - BODY

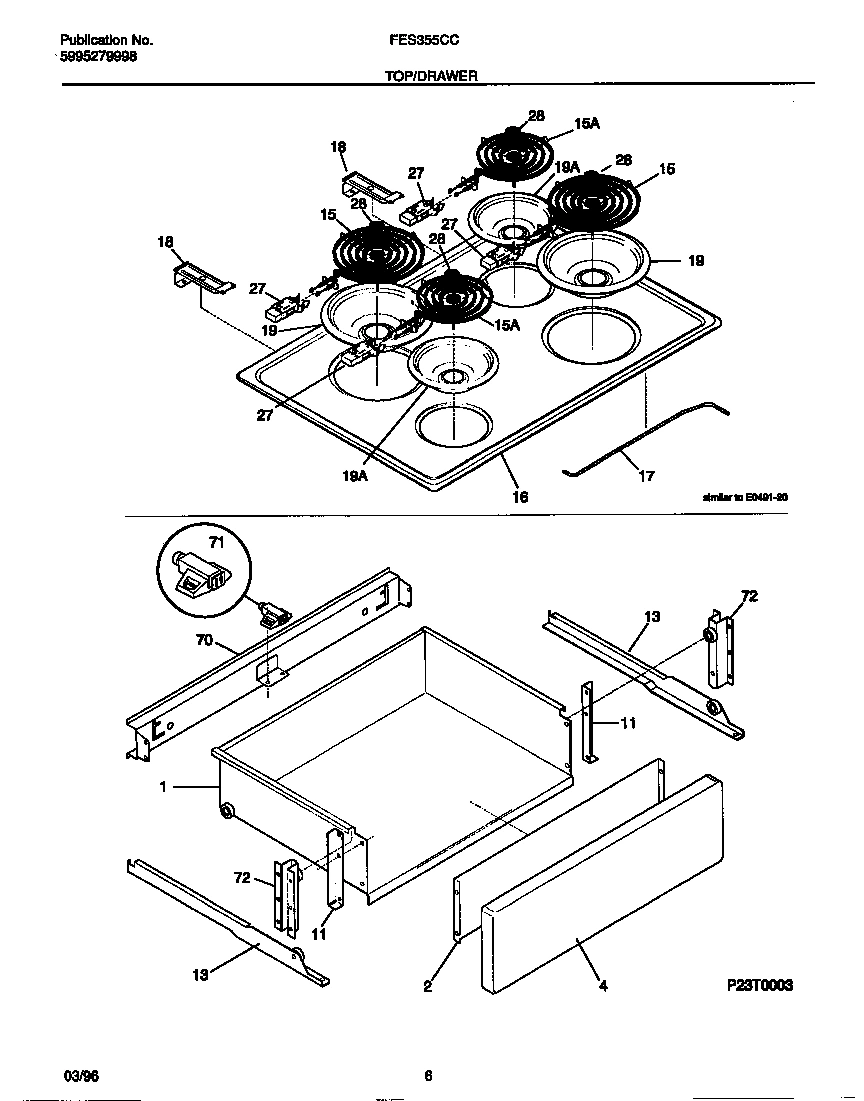

04 - TOP/DRAWER

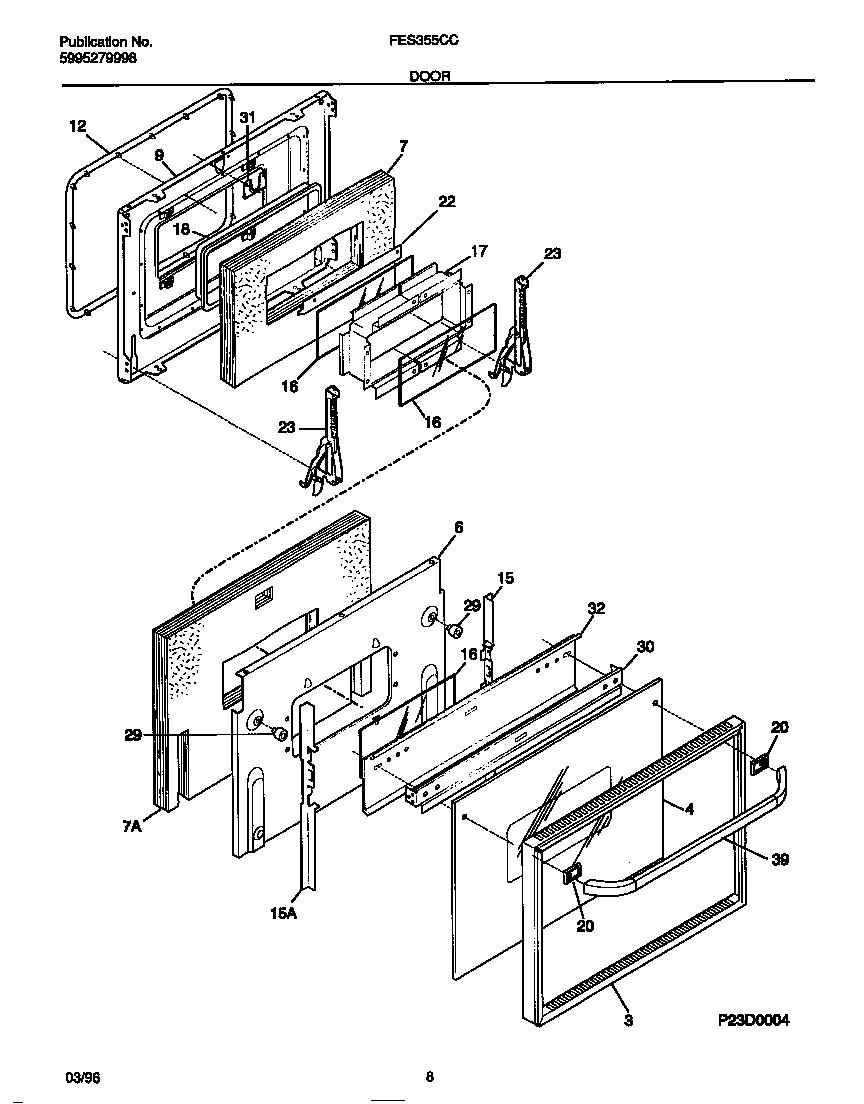

05 - DOOR

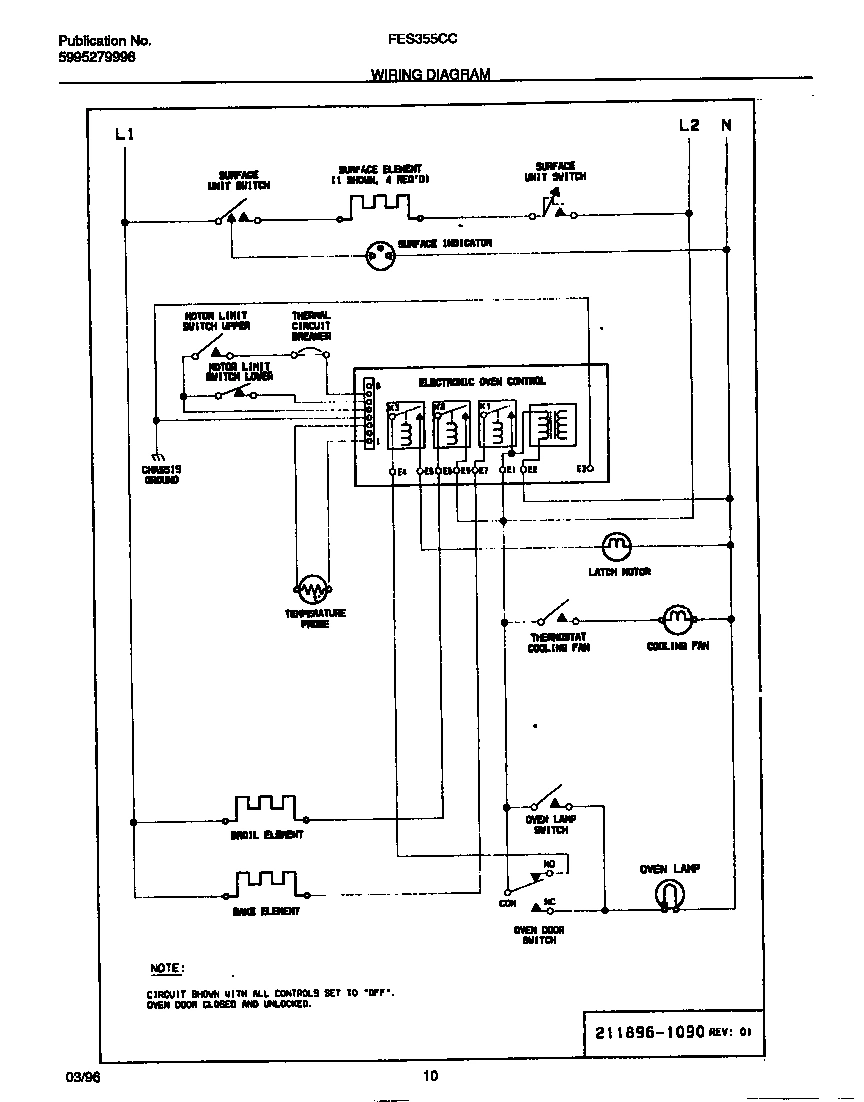

06 - WIRING DIAGRAM
Common parts from model Electrolux FES355CCSD RANGE
*93000
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
*93001
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
*93002
WCI 318055600 WCI 318055600 Contact Us For Availability
*93004
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
*93005
BUMPER-DOOR WCI 5303311156 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
1
WCI 5303311161 WCI 5303311161 Contact Us For Availability
2
WCI 08012736 WCI 08012736 Contact Us For Availability
2
WCI 5303311158 WCI 5303311158 Contact Us For Availability
2
WCI 318108000 WCI 318108000 Contact Us For Availability
3
WCI 5303280349 WCI 5303280349 Contact Us For Availability
3
WCI 5303280351 WCI 5303280351 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3
WCI 5303311132 WCI 5303311132 Contact Us For Availability
4
WCI 318133400 WCI 318133400 Contact Us For Availability
4
PANEL-DRAWER WCI 5303311126 Contact Us For Availability
4
WCI 5303311148 WCI 5303311148 Contact Us For Availability
5
SCREW-LEVELING WCI 318175510 No Longer Available
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
WCI 5303311149 WCI 5303311149 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
7
WCI 5303311150 WCI 5303311150 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318112901 WCI 318112901 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
13A
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13B
WCI 5303311130 WCI 5303311130 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303311153 Contact Us For Availability
15
Bracket-glass mtg,LH WCI 5303311154 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
16
WCI 5303300166 WCI 5303300166 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
17
WCI 5303310534 WCI 5303310534 Contact Us For Availability
18
WCI 5303305530 WCI 5303305530 Contact Us For Availability
18
SEAL-ROPE WCI 5303310531 Contact Us For Availability
20
SPACER-HANDLE, (2) WCI 5303310504 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 5303310828 WCI 5303310828 Contact Us For Availability
25
WCI 318121301 WCI 318121301 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
SPACER-DOOR WCI 5303310535 Contact Us For Availability
30
WCI 5303311182 WCI 5303311182 Contact Us For Availability
31
WCI 5303311155 WCI 5303311155 Contact Us For Availability
32
WCI 5303310509 WCI 5303310509 Contact Us For Availability
39
WCI 5303311172 WCI 5303311172 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
SWITCH-SURFACE UNIT, SMALL, (3) WCI 318120501 Contact Us For Availability
54
SWITCH-SURFACE UNIT, DOUBLE WCI 5303311186 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TRIM-OVEN FRONT WCI 318002602 Contact Us For Availability
58
INSULATION-BAFFLE, OVEN DOOR WCI 3008673 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 5303269528 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
59
WCI 5303311139 WCI 5303311139 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
WCI 316039801 WCI 316039801 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
WCI 5303311146 WCI 5303311146 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
COVER-WIRING WCI 5303310515 Contact Us For Availability
141
WCI 318005000 WCI 318005000 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
143
BRACKET-HINGE WCI 5303300148 Contact Us For Availability
145
WCI 5303311108 WCI 5303311108 Contact Us For Availability
146
WCI 318038500 WCI 318038500 Contact Us For Availability
× ![]()
