Model Electrolux FES355CBTA RANGE – Common Parts & Diagrams

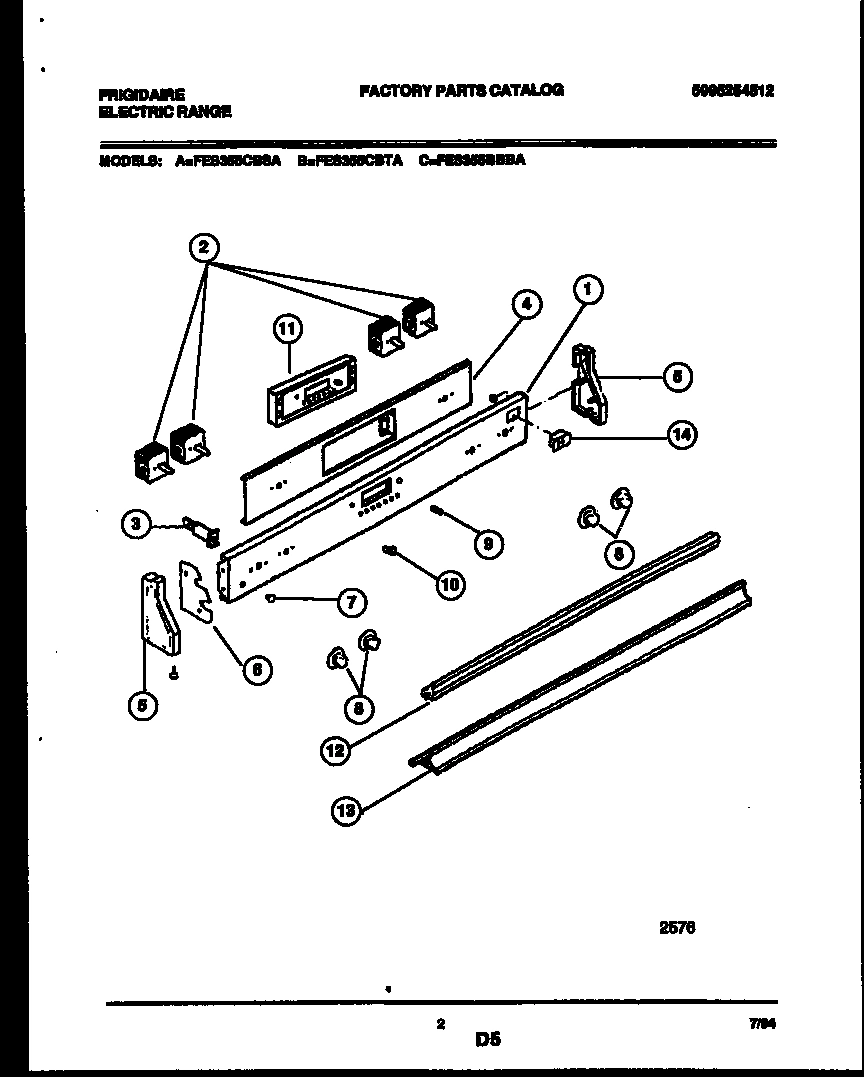

02 - CONTROL PANEL

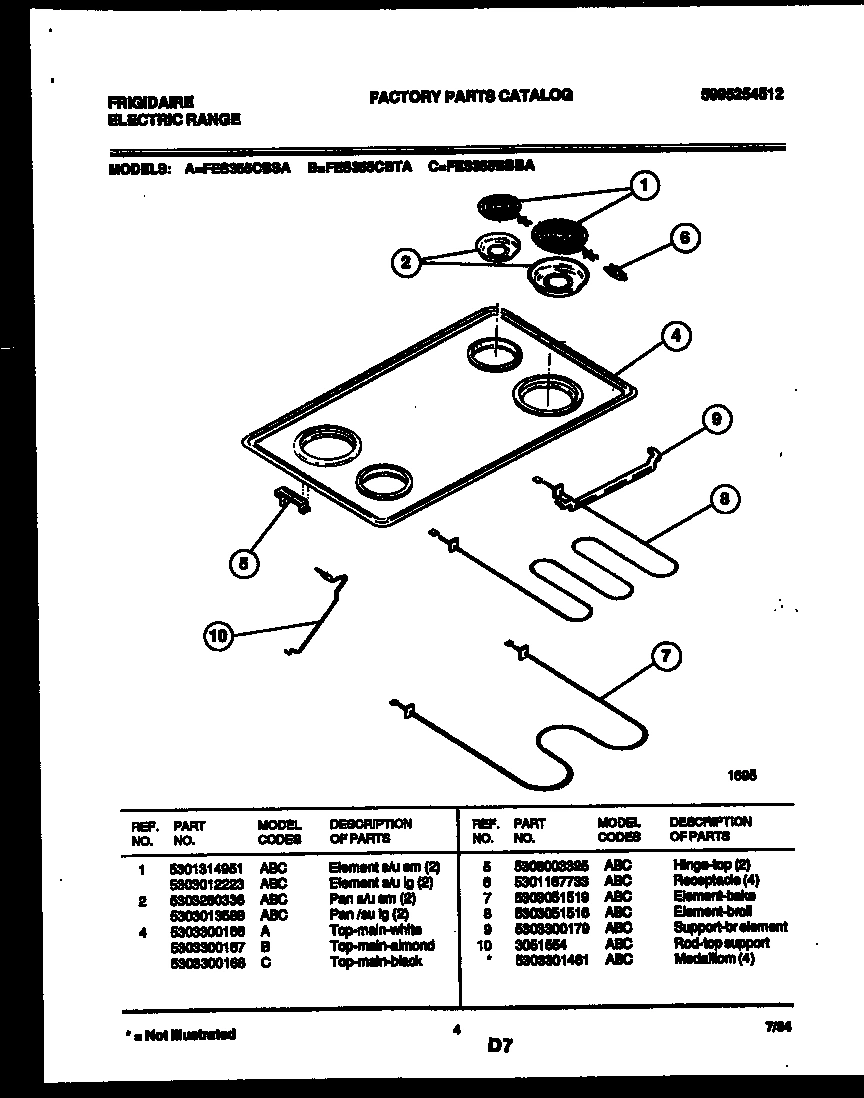

03 - COOKTOP AND BROILER PARTS

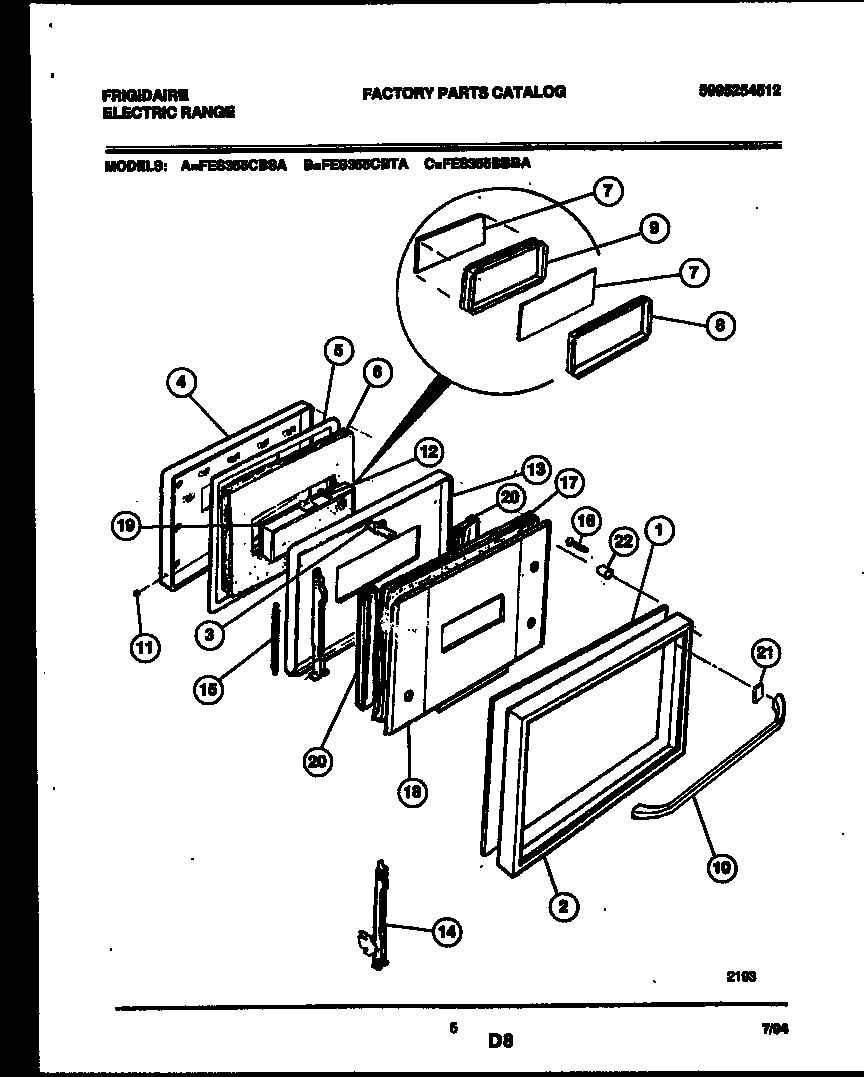

04 - DOOR PARTS

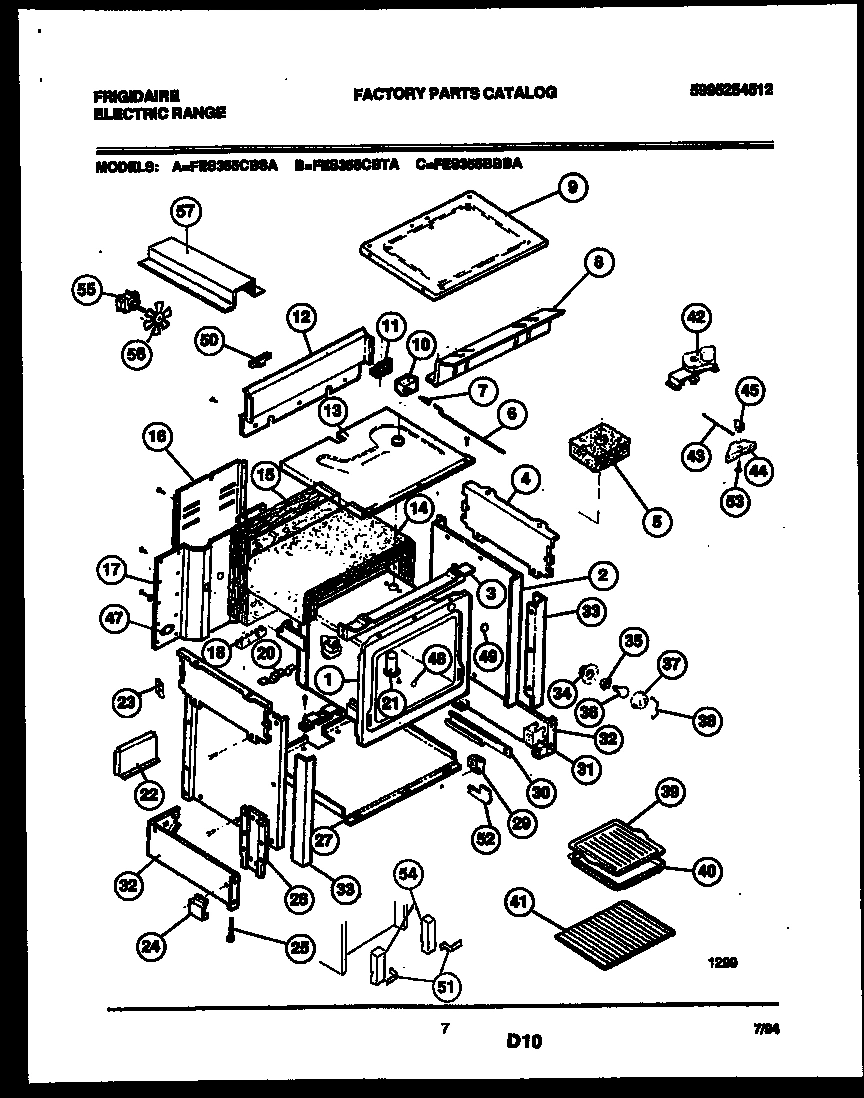

05 - BODY PARTS

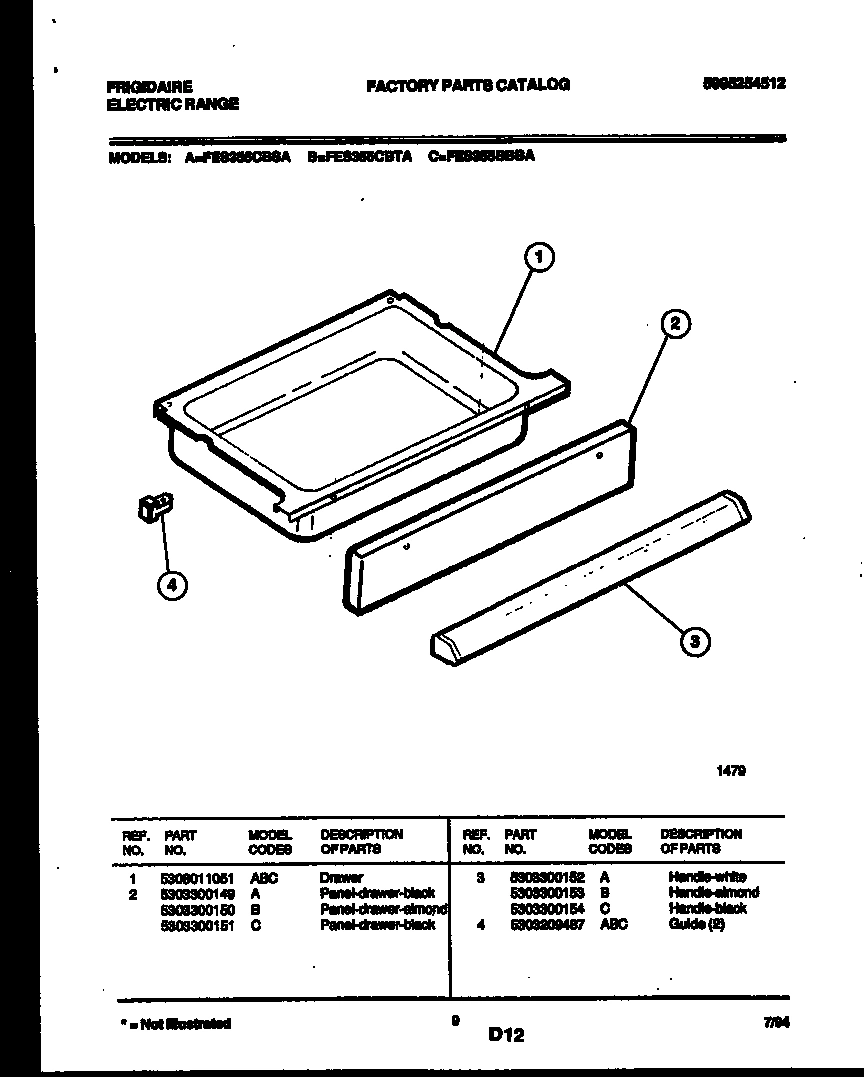

06 - DRAWER PARTS
Common parts from model Electrolux FES355CBTA RANGE
*10561
ANTI-TIP BRACKET WCI 3934058 Contact Us For Availability
*10561
MEDALLOM (4) WCI 5303301461 Contact Us For Availability
*10561
CORK & RUBBER WCI 5303300414 Contact Us For Availability
*10561
WCI 316007700 WCI 316007700 Contact Us For Availability
1
WCI 5303304694 WCI 5303304694 Contact Us For Availability
1
WCI 5303293899 WCI 5303293899 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
WCI 5303304696 WCI 5303304696 Contact Us For Availability
2
SHIELD-INSULATION (2) WCI 5303300142 Contact Us For Availability
2
WCI 5303300150 WCI 5303300150 Contact Us For Availability
3
INDICATOR LIGHT S/U WCI 5303051533 Contact Us For Availability
3
STRIKE-DOOR WCI 5301167830 Contact Us For Availability
3
WCI 5303293413 WCI 5303293413 Contact Us For Availability
3
WCI 5303300153 WCI 5303300153 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
TOP-MAIN-ALMOND WCI 5303300167 Contact Us For Availability
4
BAFFLE-DOOR ASSY WCI 5303300194 Contact Us For Availability
4
PANEL-SIDE (2) WCI 5303300143 Contact Us For Availability
5
GASKET WCI 5303051704 Contact Us For Availability
5
HINGE-TOP (2) WCI 5308003325 Contact Us For Availability
5
INSULATION-VENT TUBE WCI 3008673 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
ROD-SWITCH WCI 3051645 Contact Us For Availability
7
LENS-LIGHT WCI 5308006417 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 08007444 WCI 08007444 Contact Us For Availability
8
WCI 5303269564 WCI 5303269564 Contact Us For Availability
8
WCI 316039801 WCI 316039801 Contact Us For Availability
9
SUPPORT-BR ELEMENT WCI 5303300179 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
WCI 5303293414 WCI 5303293414 Contact Us For Availability
10
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
10
HANDLE WCI 5303300170 Contact Us For Availability
10
SWITCH-DOOR LATCH WCI 5308003081 Contact Us For Availability
11
WCI 316005500 WCI 316005500 Contact Us For Availability
11
BUTTON-PLUG (8) WCI 3051807 Contact Us For Availability
11
BRACKET-DOOR SW WCI 3051643 Contact Us For Availability
12
BACK-UPPER WCI 5303286183 Contact Us For Availability
13
RAIL-BOTTOM WCI 5303304691 Contact Us For Availability
13
WCI 5303300196 WCI 5303300196 Contact Us For Availability
13
WCI 5303300198 WCI 5303300198 Contact Us For Availability
14
SWITCH-OVEN LIGHT WCI 5303304693 Contact Us For Availability
14
DOOR HINGE ASSY WCI 5303210232 Contact Us For Availability
14
WCI 3203029 WCI 3203029 Contact Us For Availability
15
WCI 5303051630 WCI 5303051630 Contact Us For Availability
16
WCI 5303299481 WCI 5303299481 Contact Us For Availability
16
WIRING COVER WCI 5303051856 Contact Us For Availability
17
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
17
WCI 5303051530 WCI 5303051530 Contact Us For Availability
18
WCI 5303300197 WCI 5303300197 Contact Us For Availability
19
GASKET-GLASS WCI 5303269535 Contact Us For Availability
20
INSULATION-AIRWASH WCI 5303269530 Contact Us For Availability
20
PLATE-MTG WCI 3203574 Contact Us For Availability
21
SPACER (2) WCI 5303300174 Contact Us For Availability
21
WCI 3051773 WCI 3051773 Contact Us For Availability
22
SPACER-HANDLE MTG WCI 5303212865 Contact Us For Availability
22
WCI 3051634 WCI 3051634 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
25
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
26
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
27
WCI 5303300145 WCI 5303300145 Contact Us For Availability
29
DRAWER GLIDE WCI 3051654 Contact Us For Availability
30
RAIL-DRWR RH WCI 5308015746 Contact Us For Availability
30A
RAIL-DRWR LH WCI 3051652 Contact Us For Availability
31
SPACER-DRWR GUIDE (2) WCI 3051653 Contact Us For Availability
32
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
32A
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
33
WCI 5303300146 WCI 5303300146 Contact Us For Availability
34
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
38
RETAINER-LENS WCI 5303205904 Contact Us For Availability
39
BROILER GRILL WCI 5303293415 Contact Us For Availability
40
BROILER PAN WCI 5303293416 Contact Us For Availability
41
WCI 5303300202 WCI 5303300202 Contact Us For Availability
42
WCI 5303271102 WCI 5303271102 Contact Us For Availability
43
BAR-PUSH WCI 3051649 Contact Us For Availability
44
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
45
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
WCI 5303284446 WCI 5303284446 Contact Us For Availability
48
BUTTON-PLUG WCI 3204825 Contact Us For Availability
49
BUTTON-PLUG WCI 3204817 Contact Us For Availability
50
BRKT-HNG SUPPORT WCI 5303300148 Contact Us For Availability
51
RETAINER-COUNTER WT WCI 5303280340 Contact Us For Availability
52
WCI 3051810 WCI 3051810 Contact Us For Availability
53
WCI 5308012004 WCI 5308012004 Contact Us For Availability
54
CEMENT-COUNTER WT WCI 5303280341 Contact Us For Availability
55
WCI 5303284447 WCI 5303284447 Contact Us For Availability
56
WCI 316017600 WCI 316017600 Contact Us For Availability
57
WCI 5303284448 WCI 5303284448 Contact Us For Availability
× ![]()
