Model Electrolux FES354BAB3 RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

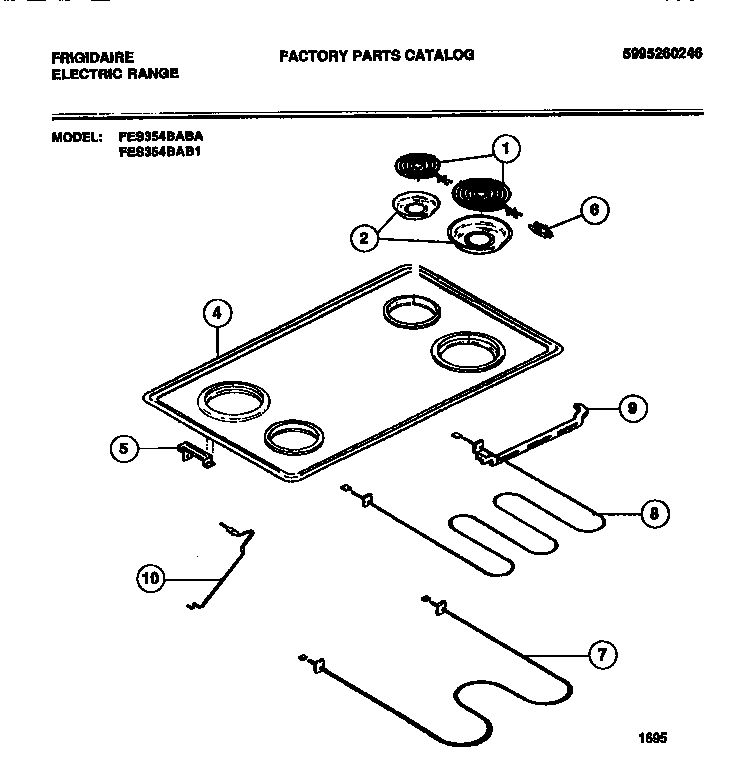

03 - TOP

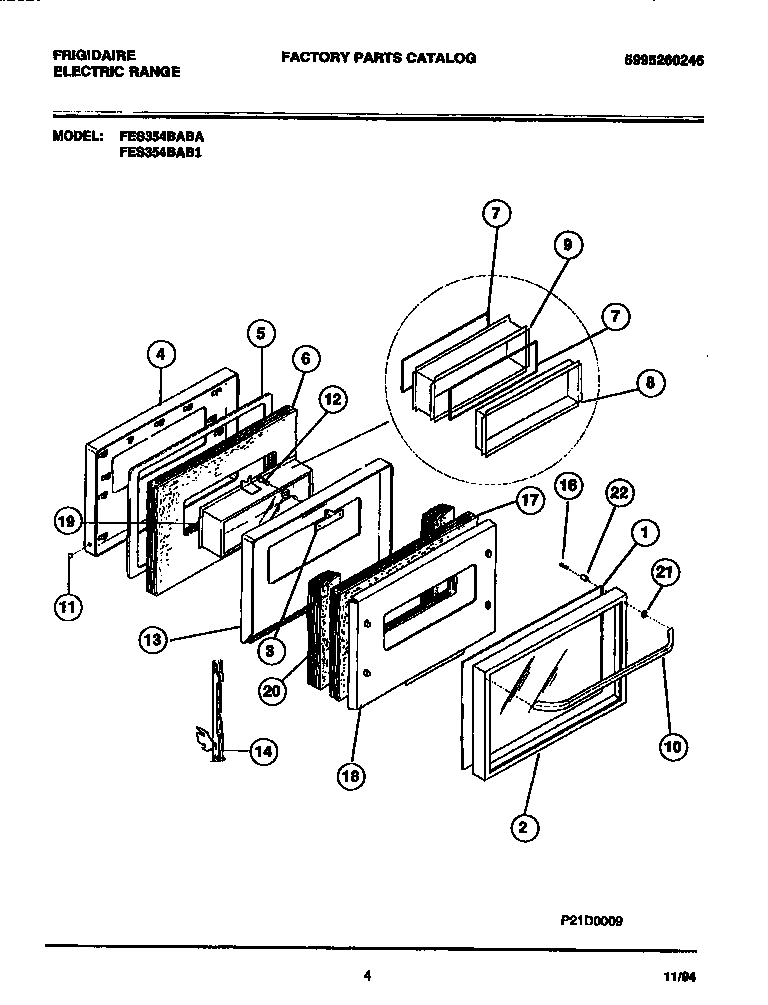

04 - DOOR
05 - BODY

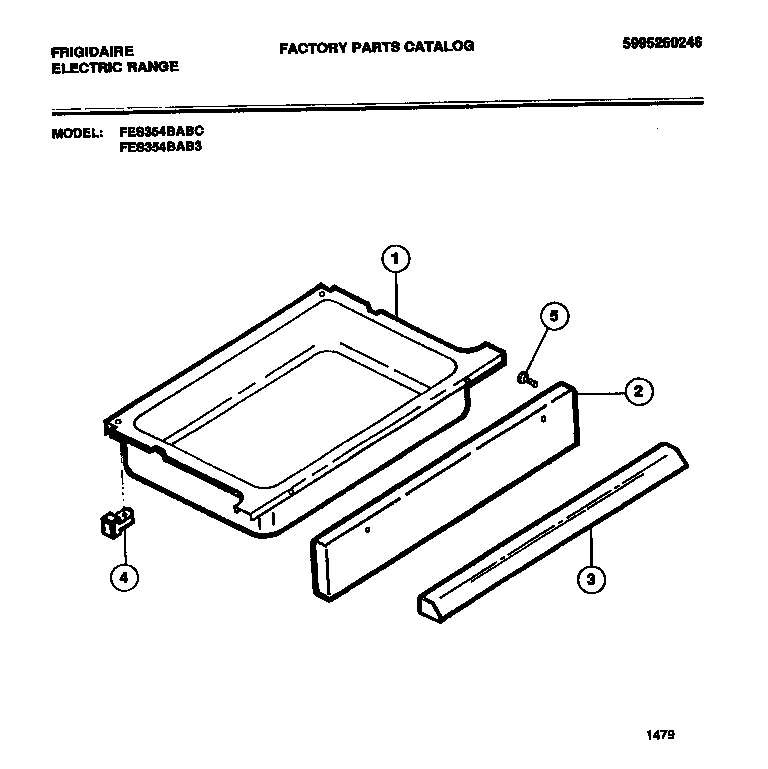

06 - DRAWER
Common parts from model Electrolux FES354BAB3 RANGE
*27840
ANTI-TIP KIT WCI 3203575 Contact Us For Availability
*27841
WCI 211896-1060 WCI 211896-1060 Contact Us For Availability
1
CENTER TRIM (4) (N0N-ILLUSTRATED) WCI 5303301461 Contact Us For Availability
1
WCI 5303300192 WCI 5303300192 Contact Us For Availability
1
WCI 5303293899 WCI 5303293899 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
WCI 5303300193 WCI 5303300193 Contact Us For Availability
2
WCI 5303300142 WCI 5303300142 Contact Us For Availability
2
PANEL DRAWER WCI 5303300151 Contact Us For Availability
3
WCI 5301167830 WCI 5301167830 Contact Us For Availability
3
WCI 5303293413 WCI 5303293413 Contact Us For Availability
3
HANDLE WCI 5303300154 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
SELECTOR SWITCH WCI 5303300189 Contact Us For Availability
4
MAIN TOP WCI 5303051802 Contact Us For Availability
4
WCI 5303300194 WCI 5303300194 Contact Us For Availability
4
PANEL-SIDE (2) WCI 5303300143 Contact Us For Availability
5
GASKET WCI 5303051704 Contact Us For Availability
5
LIGHT-SIGNAL SURFACE UNIT WCI 5303051533 Contact Us For Availability
5
BRACKET-HINGE WCI 5303305530 Contact Us For Availability
5
INSULATION-VENT TUBE WCI 3008673 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
PUSH ROD-SWITCH WCI 3051645 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 08007444 WCI 08007444 Contact Us For Availability
8
WCI 5303269564 WCI 5303269564 Contact Us For Availability
8
WCI 316039801 WCI 316039801 Contact Us For Availability
9
WCI 5303300179 WCI 5303300179 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
WCI 5303293414 WCI 5303293414 Contact Us For Availability
10
LENS-LIGHT WCI 5308006417 Contact Us For Availability
10
COOKTOP SUPPORT ROD WCI 3051554 Contact Us For Availability
10
WCI 5303305535 WCI 5303305535 Contact Us For Availability
10
SWITCH-DOOR LATCH WCI 5308003081 Contact Us For Availability
11
WCI 3051807 WCI 3051807 Contact Us For Availability
11
BRACKET, DOOR SWITCH WCI 3051643 Contact Us For Availability
12
WCI 5303286183 WCI 5303286183 Contact Us For Availability
13
LINER-OVER DOOR WCI 5303300196 Contact Us For Availability
13
WCI 5303300198 WCI 5303300198 Contact Us For Availability
14
KNOB & SKIRT-SELECTOR WCI 5303300191 Contact Us For Availability
14
WCI 5303210232 WCI 5303210232 Contact Us For Availability
15
OVEN BACK INSULATION WCI 5303051630 Contact Us For Availability
16
WCI 5303299481 WCI 5303299481 Contact Us For Availability
16
WIRING COVER WCI 5303051856 Contact Us For Availability
17
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
17
BACK-RANGE WCI 5303305534 Contact Us For Availability
18
WCI 5303300197 WCI 5303300197 Contact Us For Availability
19
WCI 5303300165 WCI 5303300165 Contact Us For Availability
19
WCI 5303269535 WCI 5303269535 Contact Us For Availability
20
KNOB-TIMER WCI 316029000 Contact Us For Availability
20
INSULATION-AIRWASH WCI 5303269530 Contact Us For Availability
20
WCI 3203574 WCI 3203574 Contact Us For Availability
21
WCI 5303299479 WCI 5303299479 Contact Us For Availability
21
TUBE-VENT ASSEMBLY WCI 3051773 Contact Us For Availability
22
SPACER-HANDLE MOUNTING WCI 5303212865 Contact Us For Availability
22
WCI 5303307197 WCI 5303307197 Contact Us For Availability
23
PLATE-FILLER WCI 3051827 Contact Us For Availability
24
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
25
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
26
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
27
WCI 5303300145 WCI 5303300145 Contact Us For Availability
29
DRAWER GLIDE WCI 3051654 Contact Us For Availability
30
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
30
WCI 5308015746 WCI 5308015746 Contact Us For Availability
31
WCI 5303307198 WCI 5303307198 Contact Us For Availability
32
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
32
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
33
WCI 5303300146 WCI 5303300146 Contact Us For Availability
34
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
38
RETAINER-LENS WCI 5303205904 Contact Us For Availability
39
BROILER GRILL WCI 5303293415 Contact Us For Availability
40
BROILER PAN WCI 5303292159 Contact Us For Availability
41
WCI 5303300202 WCI 5303300202 Contact Us For Availability
42
MOTOR BATCH ASSEMBLY WCI 5308015743 Contact Us For Availability
43
WCI 3051649 WCI 3051649 Contact Us For Availability
44
BRACKET LATCH WCI 3051647 Contact Us For Availability
45
WCI 3051648 WCI 3051648 Contact Us For Availability
48
WCI 3204825 WCI 3204825 Contact Us For Availability
49
WCI 3204817 WCI 3204817 Contact Us For Availability
50
WCI 5303300148 WCI 5303300148 Contact Us For Availability
51
WCI 5303280340 WCI 5303280340 Contact Us For Availability
52
RETAINER-DOOR WCI 3051810 Contact Us For Availability
53
WCI 5308012004 WCI 5308012004 Contact Us For Availability
54
WCI 5303280341 WCI 5303280341 Contact Us For Availability
× ![]()
