Model Whirlpool FES340VL1 ELECTRIC RANGE – Common Parts & Diagrams

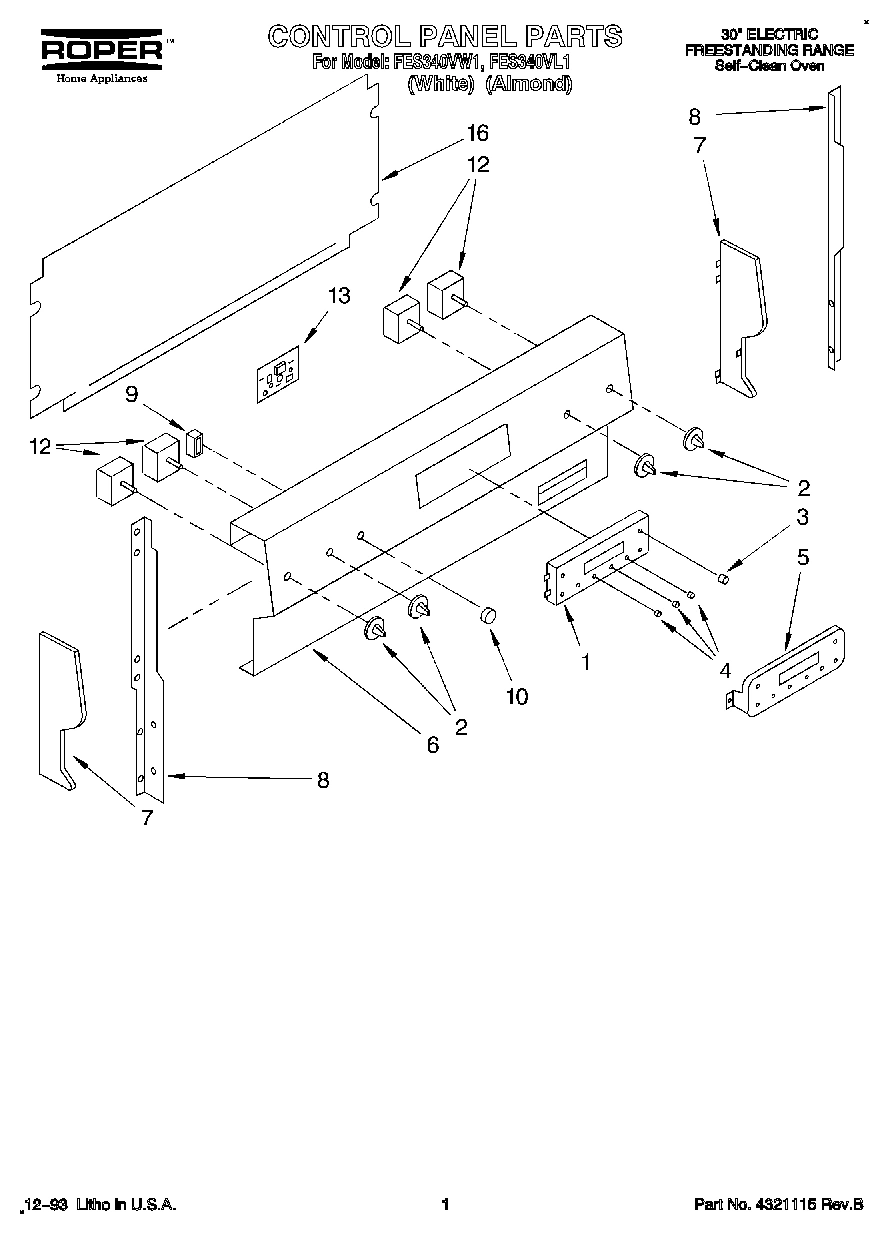

01 - CONTROL PANEL, LITERATURE

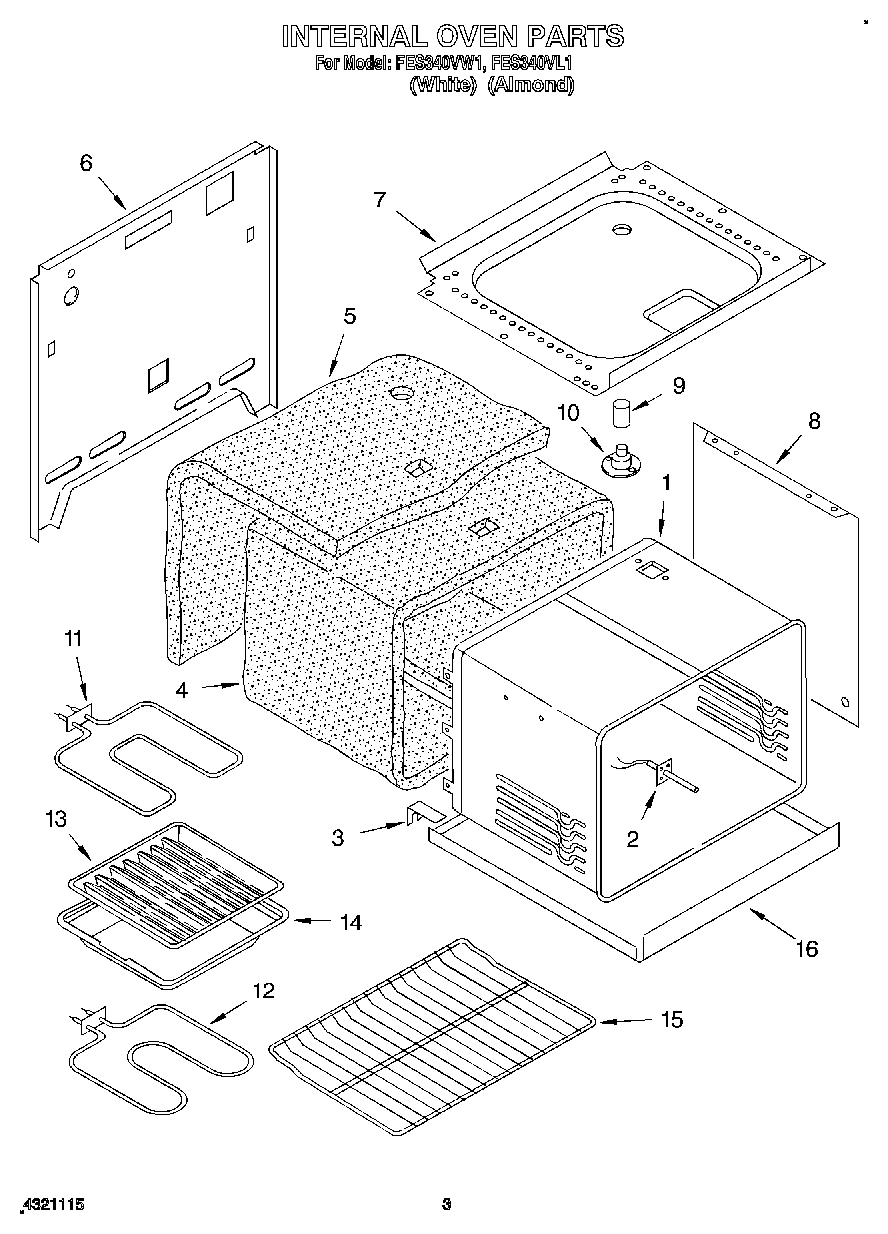

03 - INTERNAL OVEN

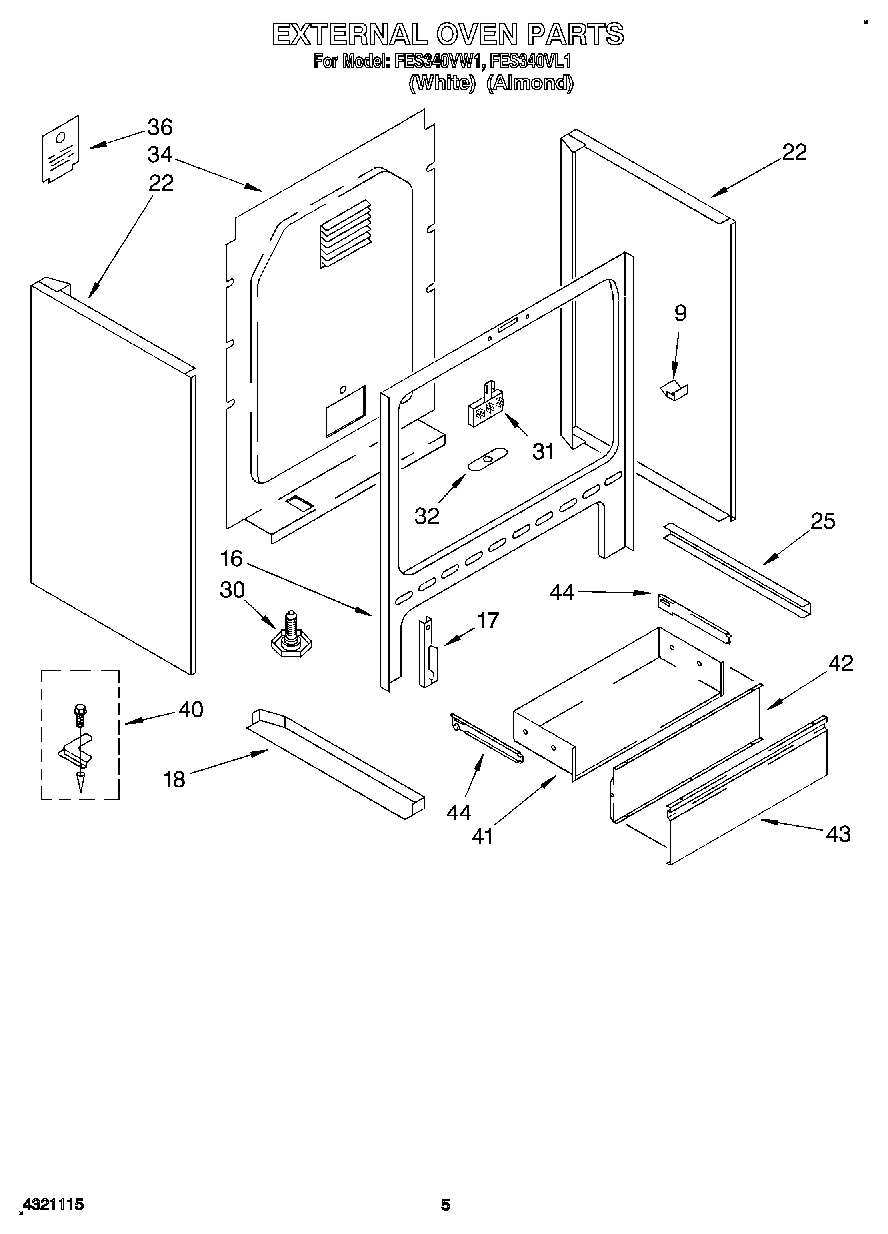

04 - EXTERNAL OVEN

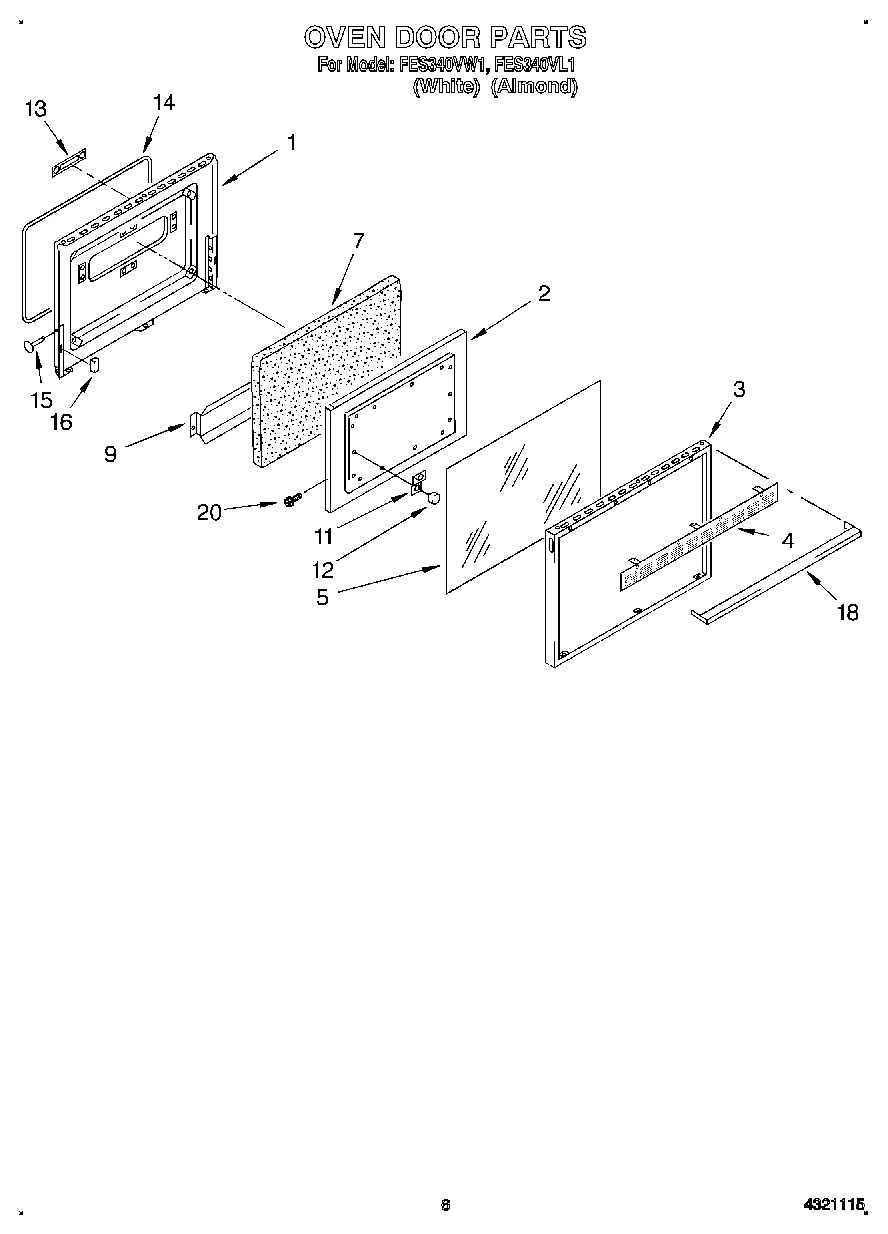

05 - OVEN DOOR

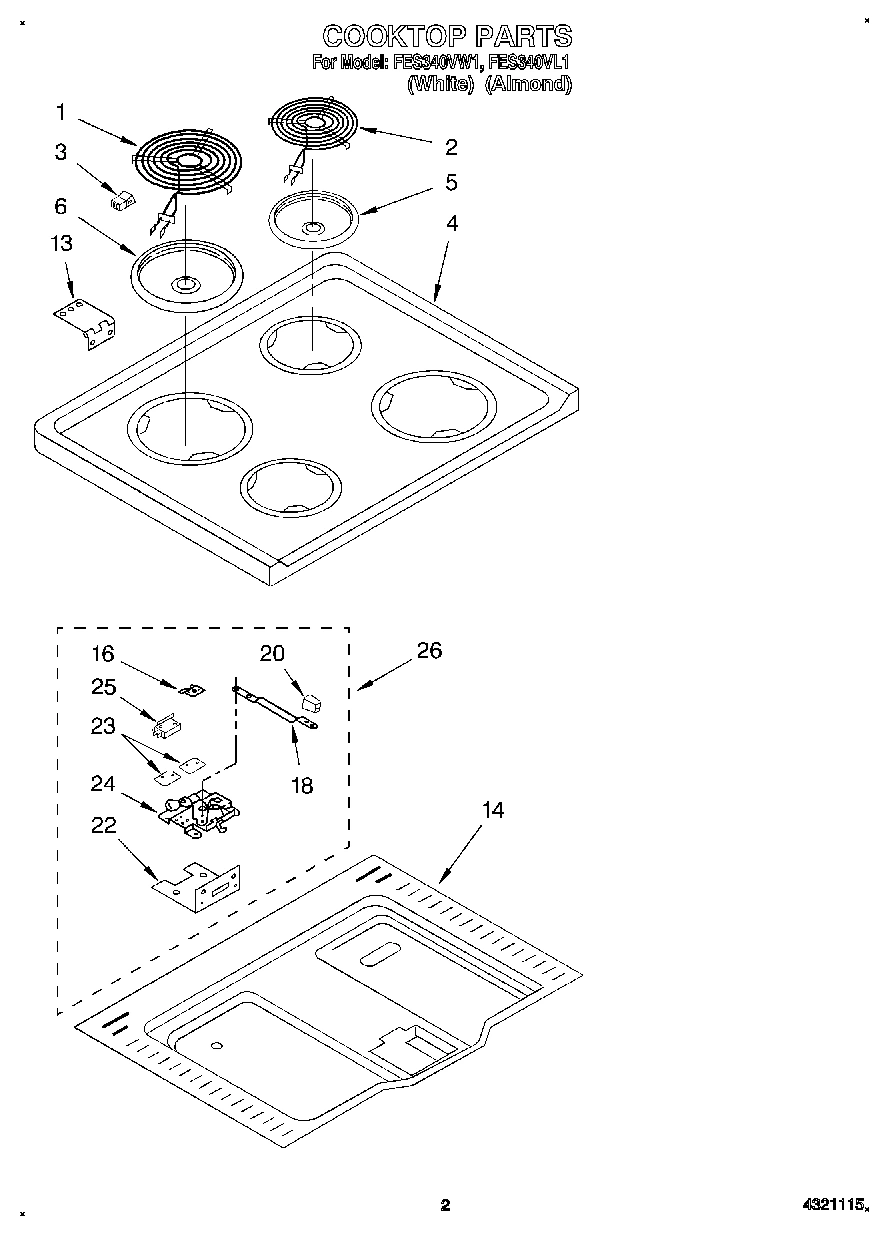

02 - COOKTOP
Common parts from model Whirlpool FES340VL1 ELECTRIC RANGE
Installation Guide WPL LIT4315757 Contact Us For Availability
Use & Care Manual WPL LIT4320354 Contact Us For Availability
1
Electric Range Control WPL 4320764 Contact Us For Availability
1
Shell, Oven WPL 4320987 Contact Us For Availability
1
Liner, Oven Door WPL 4320875 Contact Us For Availability
2
Knob, Control (4) WPL 4320988 Contact Us For Availability
2
Sensor, ERC WPL 4320777 Contact Us For Availability
2
Pad, Oven Door WPL 4320984 Contact Us For Availability
3
Knob, ERC WPL 4320702 Contact Us For Availability
3
Bracket, Shell WPL 4320330 Contact Us For Availability
3
Frame, Oven Door WPL 4320818 Contact Us For Availability
4
Button, Set (Contains 8 pcs) WPL 4362030 Contact Us For Availability
4
Trim, Door WPL 4320849 Contact Us For Availability
4
Cooktop (White) WPL 4320821 Contact Us For Availability
4
Cooktop (Almond) WPL 4320822 Contact Us For Availability
5
Glass, Lens WPL 4320852 Contact Us For Availability
5
Insulation, Top & Rear WPL 4320838 Contact Us For Availability
5
Glass, Door WPL 4320866 Contact Us For Availability
6
Control Panel (White) WPL 4320826 Contact Us For Availability
6
Control Panel (Almond) WPL 4320827 Contact Us For Availability
6
Retainer, Rear WPL 4321155 Contact Us For Availability
7
End Cap L.H. WPL 4320744 Contact Us For Availability
7
End Cap R.H. WPL 4320745 Contact Us For Availability
7
Baffle, Drip WPL 4362917 Contact Us For Availability
7
Insulation WPL 4315673 Contact Us For Availability
8
Support, Backguard (L.H.) WPL 4362924 Contact Us For Availability
8
Support, Backguard (R.H.) WPL 4362925 Contact Us For Availability
8
Retainer, Side (2) WPL 4362922 Contact Us For Availability
9
Light, Indicator WPL 786306 Contact Us For Availability
9
Tube, Vent WPL 4362523 Contact Us For Availability
9
Cover, Chip WPL 4320934 Contact Us For Availability
9
Shield, Heat WPL 4320304 Contact Us For Availability
10
Lens, Indicator WPL 4315798 Contact Us For Availability
10
Eliminator, Smoke WPL 4320831 Contact Us For Availability
11
Bracket, Support WPL 786425 Contact Us For Availability
12
Switch, Infinite (4) WPL 4315248 Contact Us For Availability
12
Bumper, Rubber (4) WPL 786526 Contact Us For Availability
13
Board, Circuit WPL 4320808 Contact Us For Availability
13
Grid, Broiler WPL 4362695 Contact Us For Availability
13
Plate, Latch WPL 786671 Contact Us For Availability
13
Hinge, Cooktop (R.H.) WPL 4320949 Contact Us For Availability
13
Hinge, Cooktop (L.H.) WPL 4320950 Contact Us For Availability
14
Pan, Broiler WPL 4315109 Contact Us For Availability
14
Gasket, Door WPL 4320302 Contact Us For Availability
14
Bottom, Burner Box WPL 4320494 Contact Us For Availability
15
Rack, Oven (2) WPL 786347 Contact Us For Availability
15
Pin, Door Hinge WPL 786428 Contact Us For Availability
16
Cover, Backguard WPL 4320832 Contact Us For Availability
16
Retainer, Bottom WPL 4320839 Contact Us For Availability
16
Frame, Front WPL 4320829 Contact Us For Availability
16
Bumper, Rubber (2) WPL 4179237 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
17
Hinge, Oven Door (R.H.) WPL 786374 Contact Us For Availability
17
Hinge, Oven Door (L.H.) WPL 786375 Contact Us For Availability
18
Brace, Bottom (L.H.) WPL 4362935 Contact Us For Availability
18
Brace, Bottom (Right) WPL 4362956 Contact Us For Availability
18
Handle, Door WPL 4320802 Contact Us For Availability
18
Handle, Latch WPL 4320835 Contact Us For Availability
20
Knob, Latch WPL 4320836 Contact Us For Availability
22
Panel, Side (White) WPL 4363273 Contact Us For Availability
22
Panel, Side (Almond) WPL 4363274 Contact Us For Availability
22
Bracket, Latch WPL 4315774 Contact Us For Availability
23
Insulator, Switch WPL 786380 Contact Us For Availability
24
Latch, Oven Door WPL 4320837 Contact Us For Availability
25
Track, Drawer (R.H) WPL 4315768 Contact Us For Availability
25
Track, Drawer (L.H.) WPL 4315769 Contact Us For Availability
25
Switch, Latch WPL 786669 Contact Us For Availability
26
Latch Assembly (Complete) WPL 4320834 Contact Us For Availability
30
Screw, Leveling (4) WPL 4315777 Contact Us For Availability
31
Block, Terminal WPL 4315225 Contact Us For Availability
32
Plate, Inlet WPL 4320523 Contact Us For Availability
34
Cover, Rear WPL 4320936 Contact Us For Availability
36
Cover, Access WPL 4320964 Contact Us For Availability
40
Anti Tip Kit WPL 4315756 Contact Us For Availability
41
Drawer, Storage WPL 4320306 Contact Us For Availability
42
liner, drawer WPL 4320307 Contact Us For Availability
43
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
43
Panel, Drawer (White) WPL 786522 Contact Us For Availability
44
Runner, Drawer (L.H.) WPL 4320308 Contact Us For Availability
44
Runner, Drawer (R.H.) WPL 4320309 Contact Us For Availability
× ![]()
