Model Electrolux FES300WCDC RANGE – Common Parts & Diagrams

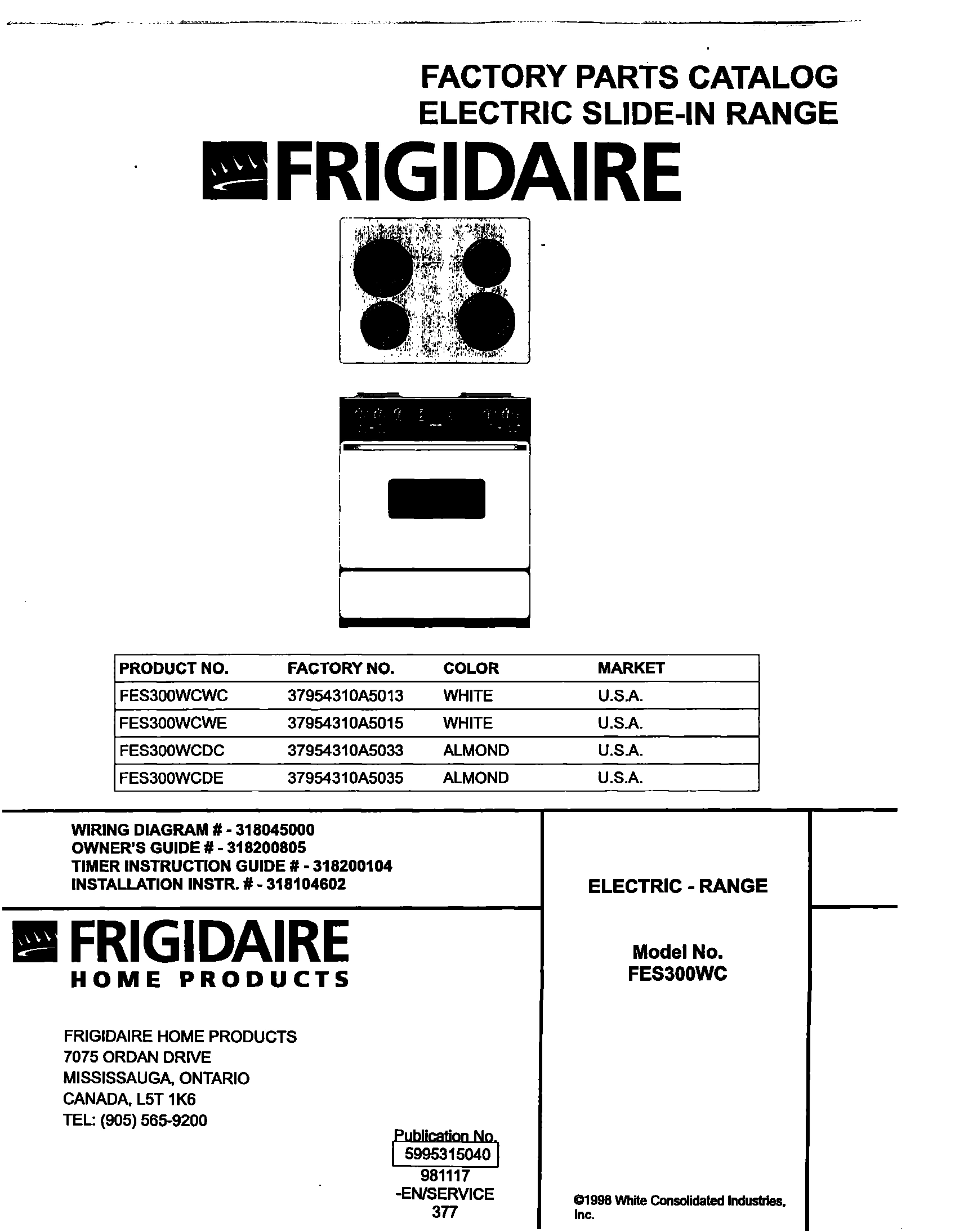

01 - COVER

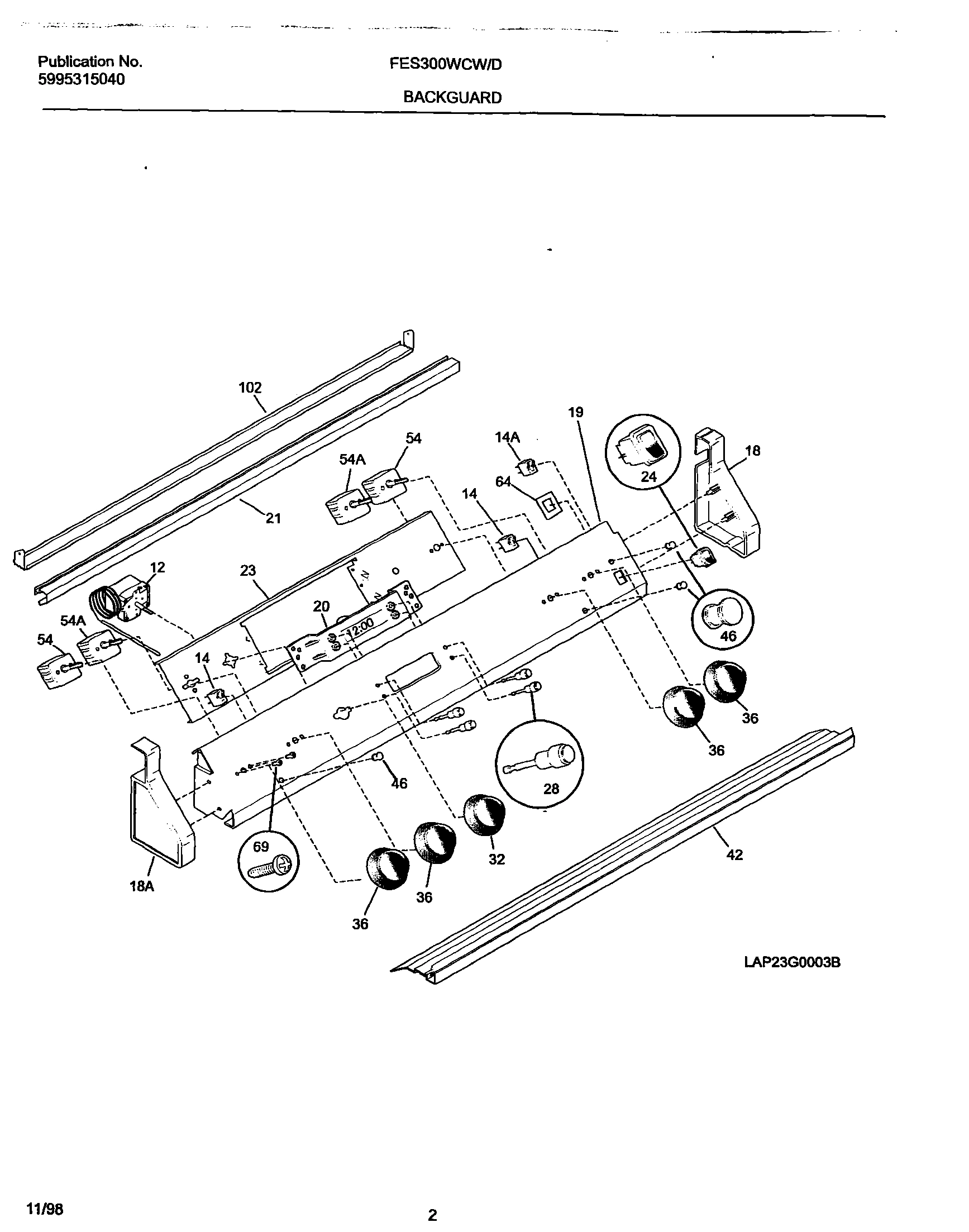

03 - BACKGUARD

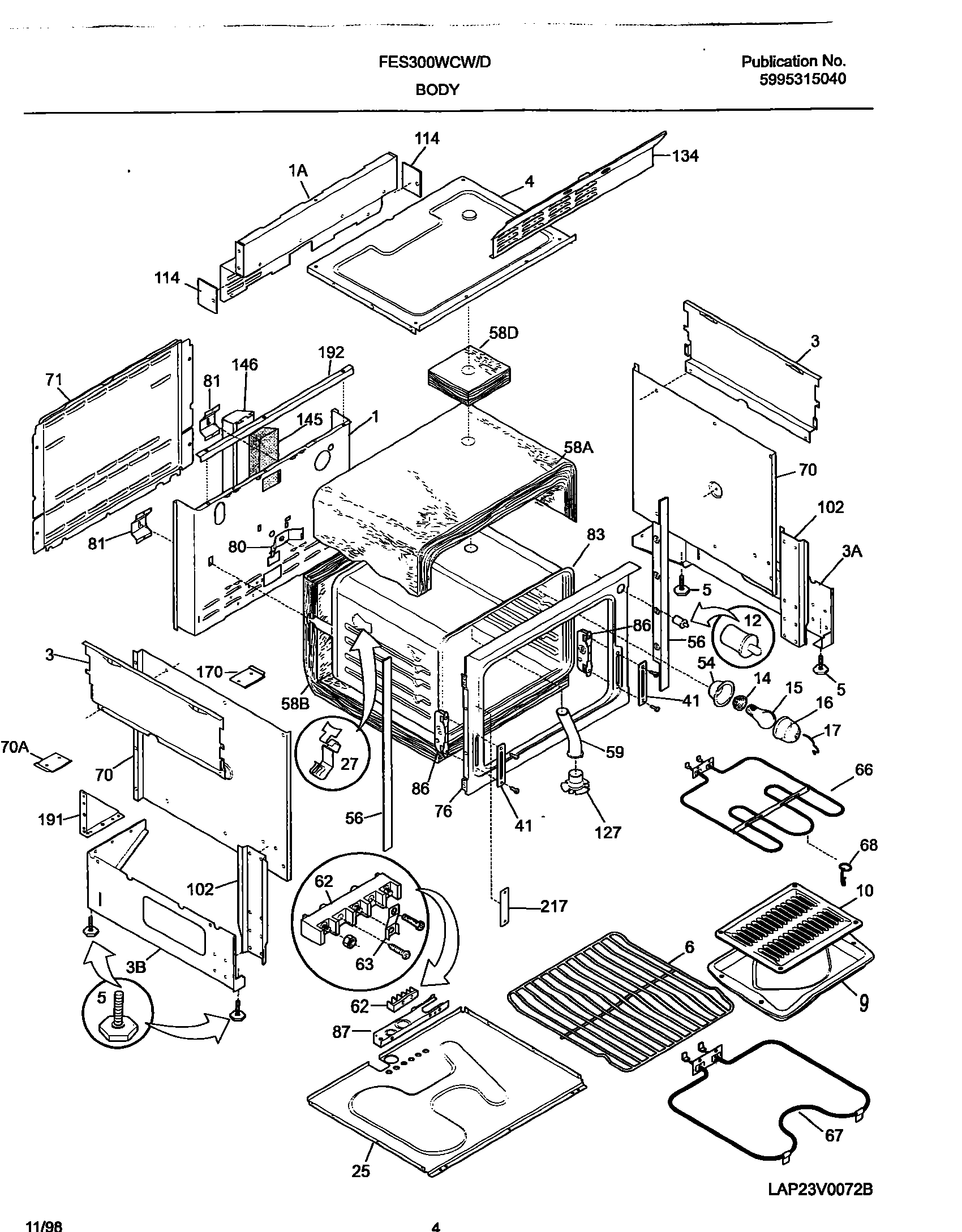

05 - BODY

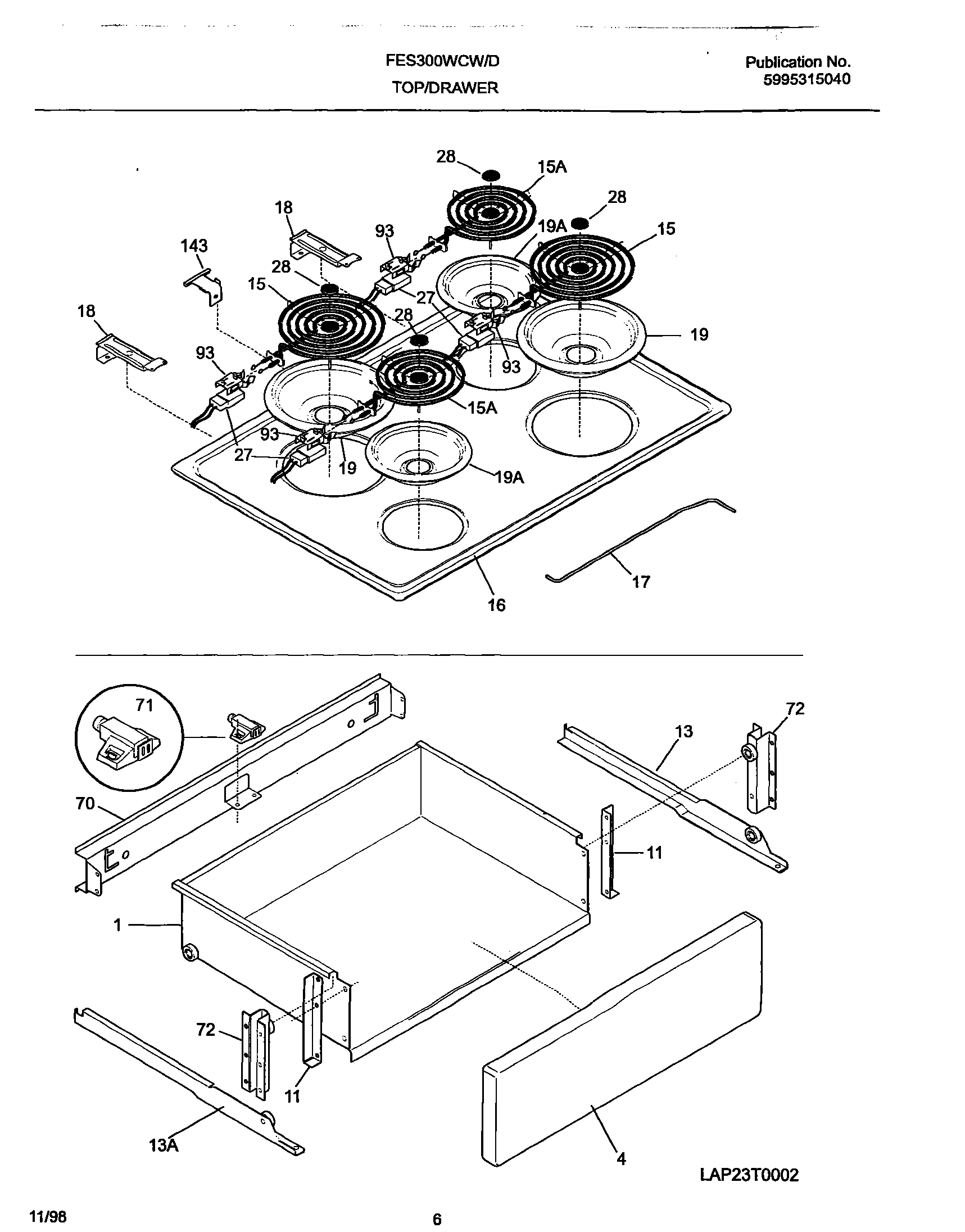

07 - TOP/DRAWER

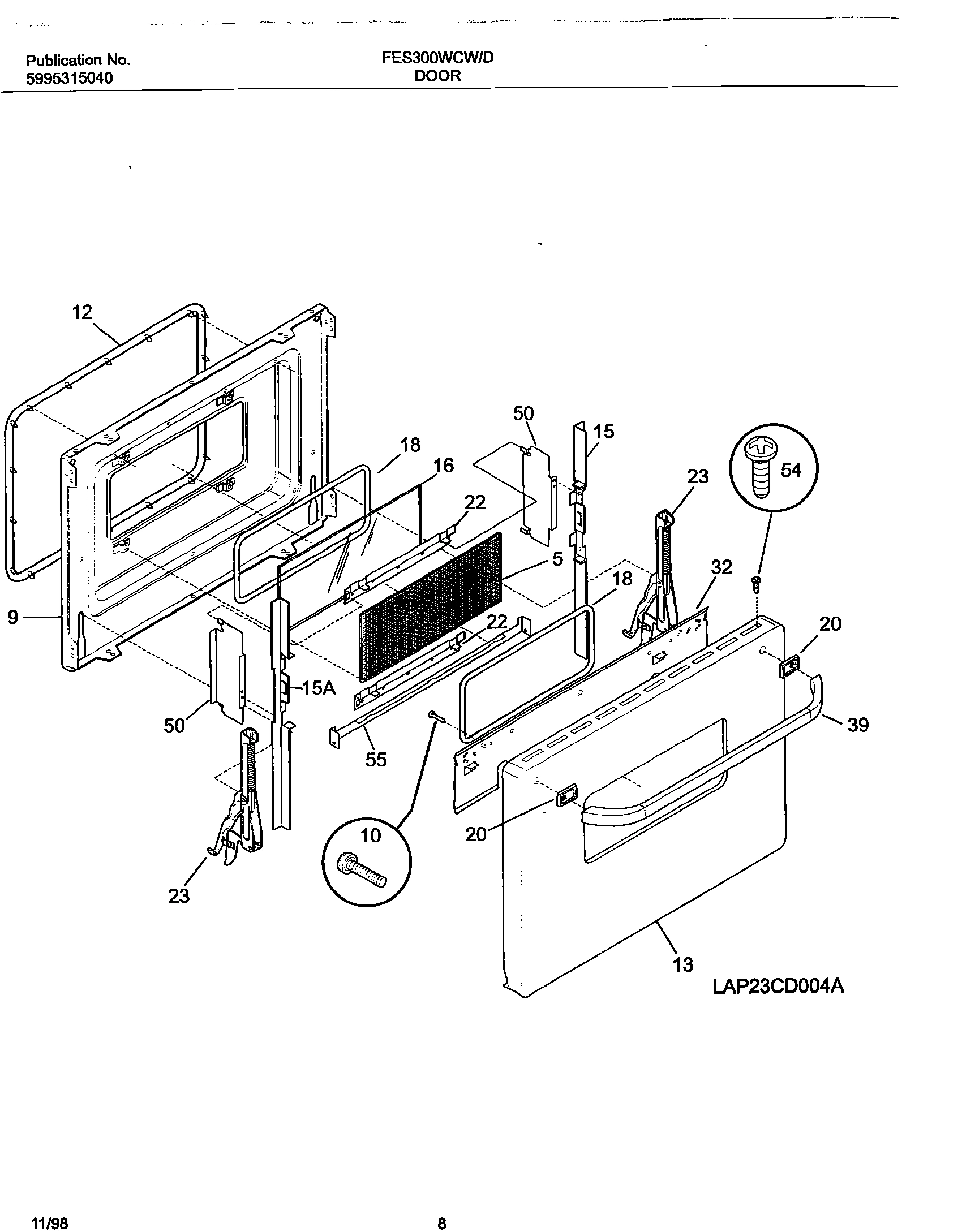

08 - DOOR

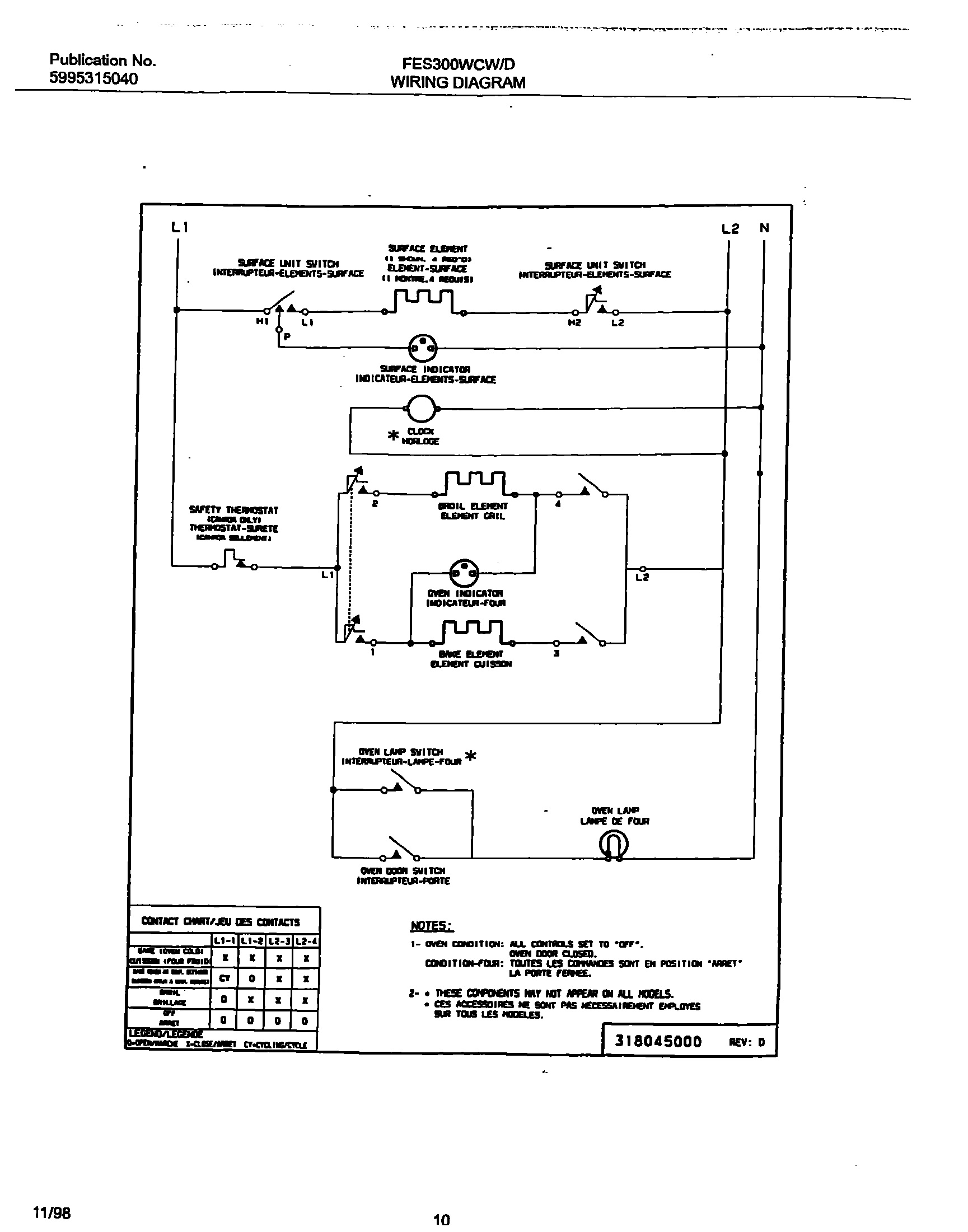

10 - WIRING

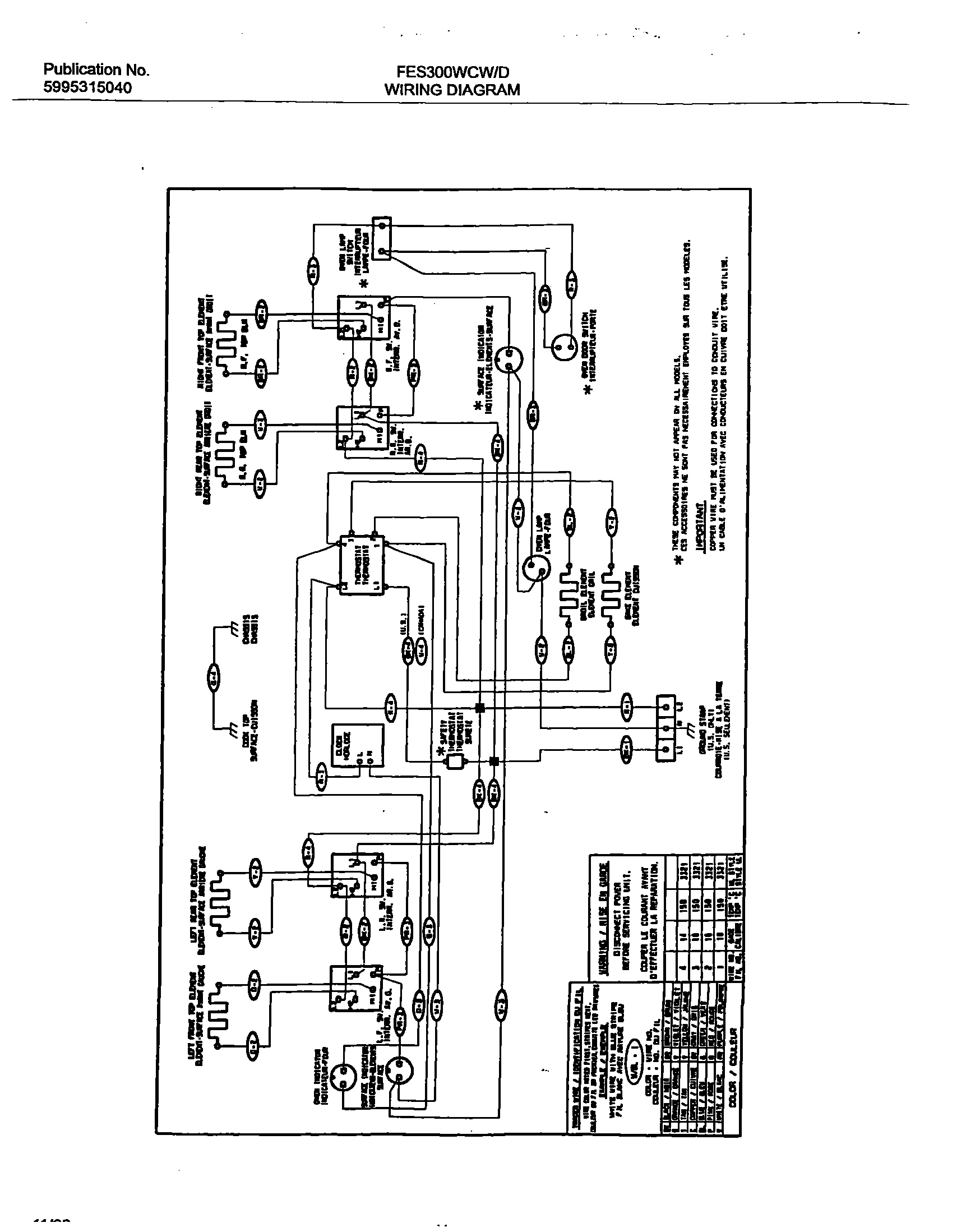

11 - WIRING
Common parts from model Electrolux FES300WCDC RANGE
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
1A
WCI 5303311161 WCI 5303311161 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3A
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
3B
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
4
WCI 318133400 WCI 318133400 Contact Us For Availability
4
WCI 5303311131 WCI 5303311131 Contact Us For Availability
5
WCI 318175500 WCI 318175500 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303310508 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318112910 WCI 318112910 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
SCREW WCI 5303324305 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
12
WCI 5301314211 WCI 5301314211 Contact Us For Availability
12
WCI 318053301 WCI 318053301 Contact Us For Availability
13
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13
WCI 318009027 WCI 318009027 Contact Us For Availability
13A
WCI 5303311130 WCI 5303311130 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 5303311136 WCI 5303311136 Contact Us For Availability
15A
WCI 5303311137 WCI 5303311137 Contact Us For Availability
16
WCI 5303300167 WCI 5303300167 Contact Us For Availability
16
WCI 5303310507 WCI 5303310507 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
18
BRACKET-HINGE WCI 5303305530 Contact Us For Availability
18
WCI 5303310505 WCI 5303310505 Contact Us For Availability
20
SPACER-HANDLE,ALMOND WCI 318014302 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
HINGE ASSY WCI 5303310506 Contact Us For Availability
25
WCI 5303311141 WCI 5303311141 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
32
DEFLECTOR-HANDLE WCI 318057202 Contact Us For Availability
39
WCI 316091120 WCI 316091120 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
46
WCI 5308006417 WCI 5308006417 Contact Us For Availability
50
STRENCHENING GLASS WCI 318144900 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
54A
SWITCH-SURFACE UNIT WCI 5303311186 Contact Us For Availability
55
BRACKET-GLASS WCI 318122300 Contact Us For Availability
56
WCI 318002603 WCI 318002603 Contact Us For Availability
58A
WCI 5303310519 WCI 5303310519 Contact Us For Availability
58B
WCI 5303310516 WCI 5303310516 Contact Us For Availability
58D
INSULATION WCI 3008673 Contact Us For Availability
59
WCI 5303311139 WCI 5303311139 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 318124101 WCI 318124101 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
93
SUPPORT TERMINAL BLOCK WCI 318122500 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
134
WCI 5303319029 WCI 5303319029 Contact Us For Availability
143
BRACKET-HINGE WCI 5303300148 Contact Us For Availability
145
WCI 5303311108 WCI 5303311108 Contact Us For Availability
146
WCI 318038500 WCI 318038500 Contact Us For Availability
170
WCI 3203576 WCI 3203576 Contact Us For Availability
170A
WCI 3203575 WCI 3203575 Contact Us For Availability
191
BRACKET WCI 5303304030 Contact Us For Availability
192
WCI 318042600 WCI 318042600 Contact Us For Availability
217
WCI 316042301 WCI 316042301 Contact Us For Availability
NI
WCI 5303325173 WCI 5303325173 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
× ![]()
