Model Electrolux FES300WCD1 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

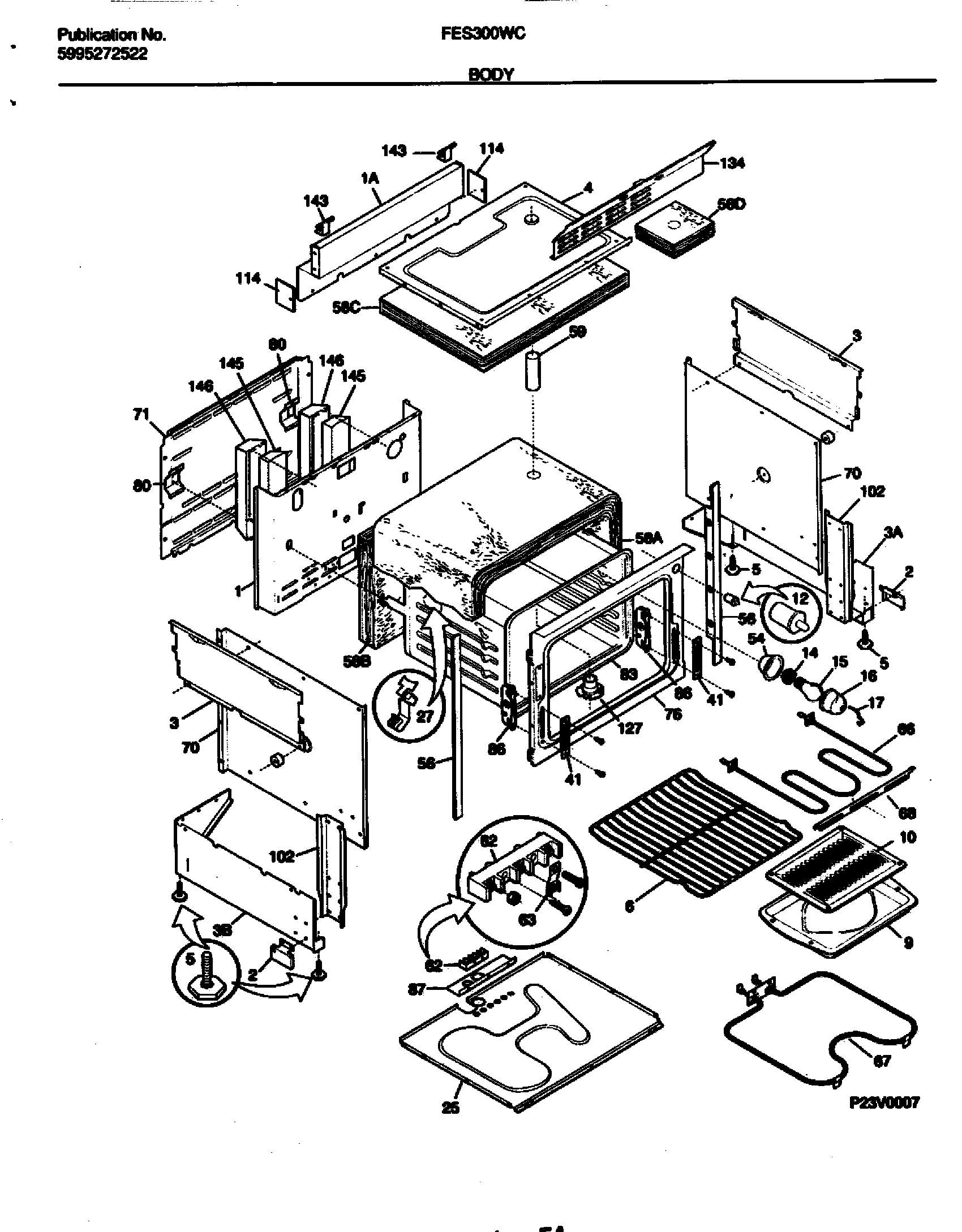

05 - BODY

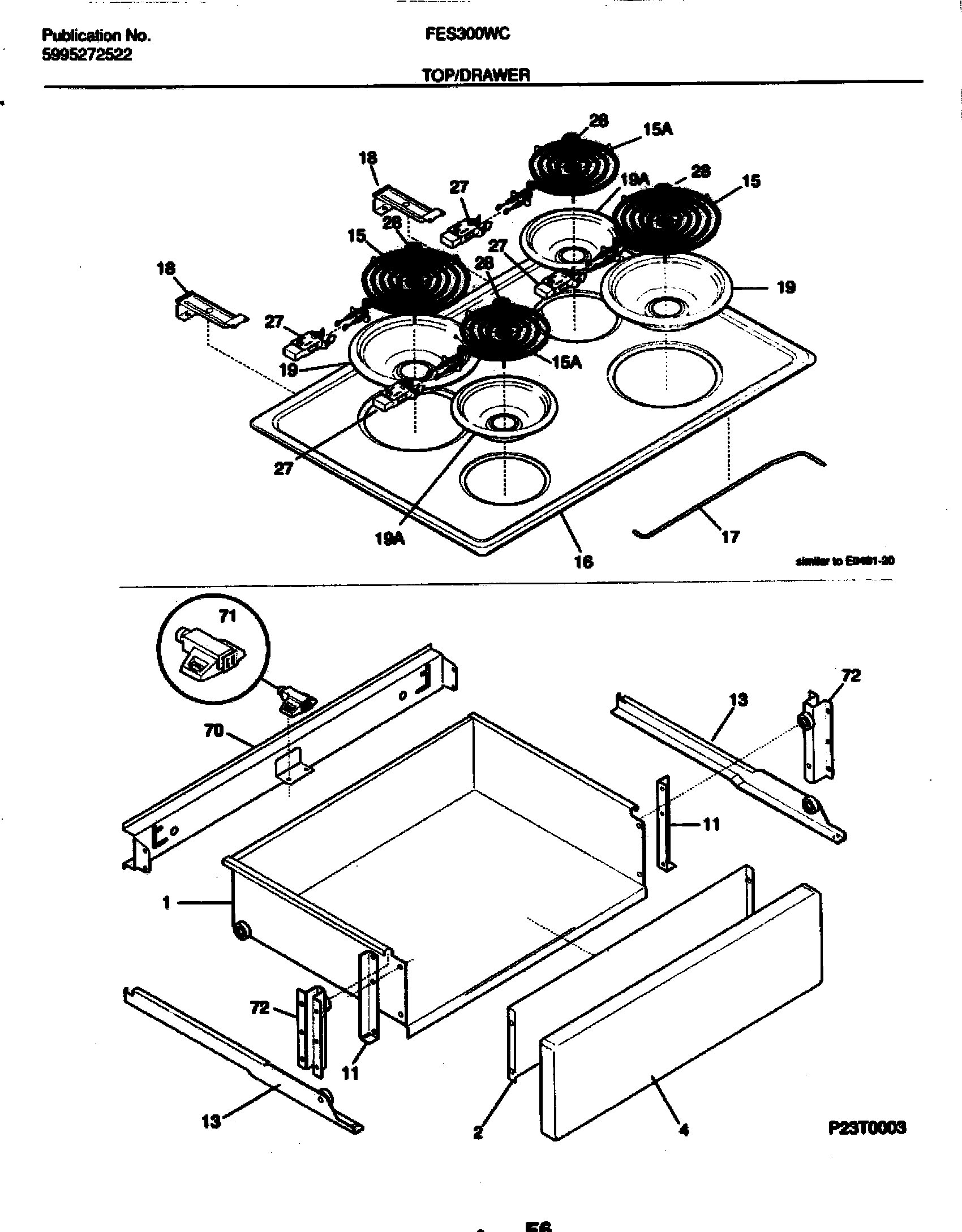

07 - TOP/DRAWER

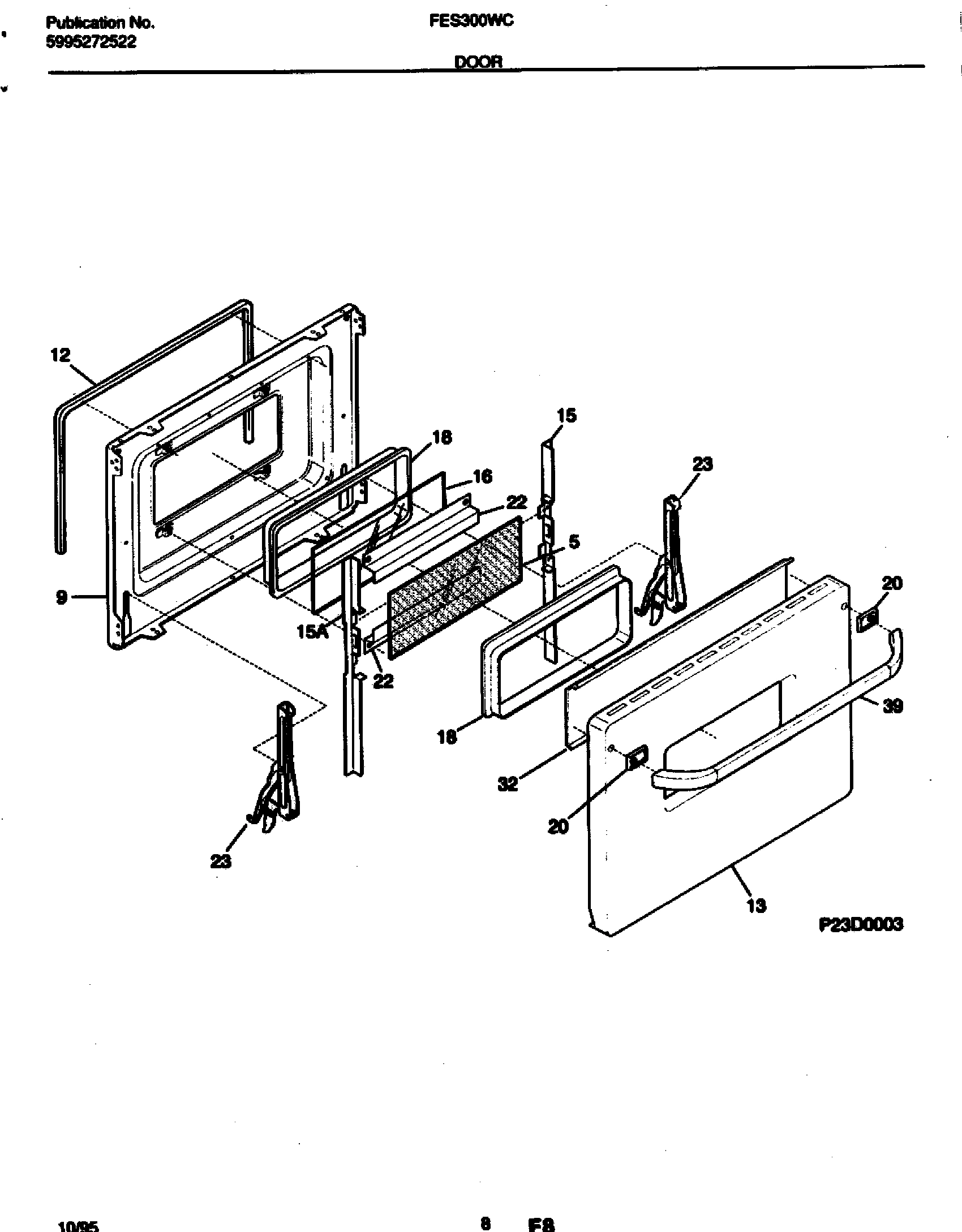

09 - DOOR

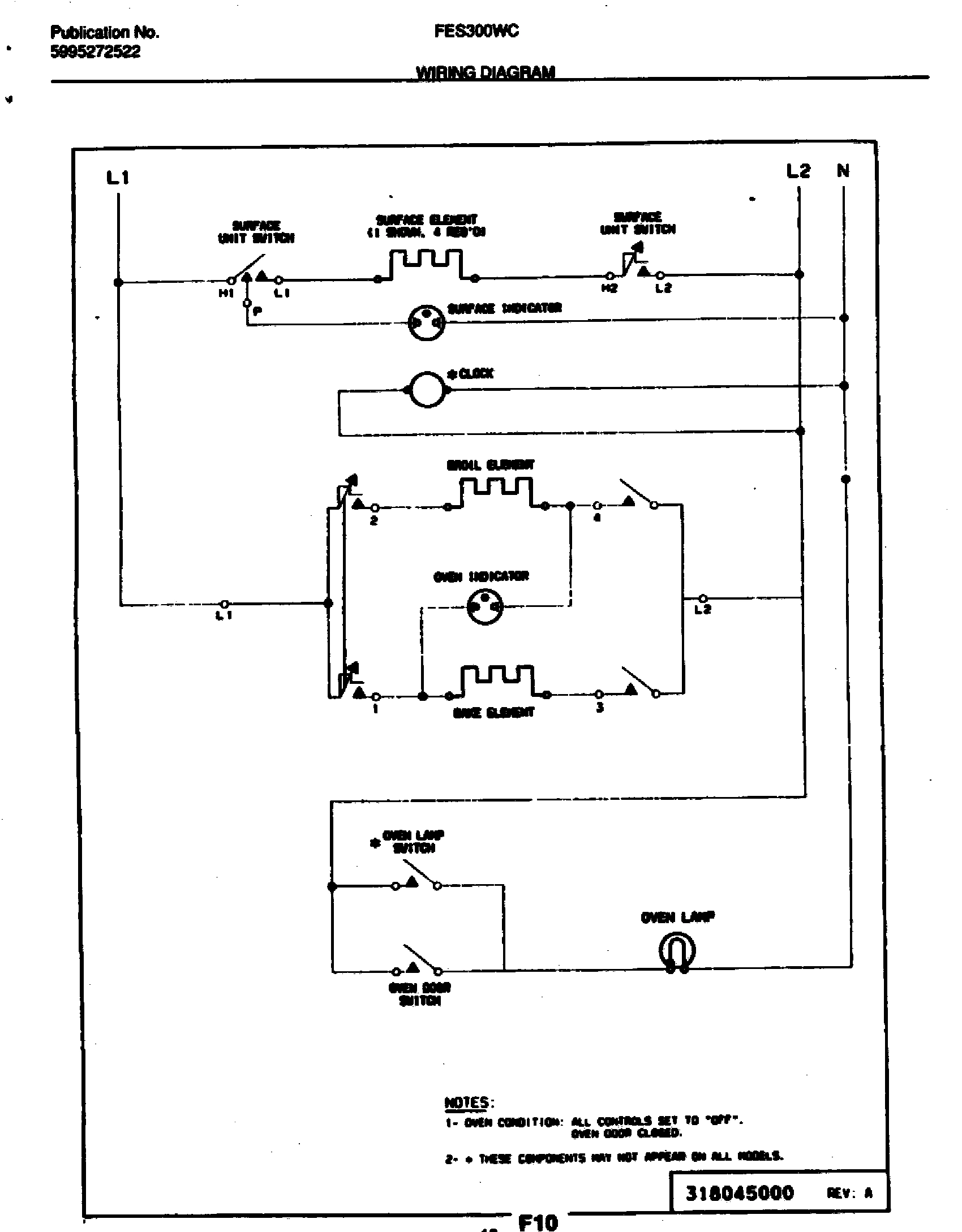

10 - WIRING DIAGRAM
Common parts from model Electrolux FES300WCD1 RANGE
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
1A
PANEL-BACK, UPPER WCI 5303286183 Contact Us For Availability
2
WCI 08012736 WCI 08012736 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3A
WCI 5303280349 WCI 5303280349 Contact Us For Availability
3B
WCI 5303280351 WCI 5303280351 Contact Us For Availability
4
WCI 5303311138 WCI 5303311138 Contact Us For Availability
4
WCI 5303311131 WCI 5303311131 Contact Us For Availability
5
SCREW-LEVELING WCI 318175510 No Longer Available
5
GLASS-OVEN DOOR, INNER WCI 5303310508 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
9
WCI 5303292159 WCI 5303292159 Contact Us For Availability
9
WCI 5303311133 WCI 5303311133 Contact Us For Availability
10
WCI 5303296872 WCI 5303296872 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
12
WCI 5301314211 WCI 5301314211 Contact Us For Availability
12
WCI 5303311134 WCI 5303311134 Contact Us For Availability
13
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13
WCI 5303311130 WCI 5303311130 Contact Us For Availability
13
WCI 318009002 WCI 318009002 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 5303311136 WCI 5303311136 Contact Us For Availability
15A
WCI 5303311137 WCI 5303311137 Contact Us For Availability
16
WCI 5303300167 WCI 5303300167 Contact Us For Availability
16
WCI 5303310507 WCI 5303310507 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
18
WCI 5303305530 WCI 5303305530 Contact Us For Availability
18
WCI 5303310505 WCI 5303310505 Contact Us For Availability
19
WCI 5303311121 WCI 5303311121 Contact Us For Availability
20
WCI 316065400 WCI 316065400 Contact Us For Availability
20
SPACER-HANDLE, SMALL OVEN, (2) WCI 5303310504 Contact Us For Availability
21
TRIM-BACKGUARD, TOP WCI 5303300164 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 318015001 WCI 318015001 Contact Us For Availability
23
HINGE ASSY WCI 5303310506 Contact Us For Availability
25
WCI 5303311141 WCI 5303311141 Contact Us For Availability
28
WCI 5303311122 WCI 5303311122 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
32
WCI 318016306 WCI 318016306 Contact Us For Availability
32
WCI 5303310509 WCI 5303310509 Contact Us For Availability
36
KNOB-CONTROL, (4) WCI 5303299751 Contact Us For Availability
39
HANDLE-DOOR, ALMOND, OVEN WCI 5303305532 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
TRIM-VENT WCI 5303300165 Contact Us For Availability
46
WCI 5303271239 WCI 5303271239 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318002603 WCI 318002603 Contact Us For Availability
58A
WCI 5303310519 WCI 5303310519 Contact Us For Availability
58B
WCI 5303310516 WCI 5303310516 Contact Us For Availability
58D
INSULATION-BAFFLE, OVEN DOOR WCI 3008673 Contact Us For Availability
59
WCI 5303311139 WCI 5303311139 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 5303311140 WCI 5303311140 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
OVEN-LINER, COMP WCI 5303310523 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
WCI 5303311146 WCI 5303311146 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
134
WCI 316039801 WCI 316039801 Contact Us For Availability
143
BRACKET-HINGE WCI 5303300148 Contact Us For Availability
145
WCI 318038500 WCI 318038500 Contact Us For Availability
146
WCI 5303311108 WCI 5303311108 Contact Us For Availability
NI
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
NI
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
× ![]()
