Model Electrolux FES300WADC RANGE – Common Parts & Diagrams

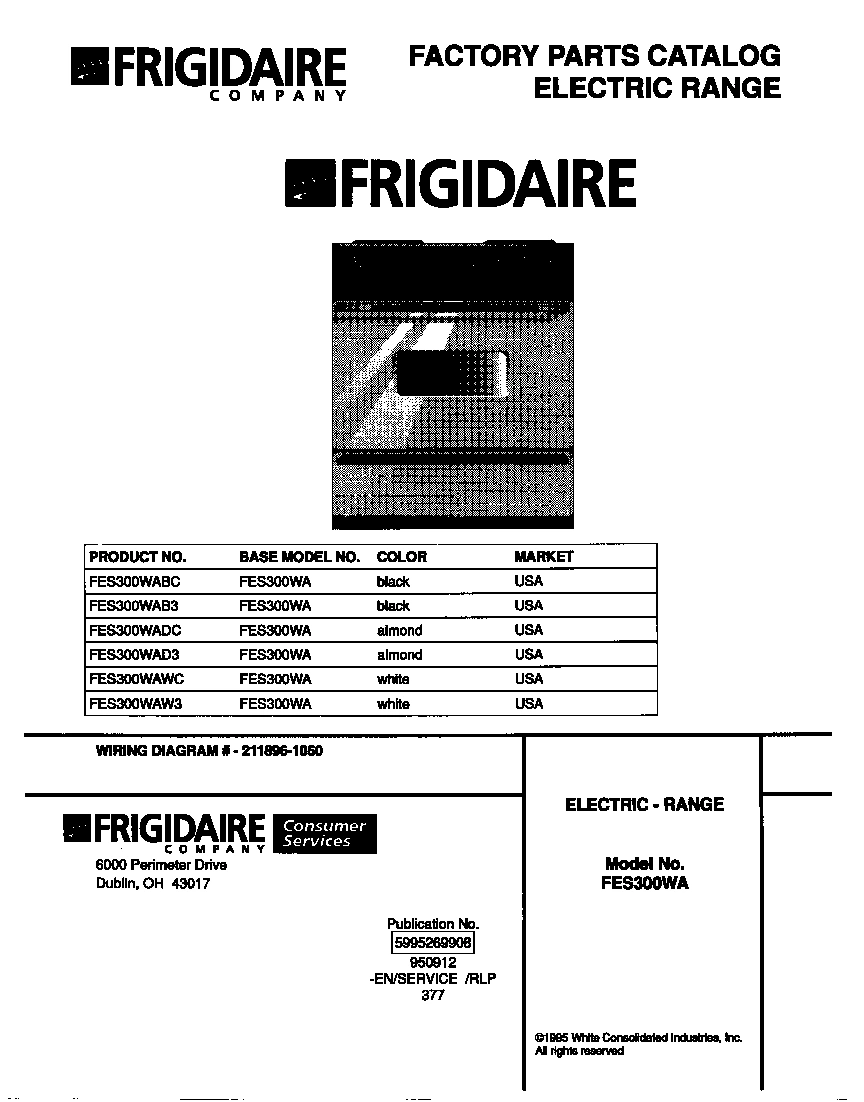

01 - COVER

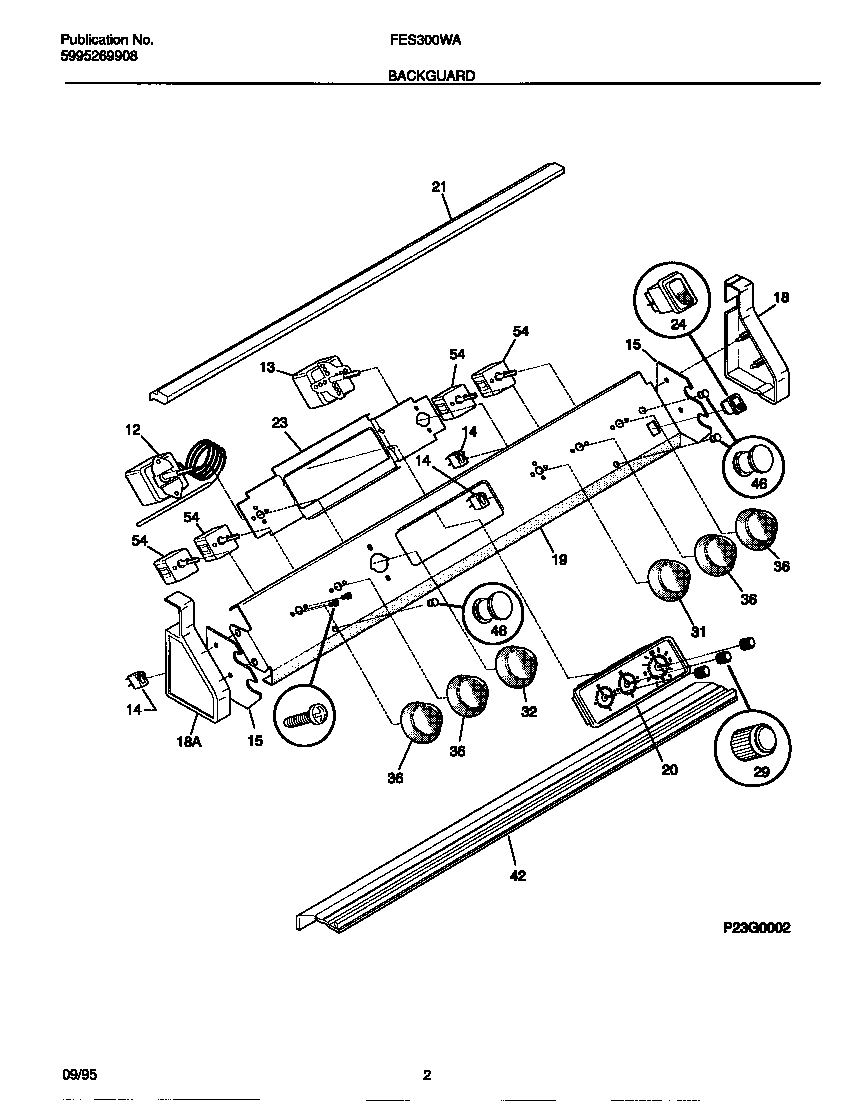

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux FES300WADC RANGE
*80760
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
*80761
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
*80763
SCREW WCI 08002848 Contact Us For Availability
*80764
RETAINER-WEIGHT WCI 5303280340 Contact Us For Availability
*80765
WCI 5303311108 WCI 5303311108 Contact Us For Availability
*80766
SCREW-HANDLE WCI 5303300172 Contact Us For Availability
1
PANEL-BACK, UPPER WCI 5303286183 Contact Us For Availability
1
PANEL-BACK WCI 5303305534 Contact Us For Availability
1
DRAWER-UTILITY WCI 5308011051 Contact Us For Availability
2
WCI 08012736 WCI 08012736 Contact Us For Availability
3
WCI 5303280349 WCI 5303280349 Contact Us For Availability
3
WCI 5303280351 WCI 5303280351 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
4
BURNER BOX WCI 5303293414 Contact Us For Availability
4
WCI 5303300150 WCI 5303300150 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5301325512 Contact Us For Availability
6
SHIELD-INSULATION WCI 3017200 Contact Us For Availability
7
GLIDE-DRAWER, REAR WCI 5303209487 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303284325 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303293898 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 08015948 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 5308003268 Contact Us For Availability
13
PANEL-OVEN DOOR, ALMOND WCI 5303300177 Contact Us For Availability
14B
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
RETAINER-GLASS, (2) WCI 3205109 Contact Us For Availability
16
WCI 5303300167 WCI 5303300167 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5301325511 Contact Us For Availability
17
RETAINER-GLASS WCI 5303205904 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
18
SEAL WINDOW WCI 3051574 Contact Us For Availability
18
WCI 5303305530 WCI 5303305530 Contact Us For Availability
20
SPACER-HANDLE WCI 5303305533 Contact Us For Availability
21
TRIM-BACKGUARD, TOP WCI 5303300164 Contact Us For Availability
22
WCI 5303311106 WCI 5303311106 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
23
HINGE-OVEN DOOR, (2) WCI 5308014248 Contact Us For Availability
24
SWITCH-LIGHT/LAMP WCI 316005600 Contact Us For Availability
25
SHIELD-HEAT WCI 5303300145 Contact Us For Availability
29
WCI 316029000 WCI 316029000 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
30
BRACKET-MAIN TOP WCI 5303293900 Contact Us For Availability
31
KNOB-SELECTOR WCI 5303300163 Contact Us For Availability
32
KNOB-THERMOSTAT WCI 5303300162 Contact Us For Availability
36
KNOB-CONTROL, (4) WCI 5303299751 Contact Us For Availability
39
HANDLE-DRAWER, ALMOND WCI 5303300153 Contact Us For Availability
39
HANDLE-DOOR, ALMOND, OVEN WCI 5303305532 Contact Us For Availability
42
TRIM-VENT WCI 5303300165 Contact Us For Availability
46
LENS-LIGHT WCI 5303271239 Contact Us For Availability
54
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
56
TRIM-OVEN FRONT WCI 5303300146 Contact Us For Availability
58
INSULATION-BAFFLE, OVEN DOOR WCI 3008673 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3051521 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303300144 Contact Us For Availability
59
TUBE-OVEN VENT WCI 08012254 Contact Us For Availability
63
PLATE-GROUNDING WCI 5303310517 Contact Us For Availability
68
SUPPORT-ELEMENT WCI 5303300179 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
WCI 5303311107 WCI 5303311107 Contact Us For Availability
77A
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77B
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
81
SPACER-BODYSIDE WCI 3051653 Contact Us For Availability
83
LINER-OVEN ASSY WCI 5303293899 Contact Us For Availability
87
BRACKET-CABLE MTG WCI 3203574 Contact Us For Availability
102
SUPPORT-OVEN FRONT WCI 3051776 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
134
WCI 316039801 WCI 316039801 Contact Us For Availability
143
BRACKET-HINGE WCI 5303300148 Contact Us For Availability
× ![]()
