Model Whirlpool FEP340YW0 ELECTRIC RANGE – Common Parts & Diagrams

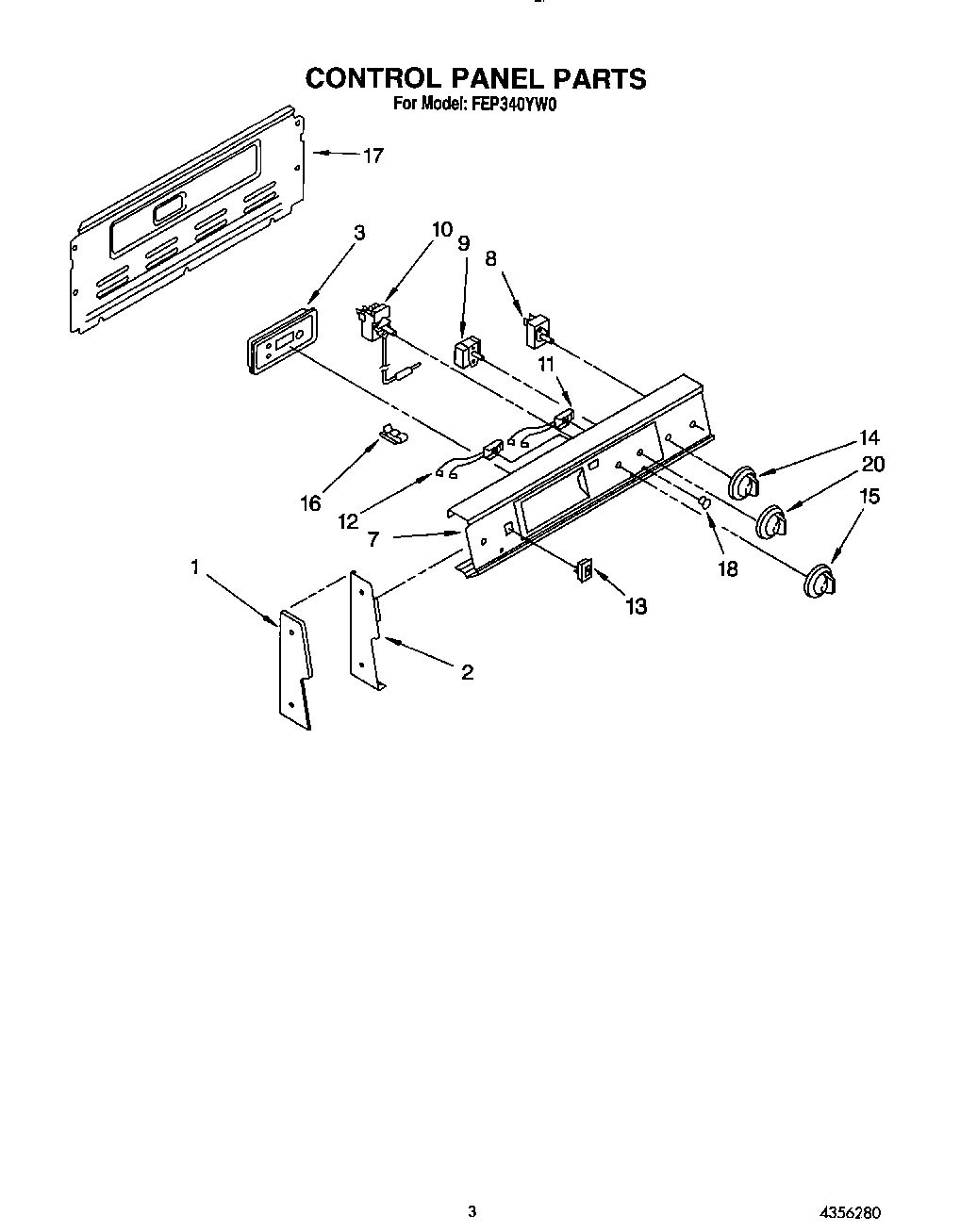

03 - CONTROL PANEL

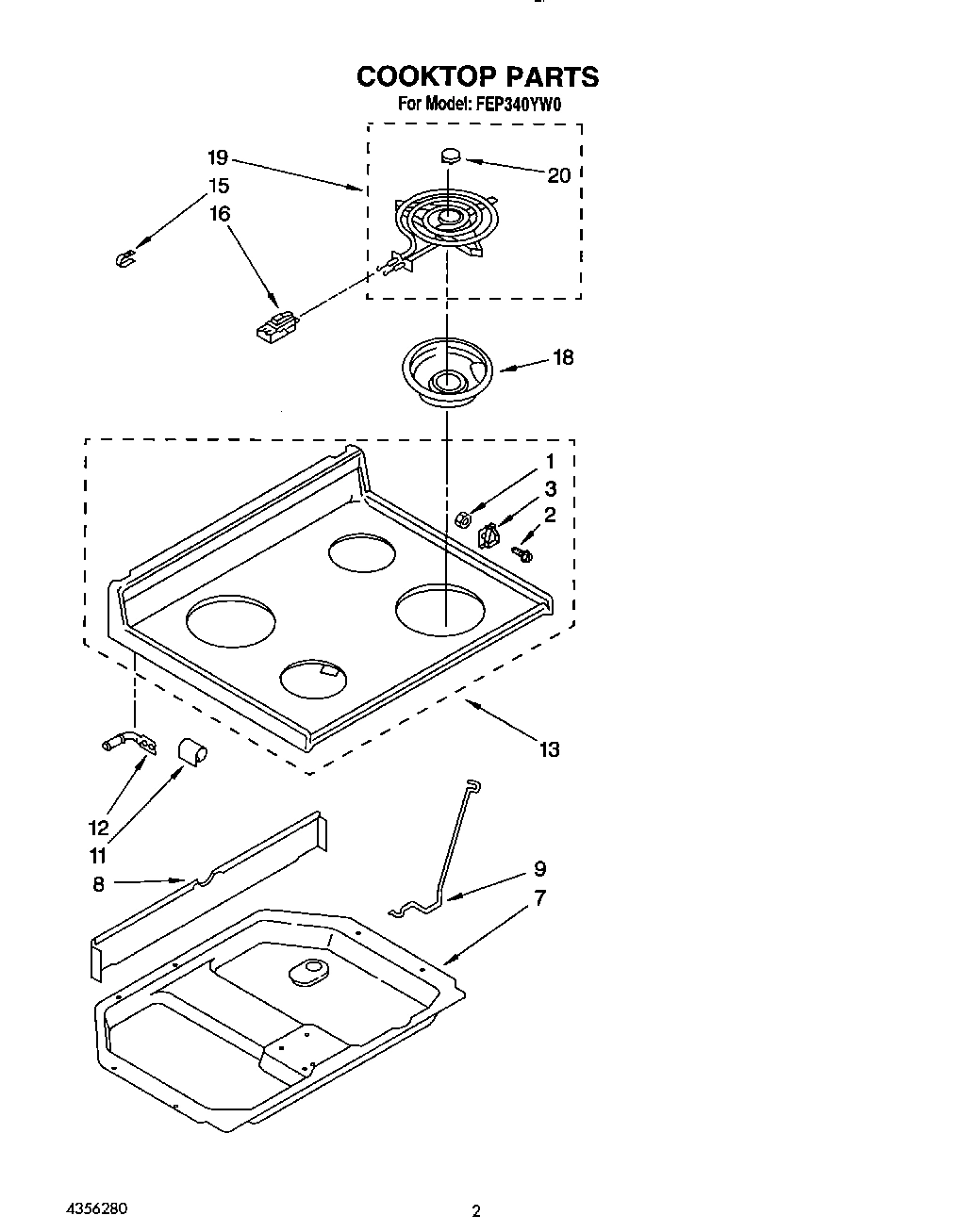

02 - COOKTOP
05 - DOOR AND DRAWER
04 - OVEN
06 - WIRING HARNESS, LIT/OPTIONAL
Common parts from model Whirlpool FEP340YW0 ELECTRIC RANGE
WPL LIT3147400 WPL LIT3147400 Contact Us For Availability
WPL LIT3184007 WPL LIT3184007 Contact Us For Availability
WPL LIT3184580 WPL LIT3184580 Contact Us For Availability
WPL LIT4356280 WPL LIT4356280 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3184579 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
4
Glass, Inner WPL 3148179 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
4
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
4
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
4
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
4
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
4
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
4
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
4
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
4
12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability
4
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
4
12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability
4
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
4
12 Ga. 150~c (Wire, Yellow 14 Ga. 200~c) WPL 242832 Contact Us For Availability
4
Grease WPL 261582 Contact Us For Availability
4
Coffee WPL 261886 Contact Us For Availability
4
New Avocado WPL 261888 Contact Us For Availability
4
Harvest Gold WPL 261890 Contact Us For Availability
4
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
4
Toast WPL 285365 Contact Us For Availability
4
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
4
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
4
Platinum (Uncut) WPL 285368 Contact Us For Availability
4
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
4
WPL 72112 WPL 72112 Contact Us For Availability
4
WPL 799832 WPL 799832 Contact Us For Availability
4
WPL 978883 WPL 978883 Contact Us For Availability
5
Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Frame, Window WPL 3149277 Contact Us For Availability
7
Retainer, Door Glass WPL 307792 Contact Us For Availability
7
Screw (8) WPL 313045 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Clip (2) WPL 307731 Contact Us For Availability
8
Glass, Outer WPL 307732 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Switch, Selector WPL 3150430 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
11
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
12
Switch, Door WPL 310345 Contact Us For Availability
12
Handle, Door (White/Almond) WPL 3184128 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
14
Door Panel (Screw (2)) WPL 3149333 Contact Us For Availability
14
Door Panel (White) WPL 307888 Contact Us For Availability
14
Door Panel (Almond) WPL 307896 Contact Us For Availability
15
Knob (Therm) (White/Almond) WPL 3149987 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Spring, Stop WPL 308207 Contact Us For Availability
19
Panel Drawer (White) WPL 307935 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Knob (Selector) (White/Almond) WPL 3149984 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Screw (2) 8A x 5/8 WPL 309133 Contact Us For Availability
21
Handle, Drawer WPL 3184530 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
26
Bracket, Rail (2) WPL 307981 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
28
Plate, Service WPL 307972 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Cover, Rear WPL 3148975 Contact Us For Availability
34
Oven Rack (2) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
41
Block, Balance WPL 312804 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
