Model Whirlpool FEP330YL0 ELECTRIC RANGE – Common Parts & Diagrams

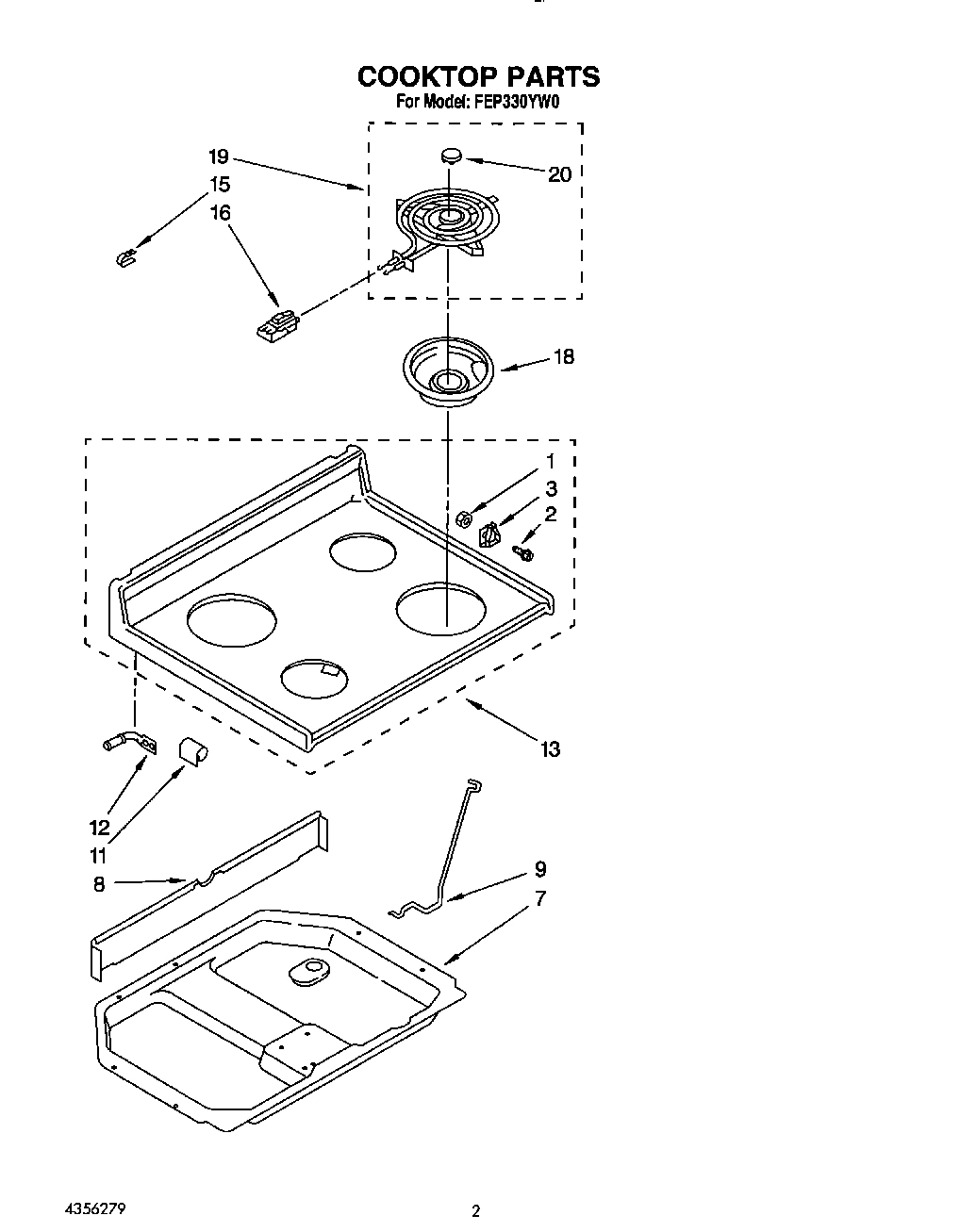

02 - COOKTOP

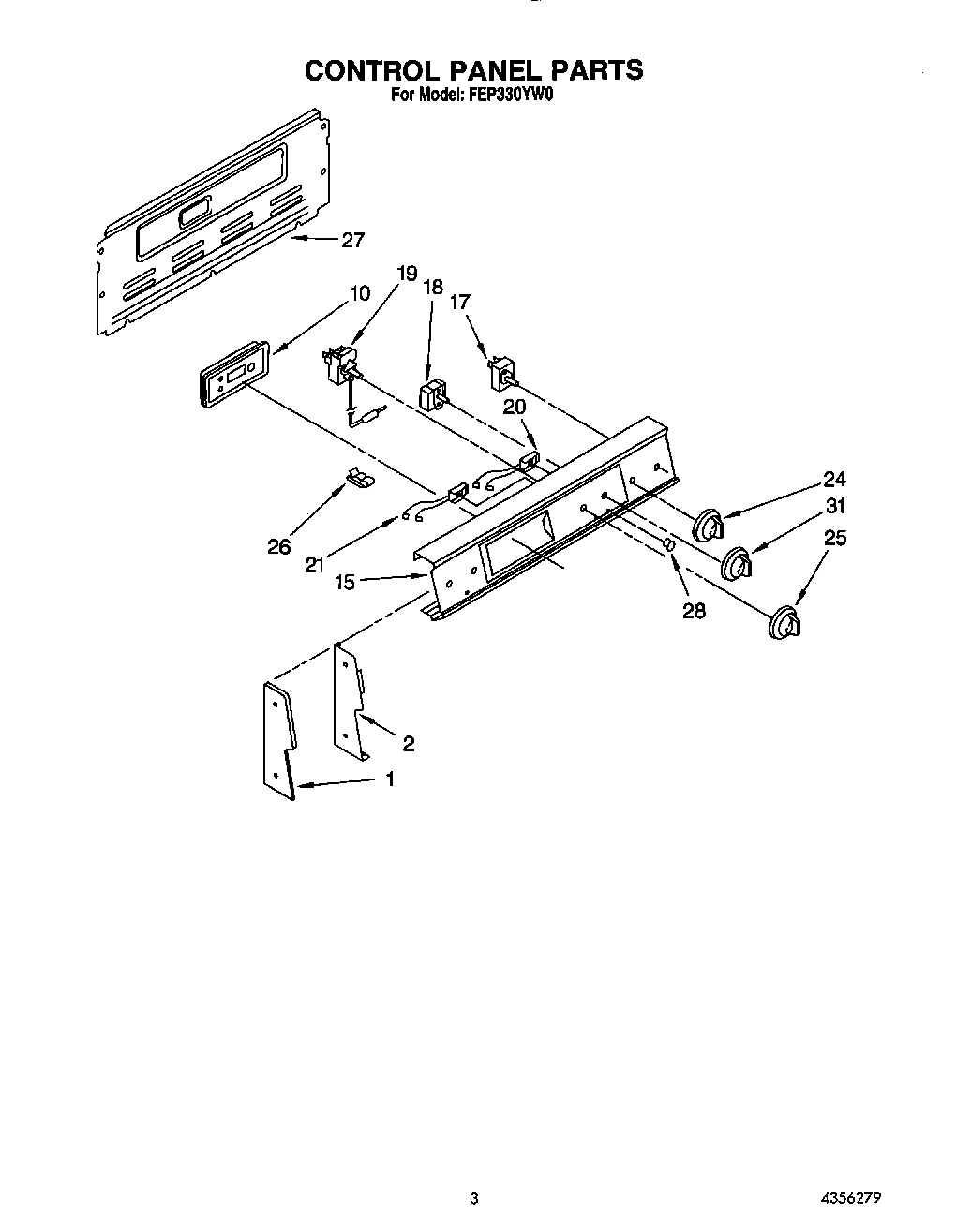

03 - CONTROL PANEL

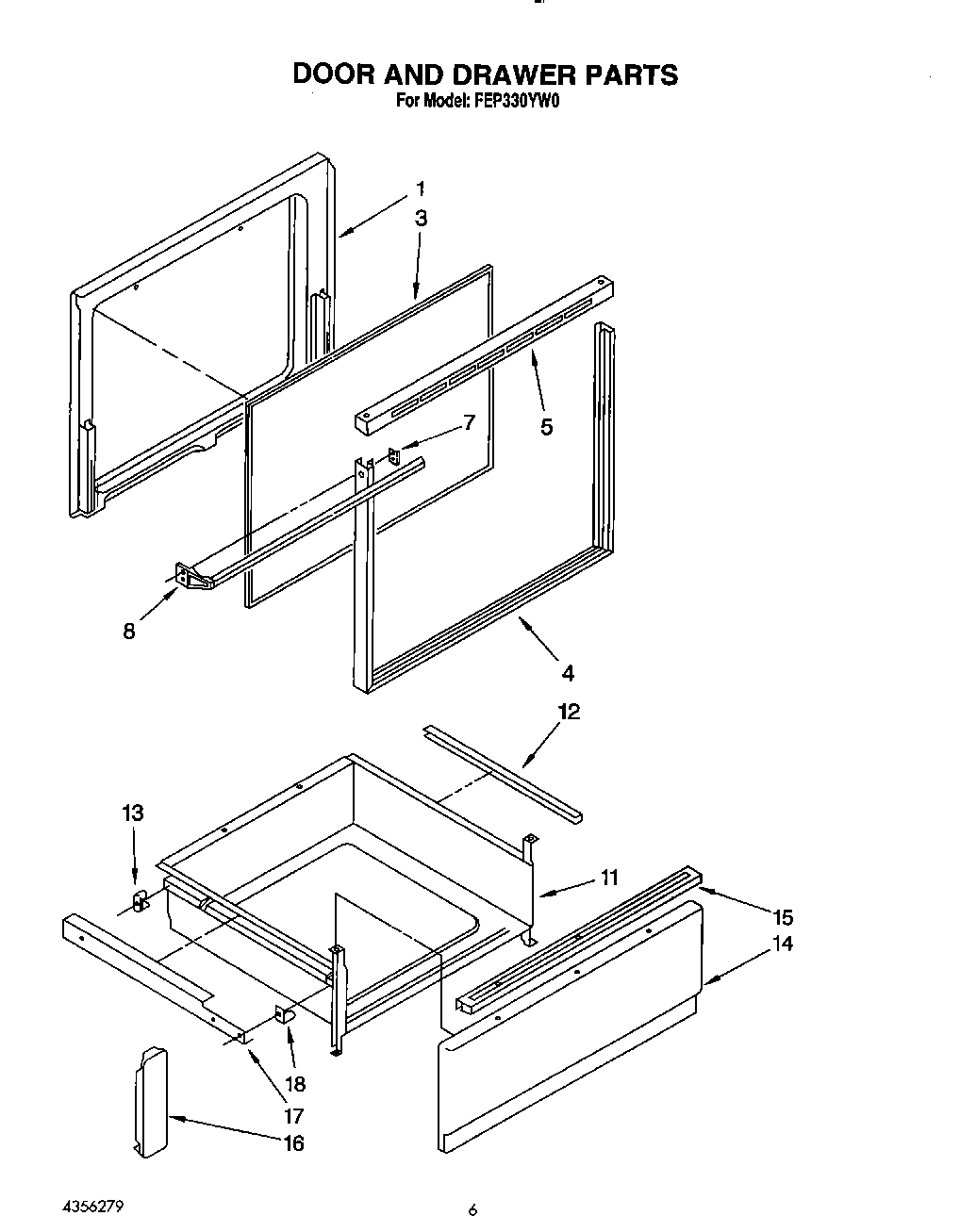

05 - DOOR AND DRAWER, LIT/OPTIONAL

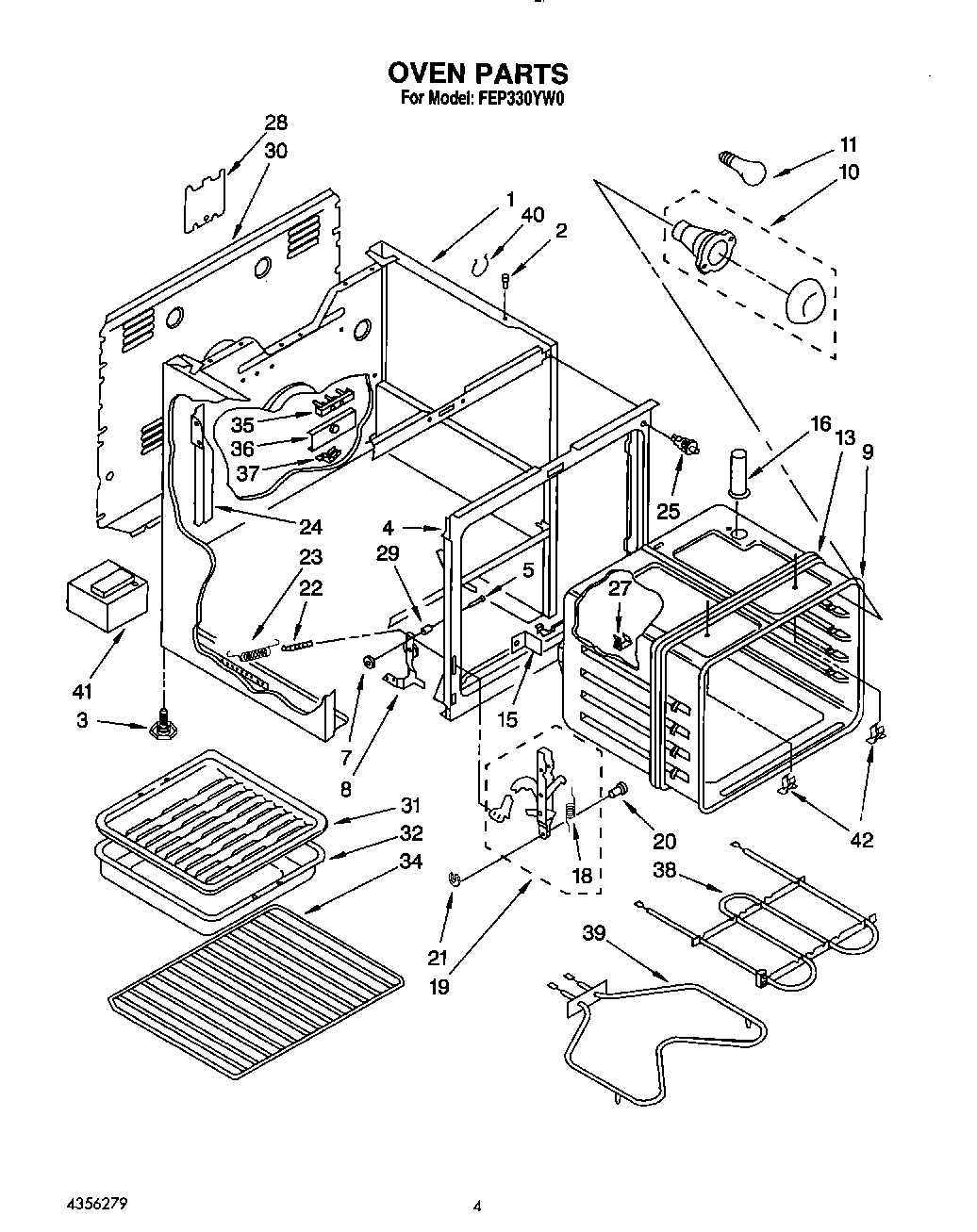

04 - OVEN

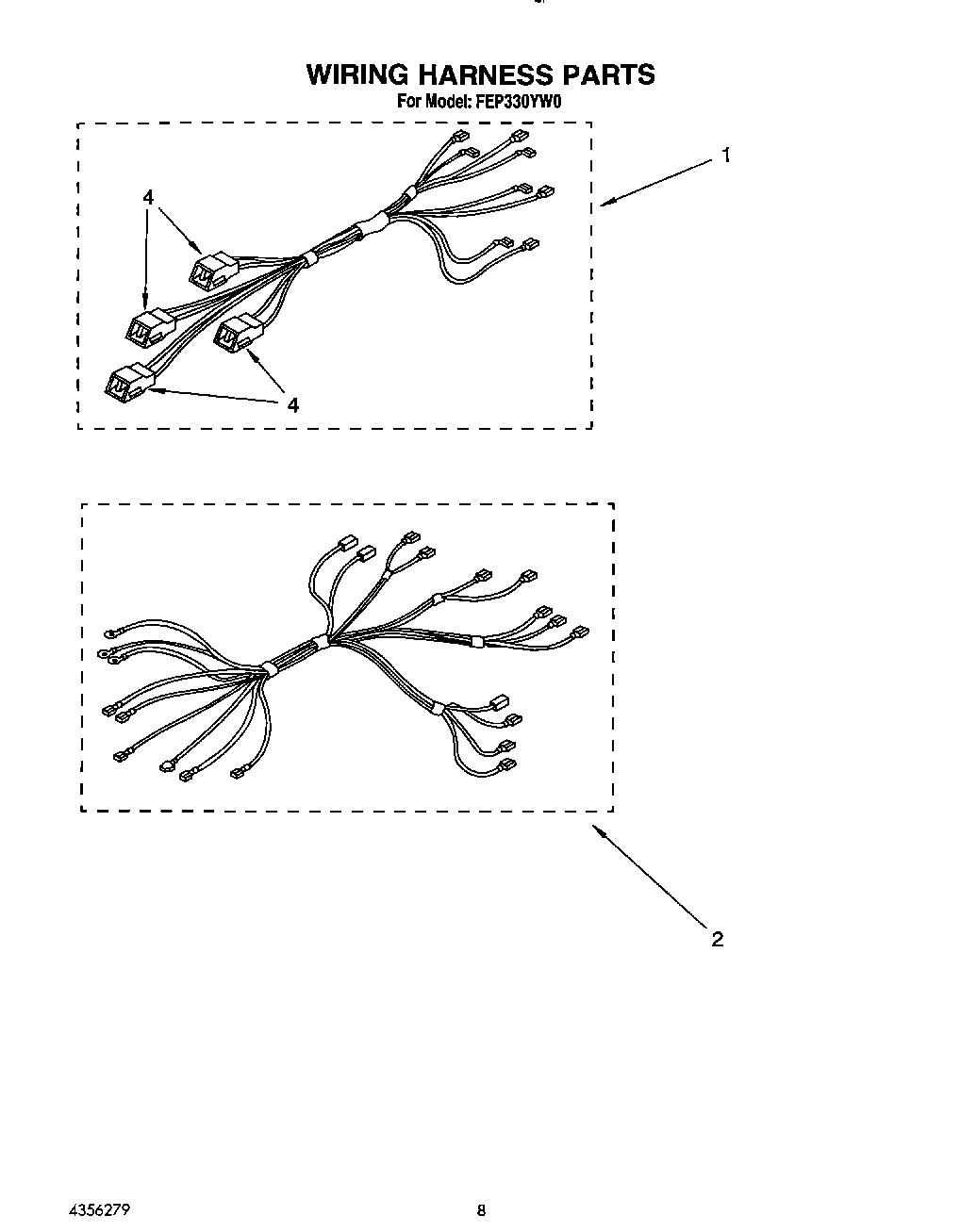

06 - WIRING HARNESS
Common parts from model Whirlpool FEP330YL0 ELECTRIC RANGE
WPL LIT3147400 WPL LIT3147400 Contact Us For Availability
WPL LIT3184006 WPL LIT3184006 Contact Us For Availability
WPL LIT3184578 WPL LIT3184578 Contact Us For Availability
WPL LIT4356279 WPL LIT4356279 Contact Us For Availability
1
Screw (2) WPL 3149333 Contact Us For Availability
1
Liner, Door WPL 3172221 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3184577 Contact Us For Availability
3
Outer Glass Panel (Black Glass) WPL 3148186 Contact Us For Availability
4
Frame, Panel WPL 3171530 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
5
Top, Door (White-Almond) WPL 3148223 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Handle, Door WPL 3149242 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
12
Protector, Drawer Slide (2) WPL 309329 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
13
Glide, Rear (2) WPL 307980 Contact Us For Availability
14
Panel Drawer (Black) WPL 309923 Contact Us For Availability
15
Screw, 8Ax5/8 WPL 309133 Contact Us For Availability
15
Handle, Black WPL 3184530 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Bracket, Rail (2) WPL 307981 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
17
Rail, Slide (L.H. (Includes No. 18)) WPL 3149256 Contact Us For Availability
18
Switch, Selector WPL 3150430 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
12 Ga. 150~c (Wire, White 14 Ga. 150~c) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
12 Ga. 150~c (Wire, Red 12 Ga. 150~c) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
12 Ga. 150~c (Wire, Yellow 14 Ga. 200~c) WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 3149257 WPL 3149257 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
Spring, Stop WPL 308207 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
21
Light, Indicator (Surface Unit On) WPL 3150662 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
26
Tube Clip WPL 313570 Contact Us For Availability
27
Rear Cover Control Panel WPL 313195 Contact Us For Availability
28
Lens, Amber (2) WPL 313101 Contact Us For Availability
28
Plate, Service WPL 307972 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Cover, Rear WPL 3148975 Contact Us For Availability
31
Knob, Selector WPL 3149984 Contact Us For Availability
34
Oven Rack (2) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
41
Block, Balance WPL 312804 Contact Us For Availability
42
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
× ![]()
