Model Whirlpool FEP330VL0 ELECTRIC RANGE – Common Parts & Diagrams
03 - EXTERNAL OVEN
05 - CONTROL PANEL, LIT/OPTIONAL

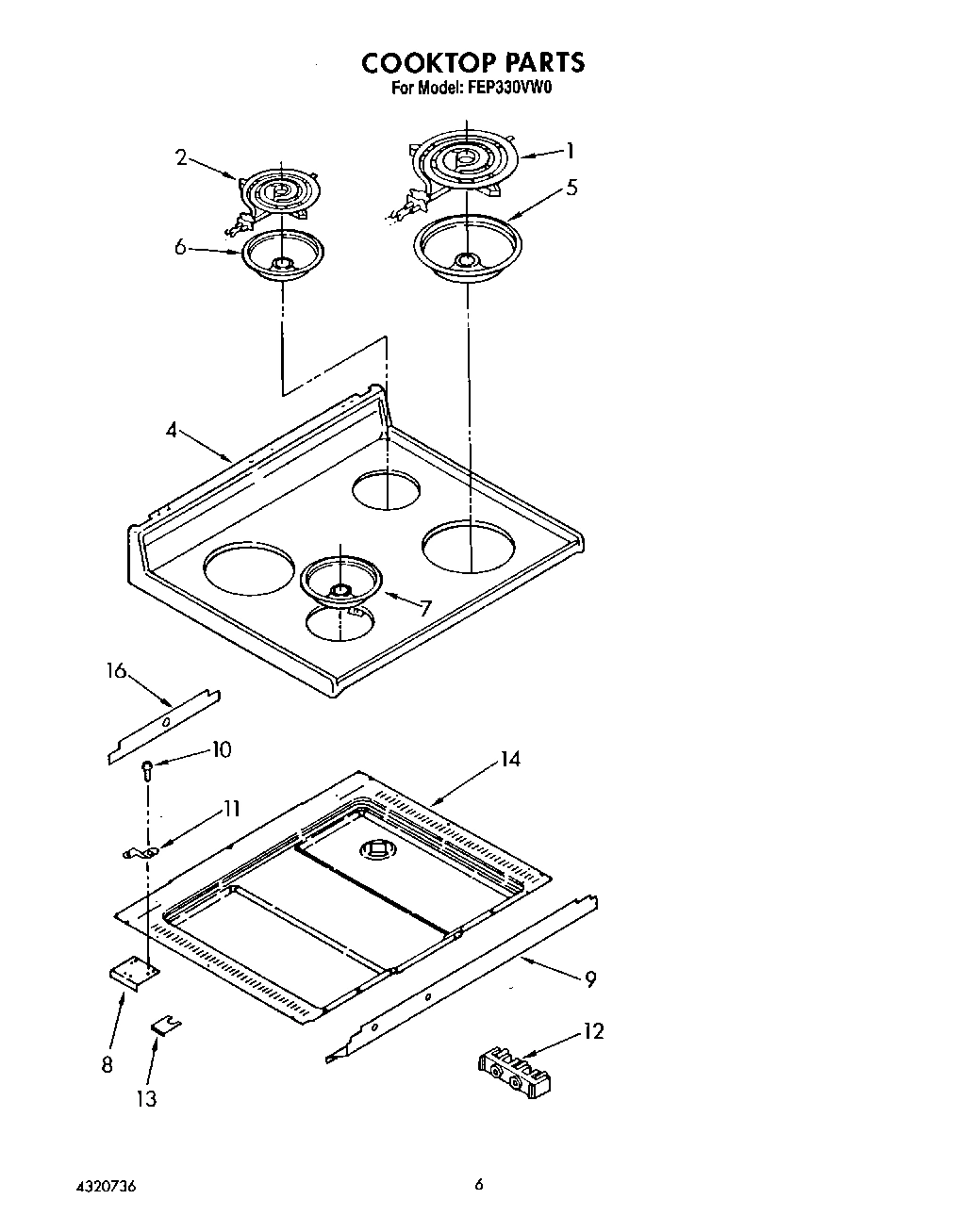

04 - COOKTOP

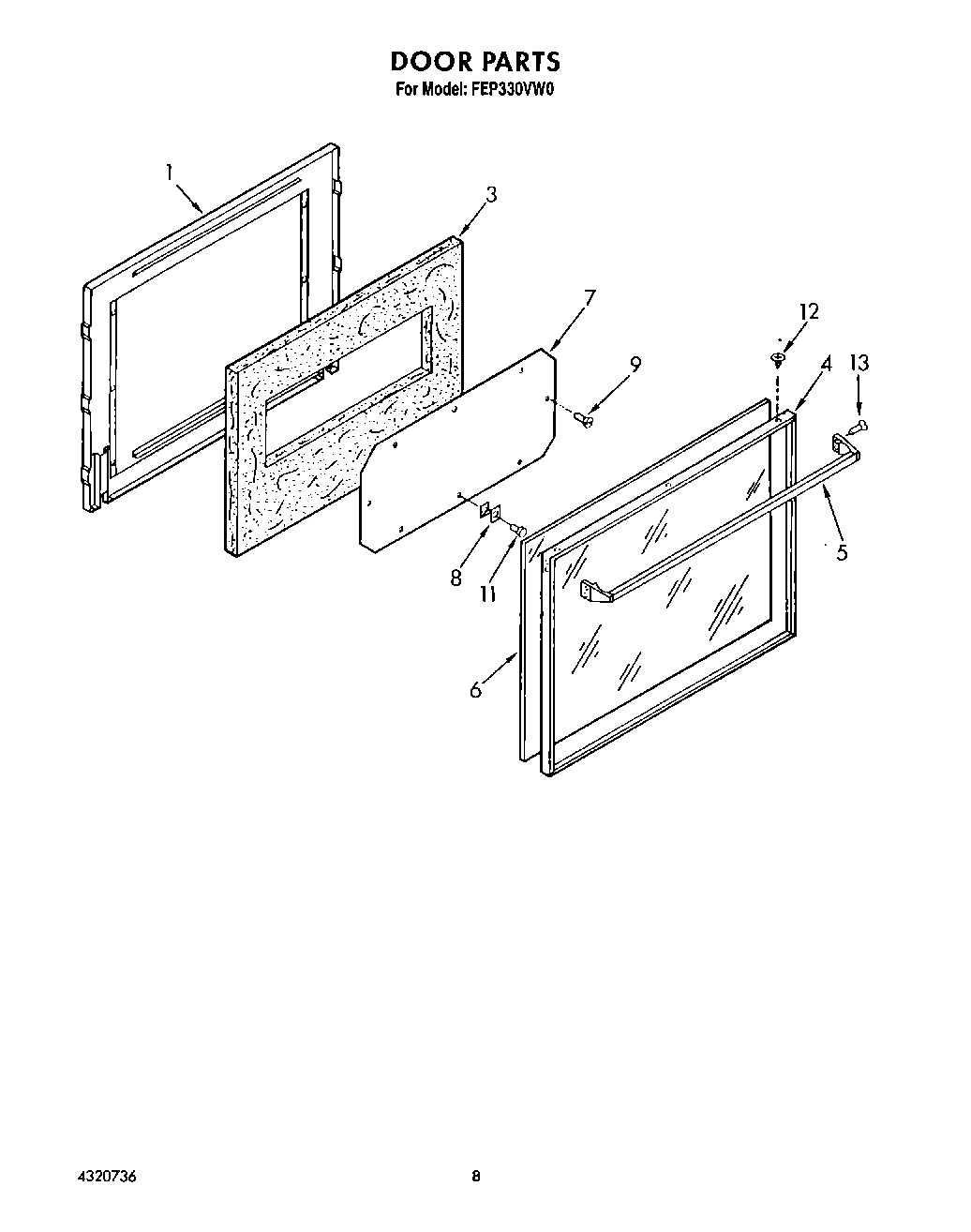

06 - DOOR

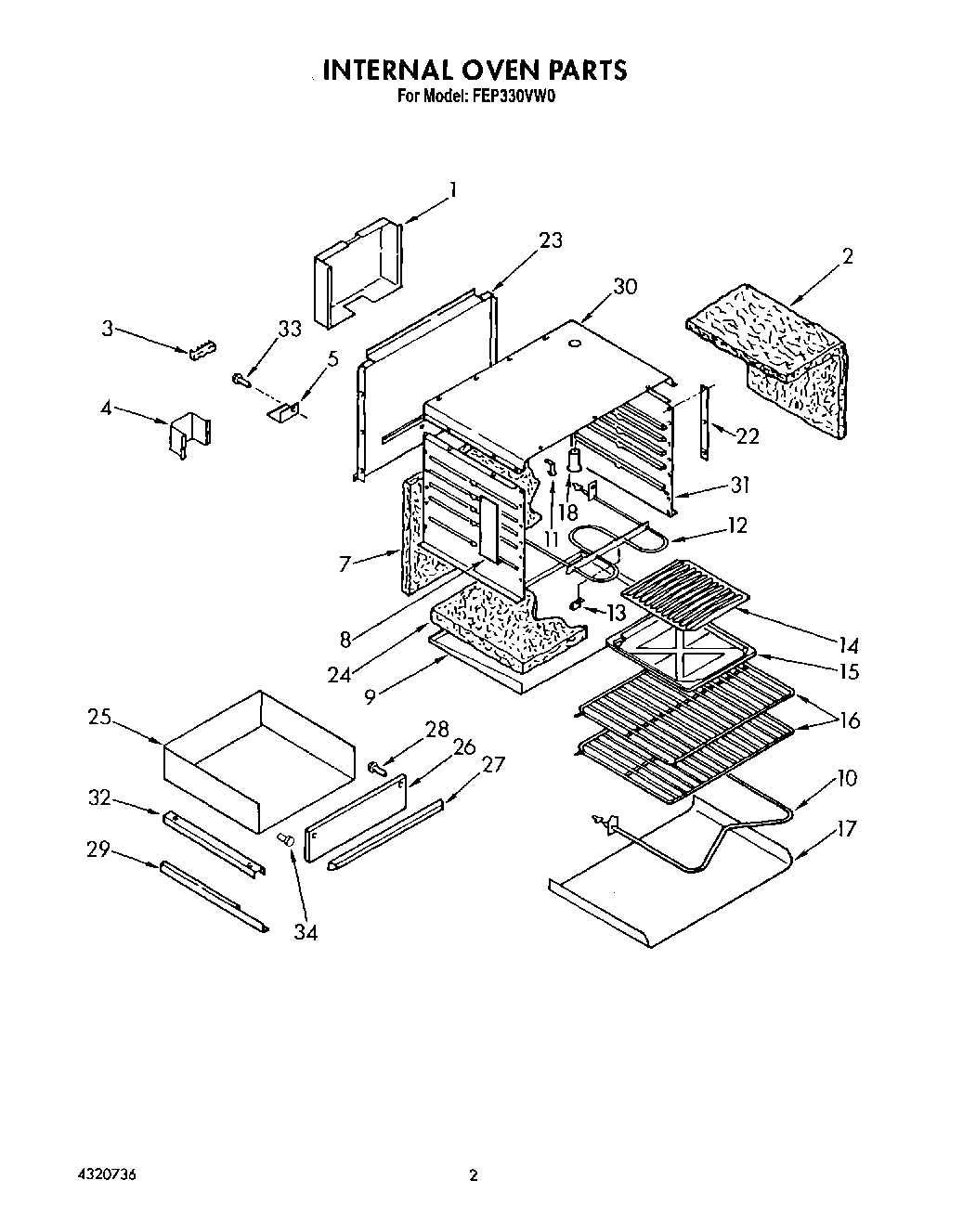

02 - INTERNAL OVEN
Common parts from model Whirlpool FEP330VL0 ELECTRIC RANGE
Use & Care Manual WPL LIT4315664 Contact Us For Availability
Installation Guide WPL LIT4315694 Contact Us For Availability
Repair Parts List WPL LIT4320736 Contact Us For Availability
1
Body Side (Almond) WPL 4320373 Contact Us For Availability
1
Lining WPL 4320538 Contact Us For Availability
1
Wire Shield WPL 4314943 Contact Us For Availability
2
Base Rail WPL 4320525 Contact Us For Availability
2
Timer Support Leg (2) WPL 4320416 Contact Us For Availability
2
Insulation WPL 4320508 Contact Us For Availability
3
Leg Leveler WPL 4157161 Contact Us For Availability
3
Cover, Raceway WPL 4320417 Contact Us For Availability
3
Insulation WPL 4157033 Contact Us For Availability
4
Nut WPL 4157332 Contact Us For Availability
4
End Cap (Left) WPL 4320429 Contact Us For Availability
4
End Cap (Right) WPL 4320430 Contact Us For Availability
4
Cooktop (White) WPL 4320675 Contact Us For Availability
4
Cooktop (Almond) WPL 4320678 Contact Us For Availability
4
Frame WPL 4320524 Contact Us For Availability
4
Shield, Wire WPL 4320496 Contact Us For Availability
5
Hinge WPL 4320499 Contact Us For Availability
5
Support, Backguard (Right) WPL 4320490 Contact Us For Availability
5
Support, Backguard (Left) WPL 4320491 Contact Us For Availability
5
Handle WPL 4320473 Contact Us For Availability
5
Mounting Plate WPL 4320523 Contact Us For Availability
6
Main Front WPL 4320497 Contact Us For Availability
6
Glass, Outer WPL 4320555 Contact Us For Availability
7
Support WPL 4315382 Contact Us For Availability
7
Retainer, Inner Glass WPL 4320352 Contact Us For Availability
8
Support, Main WPL 4157011 Contact Us For Availability
8
Element Clamp, Large WPL 4157115 Contact Us For Availability
8
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
8
Retainer Side WPL 4157325 Contact Us For Availability
9
Main Back WPL 4315493 Contact Us For Availability
9
Indicator Light, Burner WPL 4320510 Contact Us For Availability
9
Extension, Burner Box WPL 4320495 Contact Us For Availability
9
Retainer Lower WPL 4315490 Contact Us For Availability
10
Support, Oven WPL 4315213 Contact Us For Availability
10
Backguard (White) WPL 4320512 Contact Us For Availability
10
Backguard (Almond) WPL 4320513 Contact Us For Availability
11
Panel, Base WPL 4157006 Contact Us For Availability
11
Rod, Support WPL 4157010 Contact Us For Availability
11
Bumper (6) WPL 4157128 Contact Us For Availability
12
Disc, Thermo WPL 4179130 Contact Us For Availability
13
Seal WPL 4320463 Contact Us For Availability
13
Light, Indicator Oven WPL 4320506 Contact Us For Availability
13
Hinge, Cooktop WPL 4157083 Contact Us For Availability
13
Screw, Handle WPL 4320474 Contact Us For Availability
13
Support, Element WPL 4157967 Contact Us For Availability
14
Bottom, Burner Box WPL 4320494 Contact Us For Availability
14
Grid, Broil Pan WPL 4315094 Contact Us For Availability
16
Cover, Switch WPL 4320493 Contact Us For Availability
16
Rack, Oven (2) WPL 4315754 Contact Us For Availability
17
Knob, Infinite (4) WPL 4315513 Contact Us For Availability
17
Bottom, Oven WPL 4320773 Contact Us For Availability
18
Tube, Vent WPL 4320543 Contact Us For Availability
20
Knob, Clock/Oven WPL 4320421 Contact Us For Availability
22
Clock/Oven Control With Lens WPL 4320412 Contact Us For Availability
22
Support, Oven Side (2) WPL 4157328 Contact Us For Availability
23
Backliner, Oven WPL 4320526 Contact Us For Availability
25
Set Knob WPL 4320427 Contact Us For Availability
25
Drawer, Storage WPL 4315499 Contact Us For Availability
26
Knob, Thermostat WPL 4315514 Contact Us For Availability
26
Drawer, Front (White) WPL 4320527 Contact Us For Availability
26
Drawer, Front (Almond) WPL 4320528 Contact Us For Availability
27
Thermostat Element WPL 4320548 Contact Us For Availability
27
Handle WPL 4157208 Contact Us For Availability
28
Screw, Handle (2) WPL 4320579 Contact Us For Availability
29
Track, Lower Assy. (Left Side) WPL 4320465 Contact Us For Availability
29
Track, Lower Assy. (Right Side) WPL 4320466 Contact Us For Availability
30
Oven, Top WPL 4315043 Contact Us For Availability
31
Oven, Side (2) WPL 4315753 Contact Us For Availability
32
Track, Upper Assy. (Left Side) WPL 4364023 Contact Us For Availability
32
Track, Upper Assy. (Right Side) WPL 4364024 Contact Us For Availability
34
Bumper (2) WPL 4320477 Contact Us For Availability
× ![]()
