Model Whirlpool FEP314BL0 ELECTRIC RANGE – Common Parts & Diagrams

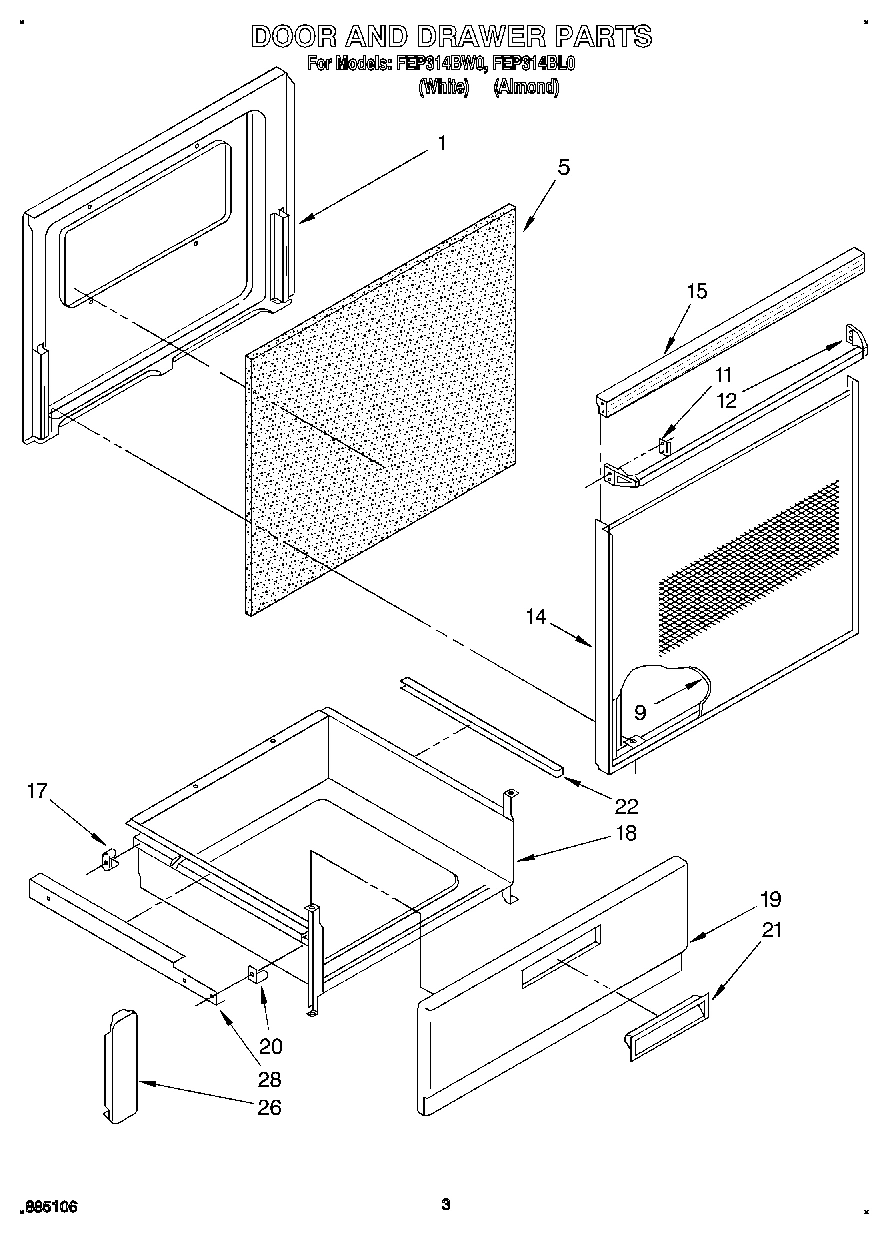

03 - DOOR AND DRAWER

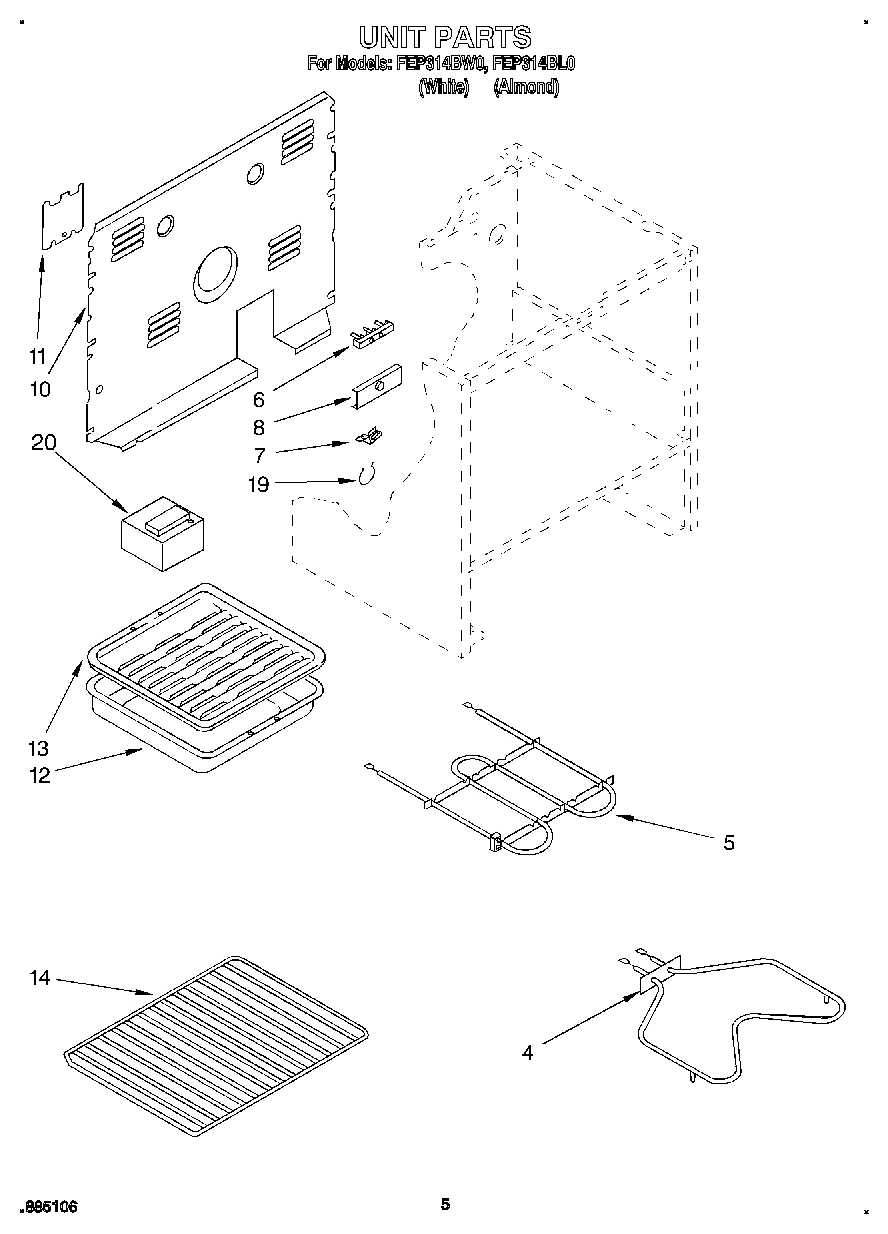

04 - UNIT
05 - OVEN
01 - COOKTOP AND CONTROL
02 - CONTROL PANEL
06 - WIRING HARNESS, LIT/OPTIONAL
Common parts from model Whirlpool FEP314BL0 ELECTRIC RANGE
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169350 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Use and Care Guide WPL LIT3187696 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Limiter, Temp. (1700W, RF-LR) WPL 3169339 Contact Us For Availability
1
Limiter, Temp. (2100W, LF-RR) WPL 3169340 Contact Us For Availability
1
End Trim R.H. WPL 3183092 Contact Us For Availability
1
End Trim L.H. WPL 3183093 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3169148 Contact Us For Availability
2
Tube, Vent WPL 3169144 Contact Us For Availability
2
Element, Surface (Includes No.1) (1700W, RF-L WPL 3183647 Contact Us For Availability
2
Element, Surface (Includes No.1) (2100W, LF-R WPL 3183648 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
White/Almond Mdl. End Cap R.H. WPL 3150441 Contact Us For Availability
2
White/Almond Mdl. End Cap L.H. WPL 3150442 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
3
Harness, (Cooktop) WPL 3183408 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
4
Bracket, (2) Element Support WPL 3183087 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Cooktop (White Mdl.) WPL 3184122 Contact Us For Availability
5
Cooktop (Almond Mdl.) WPL 3184123 Contact Us For Availability
5
Clip, Wire (2) WPL 311311 Contact Us For Availability
5
Clamp, Tube WPL 313570 Contact Us For Availability
6
Seal, Door WPL 3169283 Contact Us For Availability
6
Cover, Vent (White) WPL 3149011 Contact Us For Availability
6
cover, vent (almond) WPL 3149012 Contact Us For Availability
6
Motor, Timer WPL 308443 Contact Us For Availability
6
Adapter, Terminal WPL 3147832 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Shield, Probe WPL 3183510 Contact Us For Availability
7
Timer, Control (White/Almond Mdl.) WPL 3169298 Contact Us For Availability
7
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Coffee WPL 261886 Contact Us For Availability
7
New Avocado WPL 261888 Contact Us For Availability
7
Harvest Gold WPL 261890 Contact Us For Availability
7
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
7
Toast WPL 285365 Contact Us For Availability
7
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
7
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
7
Platinum WPL 285368 Contact Us For Availability
7
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
7
WPL 72112 WPL 72112 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
8
Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Glass, Timer WPL 3148852 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Panel, Control (Screw, 8-18 x 5/8 (4)) WPL 3169366 Contact Us For Availability
9
Panel, Control (White/Almond Mdl.) WPL 3187797 Contact Us For Availability
10
Bracket, Cooktop (Right) WPL 3169294 Contact Us For Availability
10
Bracket, Cooktop (Left) WPL 3169295 Contact Us For Availability
11
Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Screw (2) WPL 308119 Contact Us For Availability
12
Thermostat, 0ven WPL 3169302 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Indicator Light (1) WPL 314031 Contact Us For Availability
13
Indicator Light (1) WPL 3148719 Contact Us For Availability
13
Indicator Light (1) WPL 3150662 Contact Us For Availability
15
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 3169365 Contact Us For Availability
16
Tube Clip WPL 3169449 Contact Us For Availability
17
Rear Cover Control Panel WPL 3187332 Contact Us For Availability
18
Lens, Amber (3) WPL 313101 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
20
Knob, Control (Selector) WPL 3149984 Contact Us For Availability
20
Block, Balance WPL 3149258 Contact Us For Availability
21
Handle, Snap-In (Black) WPL 3150615 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Plug Button WPL 308535 Contact Us For Availability
26
Plug, Button (2) WPL 3169107 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Insulation, Wrapper WPL 309961 Contact Us For Availability
× ![]()
