Model Whirlpool FEP210EQ4 ELECTRIC RANGE – Common Parts & Diagrams
03 - OVEN
01 - COOKTOP, LITERATURE

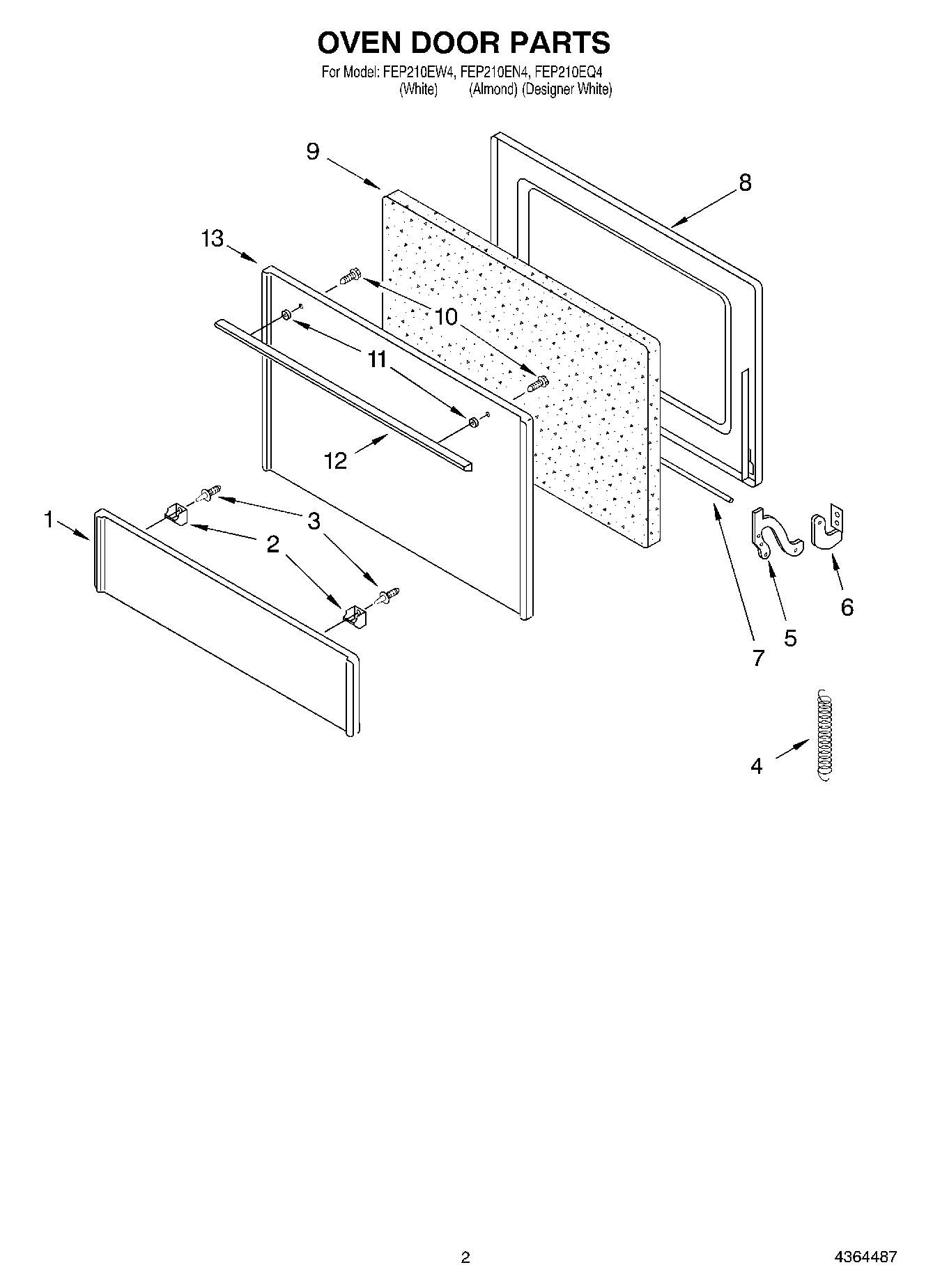

02 - OVEN DOOR

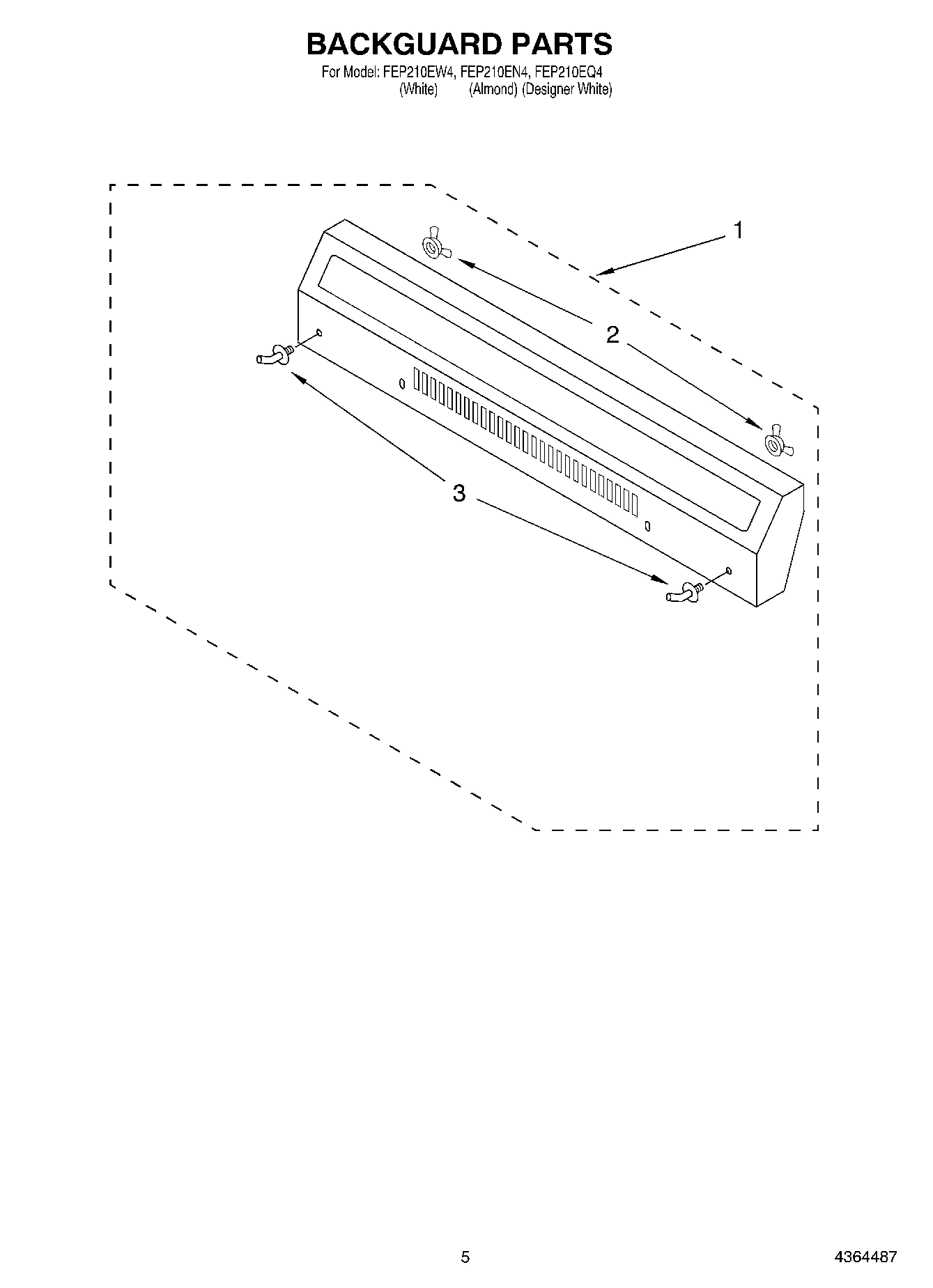

04 - BACKGUARD
Common parts from model Whirlpool FEP210EQ4 ELECTRIC RANGE
1
Literature (Use & Care Guide) WPL LIT4364040 Contact Us For Availability
1
Literature (Wiring Diagram) WPL LIT4364408 Contact Us For Availability
1
Panel, Lower (Almond) WPL 4364240 Contact Us For Availability
1
Panel, Lower (White) WPL 4364381 Contact Us For Availability
1
Backguard (White) WPL 4364434 Contact Us For Availability
1
Backguard (Almond) WPL 4364438 Contact Us For Availability
2
Knob, Burner (4) (White) WPL 4364484 Contact Us For Availability
2
Knob, Burner (4) (Black) WPL 4364483 Contact Us For Availability
2
Catch, Panel WPL 4364241 Contact Us For Availability
2
Wingnut, 10-24 WPL 4364046 Contact Us For Availability
3
Strikepin, Cooktop (Includes Nut) WPL 4364157 Contact Us For Availability
3
Strikepin WPL 4364242 Contact Us For Availability
3
Hinge Pin (2) WPL 4364102 Contact Us For Availability
4
Panel, Manifold (Black) WPL 4364437 Contact Us For Availability
4
Panel, Manifold (White (Includes No.7)) WPL 4364441 Contact Us For Availability
4
Spring, Oven Door WPL 4364234 Contact Us For Availability
5
Knob, Thermostat (Black) WPL 4364481 Contact Us For Availability
5
Knob, Thermostat (White) WPL 4364482 Contact Us For Availability
5
Hinge, Oven Door (Left Hand) WPL 4364235 Contact Us For Availability
5
Hinge, Oven Door (Right Hand) WPL 4364236 Contact Us For Availability
6
Thermostat WPL 4364181 Contact Us For Availability
6
Bearing, Hinge (Left) WPL 4364237 Contact Us For Availability
6
Bearing, Hinge (Right) WPL 4364238 Contact Us For Availability
7
Decal, Manifold (Black) WPL 4364436 Contact Us For Availability
7
Decal, Manifold (White) WPL 4364440 Contact Us For Availability
7
Rod, Oven Door WPL 4364233 Contact Us For Availability
8
Rod, Support WPL 4364217 Contact Us For Availability
8
Liner, Oven Door WPL 4364231 Contact Us For Availability
9
Clip, Rod Support WPL 4364218 Contact Us For Availability
9
Insulation, Door WPL 4364230 Contact Us For Availability
10
Back, Main WPL 4364203 Contact Us For Availability
10
CATCH, STRIKEPIN WPL 4364158 Contact Us For Availability
10
Screw, Door Handle WPL 4364057 Contact Us For Availability
11
Insulation, Back WPL 4364204 Contact Us For Availability
11
Spacer, Handle WPL 4364055 Contact Us For Availability
12
Insulation, Wrap WPL 4364205 Contact Us For Availability
12
Indicator, Surface WPL 4364182 Contact Us For Availability
12
Handle, Ov. Door (Black) WPL 4364232 Contact Us For Availability
12
Handle, Ov. Door (White) WPL 4364394 Contact Us For Availability
13
Switch, Infinite (Use W/6`` Element) WPL 4364179 Contact Us For Availability
13
Baffle, Inner Side WPL 4364206 Contact Us For Availability
13
Panel, Oven Door (Almond) WPL 4364229 Contact Us For Availability
13
Panel, Oven Door (Screw, 10AB x 1/2) WPL 4364254 Contact Us For Availability
13
Panel, Oven Door (White) WPL 4364382 Contact Us For Availability
14
Leg, Leveler WPL 4364080 Contact Us For Availability
15
Vent, Oven Tube WPL 4364207 Contact Us For Availability
15
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
15
Cover, Switch WPL 4364196 Contact Us For Availability
16
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
16
Brkt, Receptacle WPL 4364177 Contact Us For Availability
17
Gasket, Oven Top WPL 4364084 Contact Us For Availability
17
Wire, Element (Red (Left Front)) WPL 4364188 Contact Us For Availability
17
Wire, Element (Yellow (Rt. Front)) WPL 4364189 Contact Us For Availability
17
Wire, Element (Blue (Left Rear)) WPL 4364190 Contact Us For Availability
17
Wire, Element (Black (Rt. Rear)) WPL 4364191 Contact Us For Availability
18
Gasket, Oven Side WPL 4364208 Contact Us For Availability
18
Cooktop (White) WPL 4364194 Contact Us For Availability
18
Cooktop (Almond) WPL 4364195 Contact Us For Availability
19
Frame, Front WPL 4364209 Contact Us For Availability
20
Rack, Oven WPL 4364210 Contact Us For Availability
21
Bottom, Oven WPL 4364211 Contact Us For Availability
22
Element, Broil WPL 4364185 Contact Us For Availability
23
Element, Bake WPL 4364186 Contact Us For Availability
25
Screw, 8A x 1 WPL 4364256 Contact Us For Availability
25
Hex Nut, 10-32 WPL 4364257 Contact Us For Availability
29
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
29
Brace, Back WPL 4364212 Contact Us For Availability
31
Support, Rt. Rear WPL 4364214 Contact Us For Availability
32
Support, Lt. Rear WPL 4364215 Contact Us For Availability
33
Grill, Broiler WPL 4364065 Contact Us For Availability
34
Pan, Broiler WPL 4364216 Contact Us For Availability
× ![]()
