Model Electrolux FEF455WCBC RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD
03 - BODY

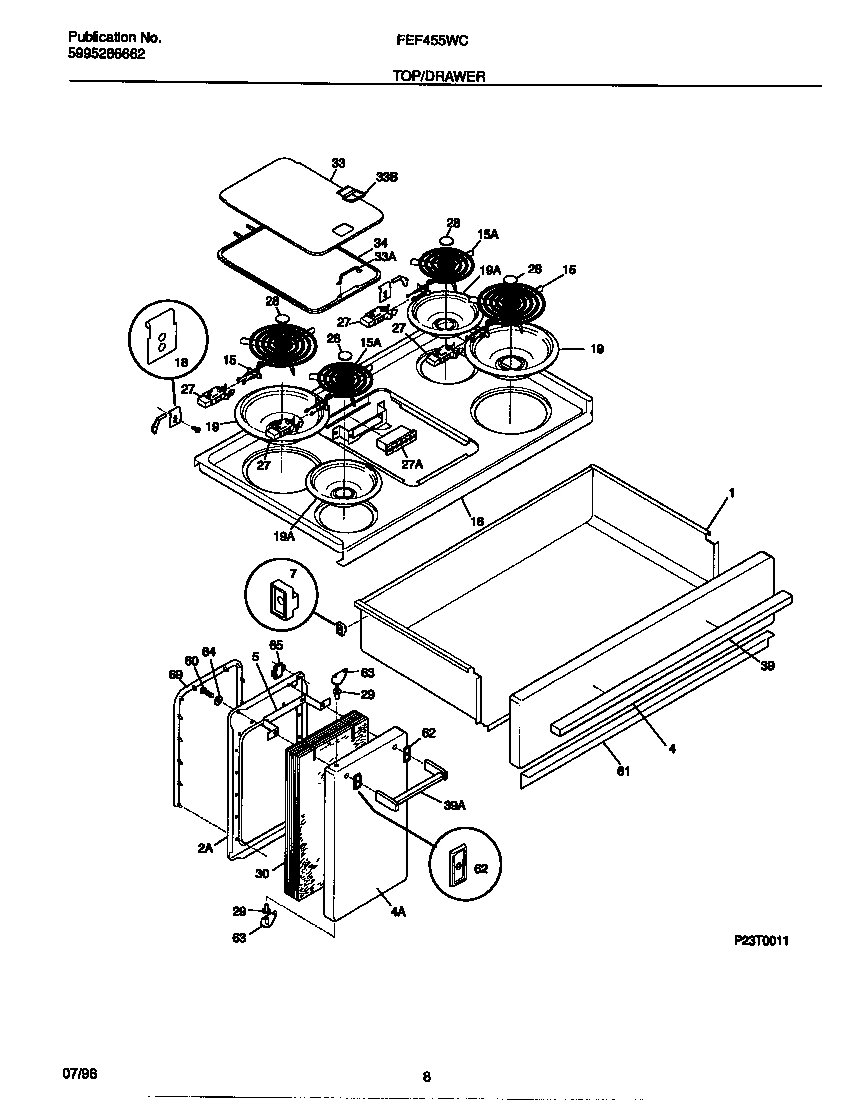

04 - TOP/DRAWER
05 - DOOR

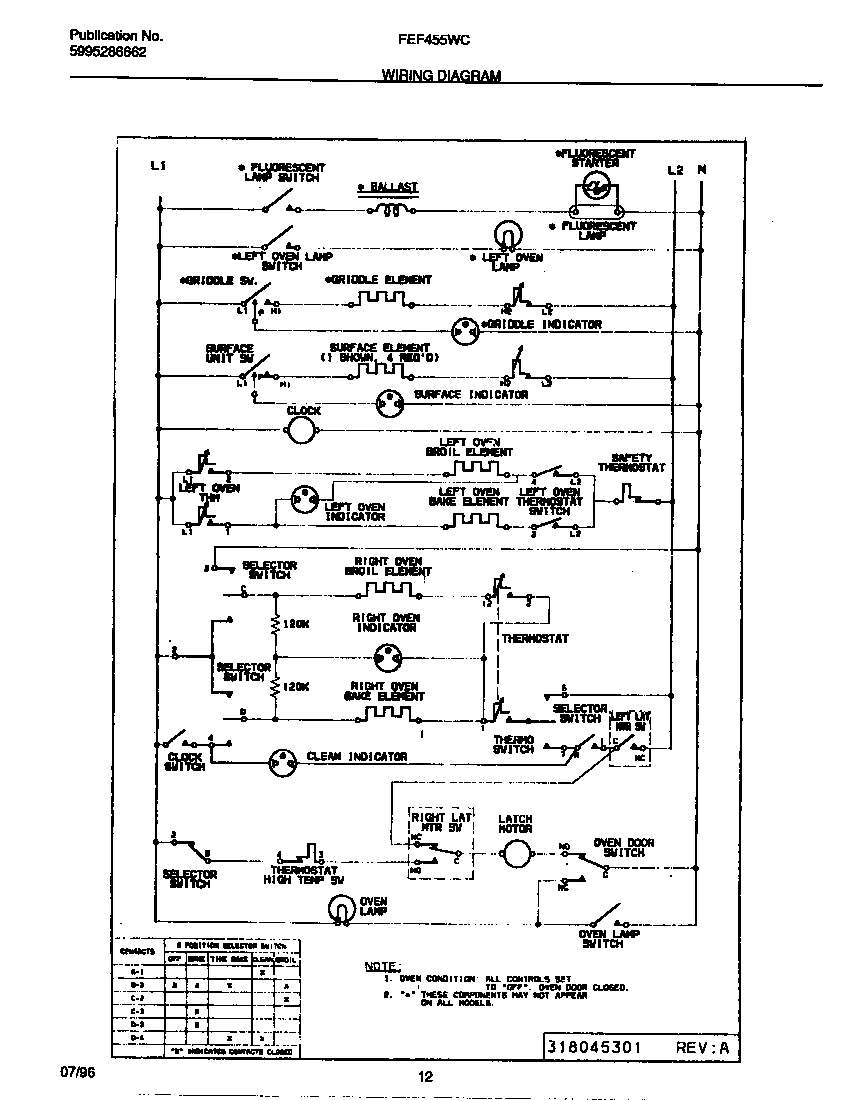

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF455WCBC RANGE
*91163
RETAINER-DOOR WCI 3051810 Contact Us For Availability
*91165
BRACKET-BACKSPLASH WCI 5303304030 Contact Us For Availability
*91167
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
2
WCI 318048204 WCI 318048204 Contact Us For Availability
3
WCI 3201579 WCI 3201579 Contact Us For Availability
3
WCI 3201580 WCI 3201580 Contact Us For Availability
4
WCI 318073703 WCI 318073703 Contact Us For Availability
4
PANEL-SUBTOP, SMALL OVEN (NOT ILLUSTRATED) WCI 3204828 Contact Us For Availability
4
WCI 318009307 WCI 318009307 Contact Us For Availability
4
WCI 3201577 WCI 3201577 Contact Us For Availability
5
SCREW-LEVELING WCI 318175510 No Longer Available
5
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203575 Contact Us For Availability
5
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203576 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
RACK-OVEN, SMALL WCI 08014191 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
BAFFLE-DOOR WCI 318057000 Contact Us For Availability
7
GLIDE-DRAWER WCI 5301315217 Contact Us For Availability
7
WCI 318106000 WCI 318106000 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 318071900 Contact Us For Availability
8
WCI 5303311141 WCI 5303311141 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048702 WCI 318048702 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
12
SWITCH-LIGHT (NOT ILLUSTRATED) WCI 5301314211 Contact Us For Availability
12
WCI 08003081 WCI 08003081 Contact Us For Availability
13
WCI 5303300189 WCI 5303300189 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 5303305163 Contact Us For Availability
13
WCI 318009103 WCI 318009103 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 318024000 WCI 318024000 Contact Us For Availability
15
WCI 318024001 WCI 318024001 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
16
WCI 5303293761 WCI 5303293761 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 318139000 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP LH WCI 3051658 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP RH WCI 5301315631 Contact Us For Availability
18
WCI 5303310505 WCI 5303310505 Contact Us For Availability
18
SEAL-ROPE (NOT ILLUSTRATED) WCI 5303310531 Contact Us For Availability
20
WCI 3201572 WCI 3201572 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 318024700 WCI 318024700 Contact Us For Availability
25
SHIELD-HEAT, LOWER WCI 318133000 Contact Us For Availability
27
TERMINAL (NOT ILLUSTRATED) WCI 5303292140 Contact Us For Availability
27
WCI 5303292139 WCI 5303292139 Contact Us For Availability
27
WCI 5303311332 WCI 5303311332 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
SPACER-HINGE PIN WCI 318141800 Contact Us For Availability
29
SPACER-DOOR WCI 5303310535 Contact Us For Availability
30
WCI 318023903 WCI 318023903 Contact Us For Availability
30
INSULATION-DOOR, SMALL OVEN WCI 5301311649 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
31
WCI 5303300191 WCI 5303300191 Contact Us For Availability
32
WCI 318057200 WCI 318057200 Contact Us For Availability
33
WCI 3201527 WCI 3201527 Contact Us For Availability
33
WCI 08005351 WCI 08005351 Contact Us For Availability
33
WCI 5301313051 WCI 5301313051 Contact Us For Availability
34
WCI 5301167935 WCI 5301167935 Contact Us For Availability
39
WCI 3201575 WCI 3201575 Contact Us For Availability
39
WCI 3201576 WCI 3201576 Contact Us For Availability
39
WCI 3201570 WCI 3201570 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
WCI 318057400 WCI 318057400 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
HOUSING-OVEN LIGHT (NOT ILLUSTRATED) WCI 3051511 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318055700 WCI 318055700 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5301167905 Contact Us For Availability
58
WCI 5301305817 WCI 5301305817 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
59
WCI 3017402 WCI 3017402 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
62
PLATE-GROUND STRAP (NOT ILLUSTRATED) WCI 5303310517 Contact Us For Availability
62
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
63
WCI 318024505 WCI 318024505 Contact Us For Availability
63
WCI 318024507 WCI 318024507 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
66
WCI 318110100 WCI 318110100 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SEAL-OVEN DOOR WCI 318053300 Contact Us For Availability
72
COVER-ROD END WCI 08007444 Contact Us For Availability
74
WCI 08003107 WCI 08003107 Contact Us For Availability
76
WCI 318056001 WCI 318056001 Contact Us For Availability
77
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN ASSY, SMALL WCI 318089200 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
84
WCI 3204822 WCI 3204822 Contact Us For Availability
84
WCI 3204823 WCI 3204823 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 5303310540 WCI 5303310540 Contact Us For Availability
102
SUPPORT-OVEN FRONT WCI 08011954 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
COVER-WIRING WCI 5303310515 Contact Us For Availability
137
WCI 3204318 WCI 3204318 Contact Us For Availability
138
BALLAST-LAMP WCI 5301308270 Contact Us For Availability
139
WCI 318042900 WCI 318042900 Contact Us For Availability
140
RETAINER-INSULATION WCI 318071300 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
× ![]()
