Model Electrolux FEF450WFWA RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

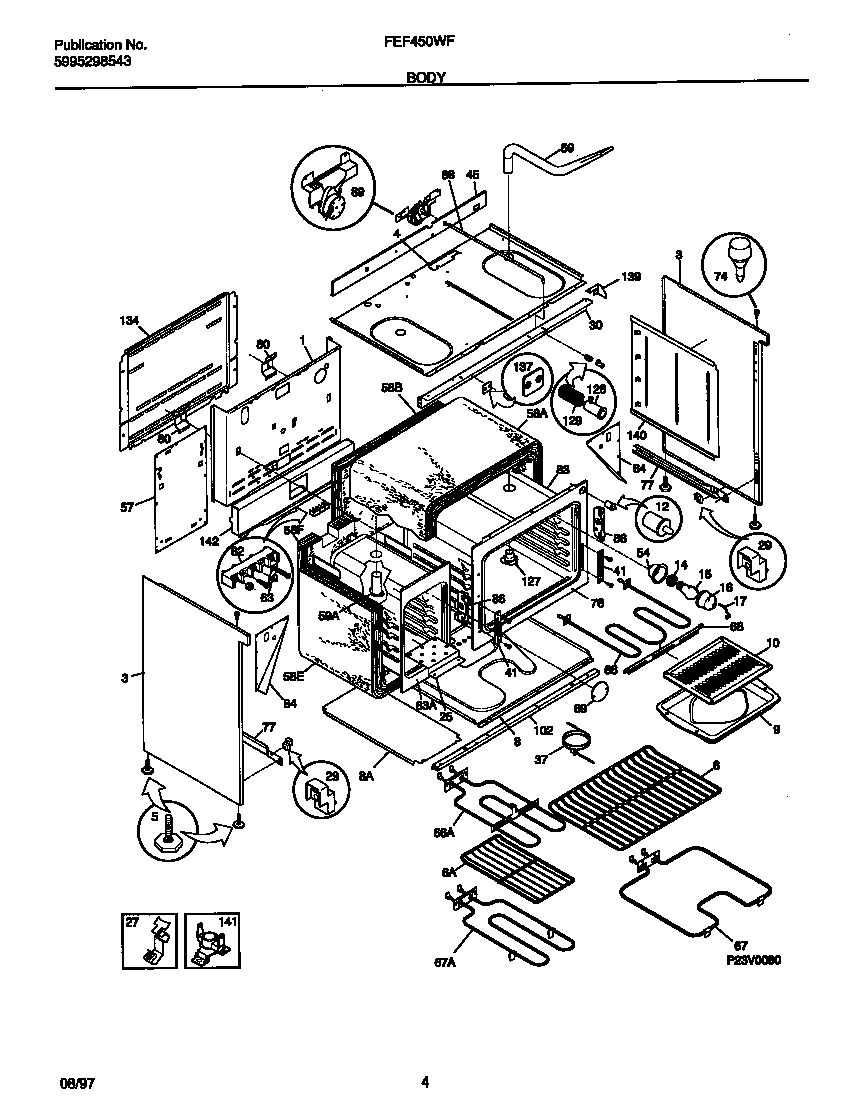

03 - BODY

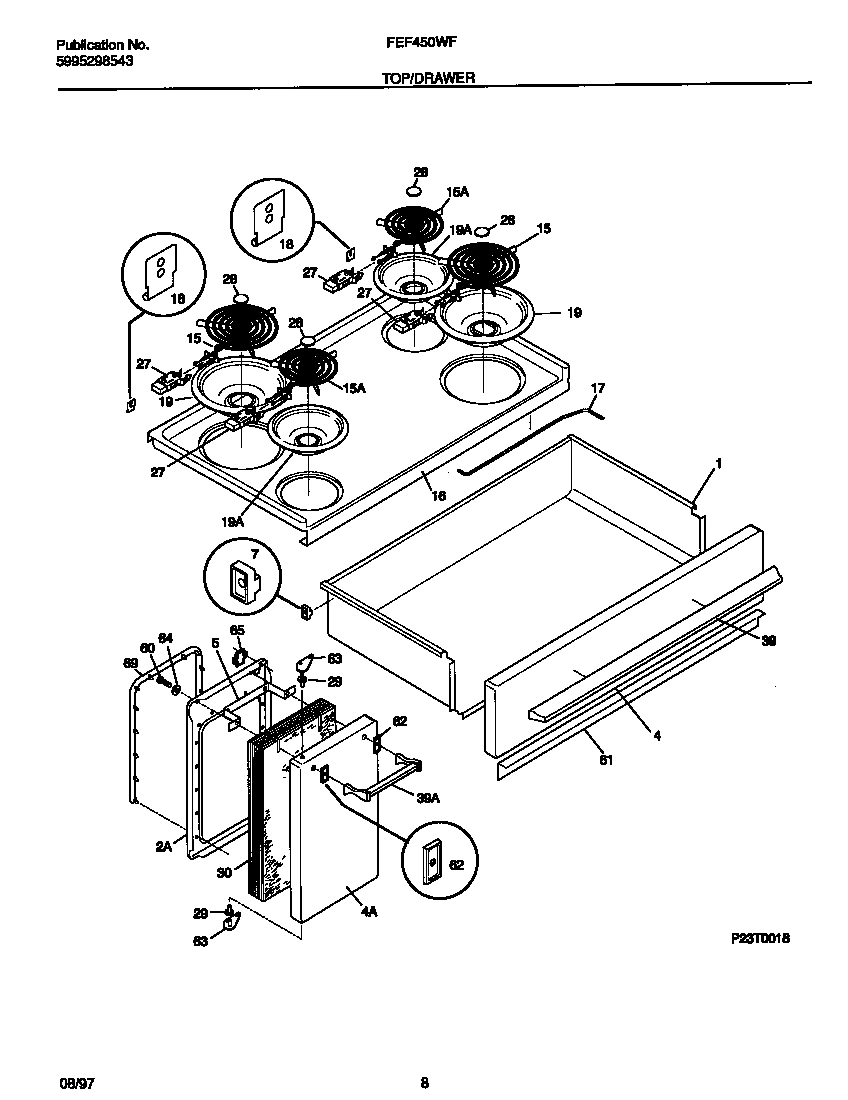

05 - TOP/DRAWER

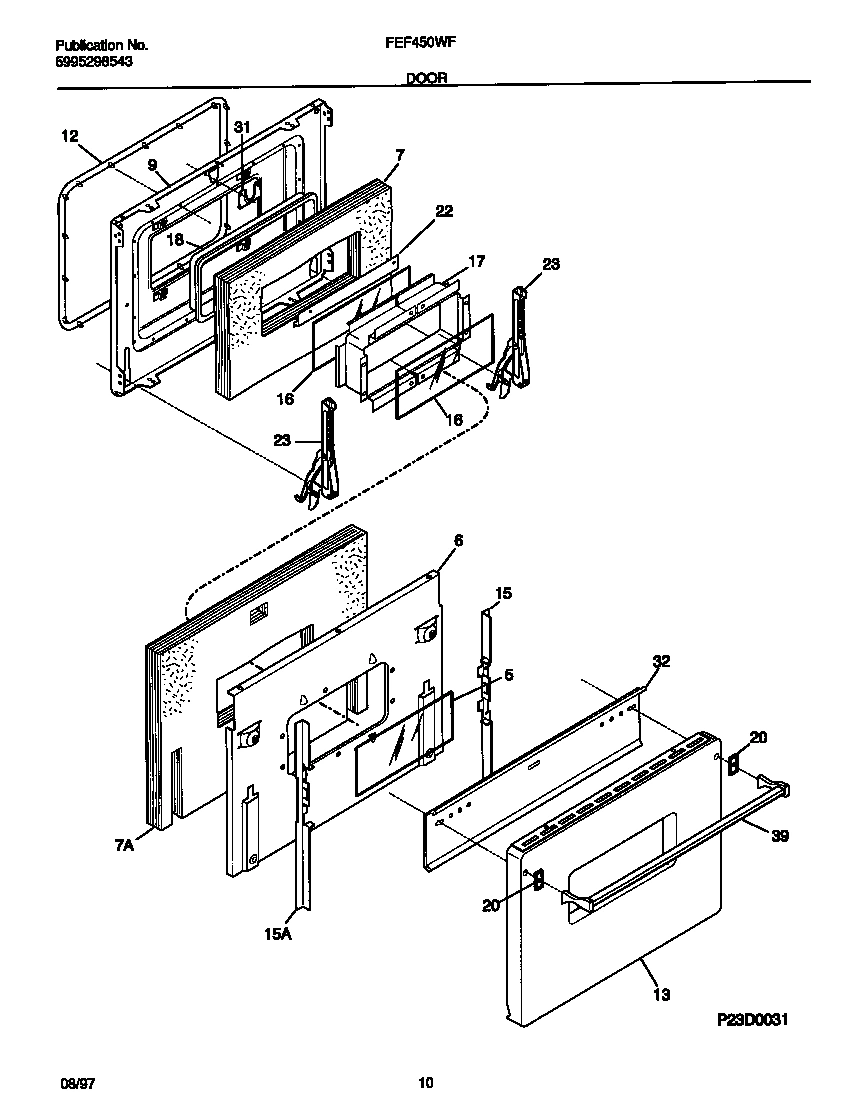

06 - DOOR

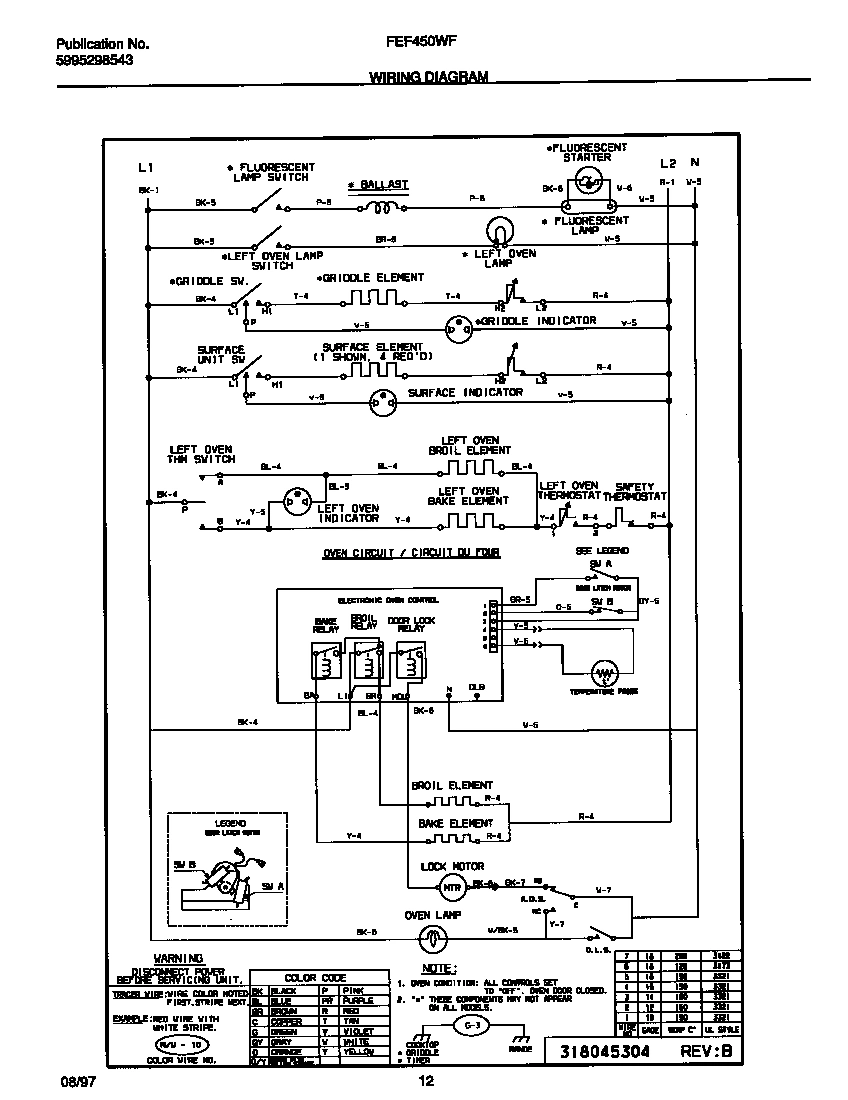

07 - WIRING DIAGRAM
Common parts from model Electrolux FEF450WFWA RANGE
*28563
WCI 3204817 WCI 3204817 Contact Us For Availability
*28564
GRILL-BROILER, SMALL OVEN WCI 08014183 Contact Us For Availability
*28565
SUPPORT-GUSSET WCI 318055500 Contact Us For Availability
*28566
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
*28569
BRACKET-BACKSPLASH WCI 5303304030 Contact Us For Availability
*28572
NUT WCI 5305151612 Contact Us For Availability
*28575
RETAINER-HINGE PIN 57034000 WCI 3051745 Contact Us For Availability
*28576
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*28578
WCI 5303321106 WCI 5303321106 Contact Us For Availability
*28580
SCREW-OVEN DOOR, 10 X 1/2, (5) WCI 5303317975 Contact Us For Availability
*28583
SCREW, TOP TRIM, 6-32 X 3/8 WCI 5303131766 Contact Us For Availability
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
2
WCI 318048204 WCI 318048204 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5308012527 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, LH WCI 5308012528 Contact Us For Availability
4
WCI 318073704 WCI 318073704 Contact Us For Availability
4
PANEL-DRAWER, WHITE WCI 08011980 Contact Us For Availability
4
WCI 318009308 WCI 318009308 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
5
GLASS-OVEN DOOR, HEAT BARRIER, INNER WCI 5303310508 Contact Us For Availability
5B
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203575 Contact Us For Availability
5C
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203576 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
RACK-OVEN, SMALL WCI 318119700 Contact Us For Availability
6
BAFFLE-DOOR WCI 318057000 Contact Us For Availability
7
GLIDE-DRAWER WCI 5301315217 Contact Us For Availability
7
WCI 318106000 WCI 318106000 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5305069001 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 318071900 Contact Us For Availability
8
WCI 5303311141 WCI 5303311141 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 5303320621 WCI 5303320621 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
13
WCI 318009101 WCI 318009101 Contact Us For Availability
15
WCI 318024000 WCI 318024000 Contact Us For Availability
15
WCI 318024001 WCI 318024001 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
16
MAIN TOP, WHITE WCI 08011961 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
17
SPACER-GLASS WCI 318139000 Contact Us For Availability
18
SEAL-ROPE WCI 5303310531 Contact Us For Availability
18A
BRACKET-HINGE, MAIN TOP LH WCI 3051658 Contact Us For Availability
18B
BRACKET-HINGE, MAIN TOP RH WCI 5301315631 Contact Us For Availability
19A
WCI 318138501 WCI 318138501 Contact Us For Availability
19A
WCI 318138500 WCI 318138500 Contact Us For Availability
19B
TRIM RING-LARGE (NOT ILLUSTRATED) WCI 5308003114 Contact Us For Availability
19B
TRIM RING-SMALL (NOT ILLUSTRATED) WCI 5308003113 Contact Us For Availability
20
WCI 3201572 WCI 3201572 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23A
HINGE-OVEN DOOR, ASSEMBLY WCI 318024700 Contact Us For Availability
25
SHIELD-HEAT, LOWER WCI 318133000 Contact Us For Availability
27A
TERMINAL BLOCK, SURFACE ELEMENT WCI 5303323704 Contact Us For Availability
27B
SUPPORT, TERMINAL BLOCK, (4) (NOT ILLUSTRATED WCI 318122500 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
SPACER-HINGE PIN WCI 318141800 Contact Us For Availability
30
WCI 318023909 WCI 318023909 Contact Us For Availability
30
INSULATION-DOOR, SMALL OVEN WCI 5301311649 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
32
WCI 318057200 WCI 318057200 Contact Us For Availability
36
KNOB-SURFACE UNIT, BLACK, (4) WCI 5303299751 Contact Us For Availability
39
WCI 318040603 WCI 318040603 Contact Us For Availability
39A
WCI 3201576 WCI 3201576 Contact Us For Availability
39A
WCI 318040602 WCI 318040602 Contact Us For Availability
39B
SPACER-DEFLECTOR, (2) (NOT ILLUSTRATED) WCI 5303310504 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
SHIELD-WIRE WCI 318057401 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, RED, (2) WCI 5308006417 Contact Us For Availability
54
SWITCH-SURFACE UNIT, (4) WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318055700 WCI 318055700 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5301167905 Contact Us For Availability
58
WCI 5301305817 WCI 5301305817 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58B
WIRE-TIE (NOT ILLUSTRATED) WCI 5303299689 Contact Us For Availability
59
WCI 3017402 WCI 3017402 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
63A
WCI 318024505 WCI 318024505 Contact Us For Availability
63B
WCI 318024507 WCI 318024507 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
66
WCI 318110100 WCI 318110100 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SEAL-OVEN DOOR WCI 318053300 Contact Us For Availability
69
PLATE-OVEN LIGHT WCI 318036400 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
76
FRAME-FRONT WCI 318056004 Contact Us For Availability
77A
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77B
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN ASSY, SMALL WCI 318089200 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
84A
WCI 3204822 WCI 3204822 Contact Us For Availability
84B
WCI 3204823 WCI 3204823 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 5303324863 WCI 5303324863 Contact Us For Availability
102
SUPPORT-OVEN FRONT WCI 08011954 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
COVER-WIRING WCI 5303310515 Contact Us For Availability
137
WCI 33204318 WCI 33204318 Contact Us For Availability
139
WCI 318042900 WCI 318042900 Contact Us For Availability
140
RETAINER-INSULATION WCI 318071300 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
× ![]()
